Comstock-Castle F3430-36 Gas Ranges
Description

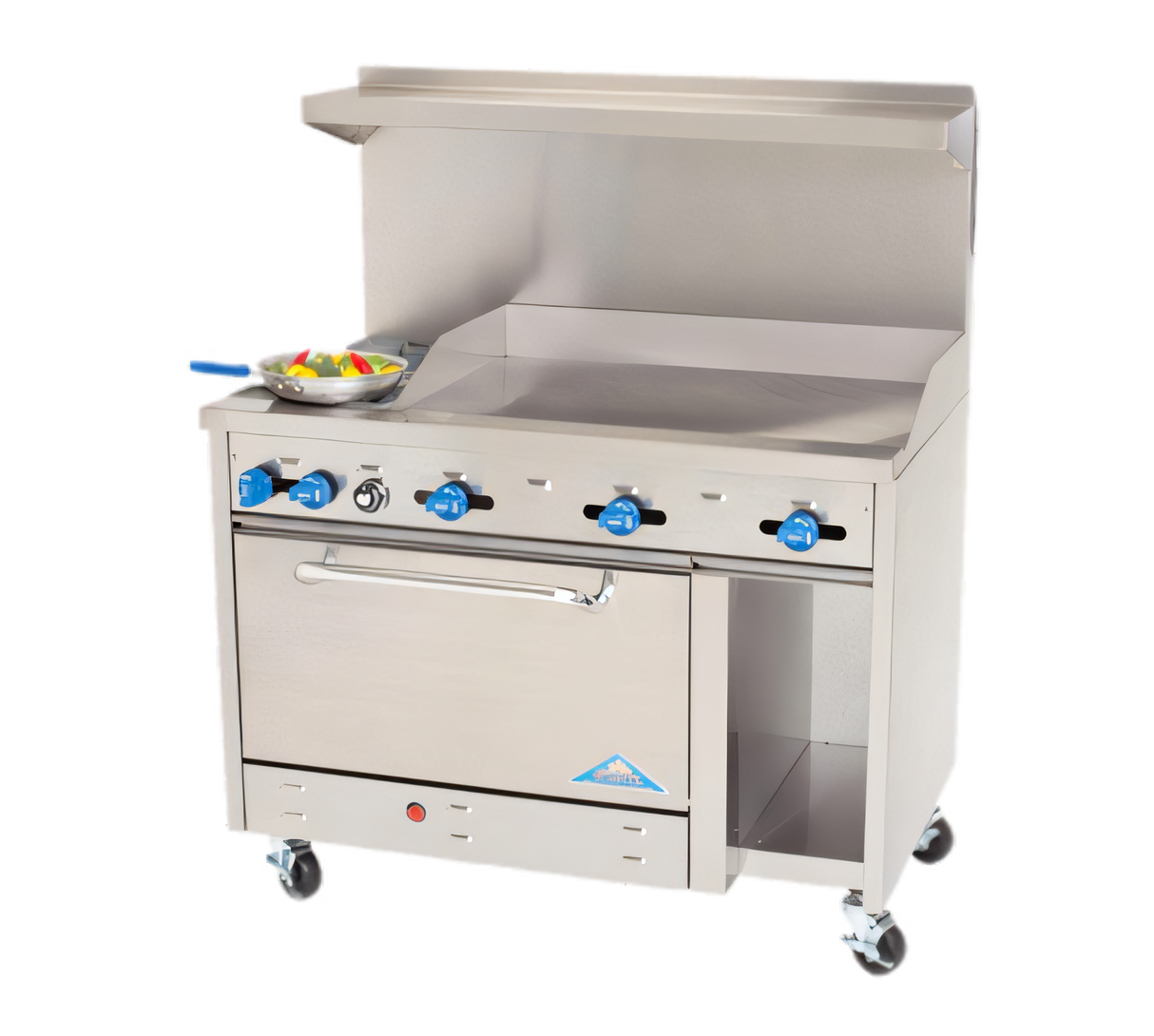

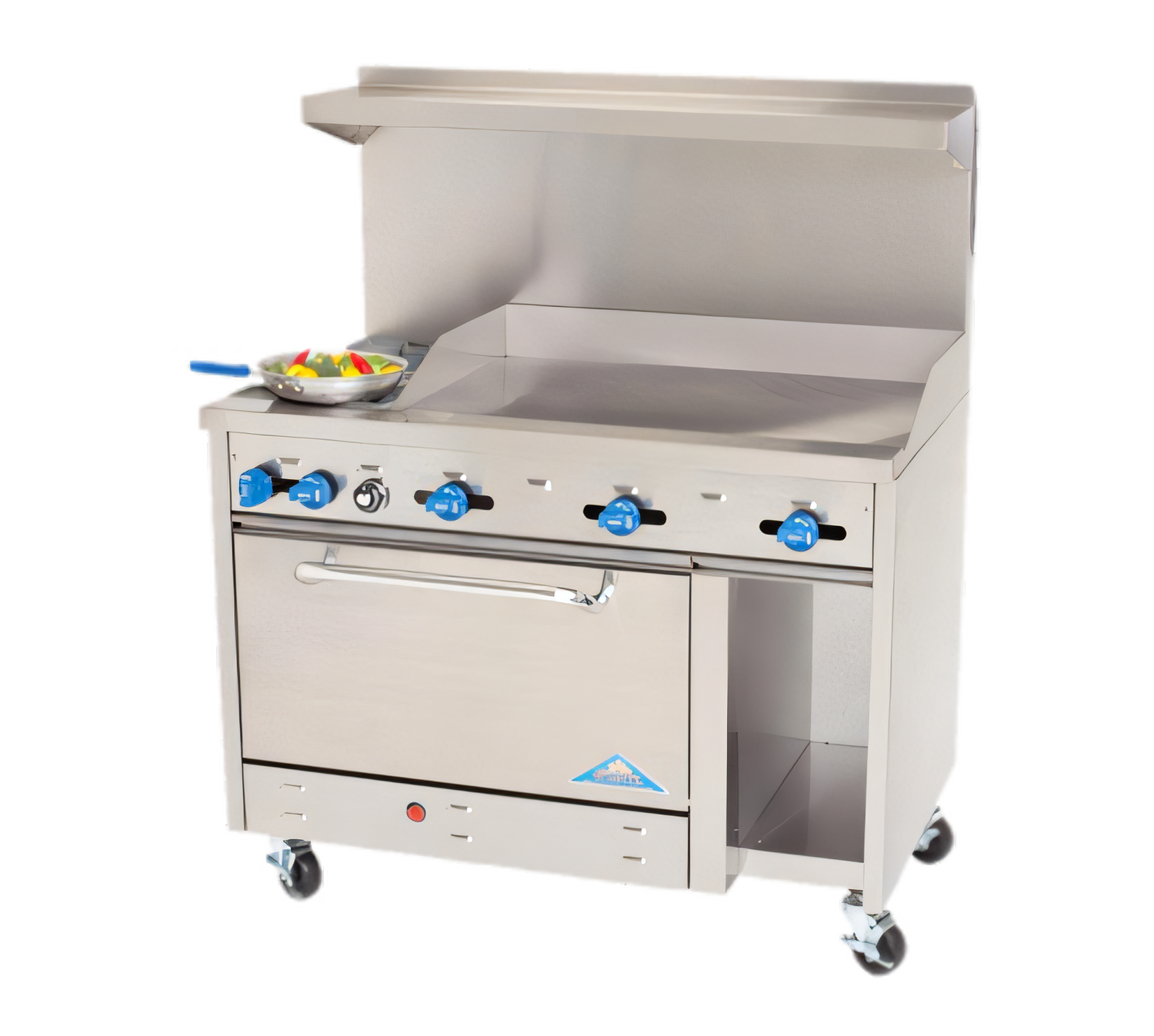

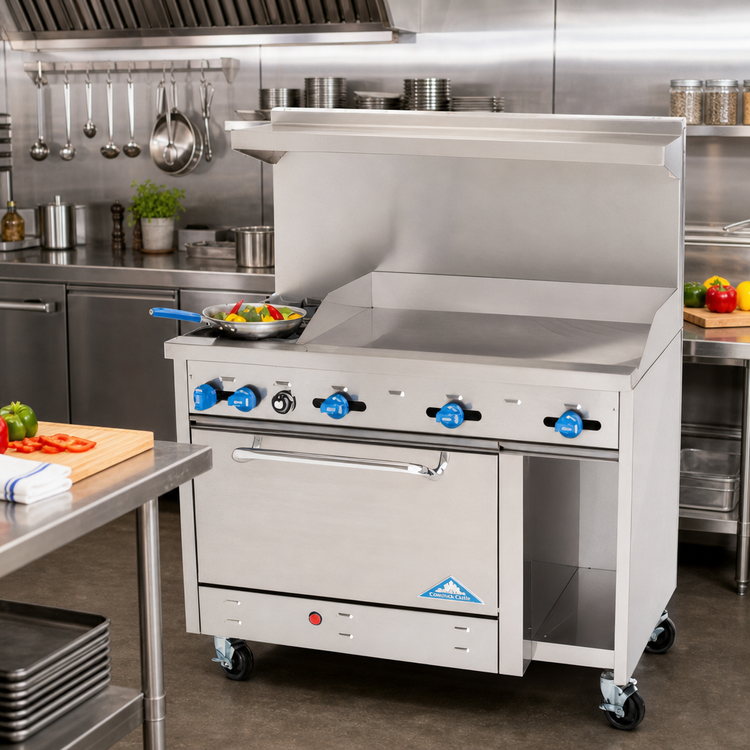

Comstock-Castle 48" Gas Range w/ 36" Manual Griddle & Single Oven – 156,000 BTU
Model configuration based on series F3430-36Two high-output open burners, an expansive 36-inch griddle, and an extra-wide 31-inch oven unite in one rugged 48-inch platform. Built for demanding commercial kitchens, this Comstock-Castle range delivers the versatility, power, and durability needed for breakfast rushes, lunch grills, and dinner service alike.
Key Features
- 48" corrosion-resistant stainless-steel cabinet with welded angle-iron frame

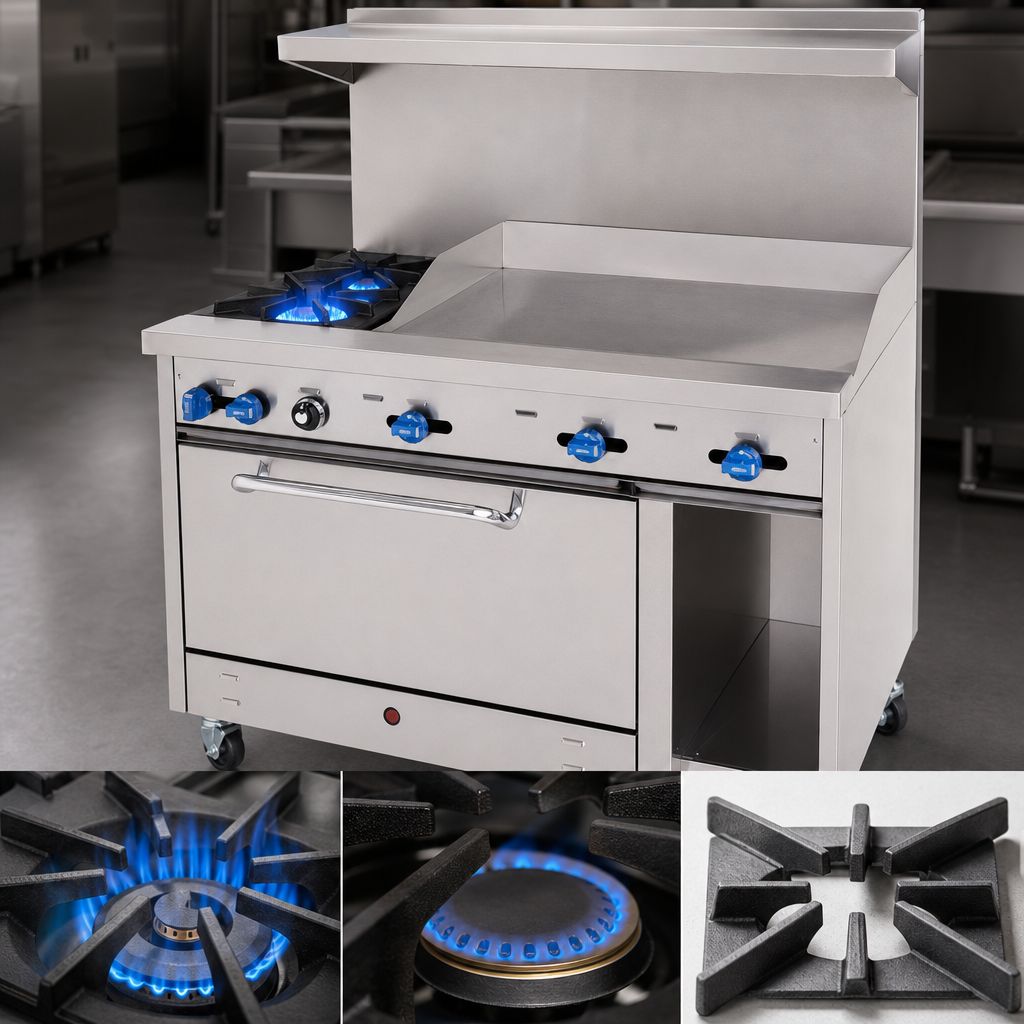

- (2) open “star” pattern burners
- Front burner – 24,000 BTU
- Rear burner – 30,000 BTU
- 12" × 12" cast-iron grates with spillover bowls for heat reflection

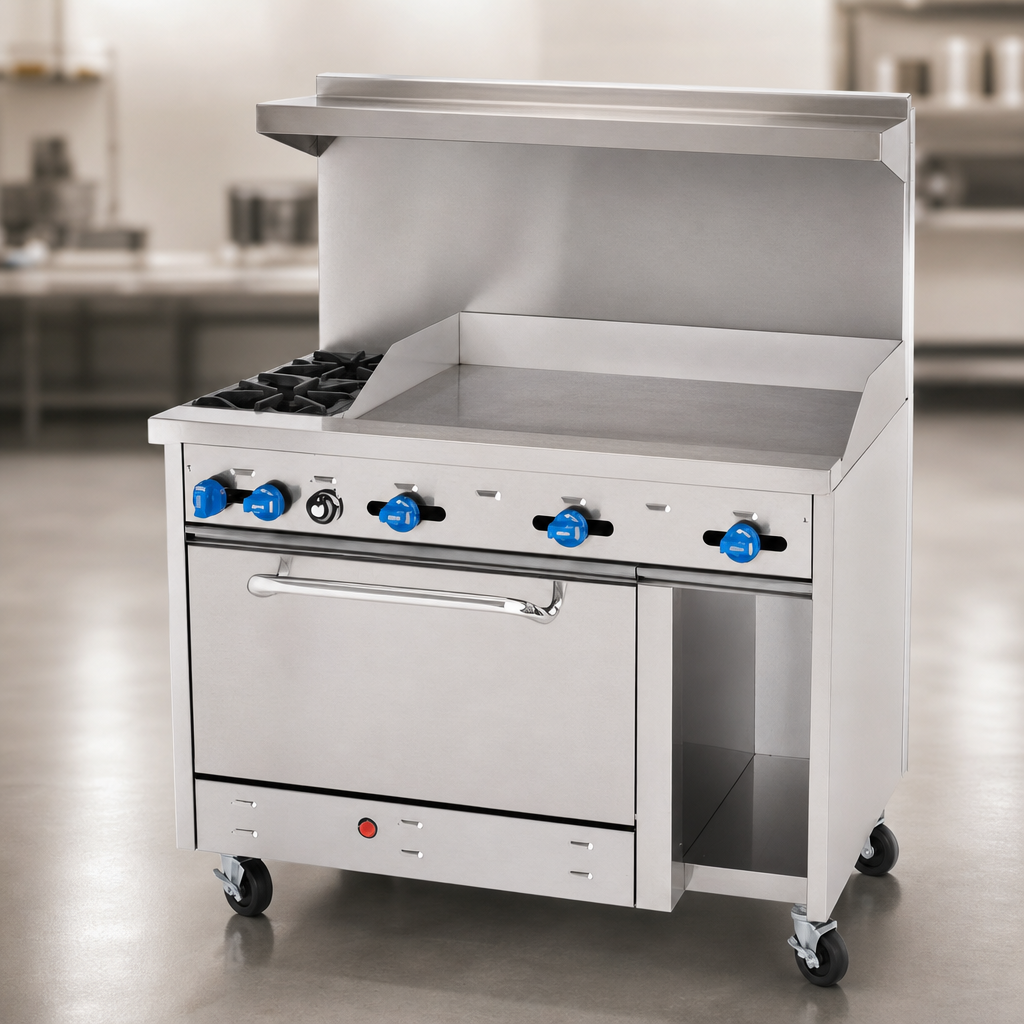

- 36" wide, ¾" thick steel griddle plate (manual controls)
- Even heat retention for flawless pancakes, burgers, and sauté stations
- 4" tapered stainless splash and full-width grease trough with large pull-out drawer
- Extra-wide 31" oven (31.5" W × 22" D × 14" H)
- 30,000 BTU cast-iron “H” burner with V-baffle for uniform bake temperatures
- Enamel-lined door & deck clean up fast
- (1) nickel-plated rack; 3 rack positions (2¾" spacing)
- Total input: 156,000 BTU/hr
- ¾" rear gas manifold & factory-preset pressure regulator (Natural 4" WC / LP 10" WC)
- 6" adjustable stainless-steel legs; 37" cooking-surface height
- Stainless bull-nose rail is level with cooktop for safe plating & pan staging
- Stainless back riser with convenient high shelf for smallwares & seasonings
- Certified NSF & cETLus for commercial food-service use
Specifications
| Overall width | 48" |
|---|---|
| Cooktop layout | (2) open burners & 36" manual griddle |
| Total BTU | 156,000 BTU/hr |
| Oven interior | 31.5" W × 22" D × 14" H |
| Oven burner | 30,000 BTU cast-iron “H” burner |
| Griddle plate | 36" W × ¾" thick, polished steel |
| Gas connection | ¾" NPT (rear) |
| Working height | 37" to cook surface |
| Construction | Stainless exterior, double-wall insulated |
| Certifications | NSF, cETLus |
| Warranty | 1-year parts & labor (standard) |
Installation must be performed by a licensed gas technician. Always verify local code compliance and clearances for combustible and non-combustible locations. Specifications are subject to change without notice.
