Comstock-Castle F3430-24-1RB Gas Ranges
Description

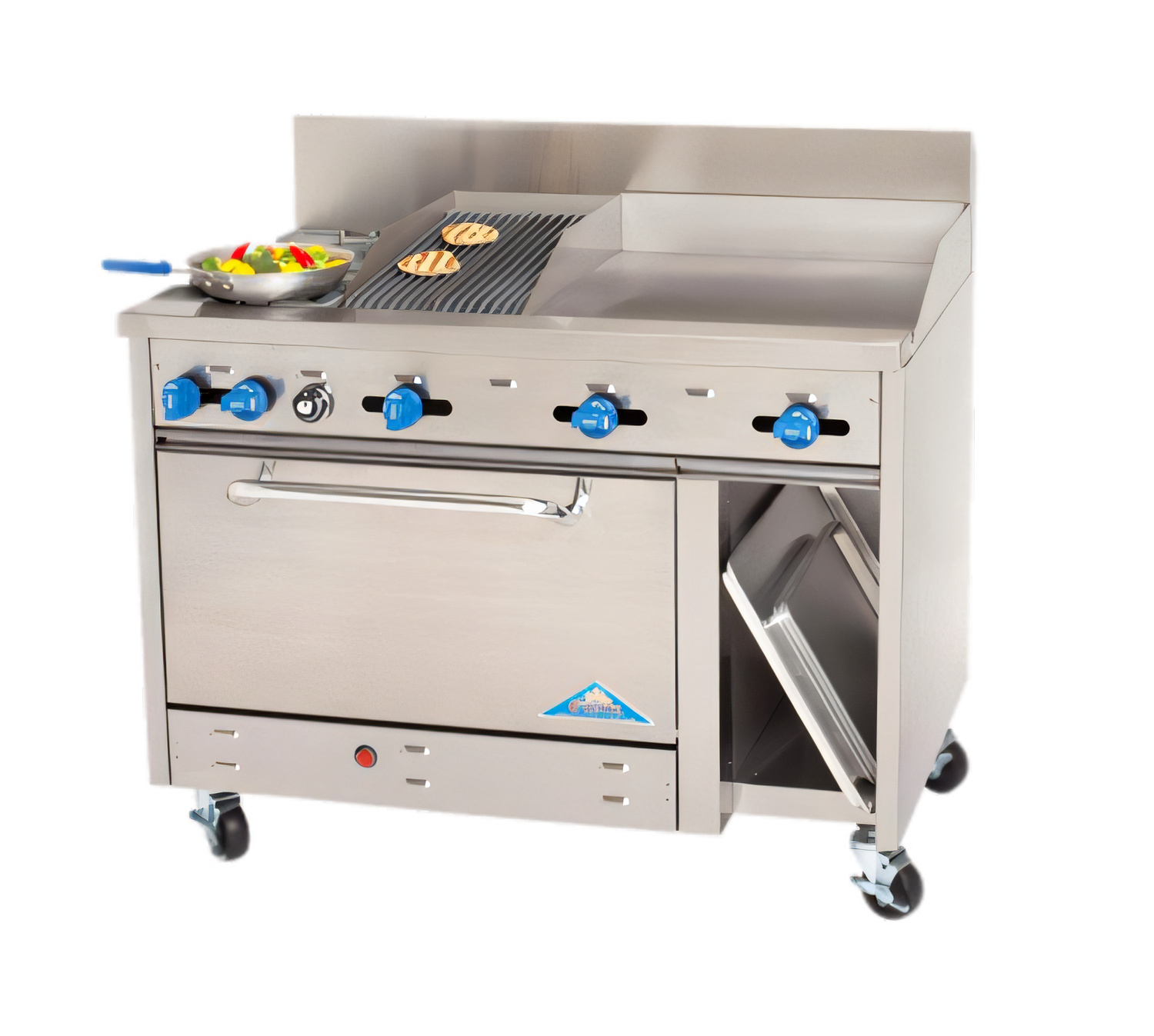

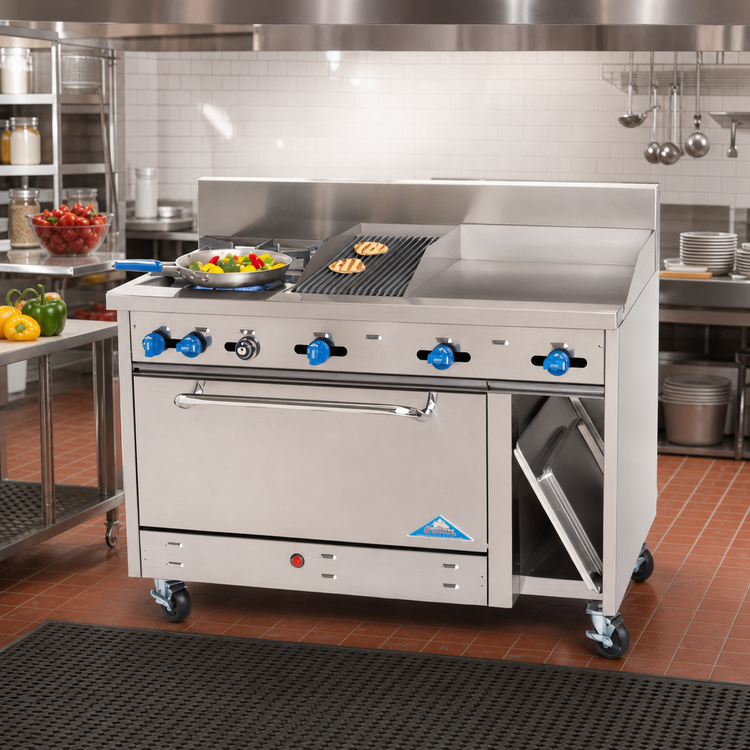

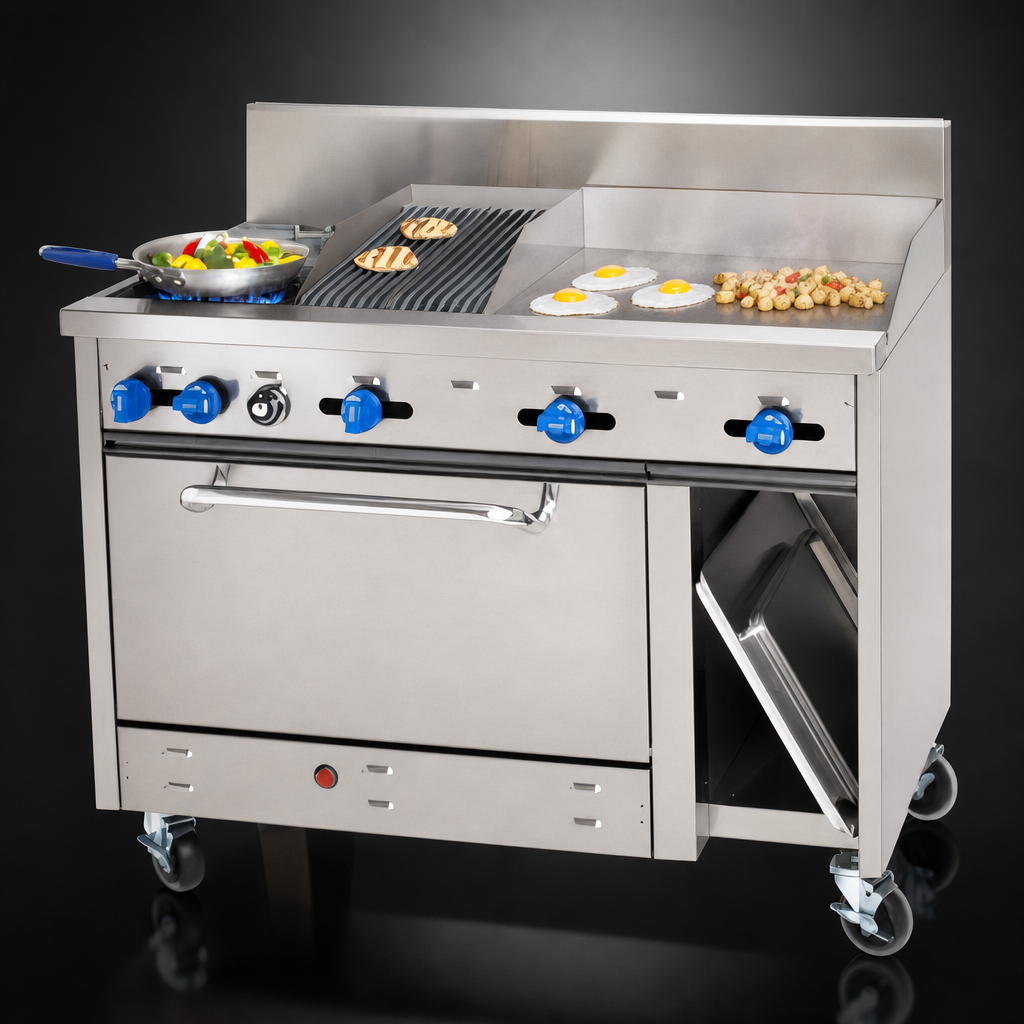

Comstock-Castle 48" Gas Range F3430-24-1RB
2 Star Burners • 24" Griddle • 12" Radiant Char-Broiler • 31" Oven • 10" Storage BaseA true space-saver for high-output kitchens, this 48 inch Comstock-Castle range combines open-top versatility, heavy-duty griddling, flame-kissed char-broiling and a full-size bakery oven—plus a convenient cabinet base—all in one stainless-steel workhorse.
Key Features

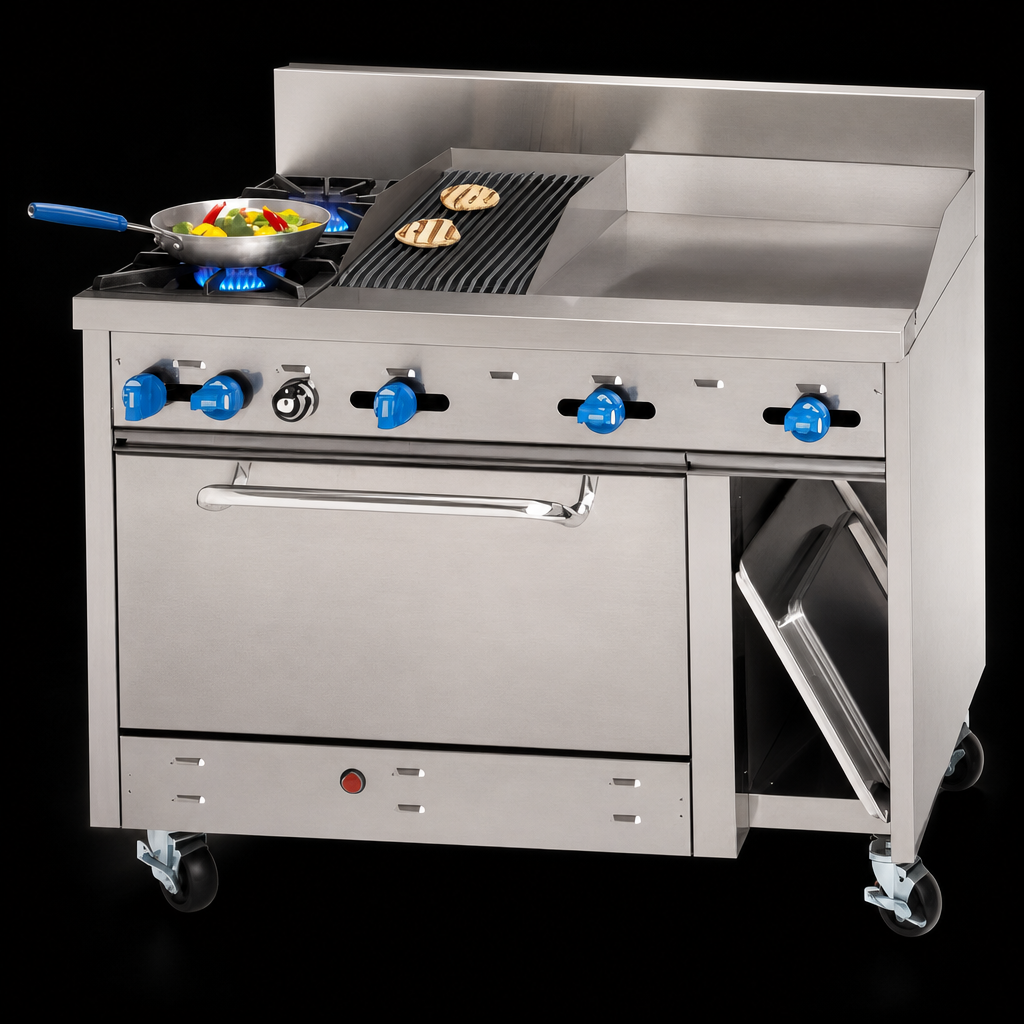

- Two 7" star-pattern open burners
- Front burner: 24,000 BTU
- Rear burner: 30,000 BTU
- 12" × 12" cast-iron grates with integrated spillover bowls
- 24" manual-control griddle
- ¾" thick highly-polished steel plate for even heat
- Front cold-zone grease trough & large removable drawer
- 12" radiant char-broiler
- 25,000 BTU cast-iron burner with angle-iron radiants
- Reversible cast-iron grates—level or sloped for perfect sear marks
- Extra-wide 31 inch oven
- 30,000 BTU cast-iron “H” burner
- Porcelain/enamel door & bottom linings for easy wipe-down
- One chrome rack, 3 positions (2 ¾" spacing)
- 10" cabinet base storage—galvanized interior, enclosed on three sides
- Durable stainless-steel front, sides, 7" backguard & bull-nose rail
- 6" adjustable stainless-steel legs; 37" working height
- Total input: 162,000 BTU | ¾" NPT rear gas connection
- cETLus & NSF listed for commercial use
Specification Table
| Overall width | 48 in (1219 mm) |
|---|---|
| Depth (to bull-nose) | 30.5 in (775 mm) |
| Height to cook surface | 37 in (940 mm) |
| Open burners | 2 × star burners, 24 k & 30 k BTU |
| Griddle section | 24 in, ¾" plate, manual valves, 20 k BTU |
| Char-broiler section | 12 in radiant, 25 k BTU |
| Oven cavity | 31½" W × 22" D × 14" H, 30 k BTU |
| Storage base | 10 in wide cabinet, three-side enclosure |
| Total BTU input | 162,000 BTU/hr |
| Gas inlet | ¾" NPT, 4" WC Natural | 10" WC LP |
| Certifications | NSF, cETLus |
| Warranty | 1 year parts & labor (commercial) |
Built by America’s Oldest Stove Company
Since 1838, Comstock-Castle has crafted high-performance cooking equipment that stands up to the daily grind of busy restaurants and institutions. Every range is welded, insulated and pressure-tested at the factory to ensure dependable, energy-efficient operation right out of the crate.
Compliance & Warranty
- Meets NSF sanitation standards for open-food contact equipment.
- cETLus certified for gas safety & performance in the U.S. and Canada.
- One-year parts & labor warranty; see enclosed documentation for details.
Installation must be completed by a licensed gas professional to maintain warranty coverage. Always verify local code requirements before purchase.
