Comstock-Castle F3430-12-1RB Gas Ranges
$12,815.00
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Comstock-Castle F3430-12-1RB Gas Ranges is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Comstock-Castle F3430-12-1RB Gas Ranges
$12,815.00
Unit price
/
Unavailable
Description

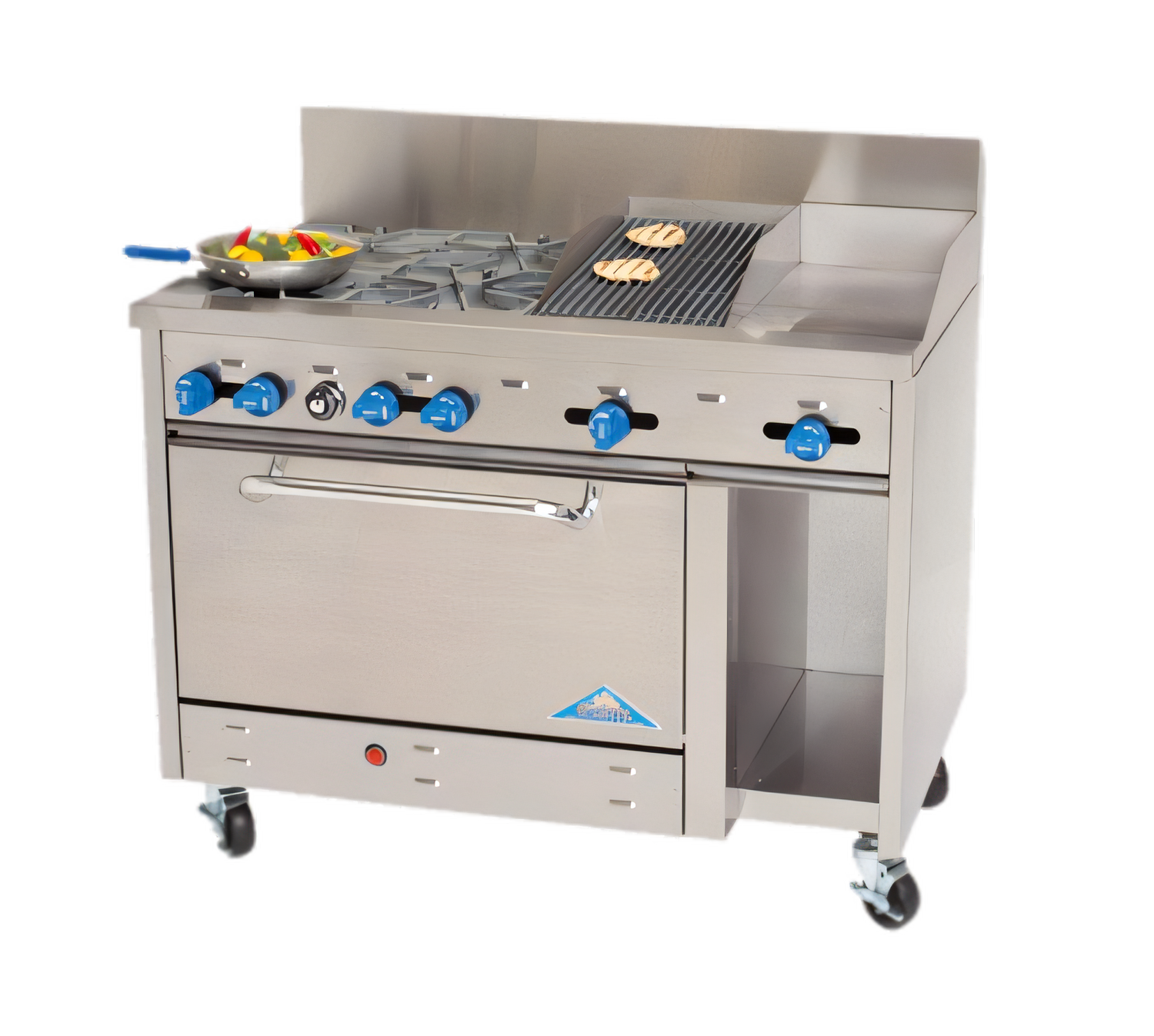

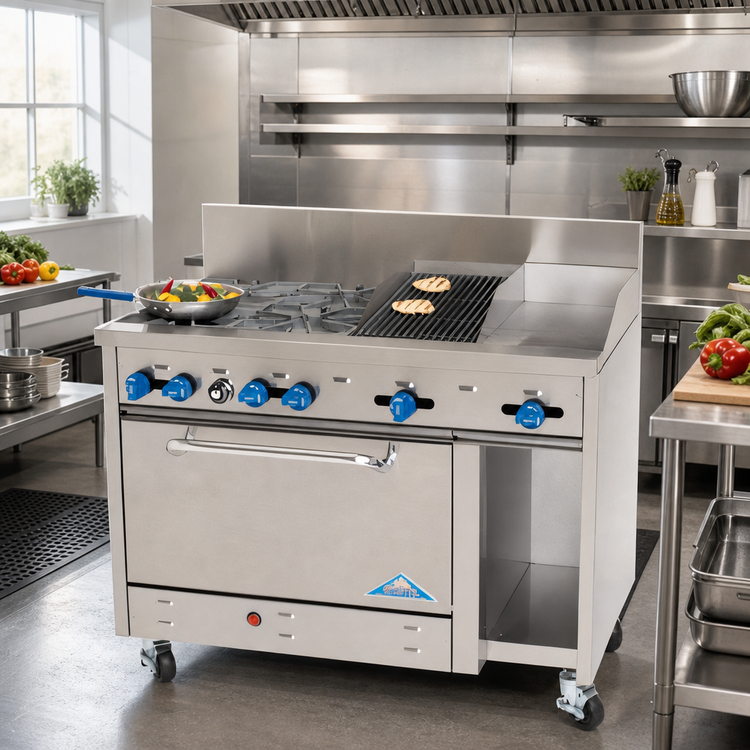

Comstock-Castle 48" Gas Range with 4 Burners, 12" Griddle & 12" Char-Broiler
192,000 BTU • NSF & cETLus CertifiedBuilt for demanding commercial kitchens, this 48-inch Comstock-Castle range combines high-output open burners, a precision griddle, a flare-up-reducing char-broiler and a full-size oven—all in one rugged, stainless-steel package.
Key Features

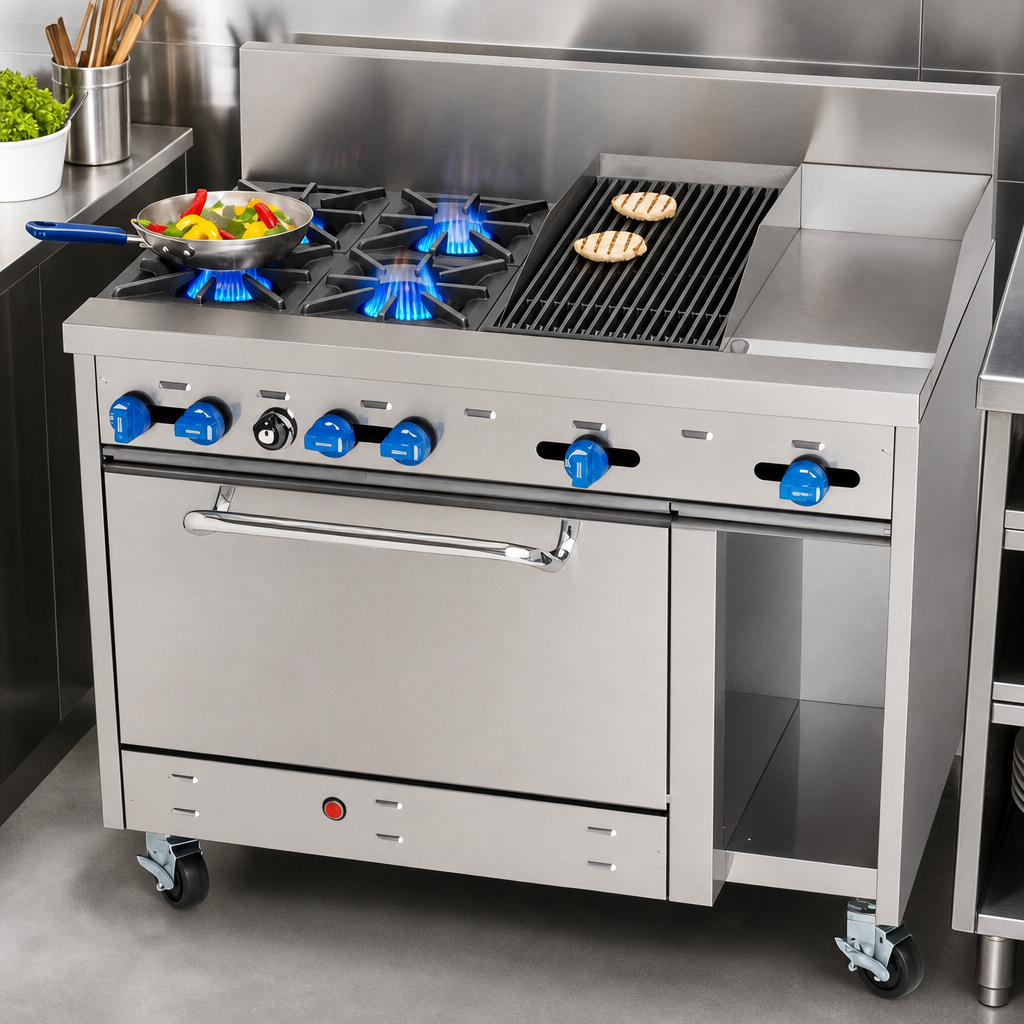

- Four star-pattern open burners—front pair at 24,000 BTU, rear pair at 30,000 BTU—for fast boil or gentle simmer.
- 12" × 12" cast-iron grates with spill-over bowls allow easy pan movement across the cooktop.

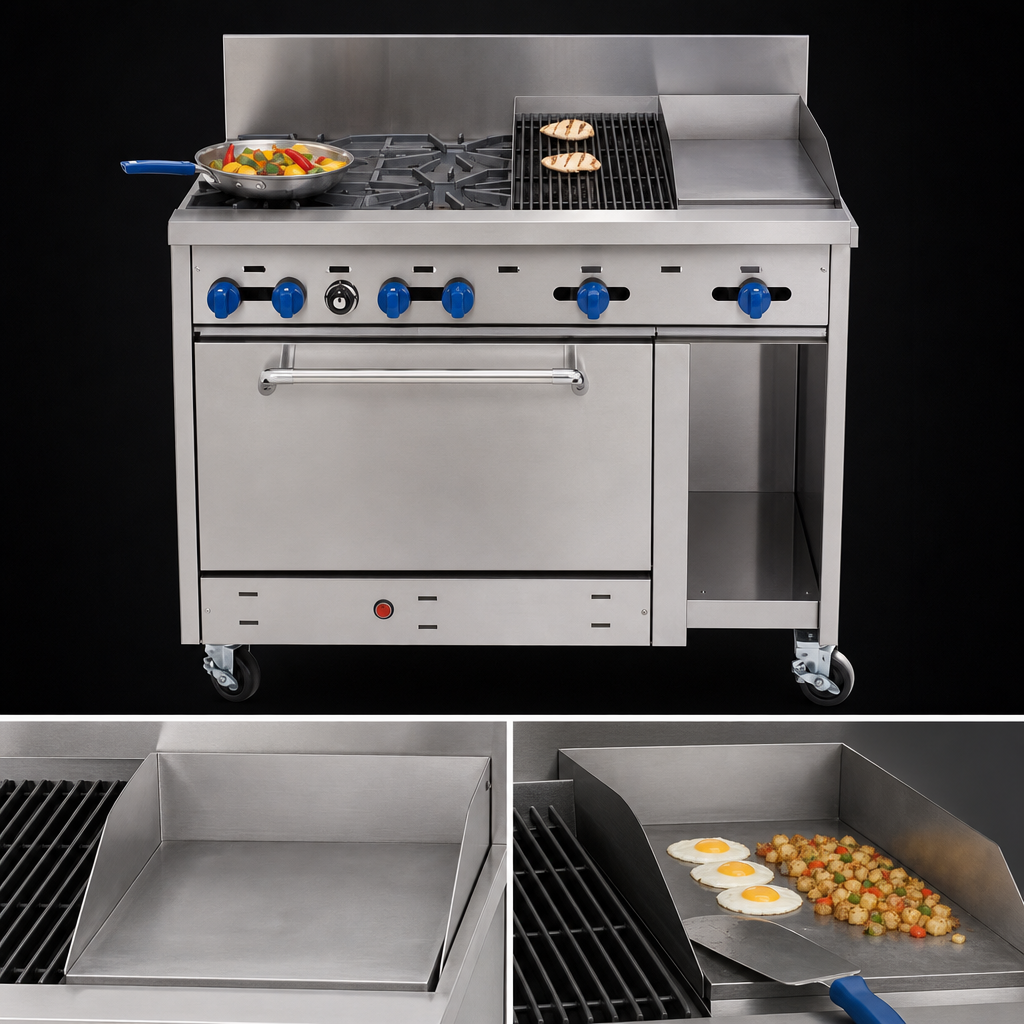

- 12" wide, ¾" thick steel griddle with manual controls and front grease trough for perfect pancakes, burgers and more.
- 12" radiant char-broiler with cast-iron grates and radiants delivers authentic grill marks while minimizing flare-ups.
- Extra-wide 31" oven with porcelain-enameled door & liners, 30,000 BTU “H” burner, and one nickel-plated rack with 3 positions.
- 10" cabinet-base storage area—galvanized on three sides—keeps sheet pans and utensils within reach.
- Stainless bull-nose control rail, 7" backguard and 6" adjustable stainless legs for a clean, professional installation.
- Total output: 192,000 BTU/hr with a ¾" NPT rear gas connection (factory set 4" WC Nat Gas / 10" WC LP).
Specifications
| Overall width | 48" (1219 mm) |
|---|---|
| Cook surface height | 37" |
| Open burners | 4 (2 × 24,000 BTU + 2 × 30,000 BTU) |
| Griddle section | 12" W × 24" D, ¾" thick, 20,000 BTU |
| Char-broiler section | 12" W, cast-iron radiants, 25,000 BTU |
| Oven cavity (W × D × H) | 31.5" × 22" × 14" |
| Oven burner | 30,000 BTU cast-iron “H” pattern |
| Rack positions | 3 (one rack included) |
| Storage base | 10" W cabinet, enclosed on 3 sides |
| Total BTU | Approx. 192,000 BTU/hr |
| Gas connection | ¾" NPT (rear manifold) |
| Certifications | NSF, cETLus |
| Construction | Stainless steel front, sides and 7" backguard; double-wall insulated body |
| Legs | 6" stainless pipe legs, height-adjustable |
| Warranty | 1-year parts & labor (60-day labor / 120-day parts on mobile food units) |
Looking for a different top configuration? Chat with our food-service team or contact us for custom Comstock-Castle solutions.
Gas equipment notice: Installation must be performed by a licensed gas technician
and in accordance with all local codes. Failure to follow the manufacturer’s installation checklist will void the warranty.
Features & Specs
Features & Specs
Manufacturer
Comstock-Castle
Certifications
NSF, cETLus
Height
46.0in
Width
48.0in
Depth
30.5in
Shipping Weight
740.0lbs
Top
(4) open burners, (1) 12" griddle, (1) 12" charbroiler
Vent
backriser
Base
(1) standard oven, (1) cabinet
Plate Thickness
.750" = 3/4"
Exterior Finish
all stainless steel exterior
Specifications
Range, gas, 48" wide, (4) Four star burners (Front burner 24,000 BTU) (Rear burner 30,000 BTU) with 12" square cast iron grates, (1) 12" - 3/4" thick griddle with manual controls, (1) 12" char-broiler with iron radiants, extra wide 31" oven with enamel door & bottom linings, (1) rack with 3 positions, (1) 10" wide cabinet base storage area enclosed on 3 sides with galvanized steel interior, stainless steel exterior & 7" high backguard, 6" stainless steel legs, 37" tall to cook surface, 3/4" Gas Connection, 192,000 BTU, NSF, cETLus
