Comstock-Castle F34-4RB Gas Ranges
Description

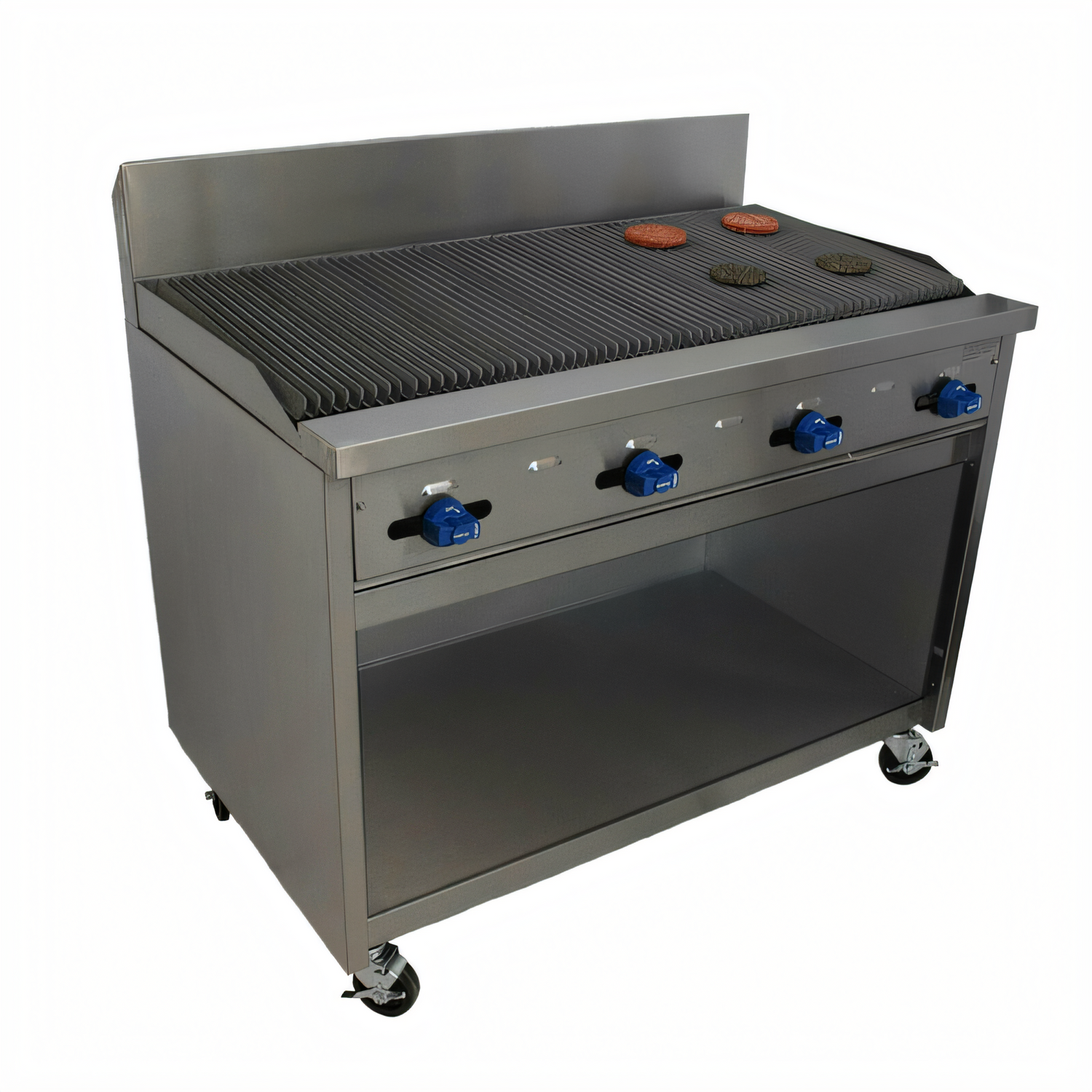

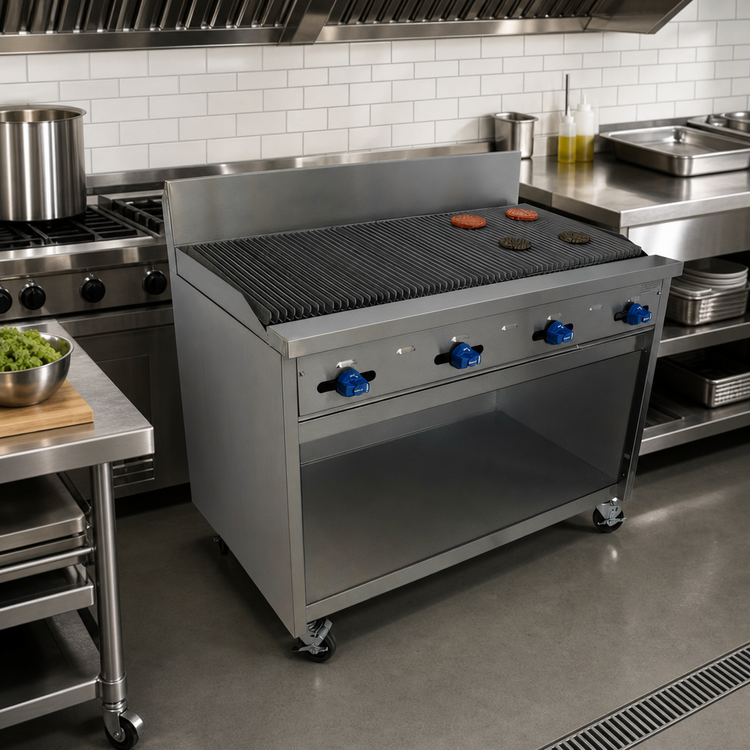

Comstock-Castle 48" Radiant Gas Char-Broiler Range w/ Cabinet Base – 120,000 BTU
NSF & cETLus Listed | 3/4" NPT Gas Connection | 1-Year Parts & Labor WarrantyTurn out steak-house quality grill marks shift after shift with this heavy-duty floor model char-broiler. A full 48" cooking surface rides atop a rugged stainless steel cabinet base, delivering 120,000 BTU of even, radiant heat while giving you enclosed storage right where you need it.
Highlights

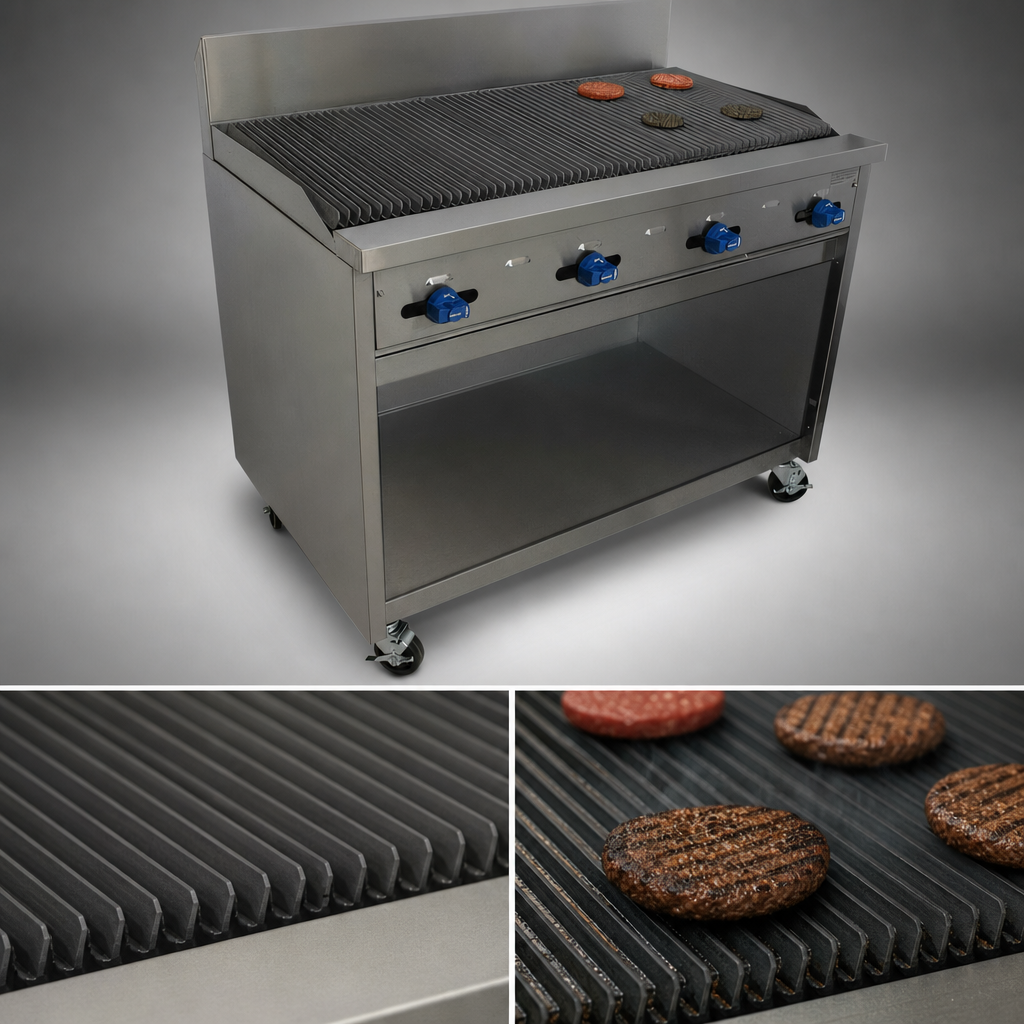

- 48" wide broiler with iron “V” style radiants for fast, even heat transfer and fewer flare-ups.
- Cast-iron top grates (20.5" deep) are reversible for level or sloped grilling and feature built-in grease troughs.
- 4 heavy-duty cast-iron “H” burners (30,000 BTU ea.) independently controlled by brass gas valves & standing pilots.
- Front bull-nose rail stays cool—perfect for plating or resting utensils.
- Oversized, removable grease drawer plus front cold-zone trough keep cleanup fast and safe.

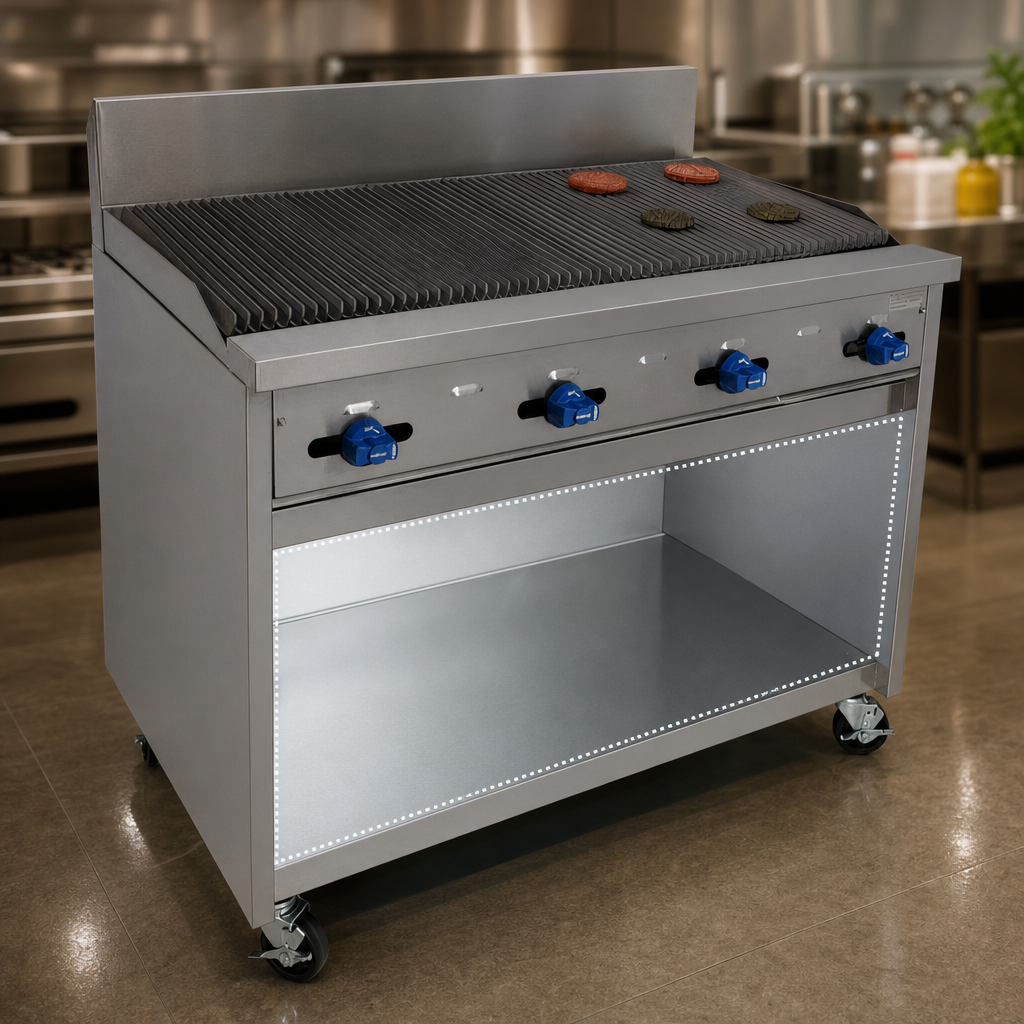

- 46" wide cabinet base is enclosed on three sides with a galvanized interior for dry-storage convenience.
- All-stainless exterior, 7" high backguard and double-wall insulated firebox for cooler side panels.
- Adjustable 6" stainless steel legs; cooking surface stands at an ergonomic 37" height.
- Zero clearance on sides / 4" in rear for non-combustible installations.
Specifications
| Cooking Width | 48" (1219 mm) |
|---|---|
| Base Style | 46" cabinet base, enclosed on 3 sides |
| Heat Source | Natural or Propane Gas (specify) |
| Total BTU | 120,000 BTU/hr |
| Burners | 4 × “H” burners, 30,000 BTU each, standing pilots |
| Radiants | Heavy-duty inverted “V” iron radiants (removable) |
| Top Grates | Cast iron, 20.5" deep, reversible |
| Cooking Height | 37" to grate surface |
| Backguard | 7" high, stainless steel |
| Gas Inlet | 3/4" NPT, regulator preset 4" WC (NG) / 10" WC (LP) |
| Certifications | NSF, cETLus |
| Warranty | 1 year parts & labor (commercial use) |
Built for the Long Shift
Since 1838, Comstock-Castle has engineered American-made cooking equipment that stands up to the punishment of high-volume kitchens. Welded angle-iron framing, aluminized steel fireboxes and fully insulated double-wall construction keep heat where it belongs—on the food, not in your line.
Included With Your Purchase
- 48" radiant char-broiler range (factory-set for your gas type)
- Adjustable 6" stainless steel legs
- Factory-installed pressure regulator & standing pilots
- Comstock-Castle installation checklist & warranty registration card
- Owner’s / operator’s manual
Need doors, cutting boards or lava rock radiants? Ask our team about factory options and accessories.
