Comstock-Castle F326-18 Gas Ranges
Description

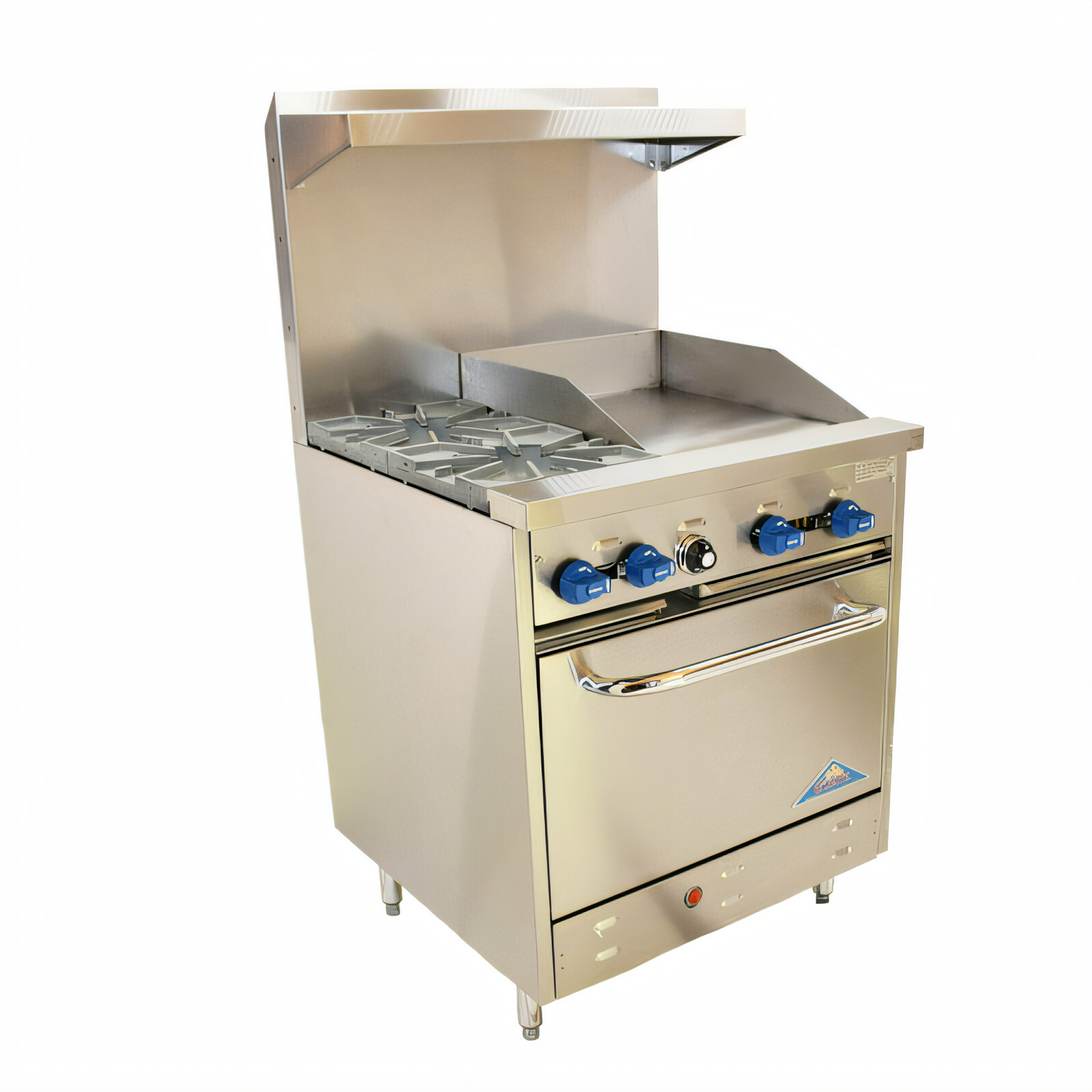

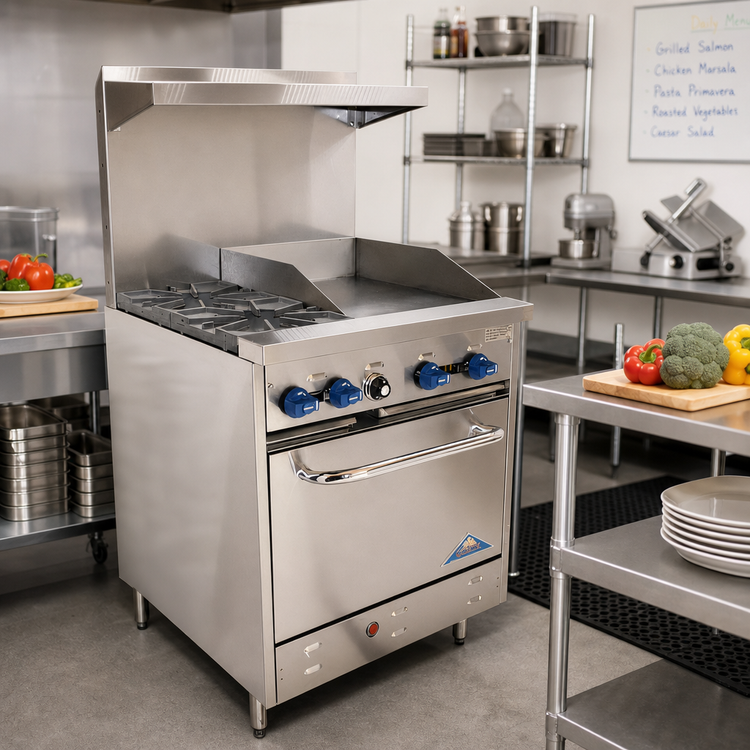

Comstock-Castle 30" Gas Range w/ 18" Griddle & 2 Star Burners
120,000 BTU • NSF & ETL Listed • Model F326-18 (custom spec)Get full-service cooking power in a compact 30" footprint. This Comstock-Castle workhorse pairs two high-output open burners, an extra-thick 18" griddle and a full-width oven—delivering everything your line needs from breakfast rush to dinner service.
Key Advantages

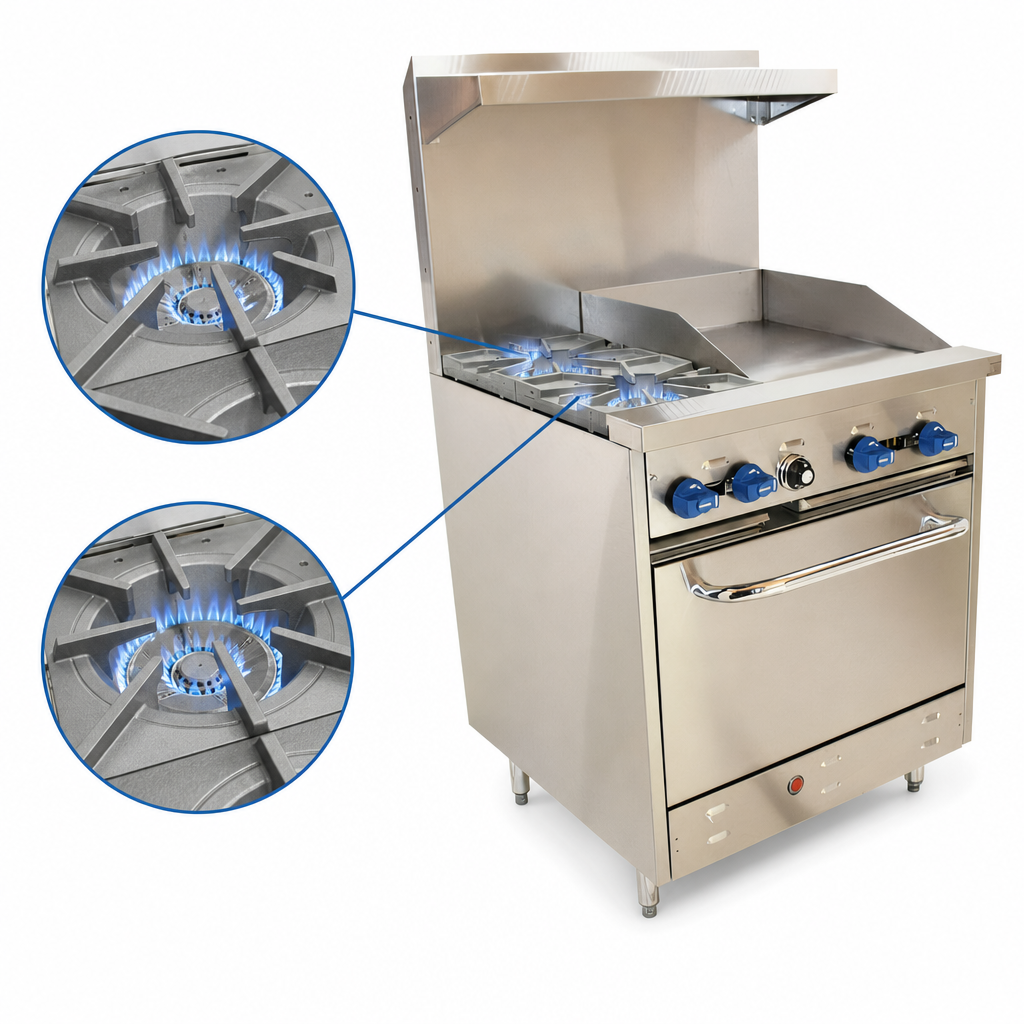

- (2) 7" star-pattern open burners—front 24,000 BTU, rear 30,000 BTU—for even, edge-to-edge heating

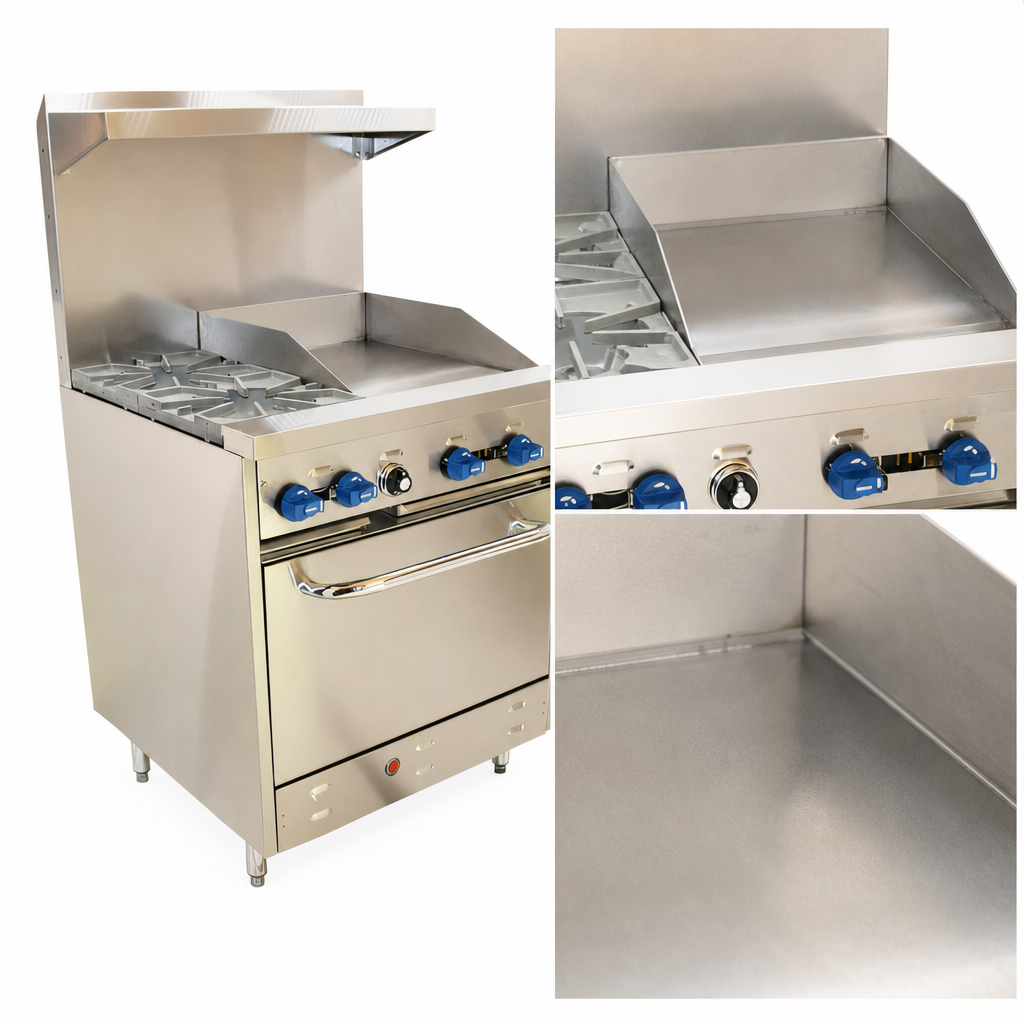

- 18" W × 21 ¼" D, ¾" thick steel griddle with manual controls & full-width grease trough
- 26 ½" standard oven with porcelain door & bottom linings, rated 30,000 BTU
- 12" square cast-iron grates feature a spillover bowl to reflect heat & catch drips
- All-stainless exterior, high backsplash & convenient plate shelf
- Heavy welded frame on 6" adjustable stainless legs—37" cook surface height
- Total input: 120,000 BTU/hr with factory-installed pressure regulator
- Zero-clearance sides/rear to non-combustibles for flexible installation
Oven Performance
- Interior: 26 ½" W × 22" D × 14 ½" H
- (1) Chrome rack with 3 position guides—extra racks available
- Cast-iron “H” burner & baffle ensure even bake temperatures up to 500 °F
Technical Specifications
| Overall width | 30" (762 mm) |
|---|---|
| Depth (incl. bullnose) | 37" (940 mm) |
| Height to cook surface | 37" (940 mm) |
| Back riser / shelf height | 18" |
| Griddle plate | 18" W × ¾" thick • 36,000 BTU (2 × 18,000) |
| Oven burner | 30,000 BTU cast-iron “H” burner |
| Total input | 120,000 BTU/hr |
| Gas connection | ¾" NPT, rear—21 ½" from floor, 3" from left |
| Manifold pressure | 4" W.C. Natural • 10" W.C. Propane |
| Clearances (combustible) | 2" sides • 2" rear |
| Shipping weight | ≈ 460 lb (209 kg) |
| Certifications | NSF • ETL Sanitation & Gas Safety |
What’s Included
- Adjustable 6" stainless legs
- 1 chrome oven rack
- Grease drawer & crumb trays
- Pressure regulator (factory set)
Popular Options (sold separately)
- Caster kit
- Additional oven racks
- Grooved or chrome-plated griddle plate
- Safety pilot & thermostat controls for griddle
- Quick-disconnect gas hose
Warranty: 1 year parts & labor (60 days labor / 120 days parts on mobile installations). Returns within 90 days require factory authorization and are subject to a 25% restocking fee.
