Comstock-Castle CDFL-F-1 Countertop Fryers
Description

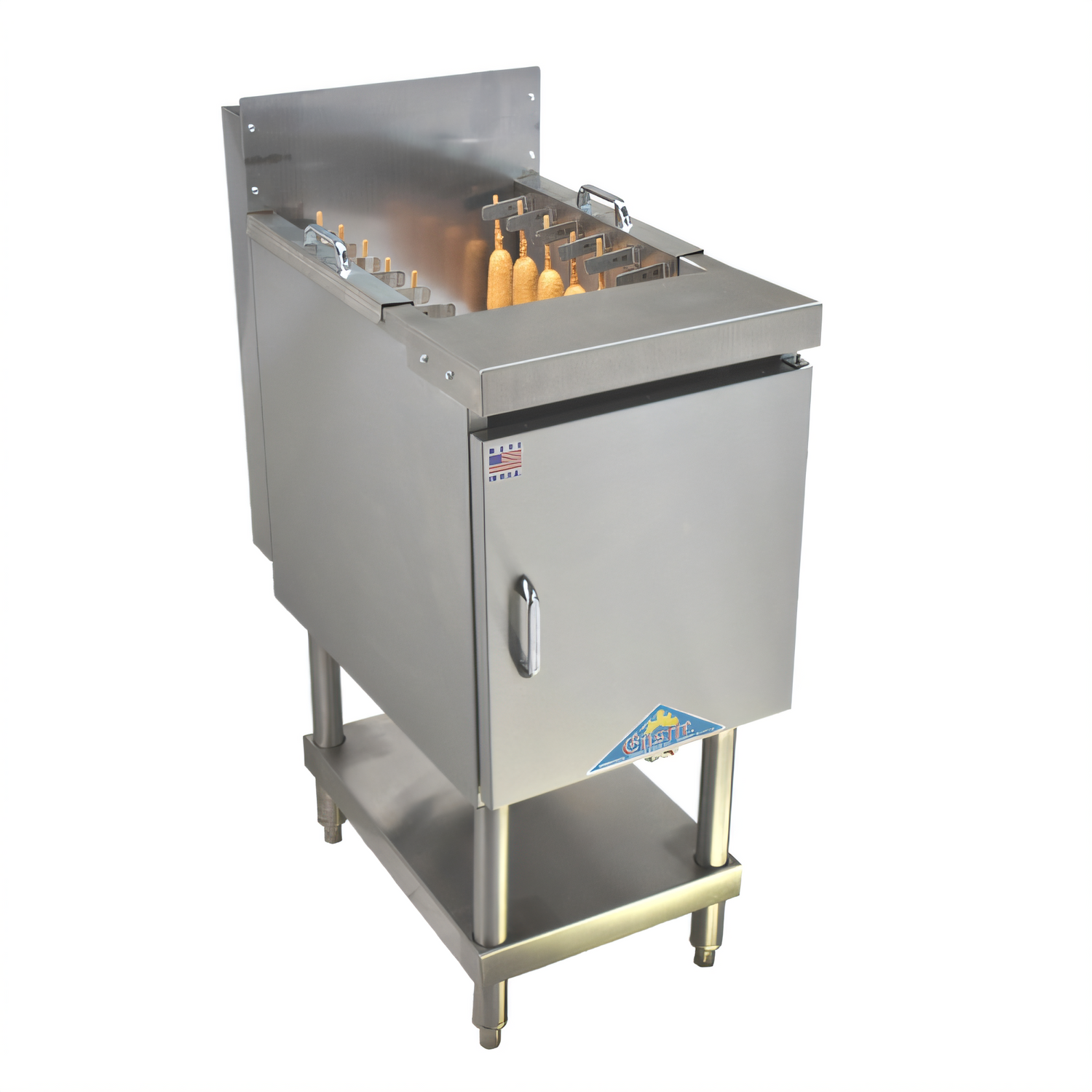

Comstock-Castle CDFL-F-1 Gas Corn Dog Fryer
16" Floor Model | 80,000 BTU | 60–70 lb Fat Capacity | Made in USABuilt for concessionaires, fairs and high-volume snack bars, the CDFL-F-1 delivers perfectly golden corn dogs fast—while claiming just 16 inches of floor space. Its powerful 80,000 BTU jet burners and extra-deep stainless tank let you turn out long or jumbo corn dogs with consistent, mouth-watering results every time.
Highlights
- 80,000 BTU jet burners for lightning-fast heat-up and recovery
- 13¼"-deep stainless fry tank holds 60–70 lb (7½–9 gal) of oil
- Reliable non-electric snap-action thermostat with low-mounted sensing bulb for even oil temperature
- Standing safety pilot, hi-limit control & factory-supplied gas regulator
- Includes (2) 6-clip skewers—fry up to 12 corn dogs per batch

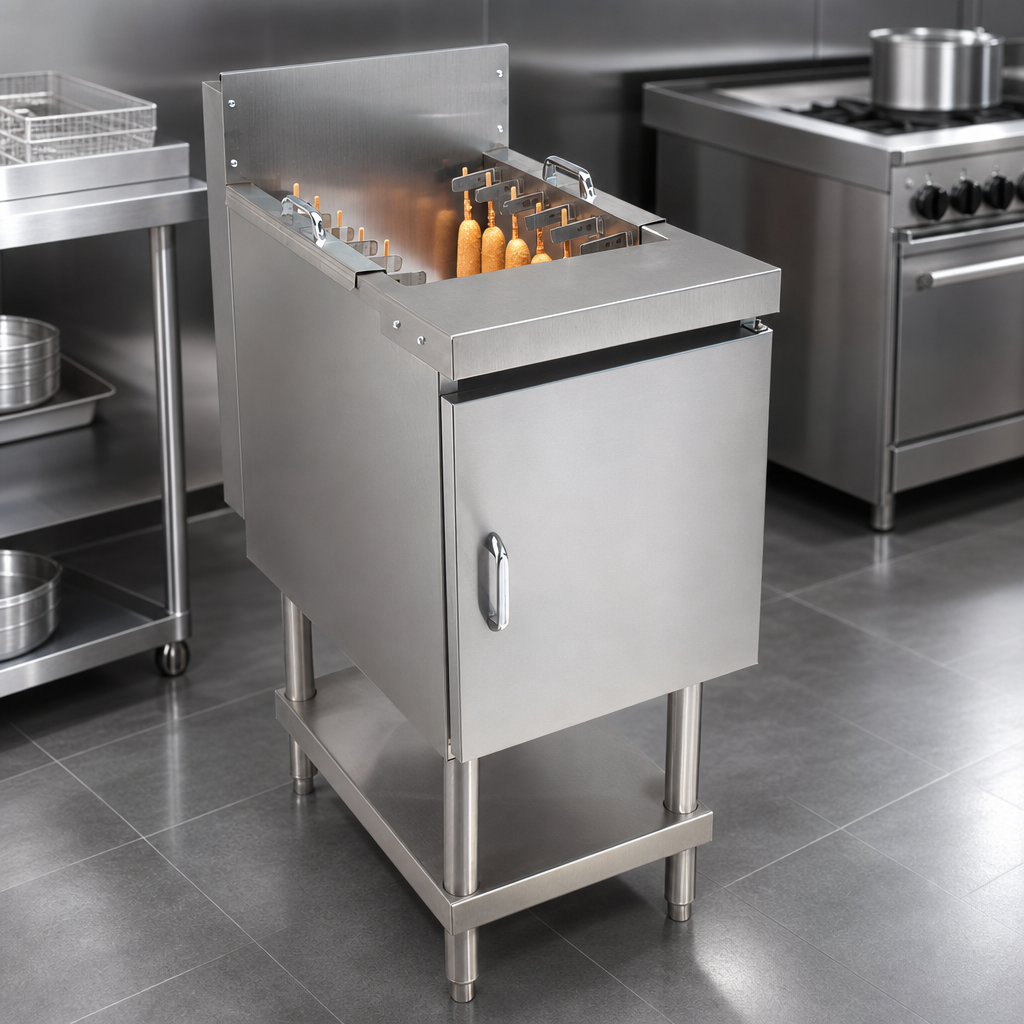

- All-stainless exterior, tank & 4" adjustable legs for quick clean-up and durability
- ¾" rear drain valve for rapid, mess-free oil removal
- ¾" NPT gas inlet; 4" WC Natural or 10" WC LP operating pressure
- Proudly manufactured in Quincy, Illinois, USA
What’s in the Box
- Comstock-Castle CDFL-F-1 corn dog fryer (floor model)
- (2) 6-clip corn dog skewers
- Factory-installed gas pressure regulator
- Owner’s/installation manual & warranty registration card
Technical Specifications
| Fuel type | Natural or LP gas (specify at checkout) |
|---|---|
| Total BTU | 80,000 BTU/hr |
| Oil capacity | 60–70 lb / 7½–9 gal |
| Tank size (D × W × F-B) | 13¼" × 13" × 18" |
| Overall width | 16" |
| Overall depth | 26¼" |
| Height to cook surface | 36" |
| Height to flue top | 42" |
| Gas connection | ¾" NPT rear manifold |
| Required gas pressure | 4" WC (Natural) / 10" WC (LP) |
| Ship weight | 155 lb |
Installation Notes
A licensed gas technician must connect and calibrate this appliance, verifying proper manifold pressure with a manometer. Allow clearance behind the unit for flue ventilation and service access.
Warranty
1-year limited parts & labor warranty (60 days labor / 120 days parts for mobile or outdoor installations). See enclosed documentation for complete terms and conditions.
