Key specifications
- BTU
- 48,000 BTU
- Gas Type
- Natural Gas
- Type
- Salamander Broiler
- Style
- Infrared
- Material
- Stainless Steel
- Finish
- Stainless Steel

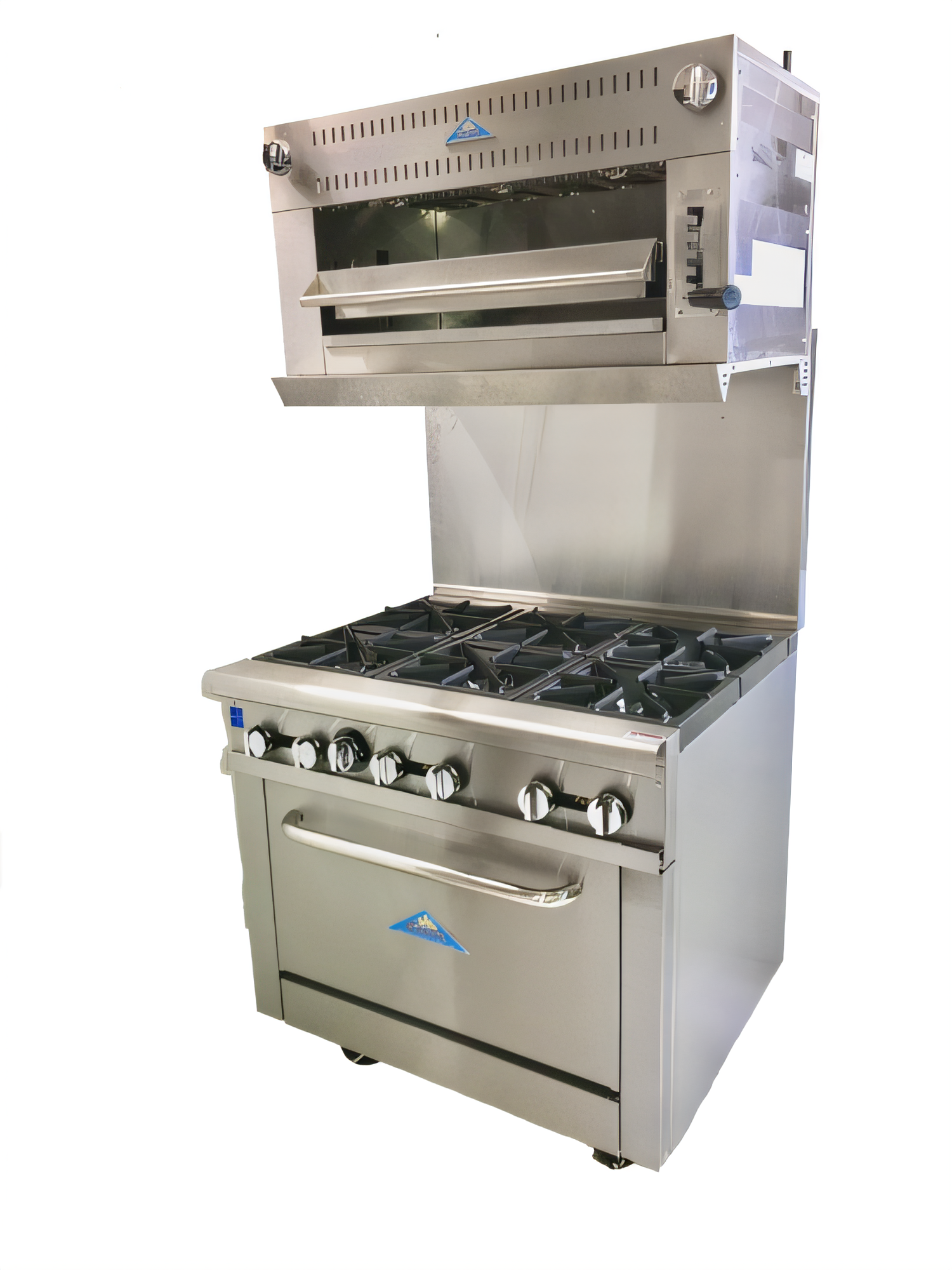

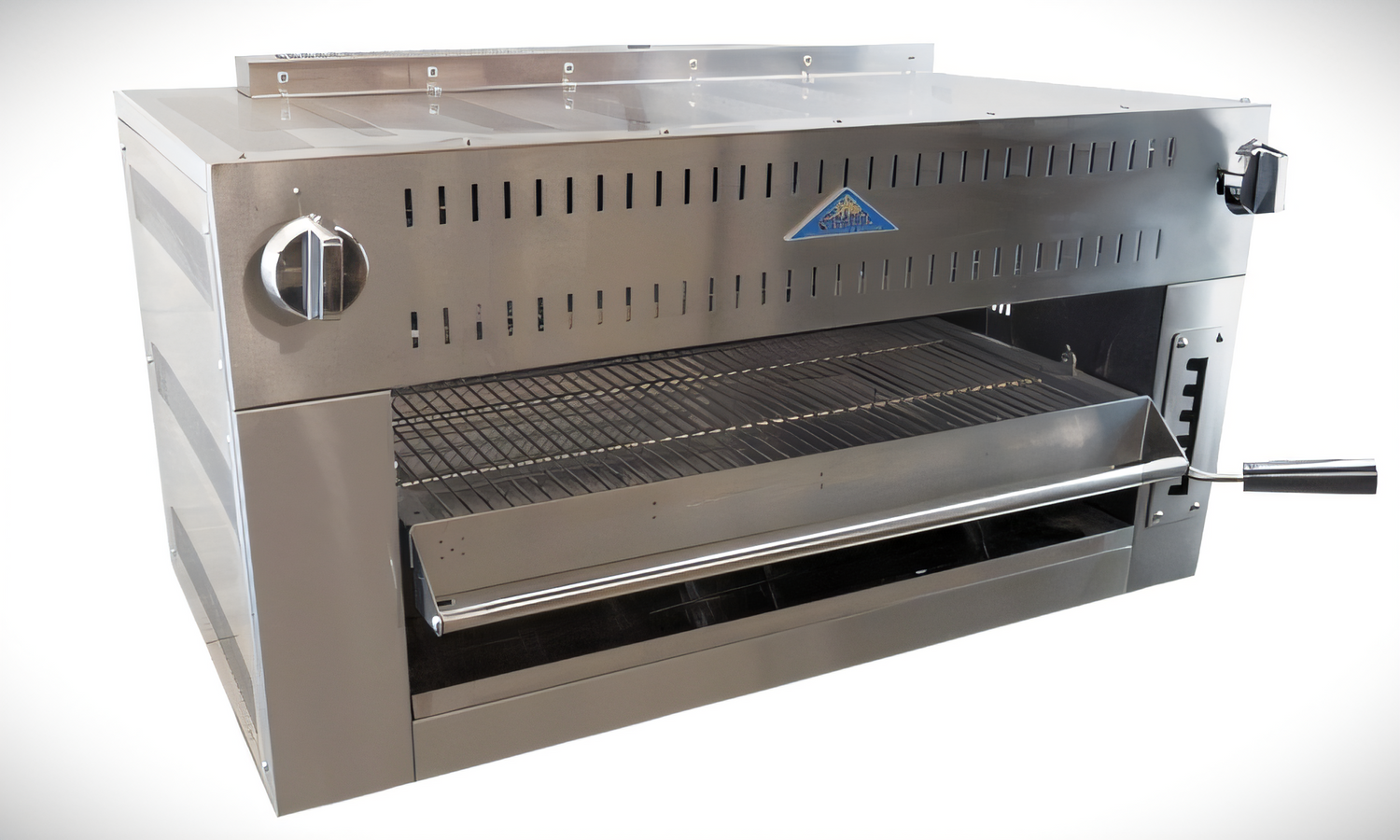

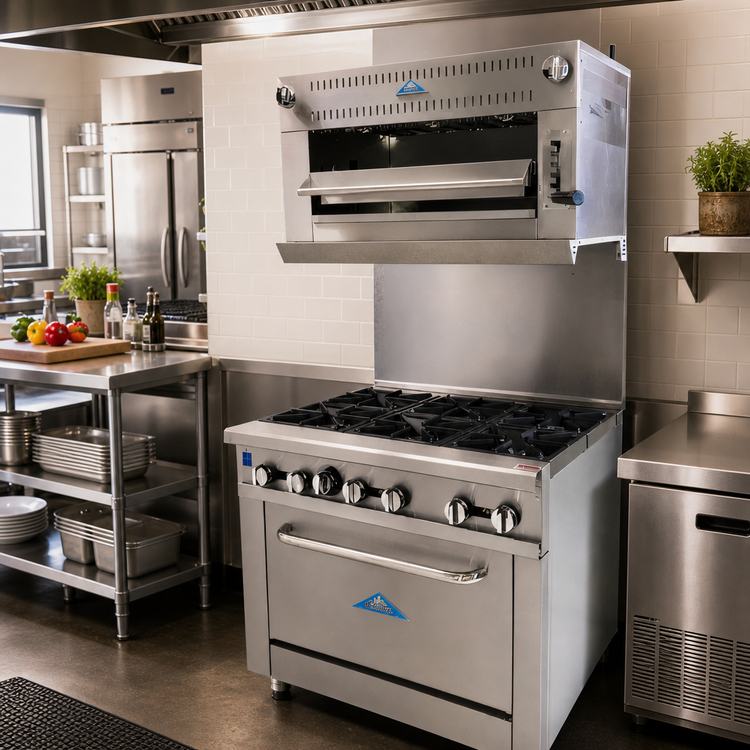

Comstock-Castle Castle Series CCSB-36-N 36-Inch Infrared Broiler
Questions before you buy?
Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.
Specifications
Description
The Comstock-Castle Castle Series CCSB-36-N is a 36-inch natural gas infrared salamander broiler with a stainless-steel frame and 48,000 BTU total input.
- Six 8,000 BTU cast iron burners with stainless-steel radiant mesh
- Two heat zones with two control knobs, each controlling three burners
- Six-position removable broiler rack on a roll-out tray
- Removable grease drip pan
- Counter, wall, or range mount options
Product Weight:

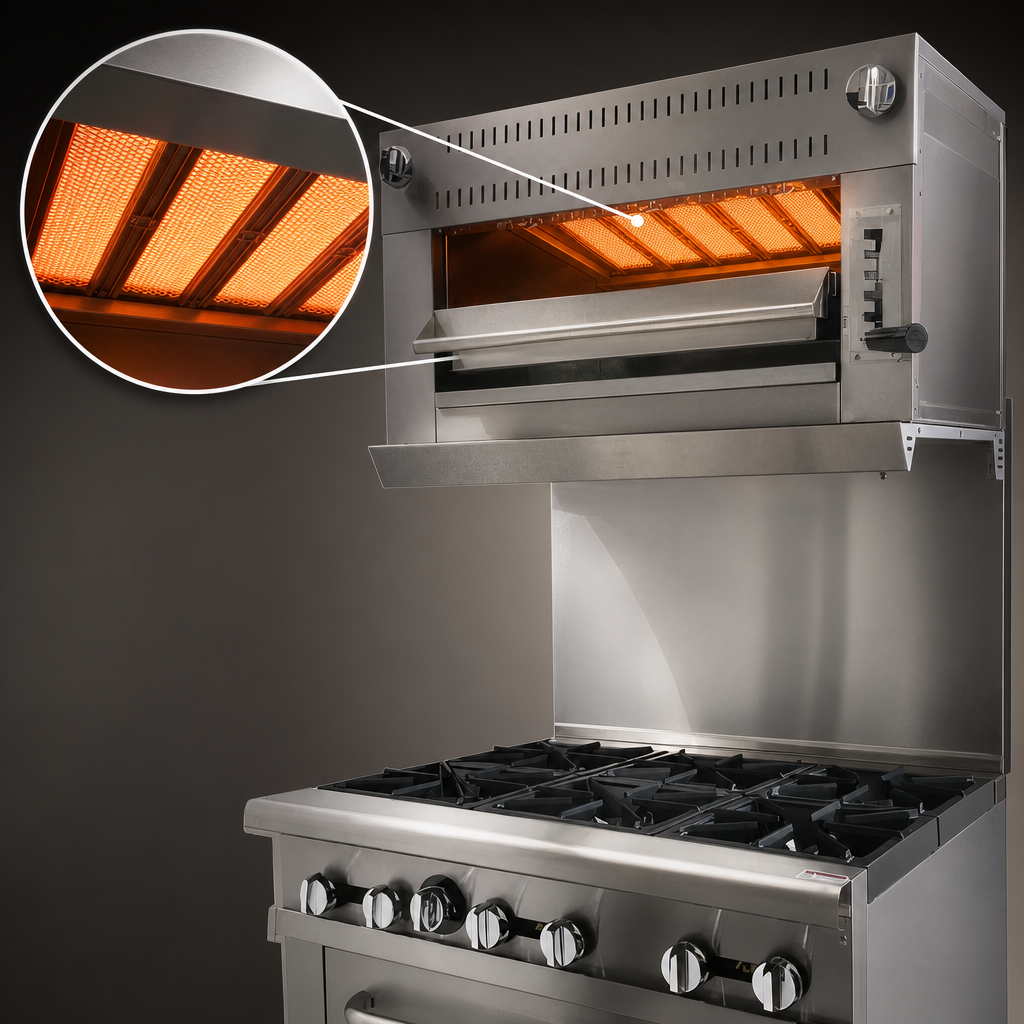

140.0 lbInfrared Burner System
Six 8,000 BTU cast iron burners use stainless-steel radiant mesh.

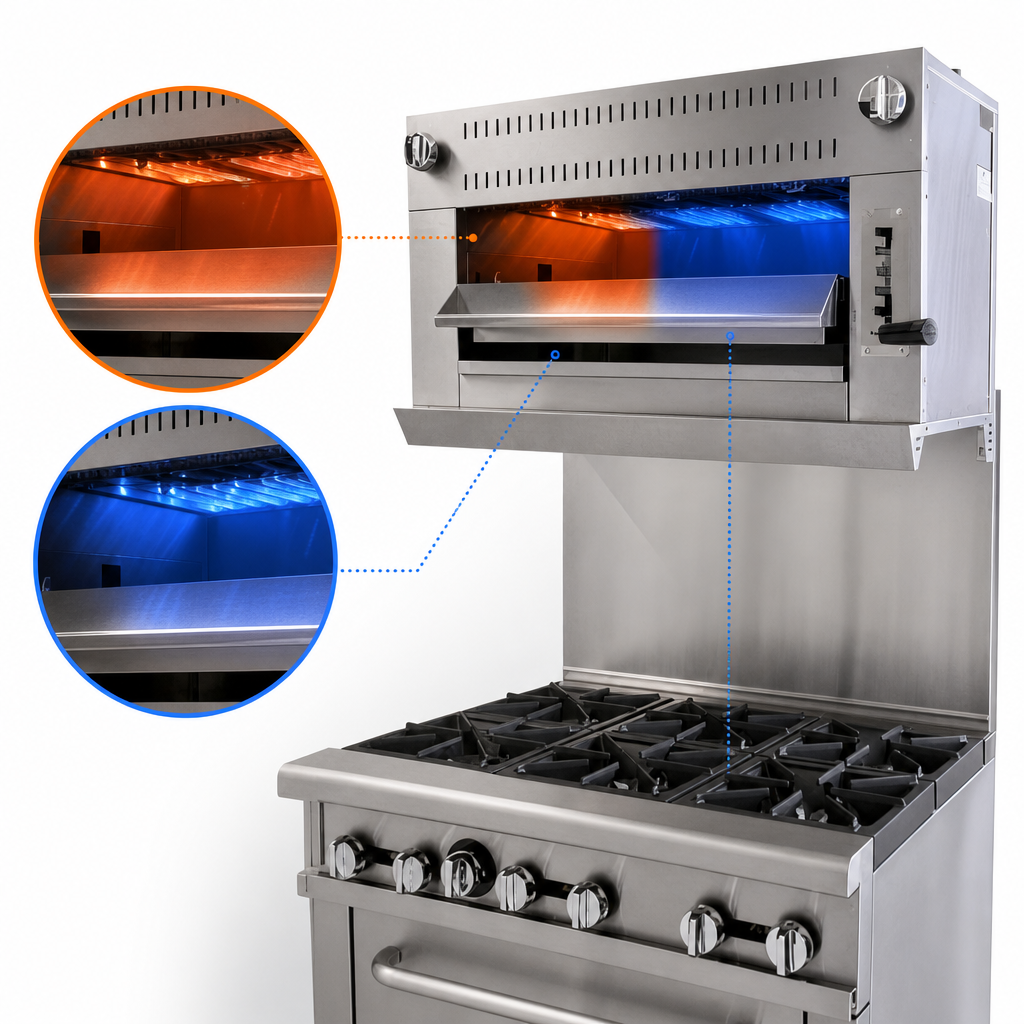

Two Heat Zones
Separate left and right heat zones are controlled by two knobs, with each knob controlling three burners.
Six-Position Broiler Rack
The removable 27 x 15.75-inch chrome-plated rack operates on a roll-out tray.
Removable Grease Drip Pan
The grease drip pan is removable for cleaning.
Natural Gas Operation
The unit is set for natural gas and has a 3/4-inch top rear gas connection.
Stainless Steel Construction
The construction uses a heavy-gauge, corrosion-resistant stainless-steel finish.
Mounting Options
Counter, wall, or range mounting options are available.
Cool-Touch Controls
The broiler drawer handle and valve knobs are described as cool to the touch.
