Comstock-Castle CCHRB60 Gas Charbroilers
Comstock-Castle CCHRB60 Gas Charbroilers is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Comstock-Castle CCHRB60 Gas Charbroilers
Description

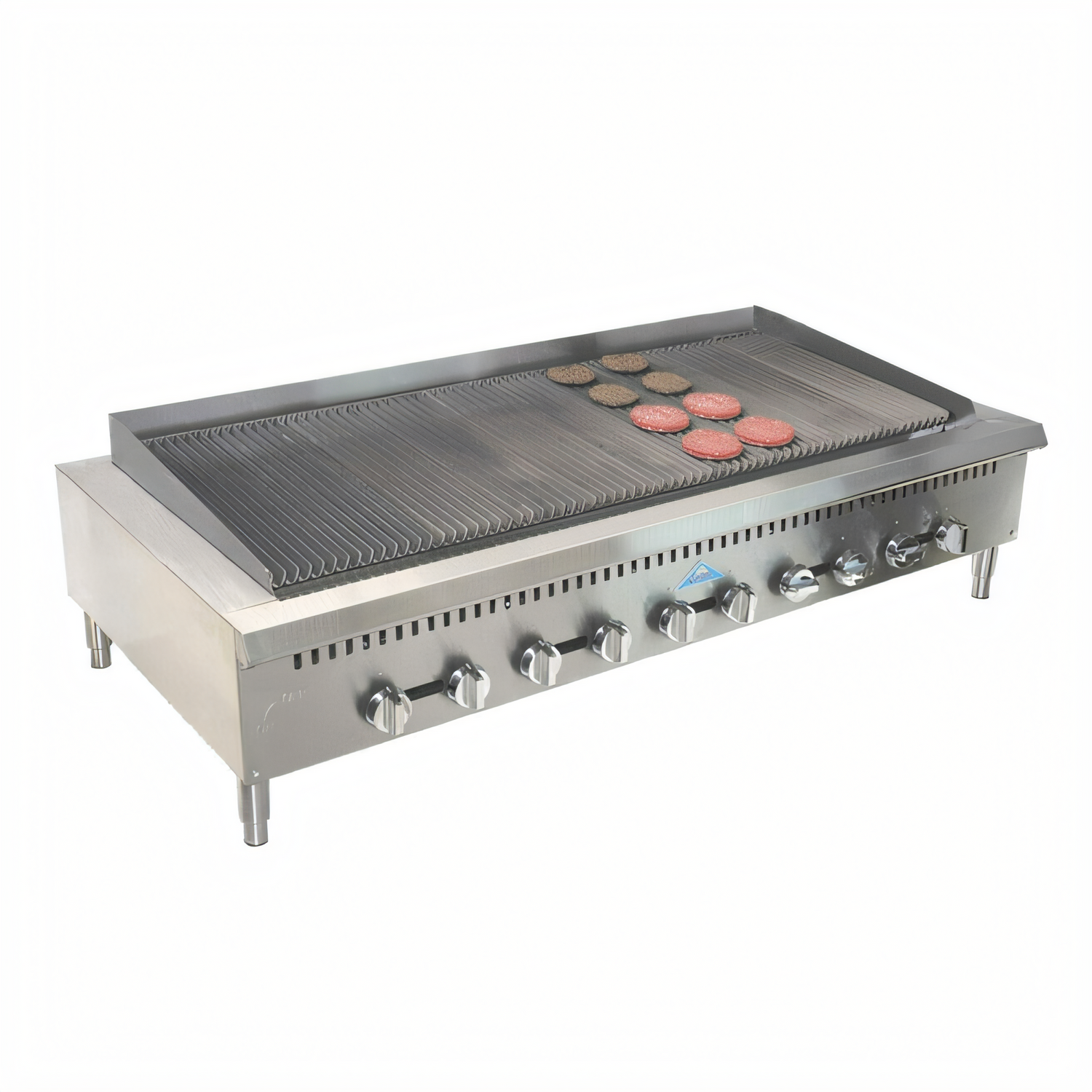

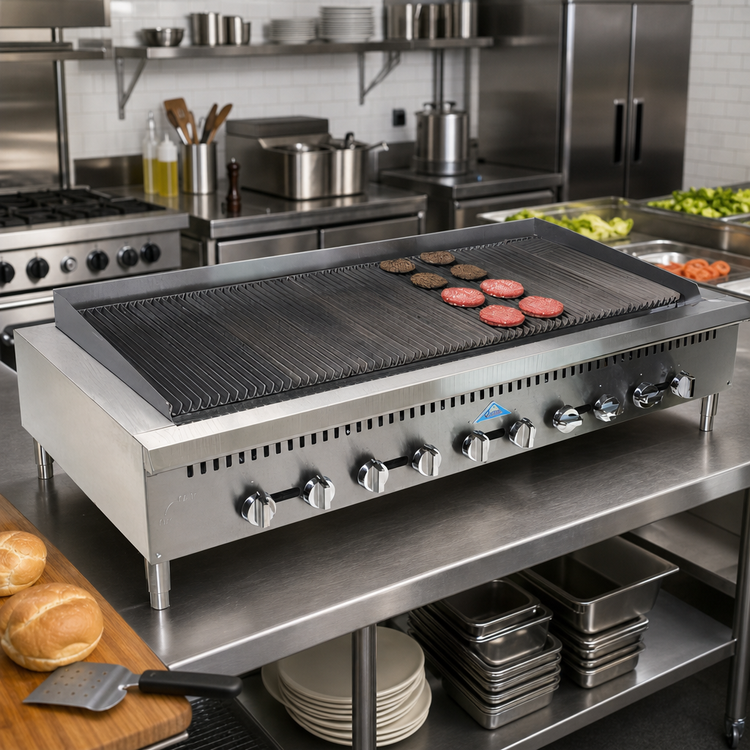

Comstock-Castle CCHRB60 60" Radiant Countertop Gas Char-Broiler
High-output 200,000 BTU grill for serious commercial kitchensServe steakhouse-quality sear marks and smoky flavor shift after shift. The Comstock-Castle CCHRB60 fits a massive 60" x 22" grill area into a compact 31" deep frame, delivering 200,000 BTU of even heat through ten rugged cast-iron burners. Built from insulated stainless steel with full-width splash protection, it’s the powerhouse your line has been waiting for.
Why chefs choose the CCHRB60

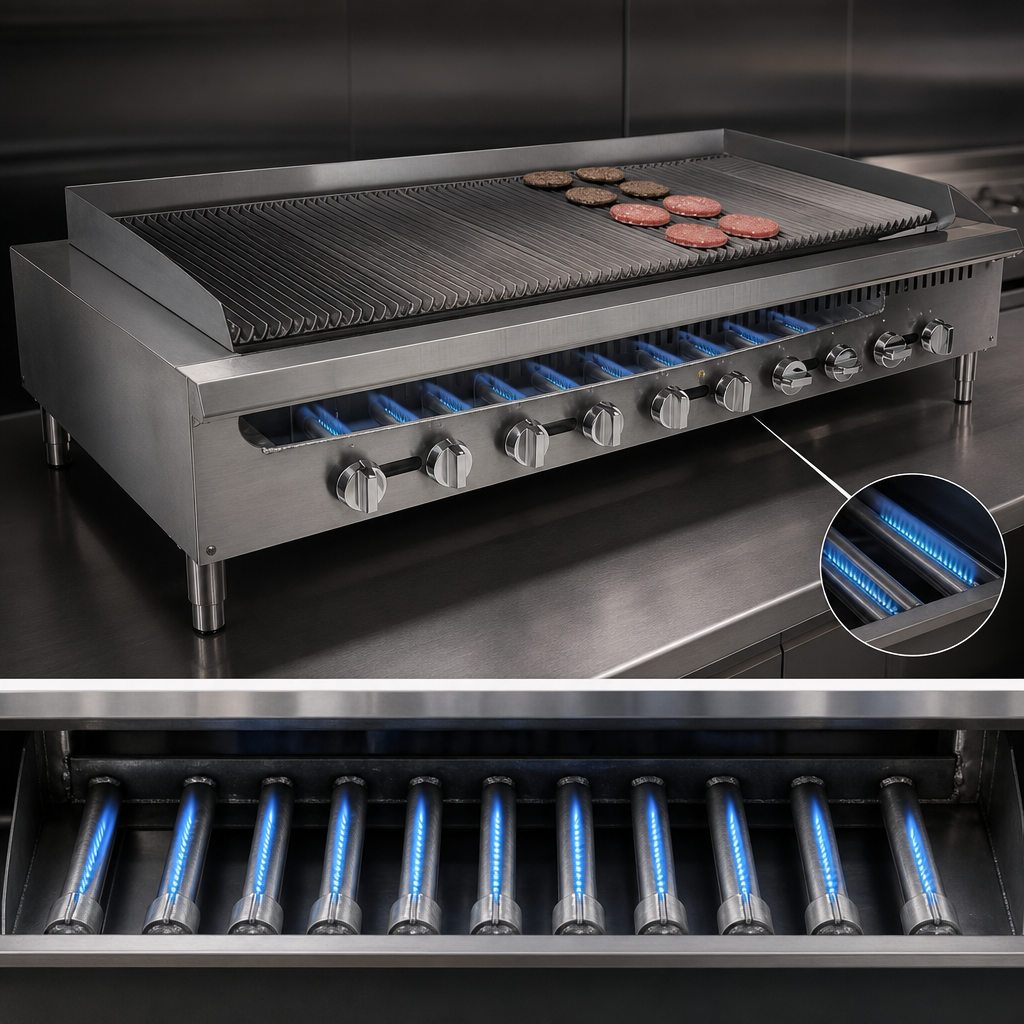

- Ten 20,000 BTU straight cast-iron burners for fast recovery and edge-to-edge consistency.
- Heavy cast-iron radiants & 5.5" tilt-able grates create signature char marks while reducing flare-ups.
- Under-burner heat-reflecting grease shield keeps flame ports clear and extends burner life.
- Double-wall, insulated stainless frame keeps front bull-nose cool and boosts energy efficiency.
- Extra-wide 3.5" grease trough and full-width stainless drip tray speed daily clean-up.
- Individual manual brass valves with standing pilots—run only the zones you need.
- 4" adjustable stainless legs level the unit on any prep table or equipment stand.
- cETLus & ETL-Sanitation listed to ANSI-NSF 4 for worry-free code compliance.
Built for high-volume lines
- 31" overall depth integrates with standard cook lines without crowding the aisle.
- 13" cook-surface height equals effortless loading, flipping, and plating.
- 3/4" rear gas connection with factory regulator makes installation straightforward.
- All-stainless splash guards contain spatter for a cleaner, safer kitchen.
Technical specifications
| Model | CCHRB60 |
|---|---|
| Equipment type | Countertop radiant gas char-broiler |
| Overall dimensions | 60" W × 31" D × 16-1/4" H (13" to cook surface) |

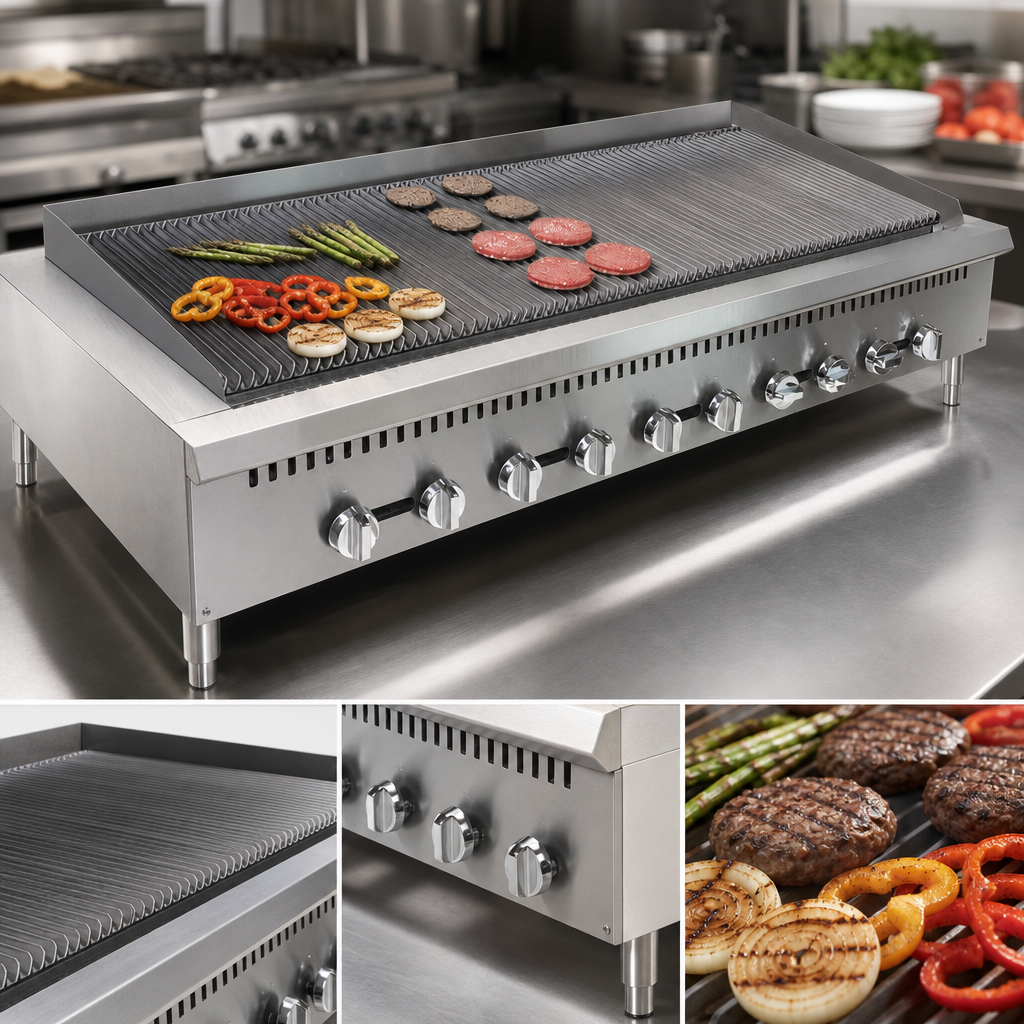

| Cooking area | 60" W × 22" D |
| Burners | (10) straight cast iron — 20,000 BTU each |
| Total BTU | 200,000 BTU/hr |
| Controls | (10) manual valves with cool-touch knobs; standing pilots |
| Gas connection | 3/4" NPT (rear), factory pressure regulator included |
| Manifold pressure | 4" WC Natural Gas | 10" WC Propane |
| Grates | Heavy cast iron, lay flat or tilt for drainage |
| Radiants | Heavy cast iron, full-width burner coverage |
| Construction | Insulated stainless-steel body, 4" stainless legs, stainless splash guards |
| Certifications | cETLus, ETL-Sanitation (ANSI-NSF 4) |
| Warranty | 1-year parts & labor (commercial indoor use) |
Ships from factory set up for natural gas; conversion kit required for propane installations. Always verify manifold pressure with a calibrated manometer at start-up.
