Comstock-Castle CCHRB48 Gas Charbroilers
Description
Comstock-Castle CCHRB48 Gas Countertop Char-Broiler – 48" 160,000 BTU | 8 Burners | Radiant Style
Turn any counter into a high-output grill station. The Comstock-Castle CCHRB48 delivers steakhouse-quality sear marks, fast recovery, and legendary durability in a space-saving 48-inch footprint—ideal for restaurants, bars, and catering lines that demand continuous, even heat shift after shift.
Key Features & Benefits
- 1,056 sq in cooking surface (48" W × 22" D) handles highs and lows in volume with ease.

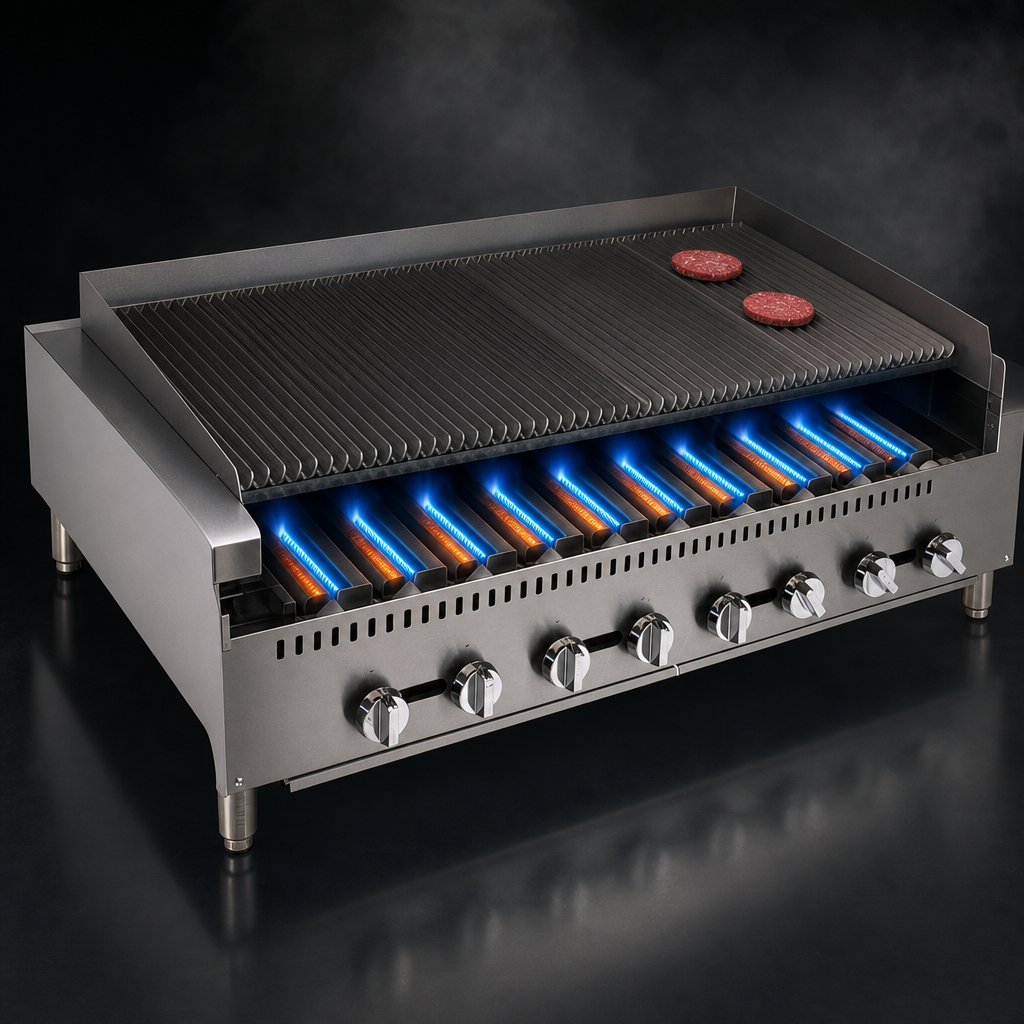

- Eight straight cast-iron burners—each 20,000 BTU—for a blazing 160,000 BTU/hr total output.
- Under-burner heat reflector & grease shield keep drippings away from the flame, reducing flare-ups.

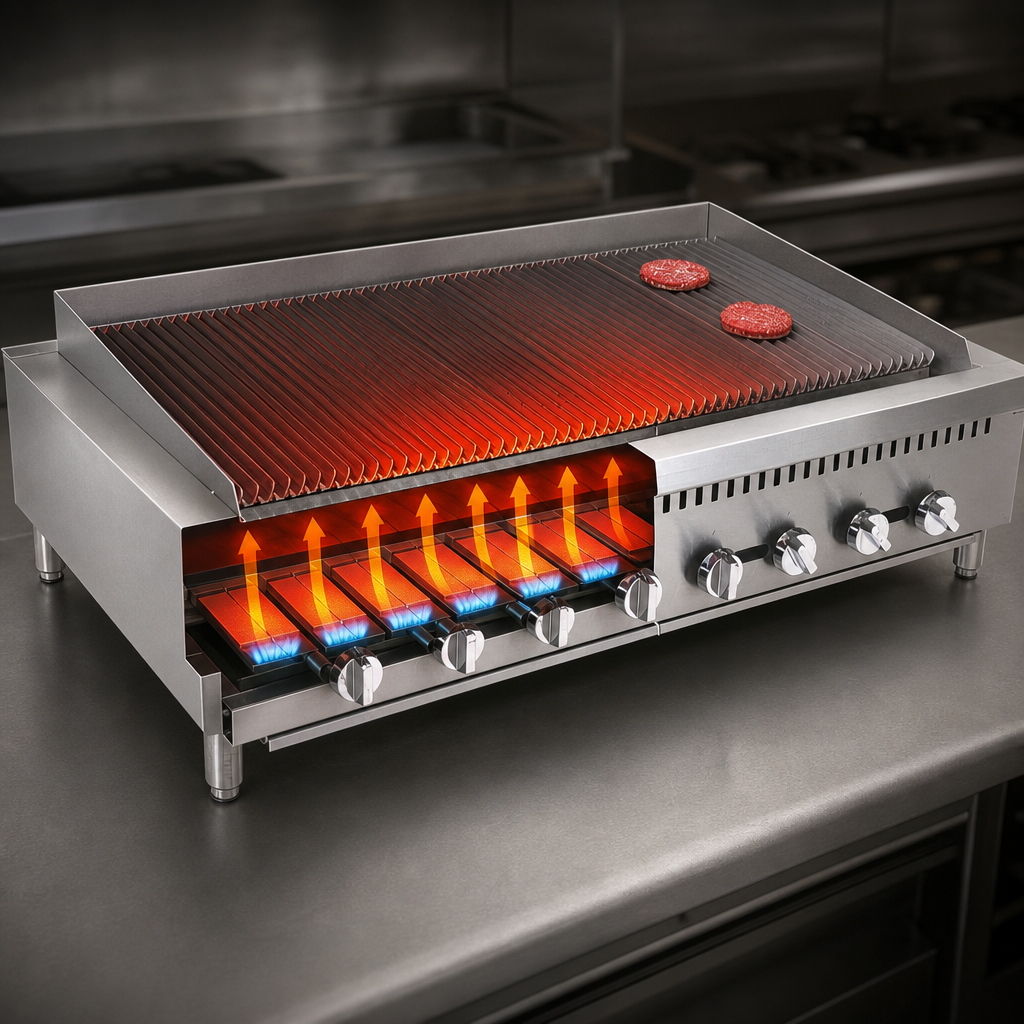

- Heavy cast-iron radiants distribute heat evenly across the entire grate.
- 5.5" reversible cast-iron grates lay flat for delicate items or tilt for self-basting, branded sear lines.
- Insulated, double-wall stainless steel frame with integrated splash guards for operator safety and energy efficiency.
- 13" cook height on 4" adjustable stainless steel legs—perfect for most worktops.
- Eight front-mounted manual gas valves with cool-touch knobs & standing pilots for instant ignition and zone control.
- Rear ¾" NPT gas connection with factory regulator; shipped for natural gas, convertible to LP.
- cETLus & ETL Sanitation listed to ANSI/NSF 4 standards.
Technical Specifications
| Model | CCHRB48 |
|---|---|
| Total BTU | 160,000 BTU/hr |
| Burners | 8 × 20,000 BTU cast-iron, straight design |
| Cooking Surface | 48" W × 22" D (1,056 sq in) |
| Overall Dimensions | 48" W × 31" D × (13" to cook surface) |
| Top Grates | Reversible 5.5" cast iron, flat or angled |
| Construction | Insulated stainless steel frame & splash guards |
| Grease Management | 3½" wide trough & stainless steel drip tray |
| Gas Connection | ¾" NPT (rear), regulator included |
| Pressure | Natural 4" WC | LP 10" WC |
| Controls | 8 manual valves with standing pilots |
| Certifications | cETLus, ETL-Sanitation |
| Shipping Weight | Approx. 368 lb / 167 kg |
Factory Warranty
- 1-year limited parts & labor coverage (60 days labor / 120 days parts when installed in mobile or outdoor applications).
- Backed by Comstock-Castle’s nationwide authorized service network.
- Warranty registration & professional installation required for activation.
Need a different size? 24", 36", and 60" widths are also available in the CCHRB radiant series. Contact us for details or volume pricing.
