Comstock-Castle CCHRB24 Gas Charbroilers
Description

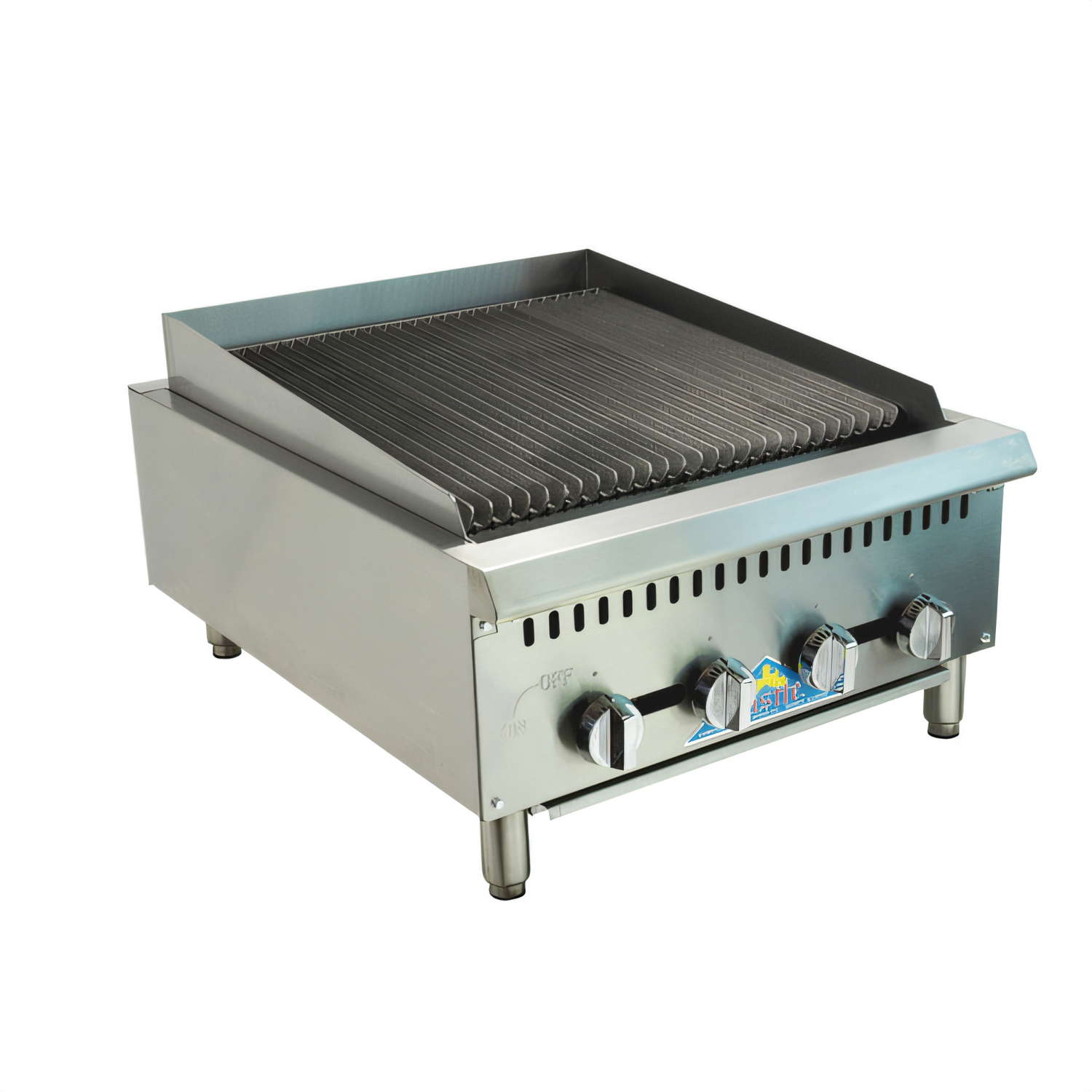

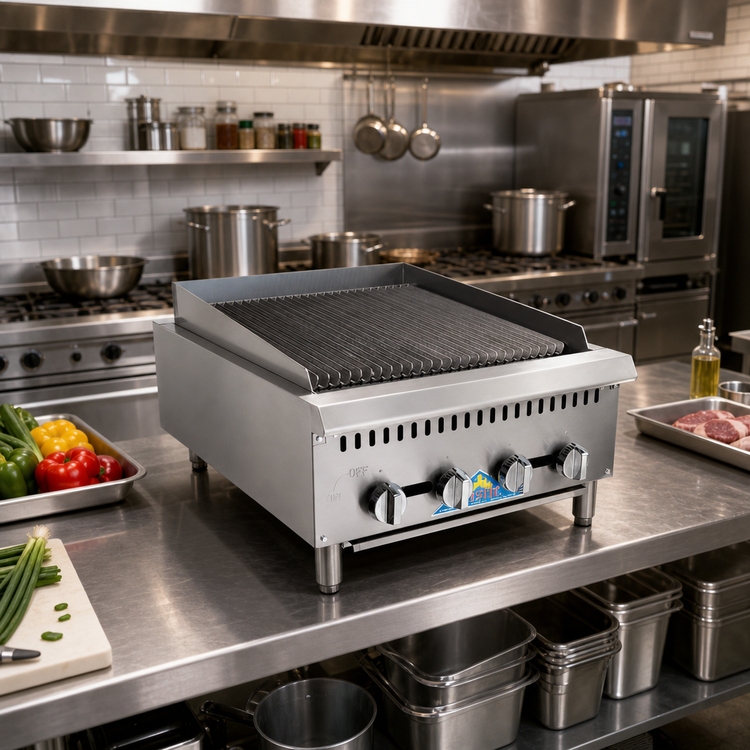

Comstock-Castle CCHRB24 Radiant Gas Char-Broiler
24" countertop model • 80,000 BTU • cETLus & ETL-SanitationBuilt for the daily grind of busy commercial kitchens, the Comstock-Castle CCHRB24 delivers powerful, even heat across a generous 24 × 22 inch grill surface—all in a space-saving countertop frame. Heavy cast-iron components lock in heat for perfect sear marks, while stainless-steel construction shrugs off corrosion and makes cleanup fast.
Key Features

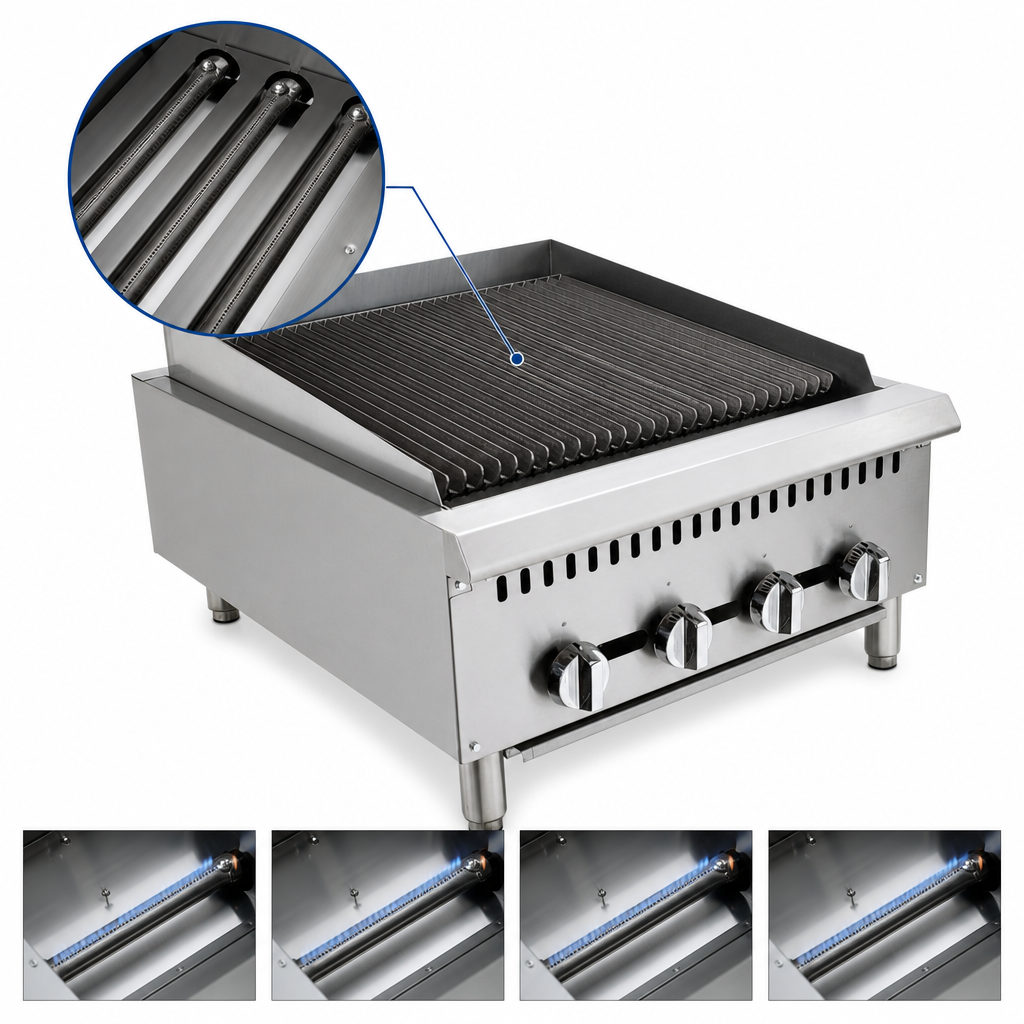

- Four straight cast-iron burners, 20,000 BTU each (80,000 BTU total) for rapid recovery and high-heat searing.

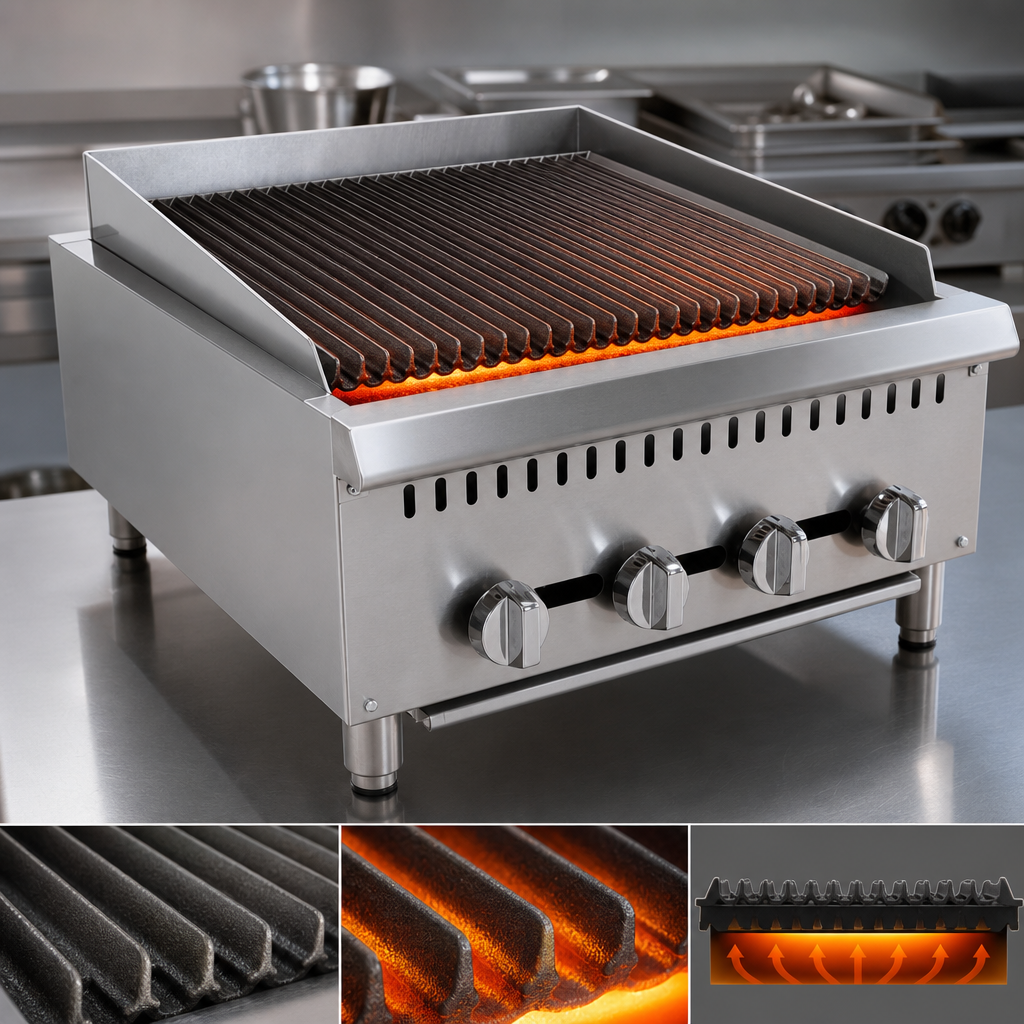

- Heavy-duty cast-iron radiants distribute heat evenly and reduce flare-ups.
- 5.5" wide tilt-able cast-iron top grates: lay flat for burgers & veggies or angle for self-basting steaks.
- 31" deep, double-wall insulated stainless-steel frame keeps sidewalls cool and boosts energy efficiency.
- Full stainless splash guards plus a 3-½" wide bull-nose landing to protect hands and cabinetry.
- Under-burner grease shield reflects heat back to the grate while channeling drippings to a removable drip tray.
- Four cool-touch manual control knobs with front-mounted brass valves and standing pilots for instant ignition.
- 4" adjustable stainless-steel legs—set cooking height to a comfortable 13" above the counter.
- 3/4" rear gas connection with pressure regulator included.
Specifications
| Model | CCHRB24 |
|---|---|
| Fuel Type | Natural Gas or Propane Gas |
| Total Input | 80,000 BTU/hr (4 × 20,000) |
| Grill Area | 24" W × 22" D (528 in²) |
| Overall Dimensions | 24" W × 31" D × 29-½" H |
| Cooking Height | 13" from countertop to grate |
| Controls | 4 manual valves with standing pilots |
| Gas Connection | ¾" NPT (rear) |
| Manifold Pressure | 4" W.C. Natural • 10" W.C. Propane |
| Net Weight | ≈ 187 lb / 85 kg |
| Certifications | cETLus, ETL-Sanitation (ANSI/NSF 4) |
What’s in the Box
- Comstock-Castle CCHRB24 char-broiler
- 4" stainless-steel adjustable legs (pre-installed)
- Removable stainless drip tray
- Pressure regulator (factory mounted)
- User/installation manual & warranty card
Certifications & Warranty
This unit is cETLus listed for safety and ETL-Sanitation certified to ANSI/NSF 4 standards. It carries a 1-year limited parts & labor warranty (60 days labor / 120 days parts for mobile or outdoor installations).
Gas Requirements
Designed for professional installation. ¾" NPT rear connection; supply line must meet the manifold pressure listed above.
Need a larger size? Ask us about 36", 48" and 60" models from the same CCHRB series.
