Comstock-Castle  |  SKU: CCCM-48

Comstock-Castle CCCM-48 Cheese Melters

$2,805.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Warranty Installation & operation
Related Searches
Broilers Charbroilers & Grills Cheese Melters Cheesemelters Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

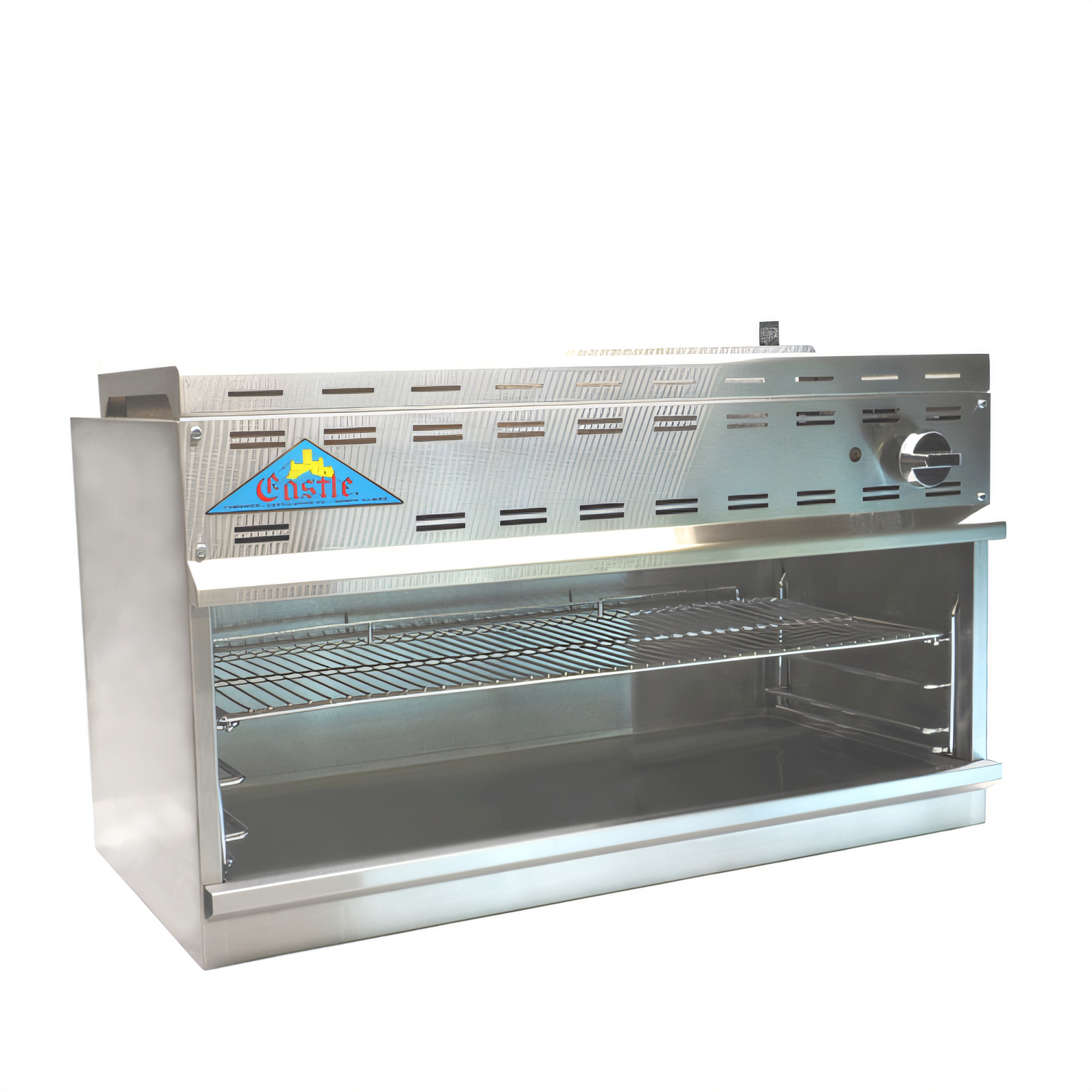

Comstock-Castle CCCM-48 Gas Cheesemelter – 48″

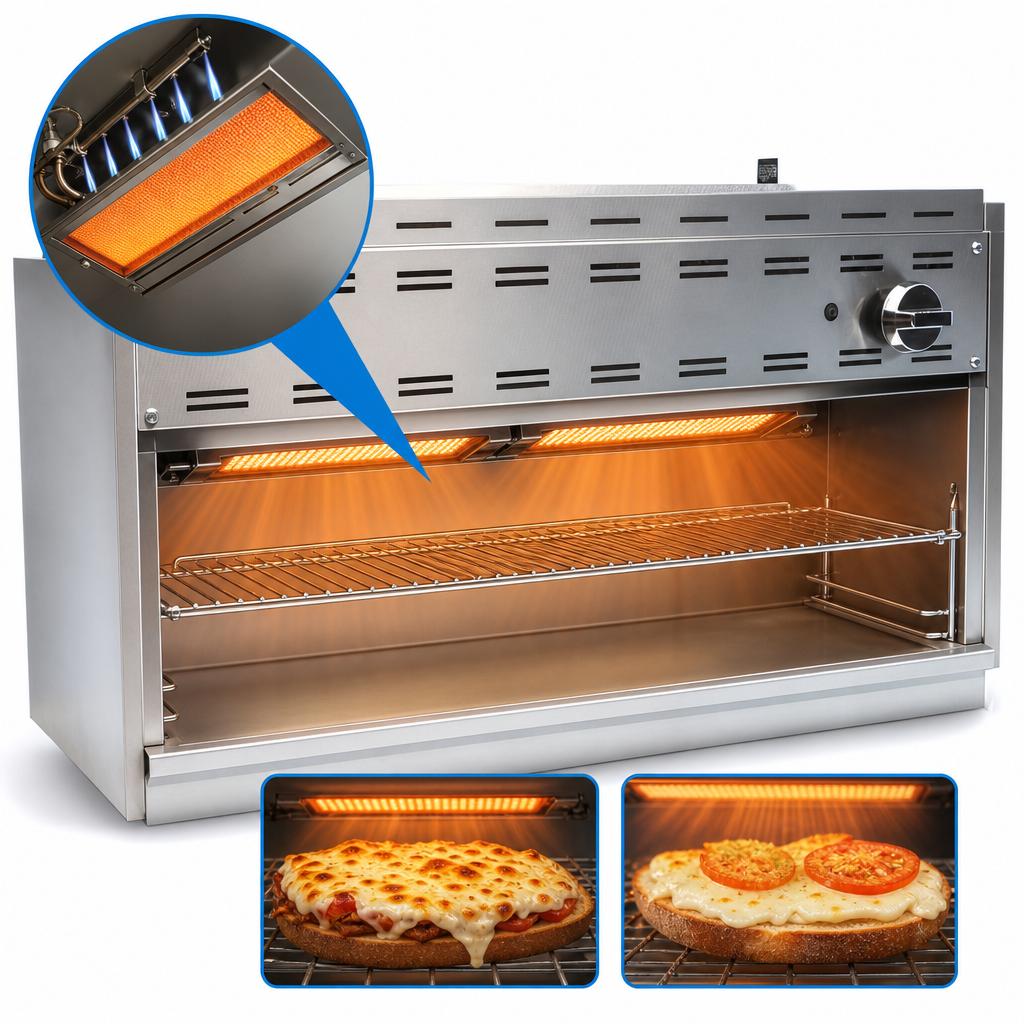

40,000 BTU infrared finishing station for rapid melting & browning

Give every plate the perfect finish with the American-built CCCM-48 Cheesemelter. Four instant-on infrared burners blanket a 45″ × 12″ rack with intense, even heat—ideal for melting cheese, browning au gratin dishes, warming plates, or holding food at serving temperature without firing up a full-size broiler.

Key Features
  • 48″ wide cavity driven by 4 infrared burners (10,000 BTU each, 40,000 BTU total)
  • Manual high/low control with standing pilot for immediate ignition
  • Heavy-duty 45″ W × 12″ D nickel-plated rack with 3 height positions
  • Built-in safety stop prevents the rack from pulling completely out

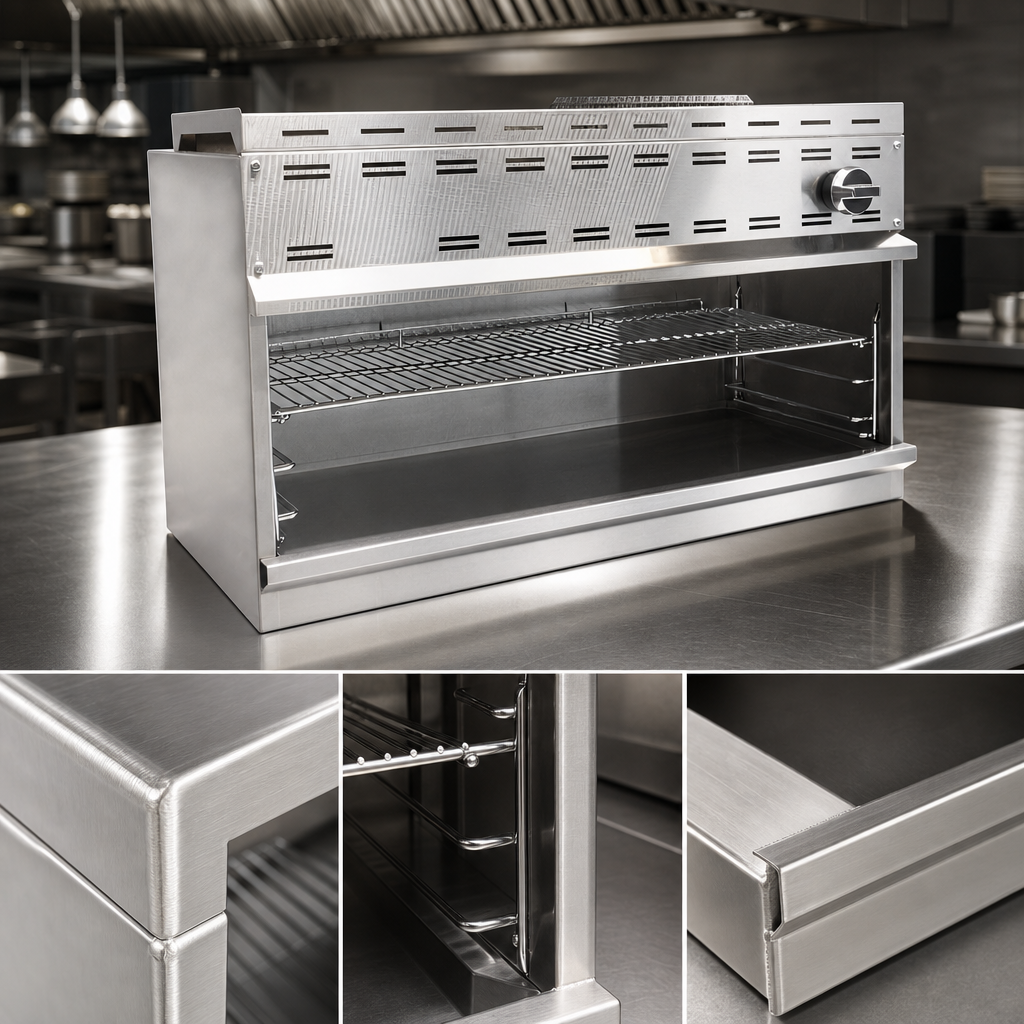

  • Stainless steel front, sides, top & crumb/drip tray for durability and easy cleanup
  • ¾″ NPT gas connection located on top of the unit for simple line runs
  • Insulated side panels and welded, polished corners conserve heat and present a professional look
  • cETLus, ETL-Sanitation & NSF (ANSI/NSF-4) certified for commercial kitchens
Why Go Infrared?
  • Finishes dishes in seconds without over-cooking the center
  • Browns casseroles, nachos & gratins evenly from edge to edge
  • Keeps plates warm during rush periods to maintain food quality
  • Uses far less energy than a deck or salamander broiler
Specifications
Model CCCM-48
Heat Source Natural or propane gas, infrared
Total BTU 40,000 BTU/hr
Burners 4 × 10,000 BTU infra-red brass burners
Rack Size 45″ W × 12″ D, nickel-plated wire
Rack Positions 3 (clearance range: 4″–8¼″)
Gas Connection ¾″ NPT (top mounted)
Operating Pressure Natural Gas – 5″ WC  |  Propane – 10″ WC
Overall Width 48″
Shipping Dimensions 54″ W × 25″ D × 30″ H
Net / Gross Weight 185 lb / 251 lb
Certifications cETLus, ETL-Sanitation, NSF
Origin Quincy, Illinois USA
Warranty

Backed by Comstock-Castle’s 1-year limited parts & labor warranty. Installation must be completed by a licensed gas technician to maintain coverage.

Important: This appliance is intended for commercial use only. Install in accordance with all local gas, fire and ventilation codes.

Need another size? The CCCM Series is also available in 24″, 36″ and 60″ widths.

Features & Specs

Manufacturer

Comstock-Castle

Certifications

NSF, cETLus, ETL-Sanitation

Height

21.0in

Width

48.0in

Depth

18.0in

Heat type

infrared

Exterior Finish

stainless steel front, top & sides

Mounting

countertop

Width (side - side)

37" - 48"

Rack Positions

3

Specifications

Cheesemelter, gas, 48" wide, (4) infrared burners, manual control with pilot, (1) 45" x 12" rack, (3) positions, safety stop, stainless steel front, side & top, ¾" gas connection on top, 40,000 BTU, cETLus, ETL-Sanitation, NSF
