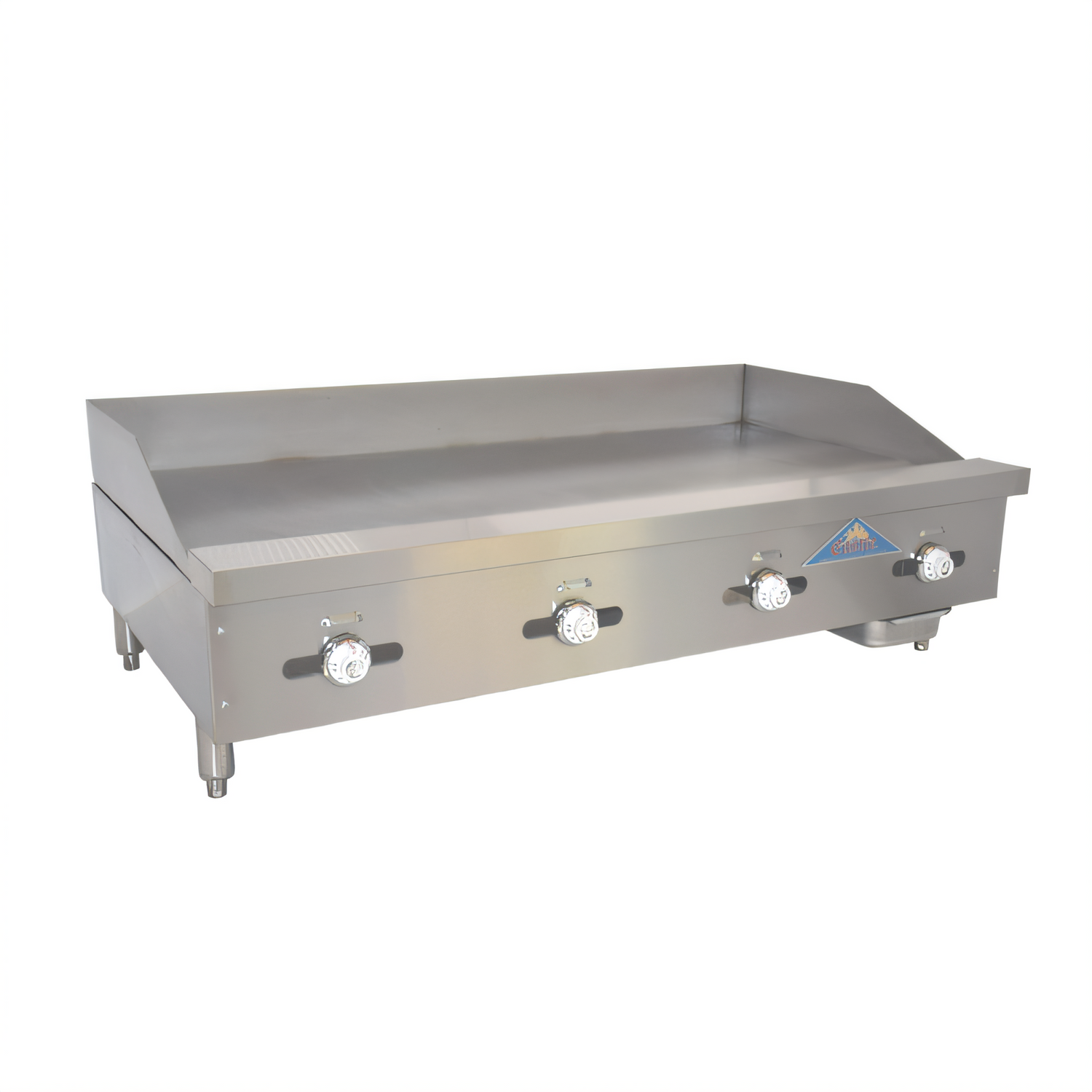

Castle Series 48" Countertop Gas Griddle
Model 3248TG | 32 Series – 24" Cook DepthTurn peak-hour orders into effortless profits with the Comstock-Castle Castle Series 48" thermostatic griddle. Built on America’s oldest stove-making heritage (Est. 1838), this heavy-duty workhorse delivers 1,152 sq in of evenly regulated cooking space, perfect for any high-volume diner, food truck or line kitchen that insists on speed, consistency and durability.
Why You’ll Love It

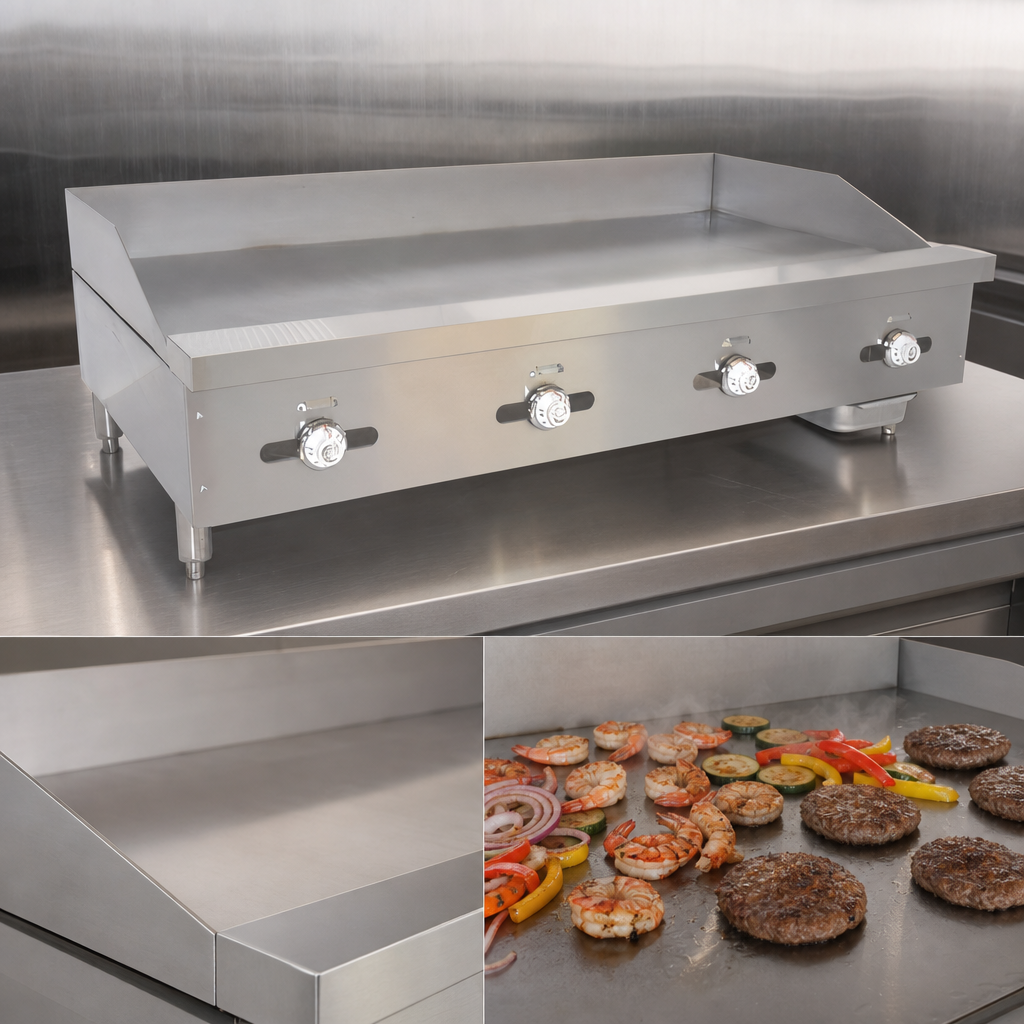

- 48" W x 24" D x 1" thick polished steel plate minimizes sticking & maximizes heat retention.

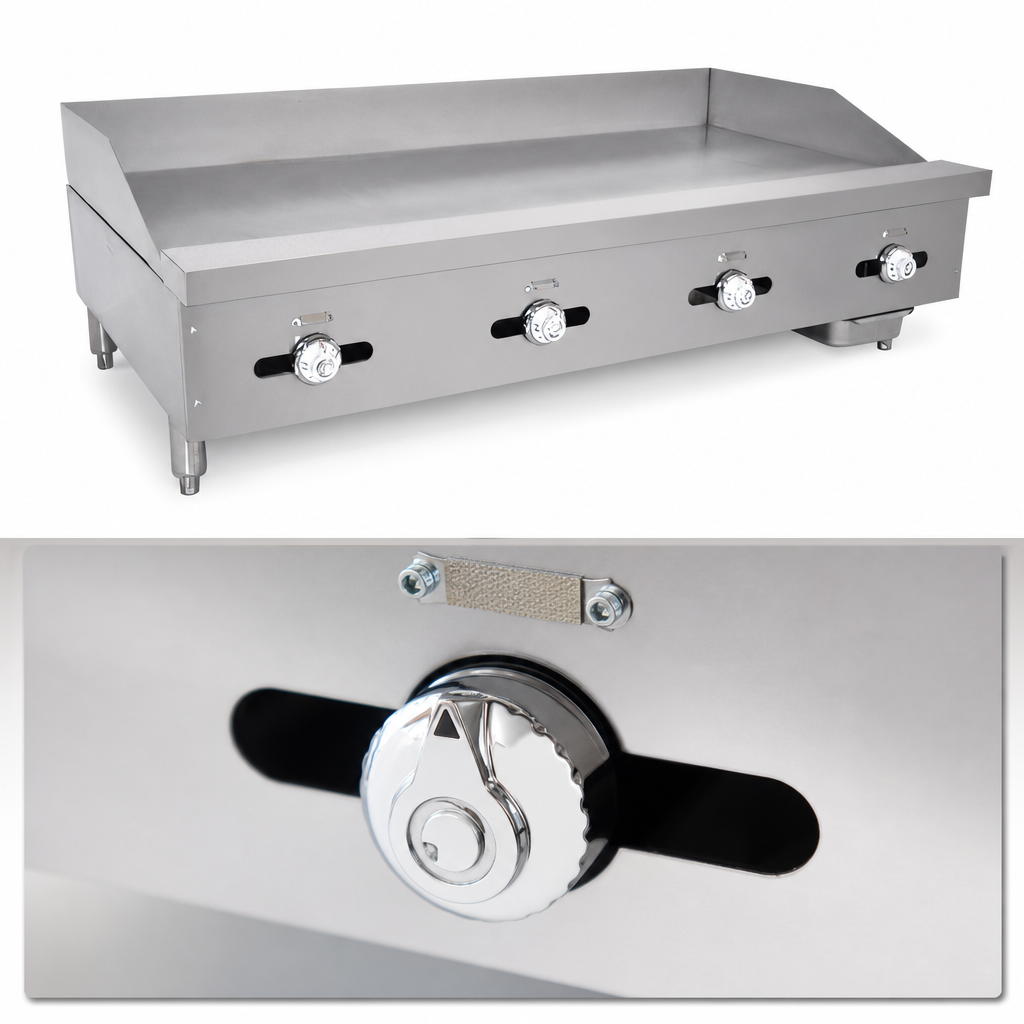

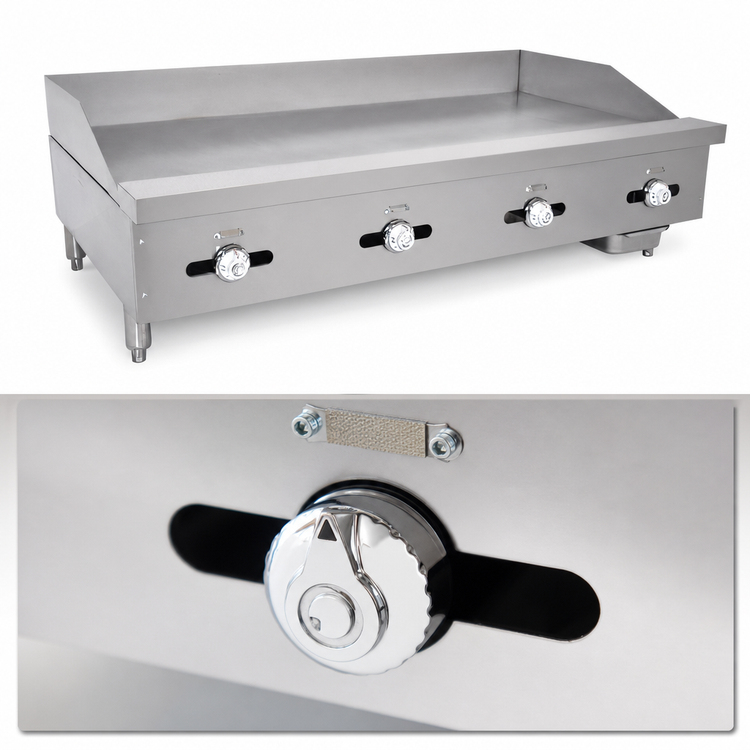

- Four thermostatic controls (one every 12") govern independent 25,000 BTU “H” burners for a total output of 100,000 BTU.
- 3" stainless splash guards on back & ends keep grease and food debris where they belong—off your walls and counters.
- Full-width cold-zone front grease trough feeds an extra-large, seamless removable drawer for quick clean-outs.
- All-stainless, double-wall exterior with heavy insulation for a cooler, safer workstation.
- 4" adjustable stainless pipe legs level the unit on any countertop.
- Factory-installed ¾" NPT regulator—ready for Natural Gas or LP (field convertible).
- NSF listed for sanitation & safety compliance.
Technical Specifications
| Cooking surface | 48" W × 24" D (1,152 sq in.) |
|---|---|
| Overall frame | 48" W × 32" D |
| Plate thickness | 1" (polished steel) |
| Heat source | 4 cast-iron “H” burners @ 25,000 BTU each |
| Total BTU | 100,000 BTU/hr |
| Controls | Thermostats (1 per 12" section) with standing pilots |
| Gas connection | ¾" NPT (rear) |
| Manifold pressure | 4" WC Natural, 10" WC Propane |
| Certifications | NSF, ANSI, CSA |
| Shipping weight | ≈ 400 lb / 182 kg |
| Warranty | 1 year parts & labor (commercial) |
What’s in the Box
- Castle Series 48" Countertop Griddle
- ¾" gas pressure regulator (factory set)
- Removable grease drawer
- 4 adjustable stainless pipe legs
- Owner’s / installation & warranty packet
Peace-of-Mind Warranty
Comstock-Castle backs this unit with a 1-year parts & labor warranty (60 days labor / 120 days parts for mobile or outdoor installations). All service work must be performed by a licensed gas technician and registered with Comstock-Castle to remain in effect.
Installation clearances for non-combustible surfaces: 0" sides & rear. For combustible surfaces: 4" sides / 5" rear. Always follow local codes and the included installation manual.
