Comstock-Castle 3236MG Castle Series Gas Griddles
Description

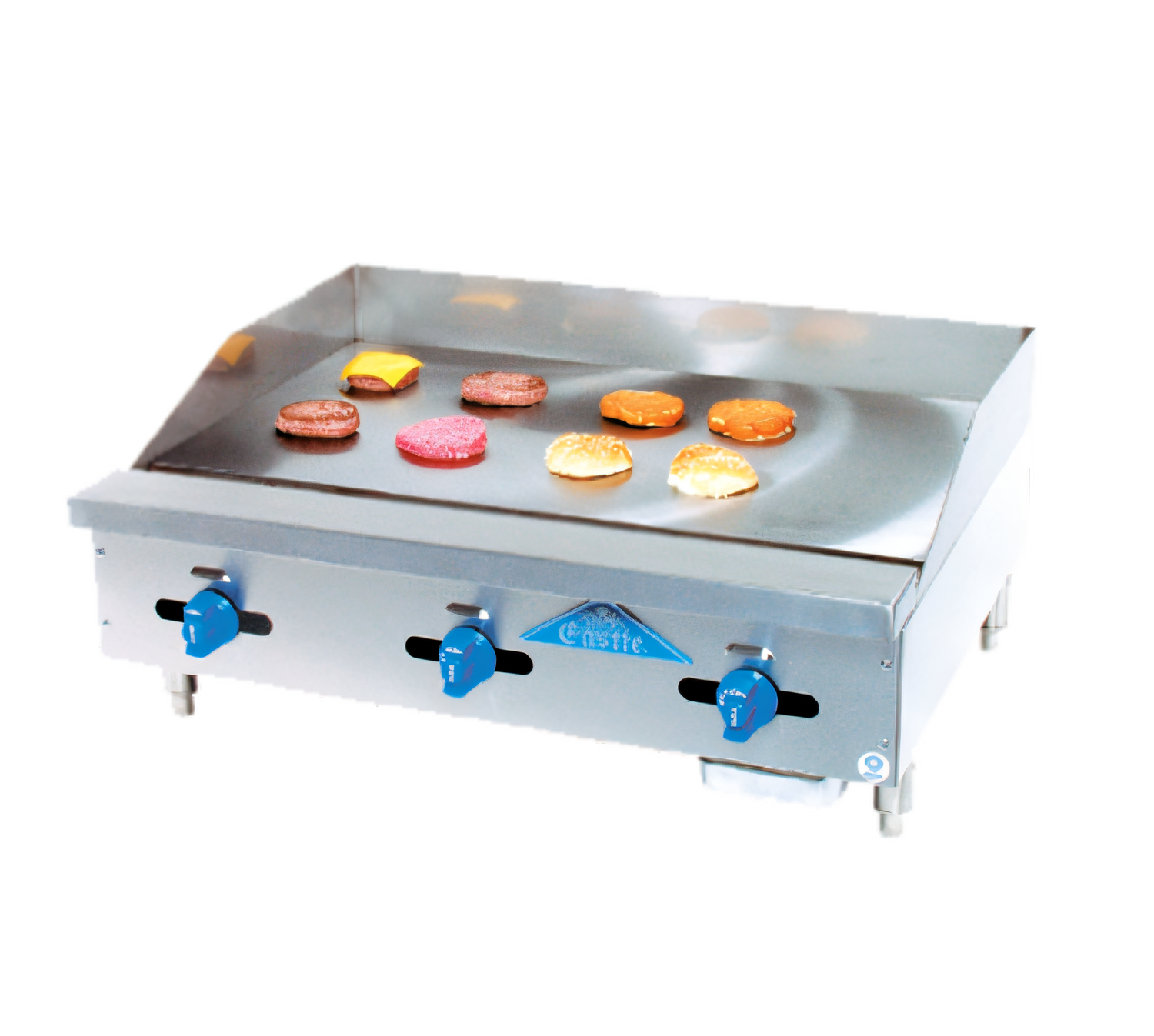

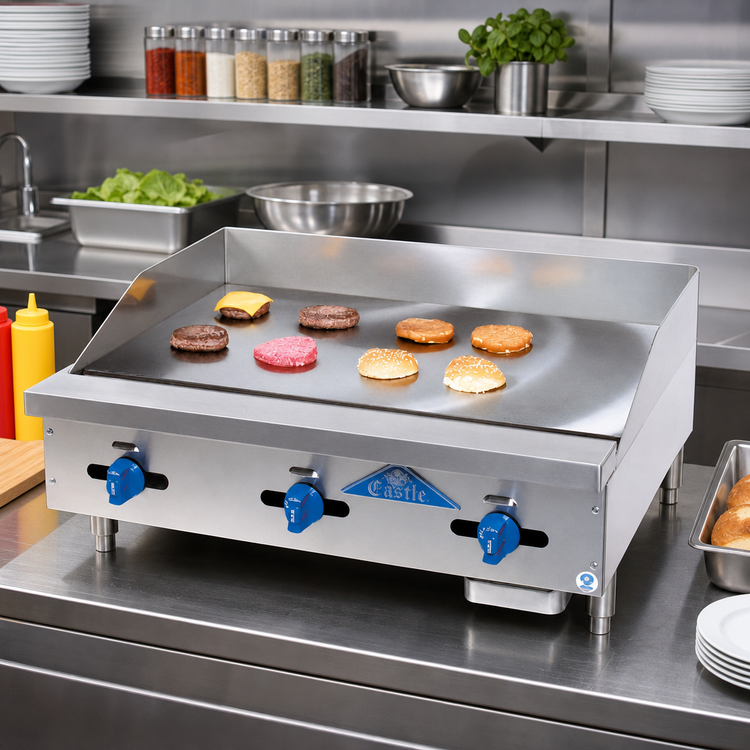

Castle Series 36" Gas Countertop Griddle
Model 3236MG | 75,000 BTU | NSF CertifiedDeliver breakfast, lunch, and dinner service from a single piece of equipment. The Comstock-Castle Castle Series 36 inch countertop griddle pairs a 1" thick polished steel plate with rugged manual controls and a 75,000 BTU burner system—giving you instant, even heat for steak-house sears or diner-style pancakes.
Highlights

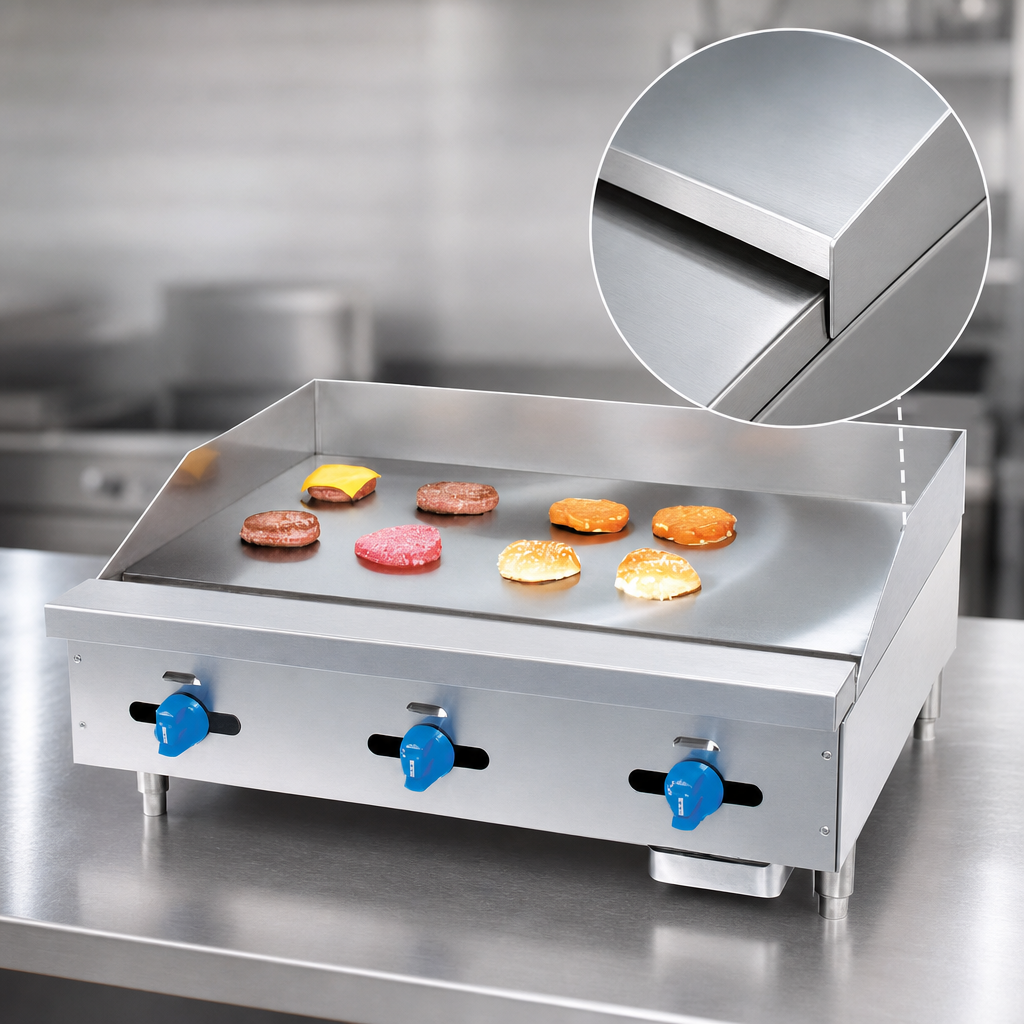

- 1" thick polished steel cooking plate minimizes sticking & holds heat during rushes
- 36" W × 24" D cooking surface mounted in a space-saving 32" deep frame

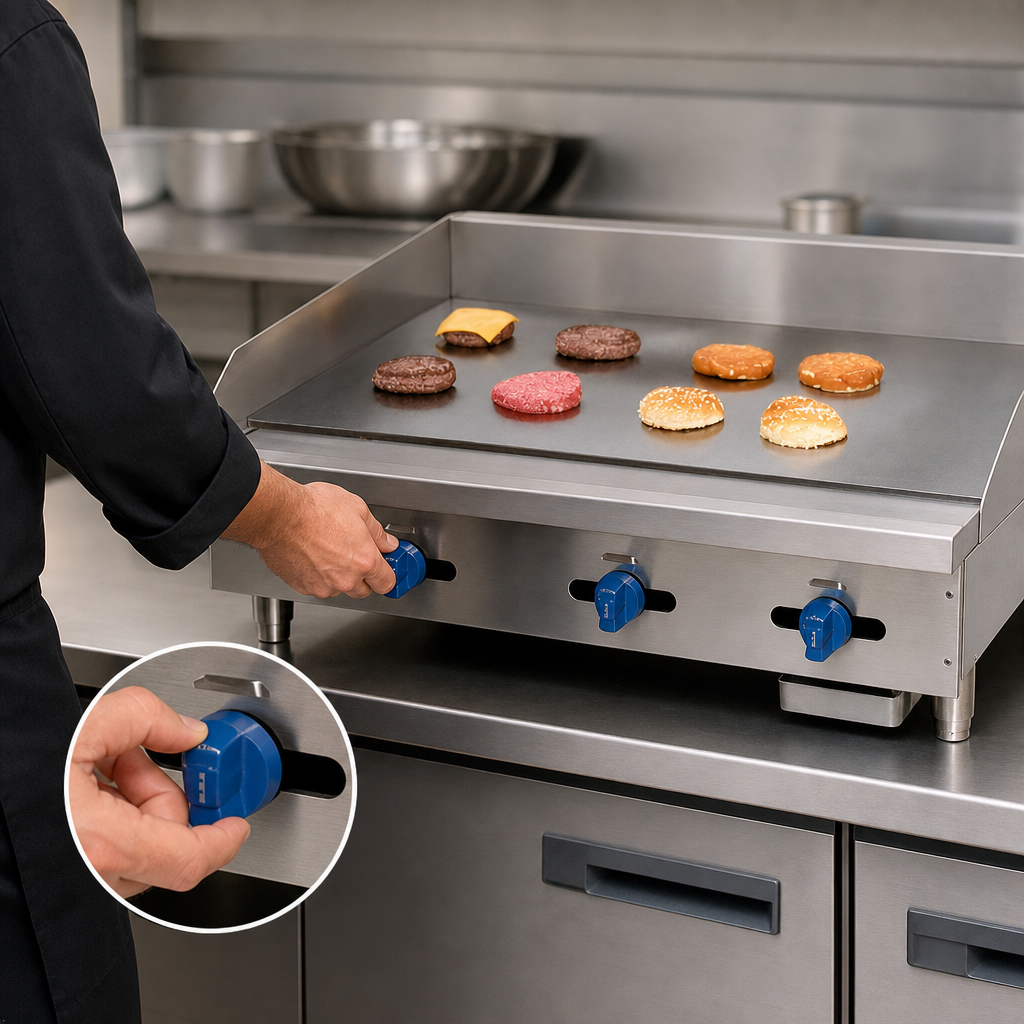

- Three independent manual control valves (one per 12") for true zone cooking
- Heavy-duty stainless steel exterior with welded angle-iron sub-frame
- 3" splash guards on back & ends contain grease and food debris
- Full-width front grease trough feeds a large, seamless, removable drawer
- (4) 4" adjustable stainless pipe legs steady the unit on any worktop
- ¾" NPT rear gas connection with factory-set pressure regulator
- Zero-clearance installation to non-combustible sides & rear
Power & Performance
- 75,000 BTU total – three 25,000 BTU cast-iron “H” burners
- Automatic standing pilots for quick re-lights
- Optimal manifold pressure: 4" WC (Natural) or 10" WC (Propane)
Technical Specifications
| Cooking Surface | 36" W × 24" D × 1" thick polished steel |
|---|---|
| Overall Dimensions | 36" W × 32" D (frame) |
| Plate Material | Polished A36 steel, highly finished |
| Controls | 3 manual brass gas valves with standing pilots |
| Total BTU | 75,000 BTU/hr |
| Gas Inlet | ¾" NPT (rear) |
| Grease Management | 3 ½" × 1" drain slot to removable drawer |
| Certifications | NSF, ANSI Z83.11/CSA 1.8 |
| Warranty | 1-Year Parts & Labor (commercial use) |
What’s Included
- Castle Series 36" countertop griddle (model 3236MG)
- Factory-installed pressure regulator
- Removable grease drawer
- (4) 4" adjustable stainless feet (pre-mounted)
- Owner’s & installation manual
Warranty covers parts & labor for 1 year from installation when unit is installed by a licensed gas technician. See included documentation for full terms.
