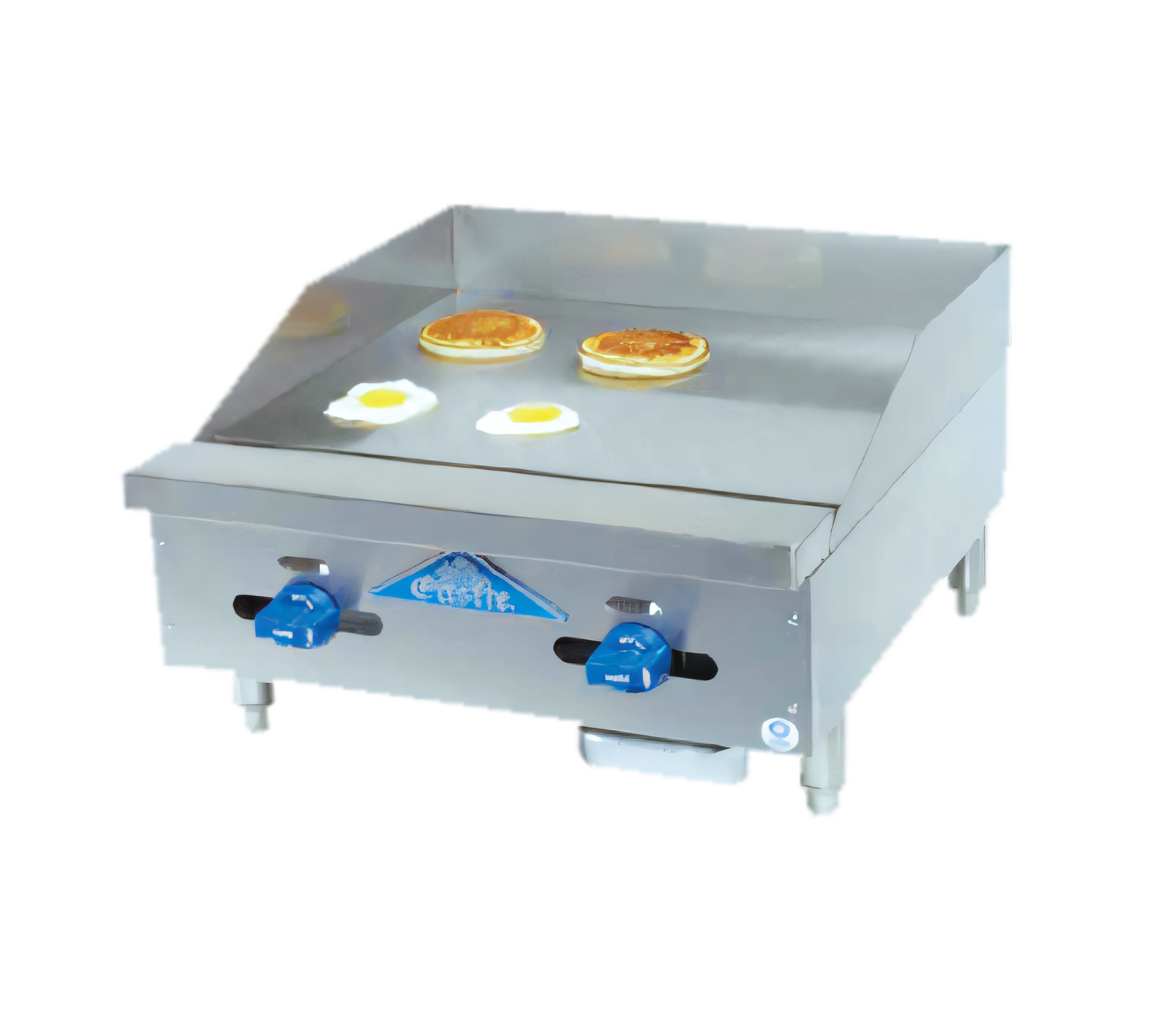

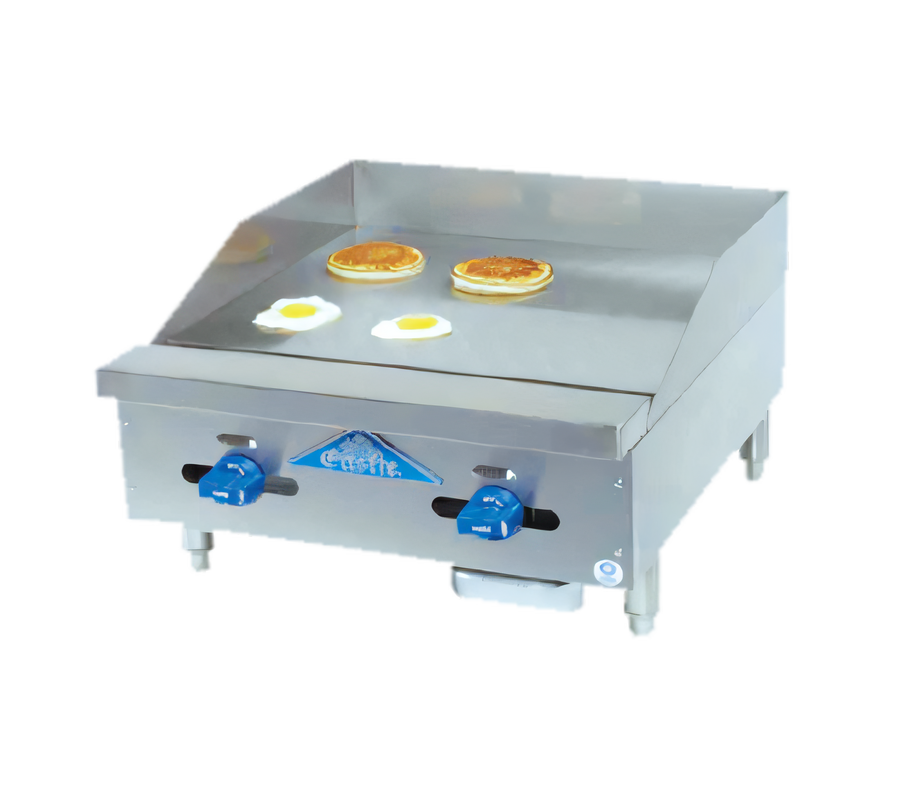

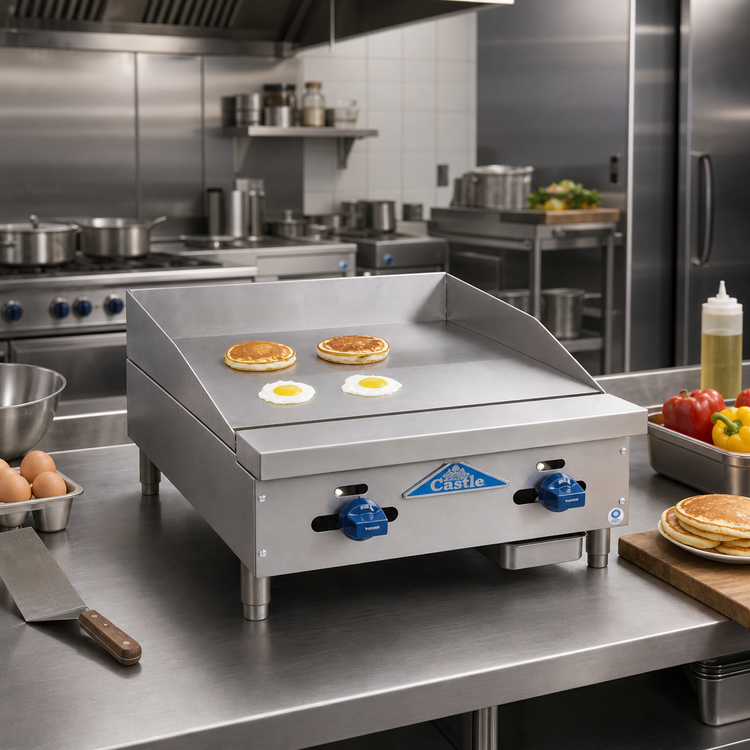

Comstock-Castle “Castle Series” 24" Countertop Gas Griddle
Model 3224MG | 32 Series — 24" cook depth | NSF ListedBuilt for busy commercial kitchens, the Castle Series 3224MG packs rugged construction and 50,000 BTU of even heat into a compact 24" wide footprint. Two manual “H” burners deliver fast recovery, while a highly-polished ¾" thick steel plate turns out perfect pancakes, burgers, eggs and more all day long.
Key performance benefits
- 50,000 BTU total (2 × 25,000 BTU cast-iron “H” burners) for quick pre-heat and reliable recovery.
- 24" W × 24" D × ¾" T polished steel cooking surface minimizes food sticking and simplifies clean-up.
- 3" splash guards on back and sides keep grease where it belongs.
- Front cold-zone grease trough with oversized removable drawer speeds end-of-shift cleanup.
- All-stainless exterior with 4" adjustable stainless legs stands up to heavy commercial use.
- 0" side/rear clearance required against non-combustible surfaces — ideal for tight cooklines.
Standard construction highlights
- Double-wall, fully welded stainless body with aluminized inner framing for cooler exterior temps.
- 4" stainless steel bull-nose landing protects valves and provides a handy plating shelf.
- ¾" rear gas connection supplied with factory-set pressure regulator (4" W.C. NG / 10" W.C. LP).
- Standing pilots and durable brass gas valves for each burner section.
Specs at a glance
| Cooking surface | 24" W × 24" D (576 in²) |
|---|---|

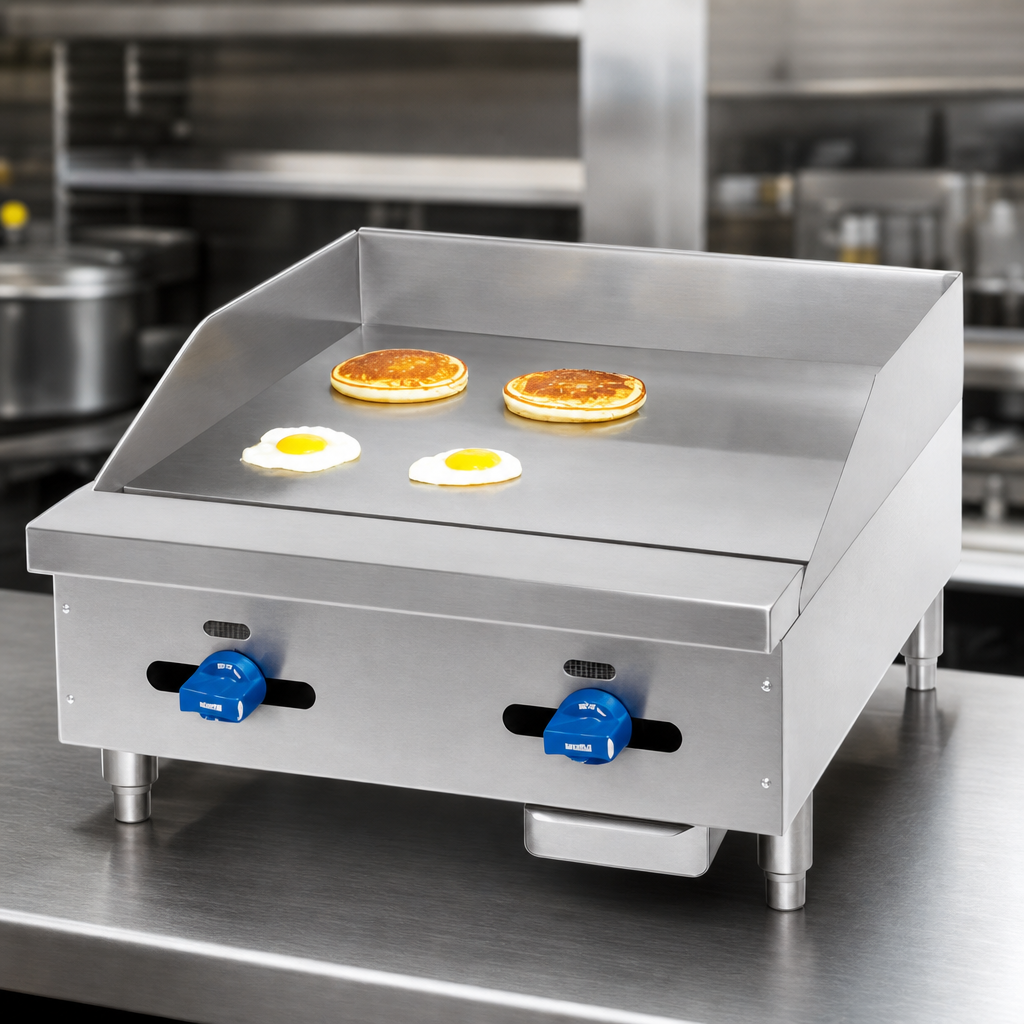

| Plate thickness | ¾" polished steel |

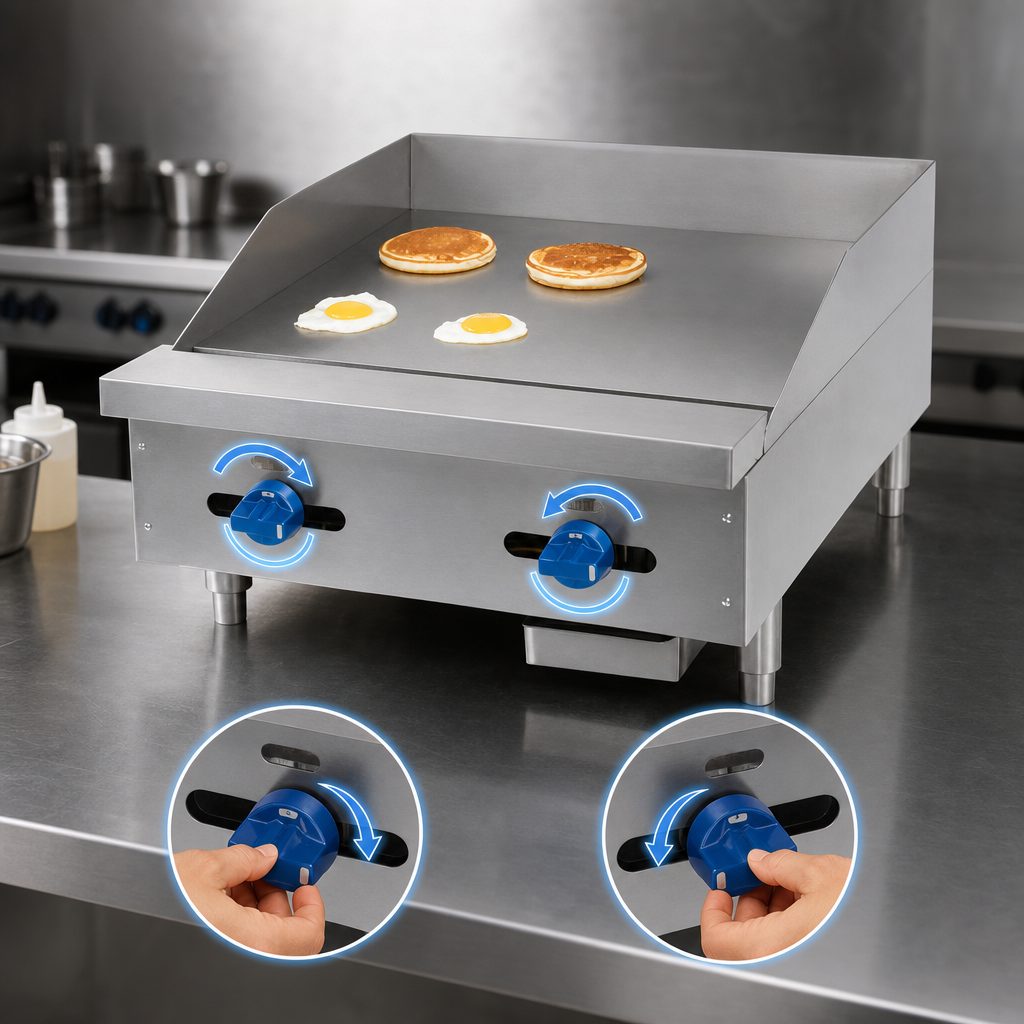

| Controls | 2 manual valves with standing pilots |
| Total BTU | 50,000 BTU/hr |
| Gas connection | ¾" NPT (rear) |
| Overall frame | 24" W × 32" D × 15½" H (with legs) |
| Shipping weight | Approx. 250 lb / 114 kg |
| Certifications | NSF, CSA Blue Star (gas) |
| Warranty | 1 year parts & labor (see details below) |
Optional upgrades & accessories
- Snap-action thermostats & 1" thick steel or chrome-plated plates
- Grooved cooking surface for enhanced grill marks
- Safety pilot controls, knob protectors & carrying handles
- Commercial cleaning kits, grill scrapers & spatulas
- 32 Series equipment stands & matching char-broilers / hot plates
Accessories sold separately. Contact us for configuration assistance.
Installation & clearance notes
- 0" side and rear clearance to non-combustible surfaces.
- 4" side / 5" rear clearance to combustible surfaces.
- Must be installed by a licensed gas technician; pressure manometer required.
Comstock-Castle limited warranty
All new Castle Series equipment is backed by a 1-year parts & labor warranty (60 days labor / 120 days parts when installed on mobile foodservice units). See enclosed warranty statement for complete terms and exclusions.
This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information, visit P65Warnings.ca.gov.
Need a different size? 32 Series models range from 12" to 72" wide. Ask our team for details!
