Comstock-Castle 2923DF Donut Fryers
Comstock-Castle 2923DF Donut Fryers is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Comstock-Castle 2923DF Donut Fryers
Description

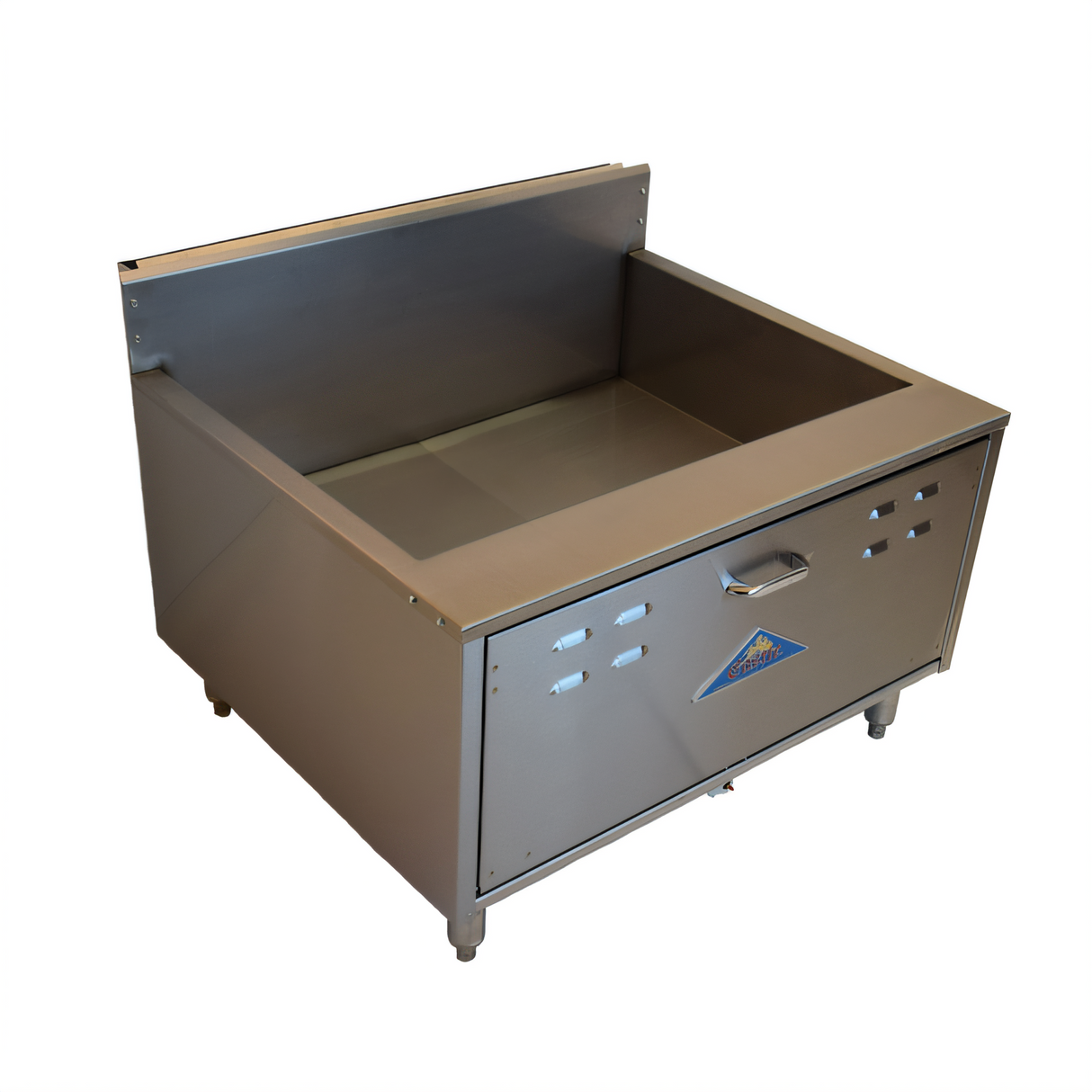

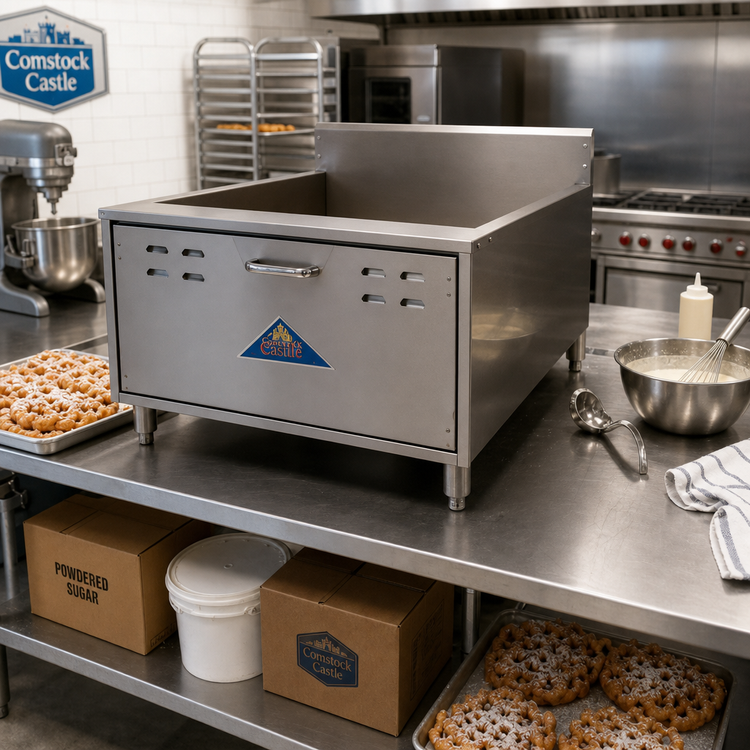

Comstock-Castle 2923DF Countertop Flat-Bottom Funnel Cake & Blooming Onion Fryer

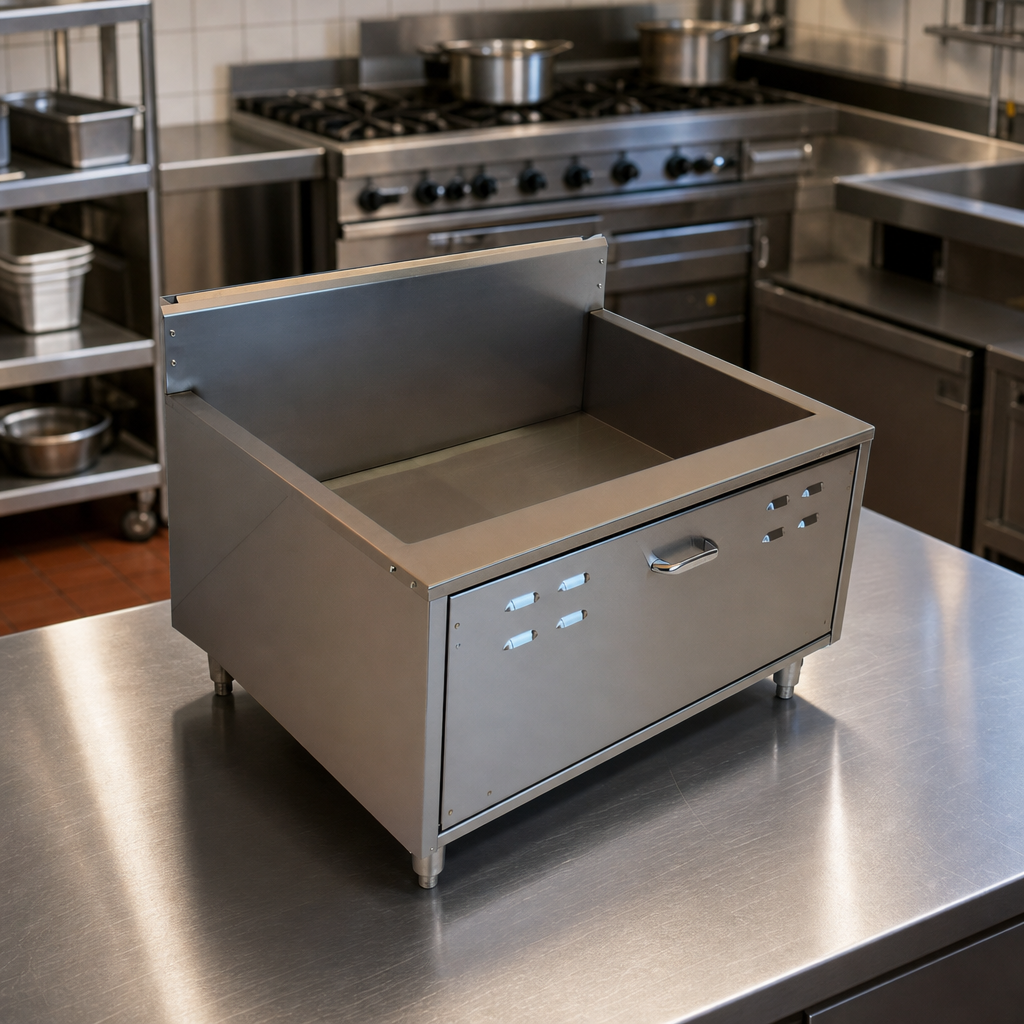

23" wide | 20–50 lb oil capacity | 50,000 BTU gasServe up perfectly-puffed funnel cakes, crowd-pleasing blooming onions, churros, elephant ears and more with the Comstock-Castle 2923DF. This dedicated flat-bottom fryer delivers even heat, fast recovery and a spacious fry area in a compact countertop footprint—ideal for concession stands, food trucks and busy commercial kitchens alike.
Why You’ll Love It

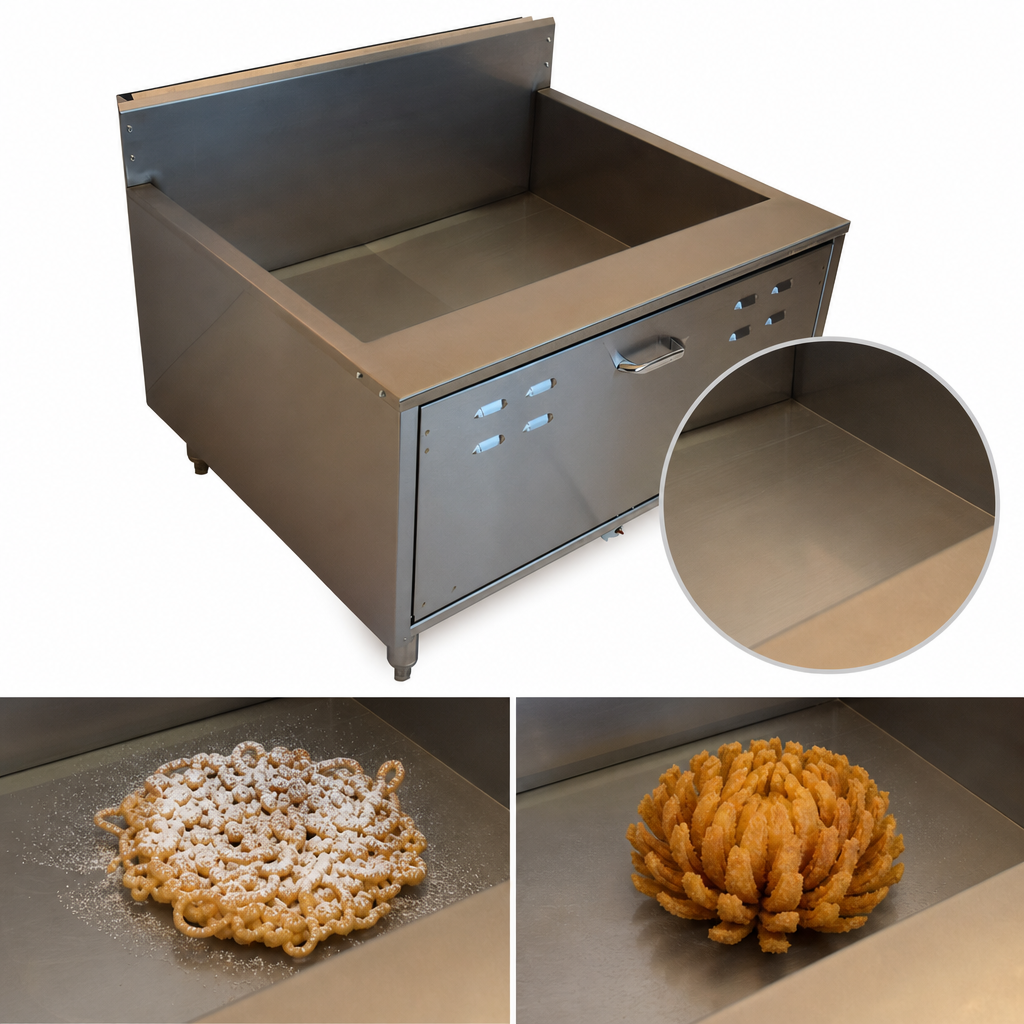

- Flat-bottom stainless steel fry tank holds 20–50 lb of shortening, giving delicate foods room to float & bloom without basket marks.
- High-output 50,000 BTU cast-iron “I” burner with exclusive “V” shaped heat deflector for uniform heat distribution and rapid recovery.
- Modulating/snap-action thermostat maintains precise temperatures with 100 % safety shut-off, high-limit protection and standing pilot.
- All-stainless construction (tank, front & sides) plus double-wall insulation keeps exteriors cool and cleans up fast.
- Large ¾" gate valve drain with angled bottom speeds oil removal and cleanup.
- 4" adjustable stainless steel legs let you level the unit on any countertop.
- Hinged front door protects controls yet grants quick access for service.
- Ships ready for Natural Gas; field-convertible to LP (propane) with optional kit.
- NSF listed and backed by a 1-year parts & labor warranty for worry-free operation.
Technical Specifications
| Model | 2923DF |
|---|---|
| Oil Capacity | 20–50 lb • 5–7 gal • 20–23 L |
| BTU Rating | 50,000 BTU/hr |
| Fuel Type | Natural Gas (LP conversion kit optional) |
| Thermostat Range | Approx. 200–400 °F (93–204 °C) |
| Overall Width | 23" / 584 mm |
| Overall Depth | 28.5" / 724 mm |
| Overall Height | 24" / 610 mm (to splash back) |
| Shipping Weight | 145 lb / 66 kg |
| Gas Connection | ¾" NPT, 4" WC NG / 10" WC LP |
| Tank Interior (W × L × H) | 20.25" × 21" × 8.25" |
| Certifications | NSF |
| Warranty | 1-year parts & labor (60-day labor / 120-day parts on mobile units) |
Included & Optional Accessories
- Included: stainless steel tank cover
- Optional: large fry baskets, cleaning supplies, gas hoses, mobile equipment stand, caster kit
Accessories sold separately unless otherwise noted.
