Comstock-Castle  |  SKU: 10301

Comstock-Castle 10301 Gas Charbroilers

$2,860.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Installation & operation Warranty
Related Searches
Charbroilers & Grills Gas Charbroilers

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

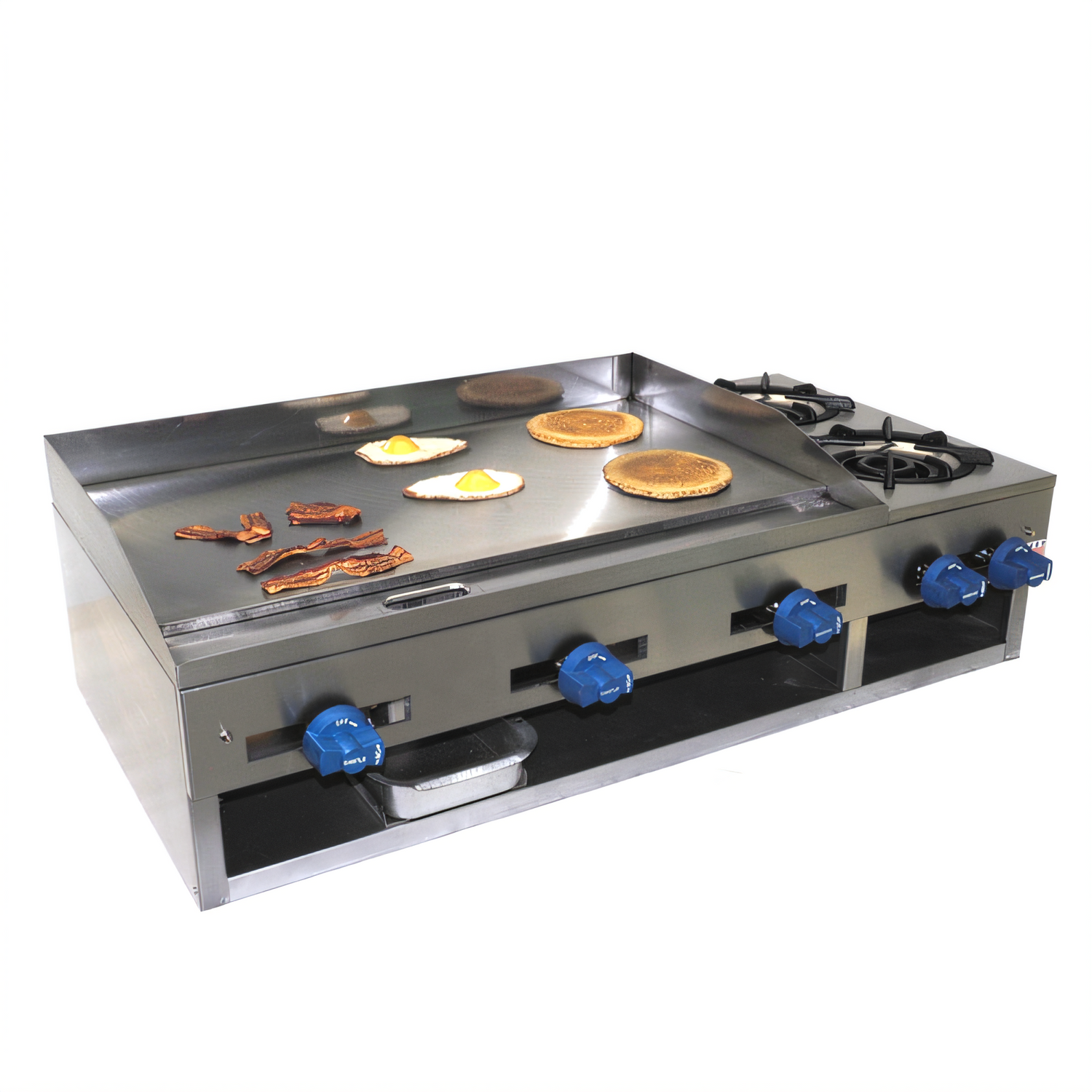

Comstock-Castle 40" Countertop Gas Hotplate/Griddle – 60,000 BTU

2 Open Burners • 30" x 16" Griddle • 10 Series Low-Profile

Give your cookline maximum versatility in minimum space. This Comstock-Castle combination unit pairs two high-performance open burners with a generous 30-inch griddle, letting you sauté, boil, fry and sear from a single 40" countertop footprint.

Why You’ll Love It

  • Dual-function cooktop: (2) 12,000 BTU cast-iron open burners plus a 30" × 16" × ½" polished steel griddle plate.
  • Total output of 60,000 BTU/hr handles breakfast rushes, short-order menus and à-la-carte service with ease.
  • 10 Series chassis stands only 10" tall—ideal for chef’s counters, food trucks and kiosks.
  • Stainless-steel front & sides with welded frame resist corrosion and wipe clean fast.
  • 16" deep cooking surface features a front cold-zone trough and large removable grease drawer for tidy operation.
  • Five manual gas valves with standing pilots—simple, reliable and cost-effective.
  • ¾" NPT rear gas connection with factory-set regulator (Natural Gas; LP kit available).
  • NSF & ETL Sanitation listed; made in Quincy, Illinois—America’s oldest stove company (Est. 1838).
  • Backed by a 1-year parts & labor warranty.

Technical Specifications

Overall width 40 in / 1016 mm
Overall depth 20 in / 508 mm (frame)
Overall height 10 in / 254 mm
Griddle cooking area 30 in W × 16 in D × ½ in thick
Griddle burners (3) 12,000 BTU “H” pattern
Open burners (2) 12,000 BTU cast-iron
Total BTU 60,000 BTU/hr
Gas connection ¾" NPT rear, regulator included
Material Stainless steel front & sides; aluminized steel back
Grease management Front trough with removable full-width drawer
Net weight Approx. 165 lb / 75 kg
Certifications NSF, ETL Sanitation, cETLus
Warranty 1 year parts & labor (see warranty tab for details)
Installation Notice: This appliance must be installed and pressure-tested by a licensed gas technician in accordance with local codes. Installing without a calibrated manometer will void the manufacturer warranty.

Popular Accessories (sold separately)

  • 4" counter legs or equipment stands
  • ¾" or 1" thick griddle plates
  • Thermostat control package
  • Chrome-plated griddle surface
  • Safety pilot & flame-failure systems
  • Cleaning kits, scrapers & spatulas

Need a different size or configuration? Explore the full Comstock-Castle 10 Series or chat with our team for personalized recommendations.

Features & Specs

Manufacturer

Comstock-Castle

Certifications

NSF

Height

12.0in

Width

40.0in

Depth

20.0in

Shipping Weight

165.0lbs

Griddle Area

30"W x 16"D

Griddle Controls

manual controls

Open Burners

2

Griddle Plate Finish

smooth steel

Plate Thickness

1/2"

Width (side - side) OA

40"

Specifications

Hotplate/Griddle, 20" deep frame, countertop, gas, 40" wide, (2) 12,000 BTU open burners, (1) 30" wide x 16" deep x 1/2" thick griddle plate, (5) manual controls, removable grease drawer, stainless steel front & sides, 60,000 BTU, NSF
