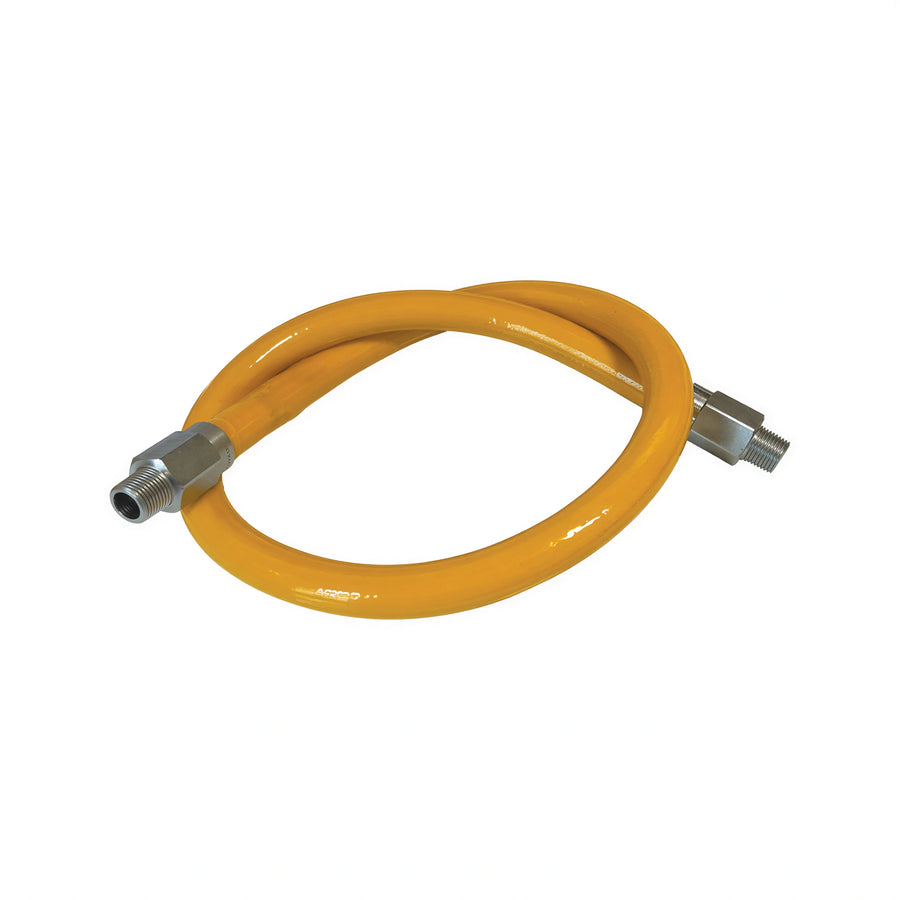

Play manufacturer video for Component Hardware Encore GHM-100H60 Moveable Gas Hose, 60" Length, 1" Connection, Stainless Steel Braided PVC CoatedComponent Hardware Encore GHM-100H60 Moveable Gas Hose, 60" Length, 1" Connection, Stainless Steel Braided PVC Coated
SKU: GHM-100H60
$313.99
/each
Enter ZIP for a shipping estimate
Expected delivery to by
Estimated Arrival
Estimated Cost
Finalize delivery options at checkout
GHM-100H60 is an Encore movable gas hose designed for commercial appliances, with a 60-inch length and 1-inch connection.
- PVC-coated stainless steel braid construction
- NPT male freespin inlet and outlet
- 360° rotatable hex nut that rotates freely
- Maximum gas pressure of 1/2 psi and maximum temperature of 350°F
Product documentation lists ANSI Z21.69 / CSA 6.16, NSF 2, NFPA 54, and a five-year warranty for Encore gas connectors.
Overall Dimensions:
60.0"WCommercial appliance use
Specifically designed for commercial appliances.
PVC-coated stainless steel braid
Constructed with stainless steel braid and a PVC coating.
NPT male freespin connections
Includes an NPT male freespin inlet and outlet.
360° rotational end
The hex nut rotates completely and freely.
Torsional relief
The connector design provides torsional relief.
Connection Size
1"
Length
60"
Material
PVC-coated stainless steel braid
Connection Type
NPT male freespin inlet and outlet
Maximum Gas Pressure
1/2 psi
Maximum Temperature
350°F
Gas Capacity
438,000 BTU/hr for 1 in NPT x 1 in NPT at 60 in length; based on 1,000 BTU/ft³ gas, 0.64 specific gravity, and 0.5 in w.c. pressure drop
Certifications & Compliance
Warranty & Protection
Five-year limited warranty for Encore gas connectors.
Frequently Asked Questions
The GHM-100H60 has a 60-inch hose length.
It has a 1-inch connection with an NPT male freespin inlet and outlet.
It is made with a PVC-coated stainless steel braid.
The specified maximum gas pressure is 1/2 psi.
The listed capacity is 438,000 BTU/hr for a 1-inch NPT x 1-inch NPT connection at 60 inches, based on the stated gas and pressure-drop conditions.
Product documentation states a five-year limited warranty for Encore gas connectors.
