Component Hardware Encore GHM-012KTU160 Gas Hose Connector Kit, 60 in, 1/2 in Connection, Quick Disconnect, Restraining Device

SKU: GHM-012KTU160
$369.40
/each
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Component Hardware Cooking Equipment Cooking Gas & Steam Connections Equipment Gas Hose New Arrivals Restaurant Equipment Restaurant Equipment Parts

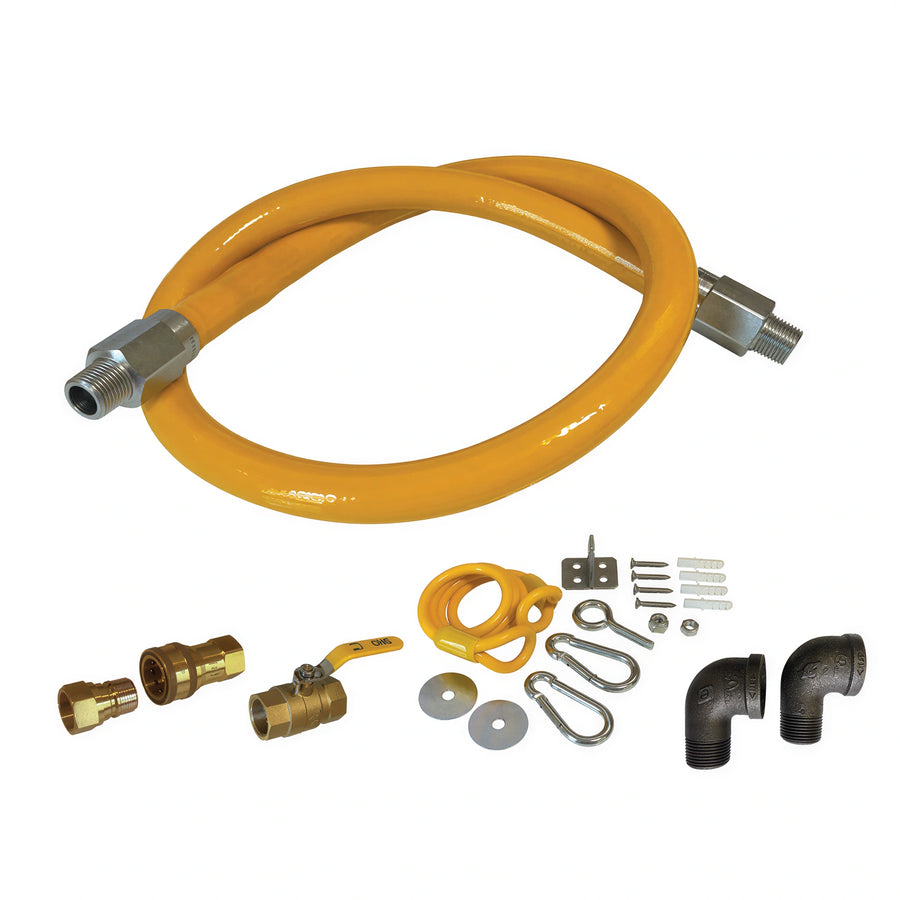

The Encore GHM-012KTU160 is a movable gas hose connector kit for commercial appliances. It includes a 60 in gas hose with a 1/2 in connection, PVC-coated stainless steel construction, and a quick disconnect.

The kit also includes a restraining cable, full-port ball valve, and two 90° street elbows.

Overall Dimensions:

60.0"W

60 in hose length

The kit includes a 60 in gas hose.

1/2 in connection

The kit uses a 1/2 in connection size.

PVC-coated stainless steel construction

The gas hose uses PVC-coated stainless steel braid construction.

Quick disconnect

A quick disconnect is included in the kit.

Restraining cable

A restraining cable is included for the movable gas appliance installation.

Included valve and elbows

The kit includes a full-port ball valve and two 90° street elbows.

Hose length 60 in
Connection size 1/2 in
Material PVC-coated stainless steel
Kit contents Gas hose, restraining cable, quick disconnect, full-port ball valve, and two 90° street elbows
Maximum gas pressure 1/2 psi
Maximum temperature 350°F
Gas capacity 102,000 BTU/hr at a 0.5 in. w.c. pressure drop, based on gas with a 1,000 BTU/ft³ heating value and 0.64 specific gravity

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

Five-year limited warranty.

Documents

PDF Cutsheet PDF Download PDF Brochure PDF Download PDF Installation instructions PDF Download

Frequently Asked Questions

The kit includes a gas hose, restraining cable, quick disconnect, full-port ball valve, and two 90° street elbows.
The hose is 60 in long and has a 1/2 in connection size.
Yes. The kit includes a restraining cable.
No. The installation guide states that the quick-disconnect coupling is not to be used as the primary gas shutoff. An accessible manual shutoff valve is required upstream of the connector.
The installation instructions require installation and testing by a qualified professional.
The product has a five-year limited warranty.
