CMA Dishmachines UC50E Undercounter Dishwashers
Description

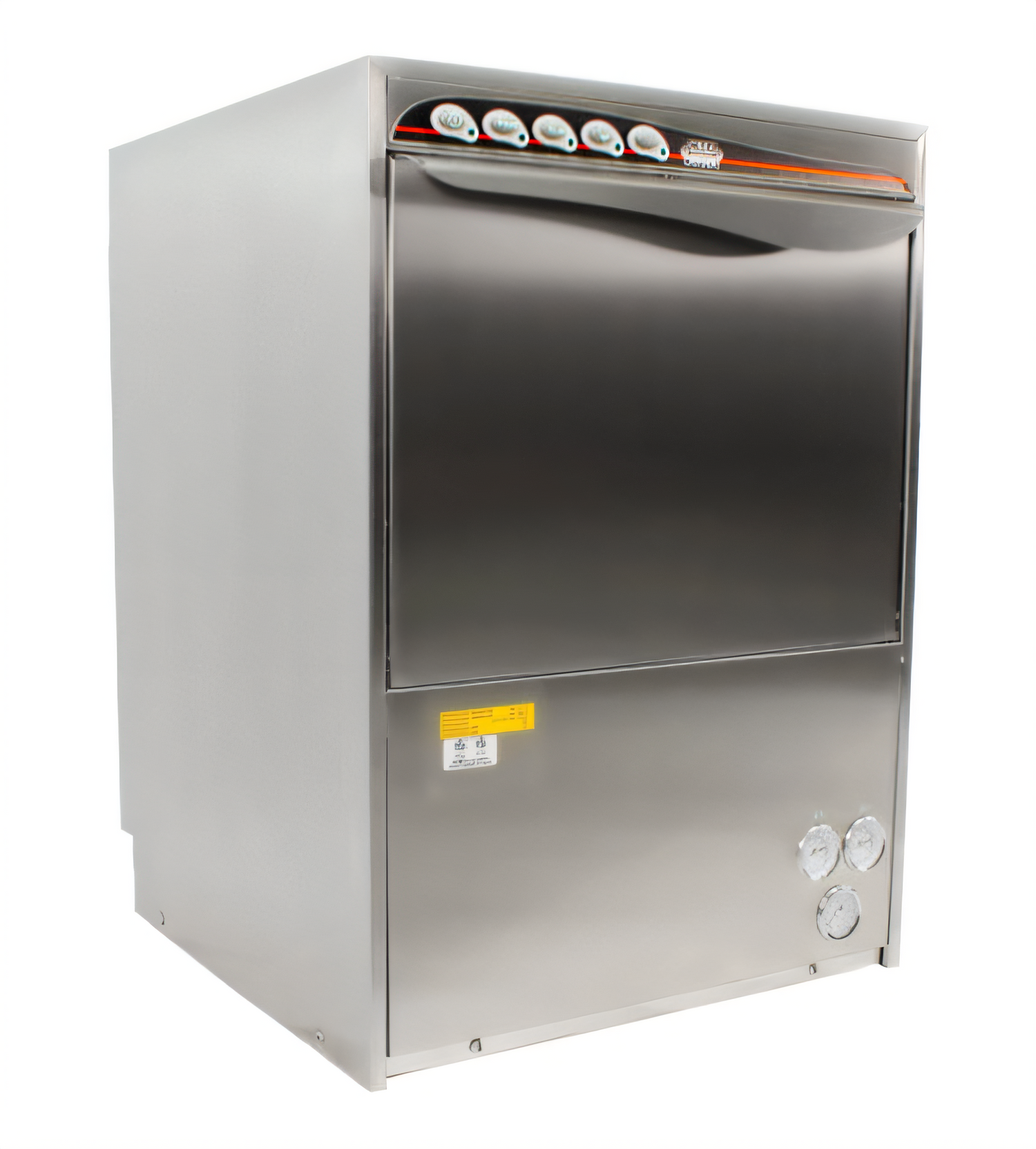

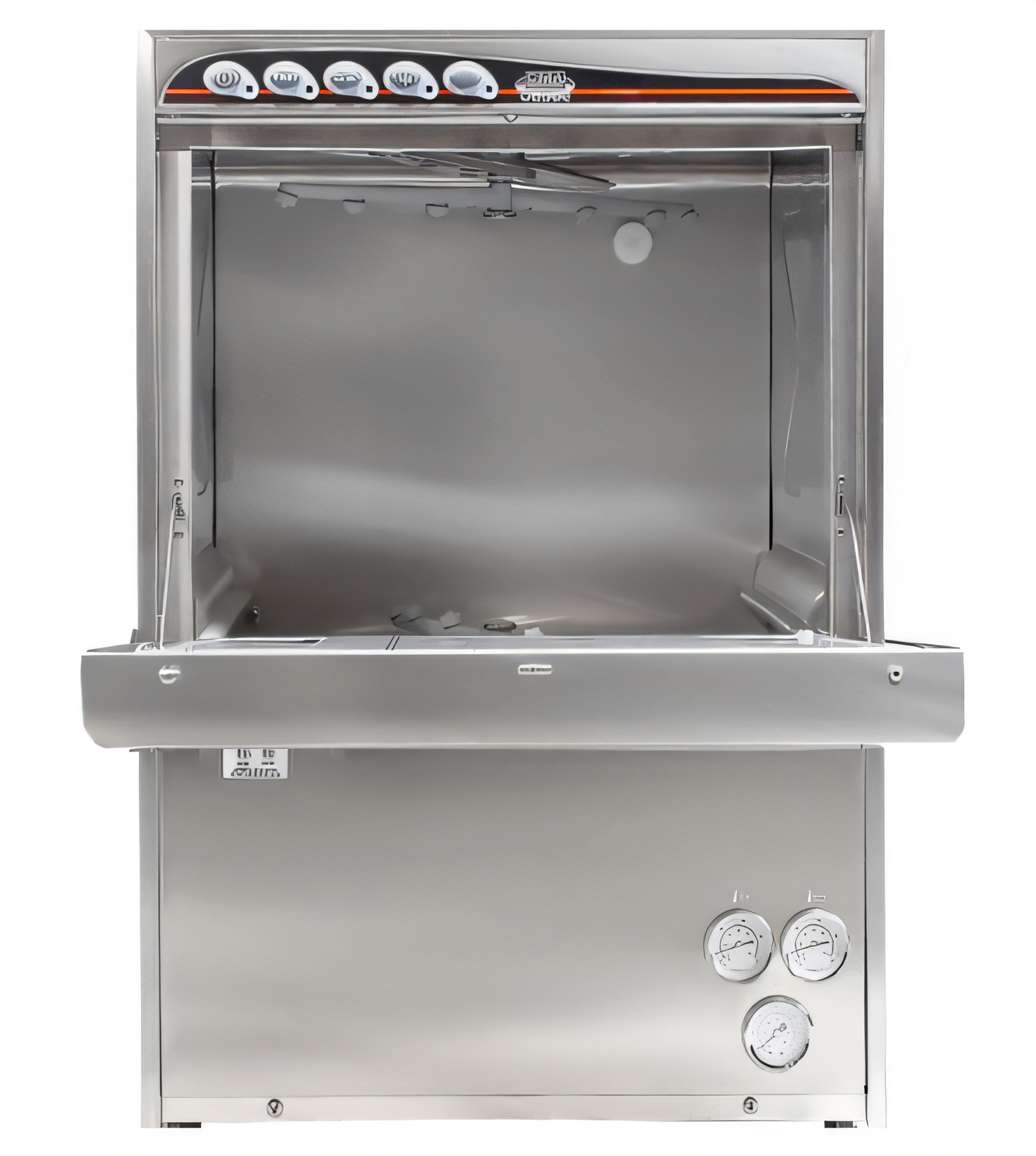

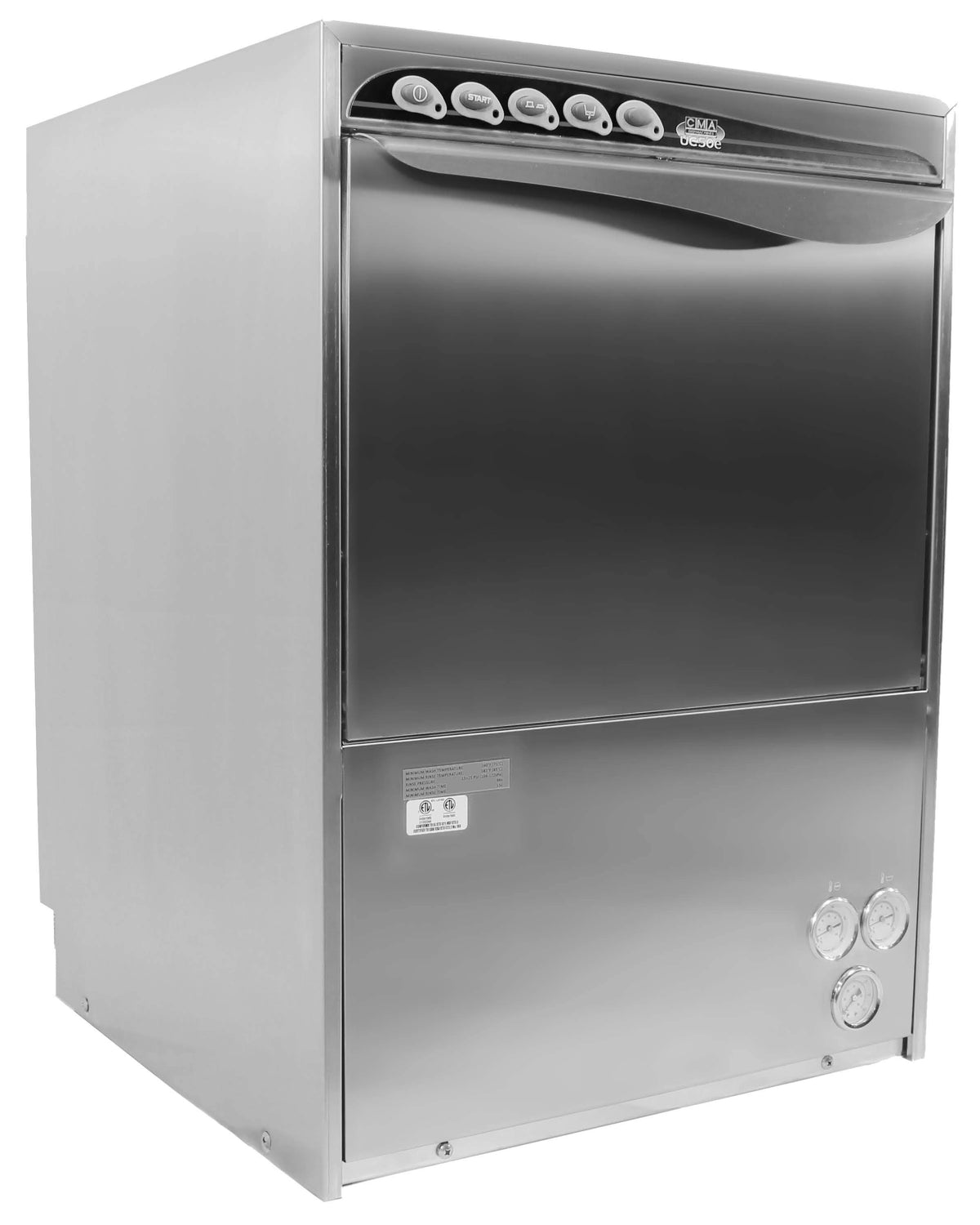

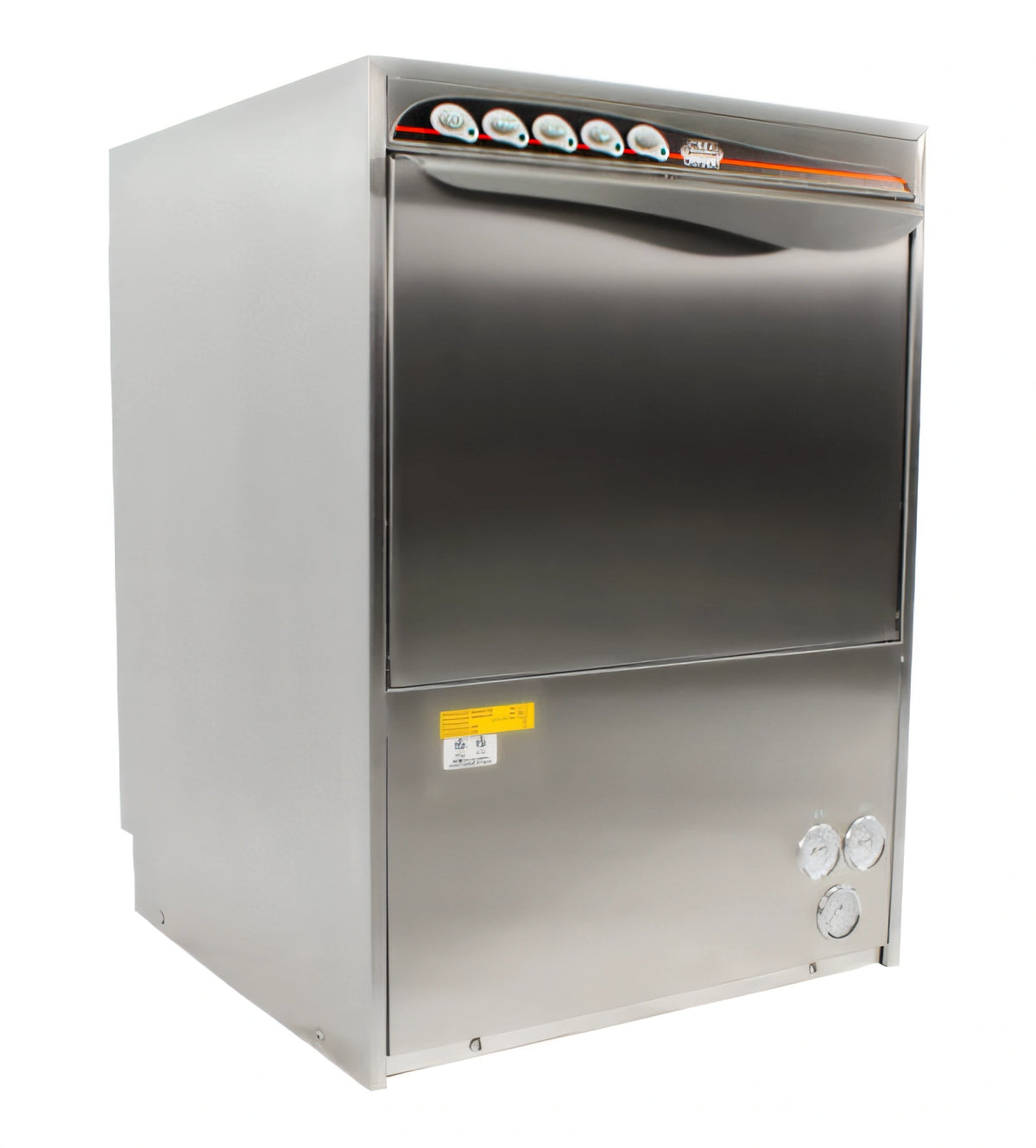

CMA Dishmachines UC-50e High-Temperature Undercounter Dishwasher/Glasswasher
30 racks per hour • 13" door clearance • Built-in 6 kW booster heaterEngineered for busy bars, cafés, and smaller commercial kitchens, the UC-50e delivers sparkling dishes and glassware every two-minute cycle while using less than a gallon of water per rack. Its double-skin stainless-steel cabinet keeps heat and noise inside, and the Safe-T-Temp feature guarantees a 180 °F sanitizing rinse each and every time.
Key Features
- High-temperature sanitizing with integrated 6 kW booster & safety thermostat
- Processes up to 30 racks / 120 covers per hour
- Low 0.8 gal. water consumption per rack saves on utilities
- Generous 13" door opening handles oversized plates & tall stemware
- Fully automatic wash / rinse cycle with top-mounted, easy-read controls
- Built-in detergent and rinse-aid pumps—no external dispensers required
- Pumped drain for flexible installations, including above-floor or elevated drains
- Removable upper & lower stainless wash/rinse arms for fast cleaning
- Triple filtration system + stainless safety screens protect the ¾ HP wash pump
- Door & water-level safety switches for worry-free operation
- Includes one (1) open rack and one (1) peg rack, 20" × 20" each
- cETLus & ETL-Sanitation listed for commercial compliance
Performance & Specifications
| Capacity | 30 racks / 120 covers per hour |
|---|---|
| Total Cycle Time | 120 sec (standard) • 180 sec (heavy) |
| Wash Temperature | 155 – 160 °F |
| Rinse Temperature | 180 – 195 °F (Safe-T-Temp verified) |
| Water Usage | 0.8 gal per rack (3 L) |
| Booster Heater | 6 kW built-in (reaches 180 °F without external tank) |
| Wash Tank Heater | 2.7 kW |
| Pump Motor | ¾ HP |
| Electrical | 208–240 V / 1 ph / 27–30 A |
| Dimensions (W × D × H) | 23-7/16" × 24" × 33-5/16" (59.5 × 61 × 84.5 cm) |
| Max Loading Height | 13" (33 cm) |
| Water Inlet / Drain | ¾" NPT / 1" OD pumped drain |
| Shipping Weight | 165 lb (75 kg) |
Why Choose the UC-50e?
- Ensures health-code compliance with every cycle—no chemical sanitizers needed
- Quiet, double-wall cabinet keeps front-of-house conversations comfortable
- Rounded-corner wash tank speeds end-of-shift cleanup
- Optional water-tempering kit and drain board available to streamline your workflow
- Backed by CMA’s 1-year parts & labor warranty
For optimum results, CMA recommends incoming water at 140 °F and hardness no greater than 3.5 gpg (water softener suggested in hard-water areas).
