CMA Dishmachines S-AH Energy Mizer Dishwashers
Description

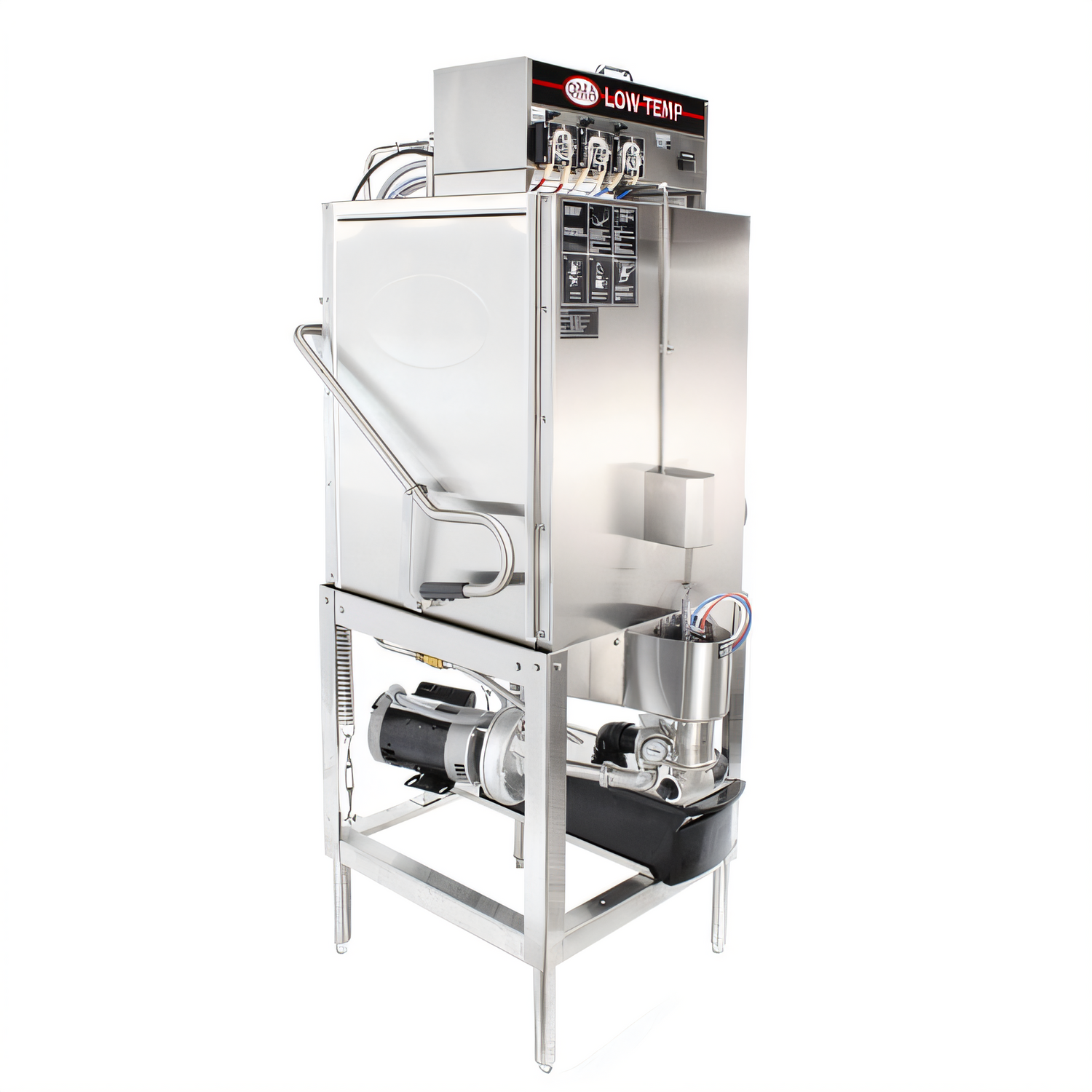

CMA Energy Mizer® S-AH Pot & Pan Dishwasher
40 racks/hr • Low-Temp Chemical Sanitizing • Straight-Thru Door TypeThe Energy Mizer® S-AH from CMA Dishmachines tackles heavy cookware and sheet-pans with unmatched efficiency, washing up to 40 racks per hour while using just 1.7 gallons of water per rack. Its low-temperature chemical system delivers NSF-approved sanitation without a costly booster heater—so you get spotless results with lower utility bills and zero steam in the dish room.
Key Benefits
- Processes 40 racks (≈160 covers) every hour to keep pace with peak service.
- 27 inch door opening accepts stock pots, mixing bowls and full-size sheet pans.

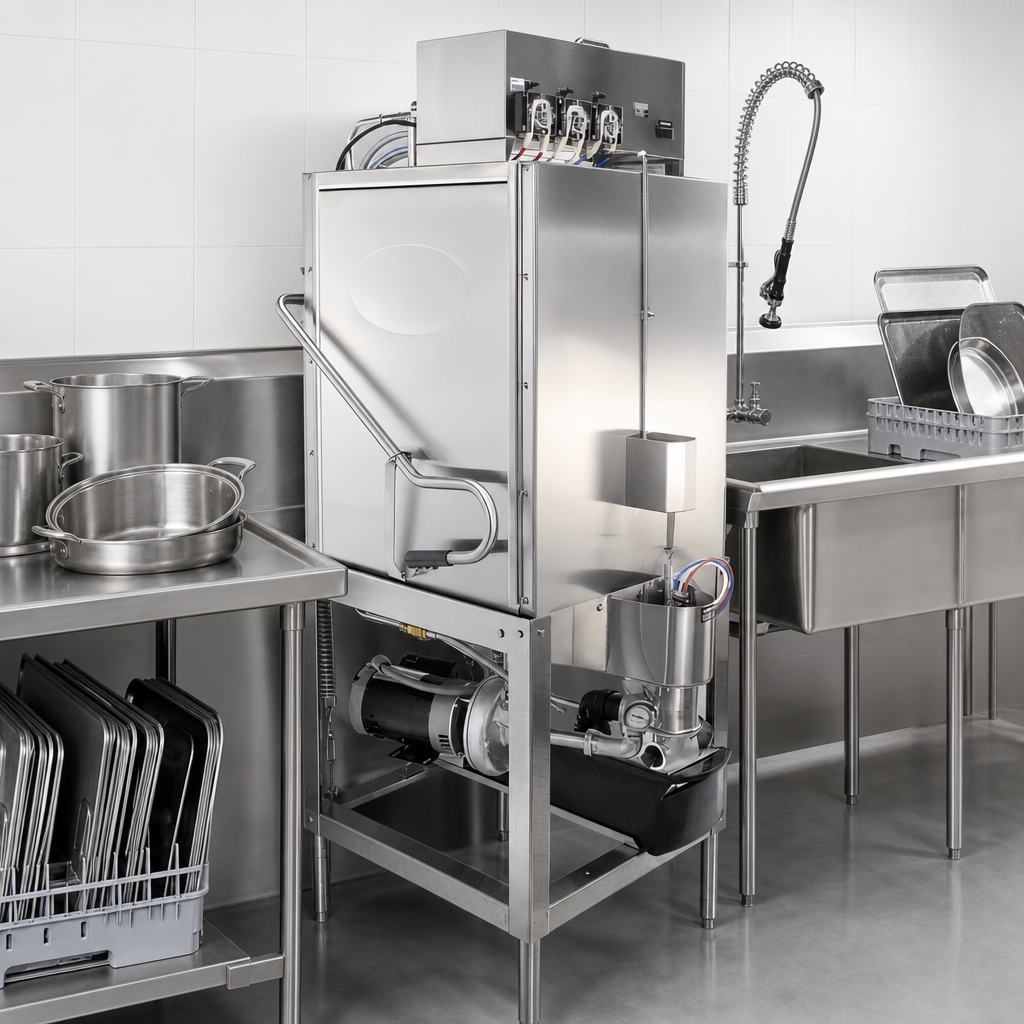

- Low-temp chemical sanitizing eliminates high-heat requirements and reduces energy costs.
- Top-mounted control panel with built-in detergent, rinse and sanitizer pumps plus automatic deliming.
- Upper & lower stainless steel wash arms remove in seconds via quick pull-pins for fast clean-up.
- Pump-purge cycle minimizes soil & chemical carry-over for consistently clean dishes.
- Poly Pro™ scrap accumulator, integrated scrap tray and inlet strainer protect the drain and pump.

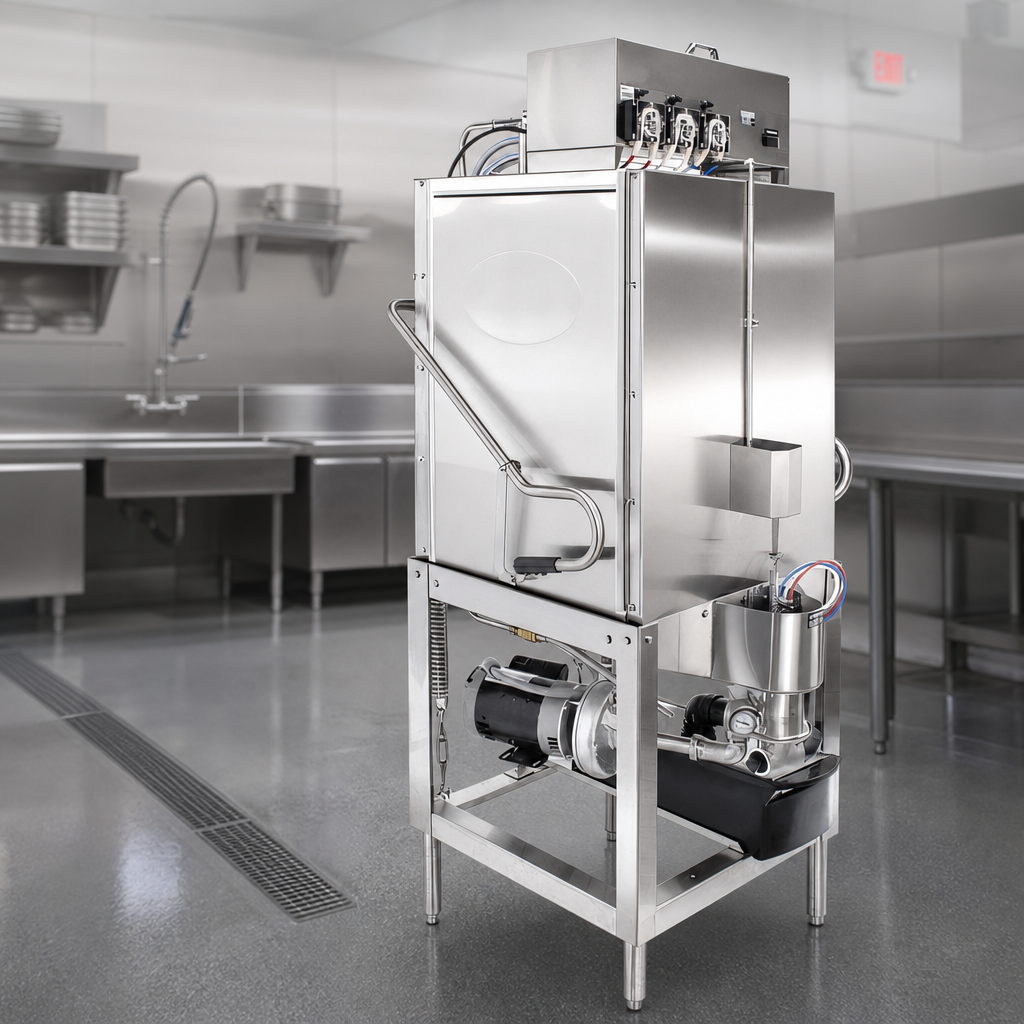

- Rugged all-stainless construction and a 1 HP wash pump built for years of heavy-duty service.
- Auto start/stop door switch saves water and chemicals while improving operator safety.
- NSF & cULus listed; proudly manufactured in the USA.
Performance at a Glance
| Racks / Hour (NSF) | 40 |
|---|---|
| Total Cycle Time | 90 s -- 45 s wash • 30 s rinse • 15 s dwell |
| Water Usage | 1.7 gal per rack | 68 gal per hour |
| Wash Pump | 1 HP • 68 GPM |
| Sanitizing Method | Low-temp chemical (no booster heater) |
| Recommended Inlet Temp | 140 °F (minimum 120 °F) |
Dimensional & Utility Data
| Exterior Dimensions | 25 ¾" W × 25 ¾" D × 67" H |
|---|---|
| Door / Dish Clearance | 27" |
| Standard Rack Size | 20" × 20" |
| Electrical | 115 V / 1-Phase / 16 A |
| Water Inlet | ¾" line, 120–140 °F |
| Drain Connection | 2" IPS (11 ½"–12 ½" above floor) |
| Shipping Weight | ≈ 299 lb |
| Certifications | NSF, cULus |
What’s Included
- (1) 20" × 20" open rack
- Integrated chemical pumps (detergent, rinse, sanitizer)
- Automatic deliming system
- Poly Pro™ scrap accumulator & scrap tray
Factory Options
- Temp-Sure™ 12 kW inline heat booster
- Solid / Powder dual-bowl chemical dispenser
- Low chemical alarm kit
- Stainless steel dishtables & sheet-pan racks
- Stainless steel scrap trap (replaces Poly Pro)
- Alternate cycle times or export voltages
Options must be specified at time of order; additional charges may apply.
Backed by CMA’s One-Year Parts & Labor Limited Warranty.
