CMA Dishmachines L-1XE Energy Mizer Undercounter Dishwashers
Description

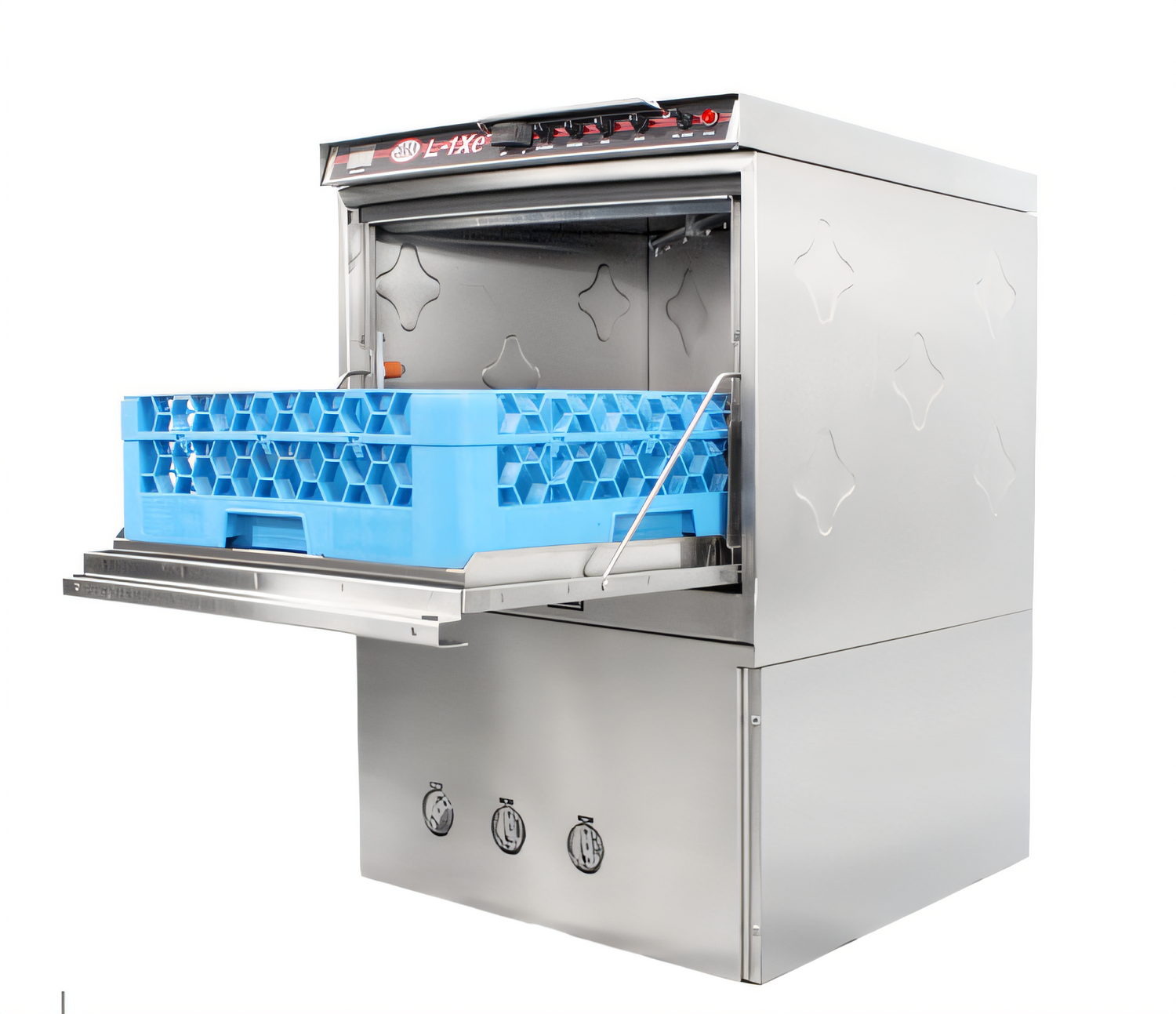

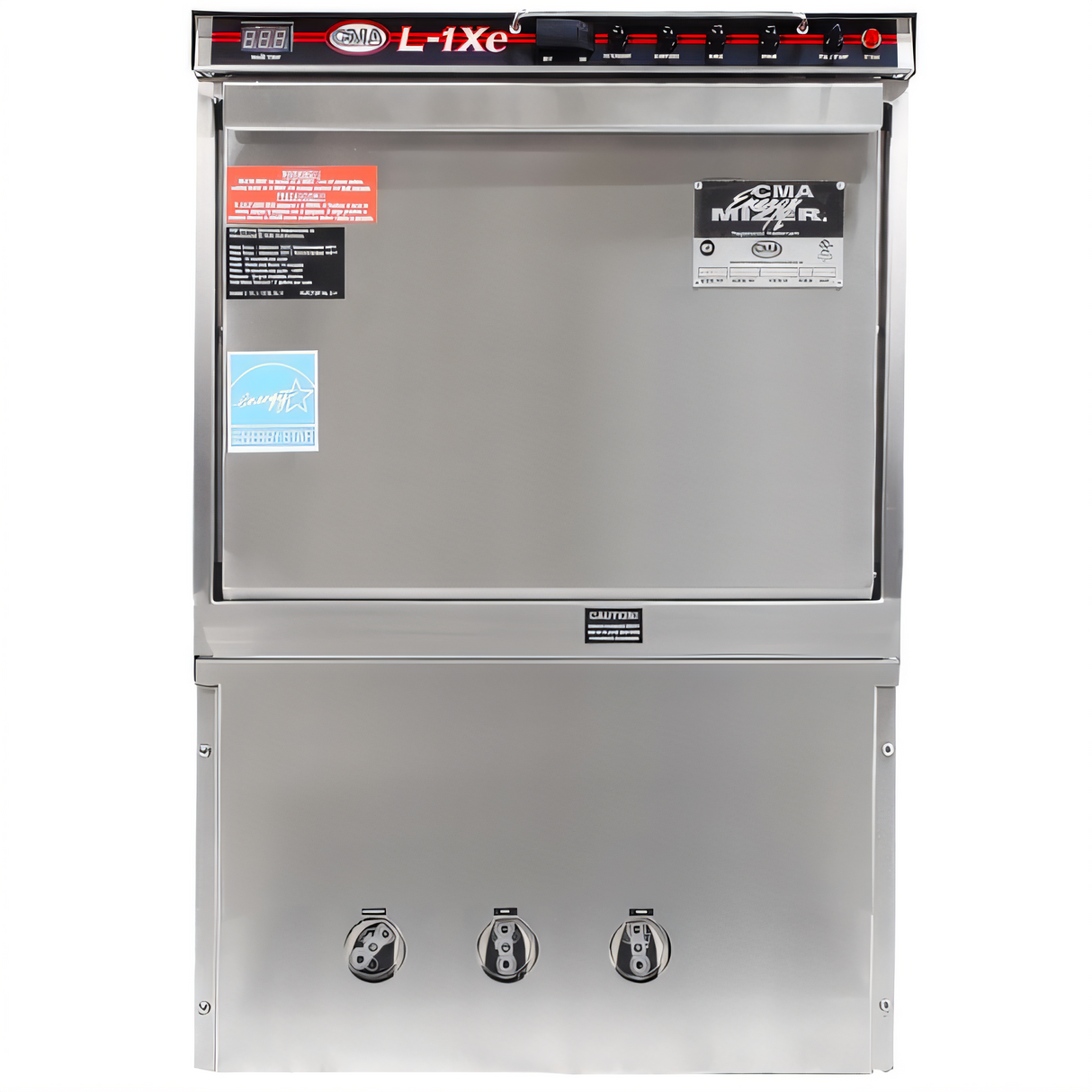

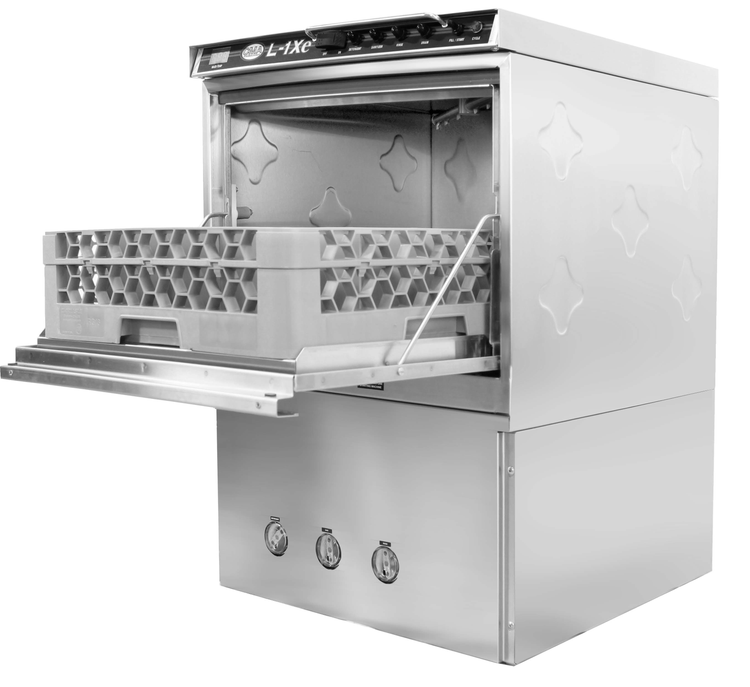

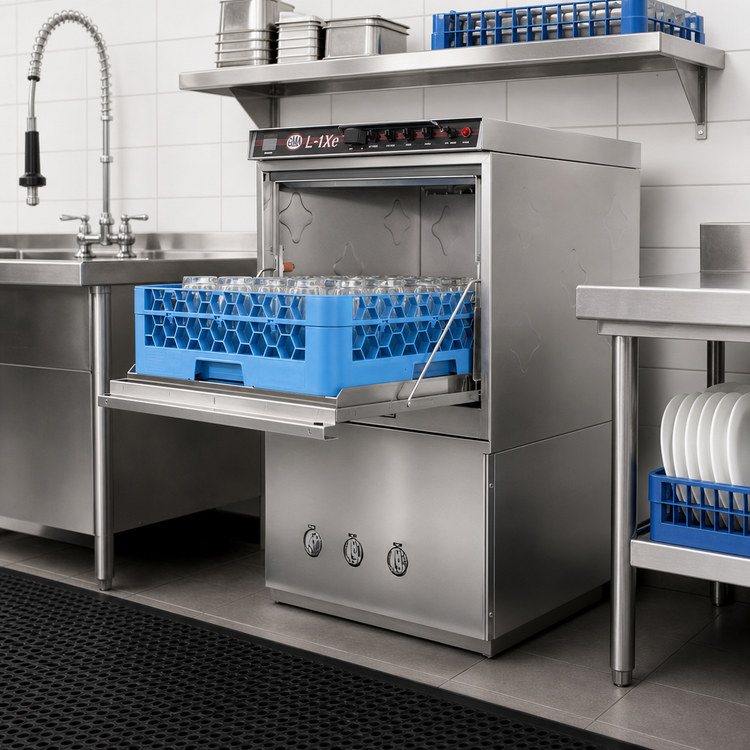

Energy Mizer™ L-1Xe Undercounter Dishwasher / Glasswasher
By CMA Dishmachines – low-temp chemical sanitizing, 40 racks/hrBuilt for bars, cafés and busy commercial kitchens, the Energy Mizer™ L-1Xe delivers sparkling ware at the lowest possible operating cost. This compact, all-stainless machine washes, rinses and sanitizes up to 40 full racks per hour while sipping just 1.19 gallons of water per cycle—saving you money on water, sewer and energy every single shift.
Why You’ll Love It

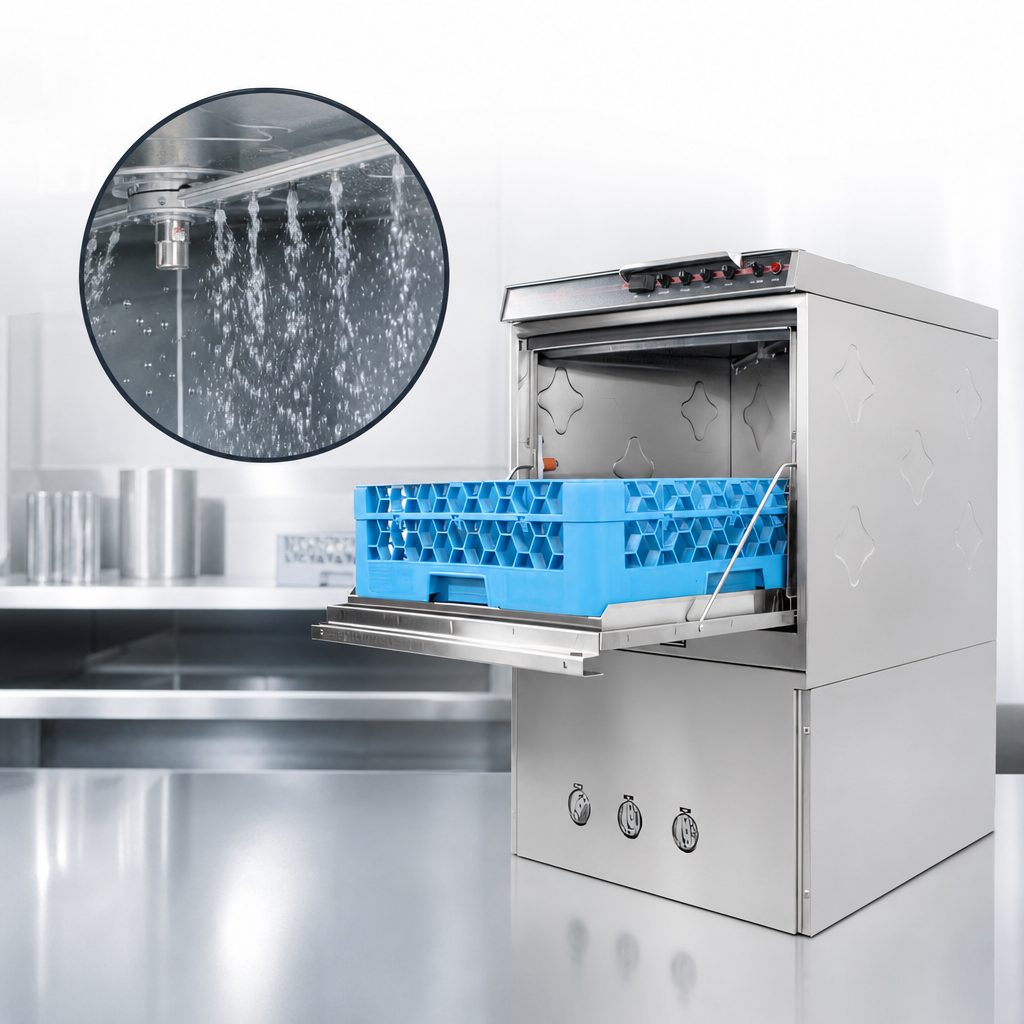

- Low-temperature chemical sanitizing—no costly booster heater required.
- Fast 90-second cycle (46 s wash / 29 s rinse / 15 s dwell) handles up to 160 covers per hour.
- Uses only 1.19 gal of water per rack for unbeatable operating economy.
- 12-1/4" door opening fits pint glasses, 11-1/2" plates & most prep ware.
- Upper & lower stainless steel wash arms with reinforced end caps for consistent coverage.
- Built-in chemical pumps, deliming system & prime switches keep dosing precise and maintenance simple.
- Pumped drain – install virtually anywhere without a floor drain.
- “Work-in-a-drawer” design slides electrical components out for quick, front-access service.
- Stainless pump impeller & 1 HP wash pump power through heavy soil.
- ENERGY STAR®, NSF, UL & cUL listed for efficiency and safety assurance.
Included with Your Machine
- (1) Open rack – ideal for glassware & utensils
- (1) Peg rack – secures plates and trays
Specifications

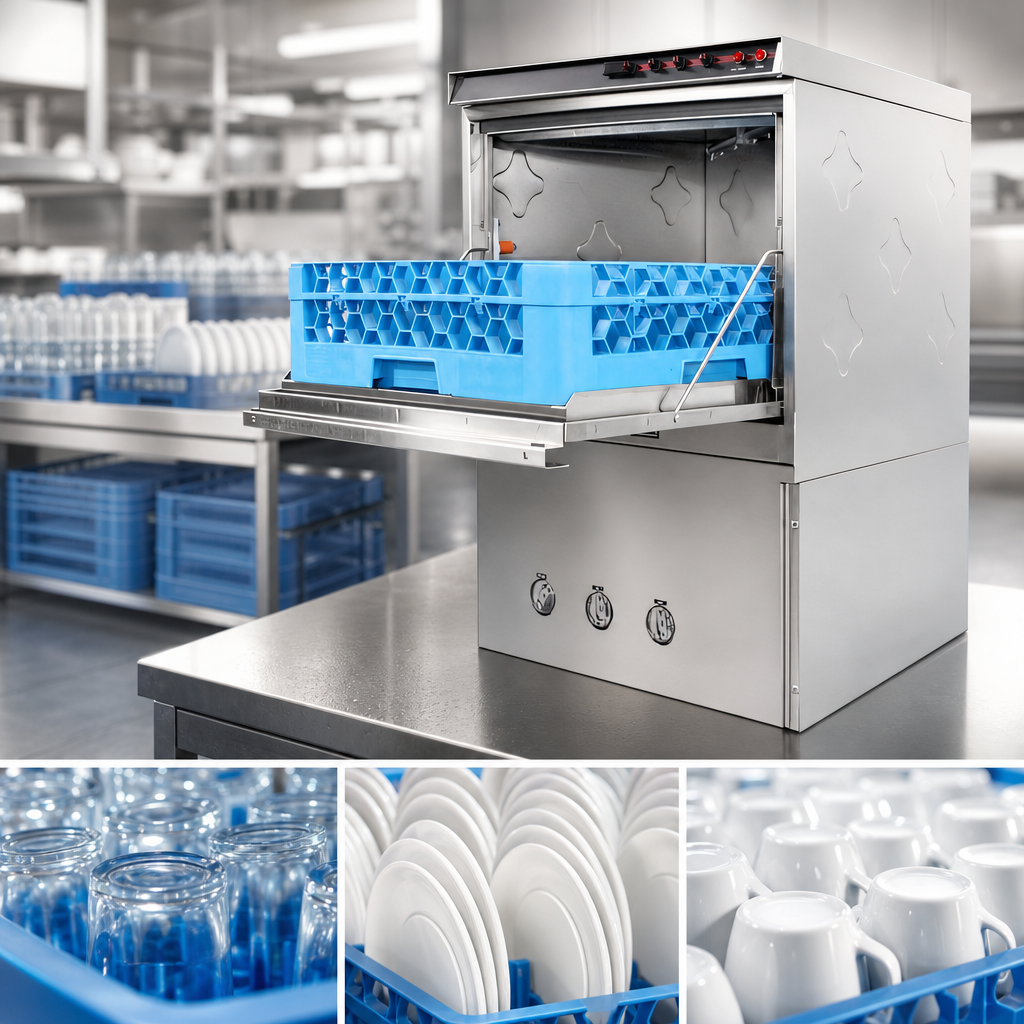

| Rack capacity | 40 racks / 160 covers per hour |
|---|---|
| Total cycle time | 90 seconds |
| Water use | 1.19 gal per rack | 47.6 gal per hour |
| Internal heater | Sustainer immersion heater (maintains wash temp) |
| Dish clearance | 12-1/4" (31 cm) |
| Dimensions (W × D × H) | 24" × 23-1/2" × 33-1/8"–34-1/8" |
| Wash pump motor | 1 HP | 52 GPM |
| Electrical | 115 V / 16 A / 1-phase, NEMA 5-20P cord (field-wired) |
| Water inlet | 120 °F required (140 °F recommended) | 1/2" NPT |
| Drain connection | 1/2" NPT, pumped |
| Shipping weight | 190 lb | 29" L × 28" W × 40" H crate |
| Certifications | NSF, UL, cUL, ENERGY STAR® |
One-Year Parts & Labor Warranty
CMA backs the L-1Xe with a 1-year limited parts & labor warranty when installed and registered in accordance with the user manual.
