CMA Dishmachines L-1X16 W/HEATER Energy Mizer Undercounter Dishwashers

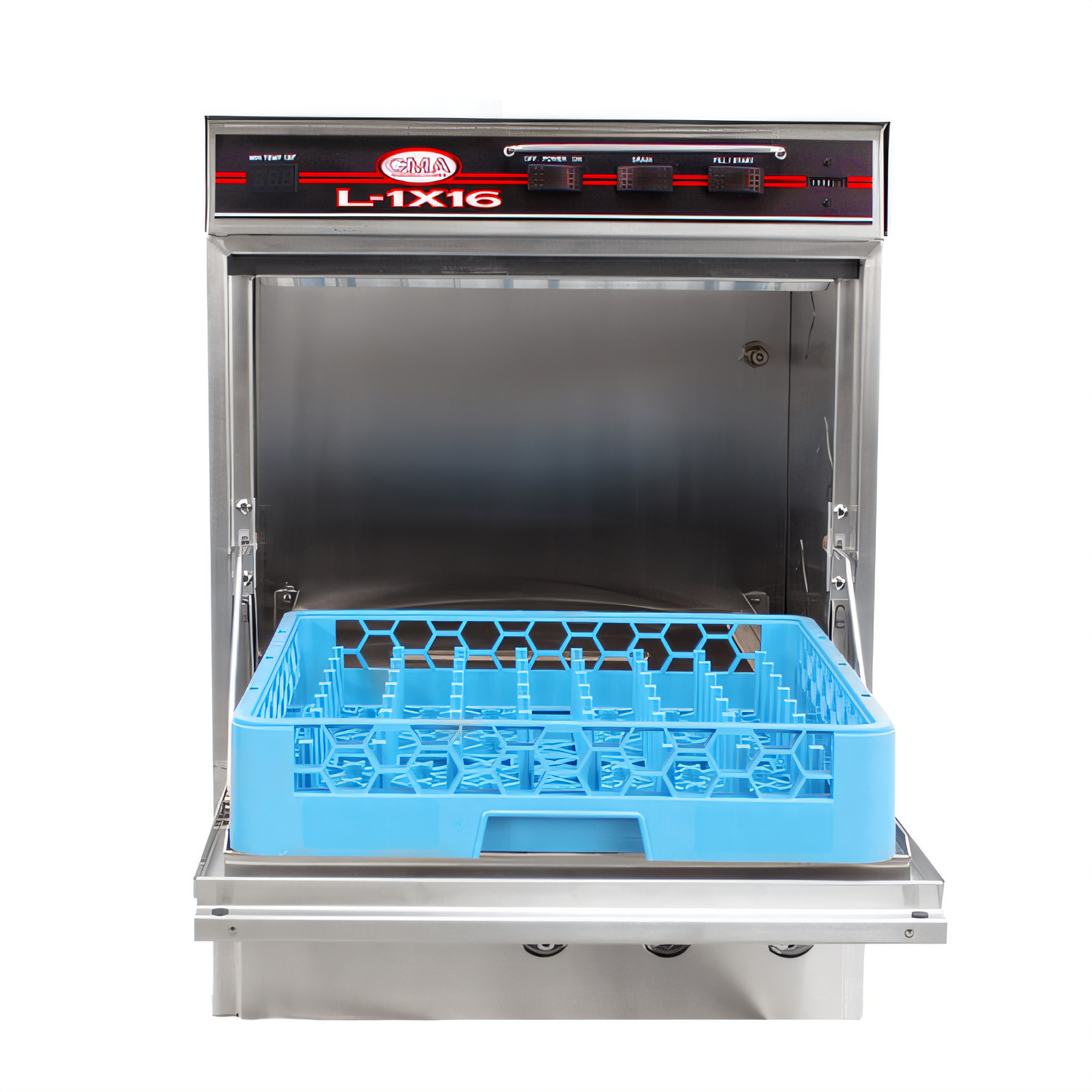

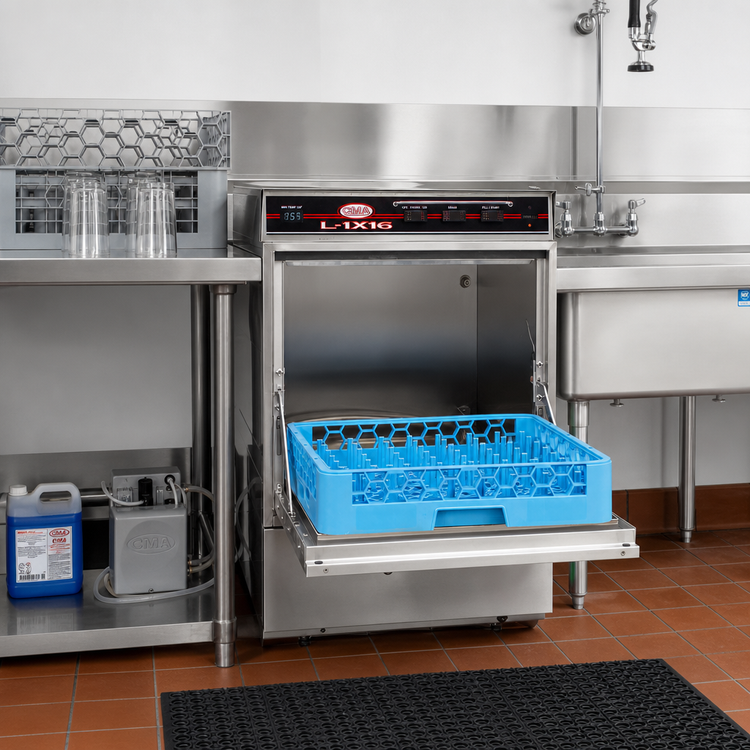

CMA Energy Mizer™ L-1X16 Undercounter Dishwasher

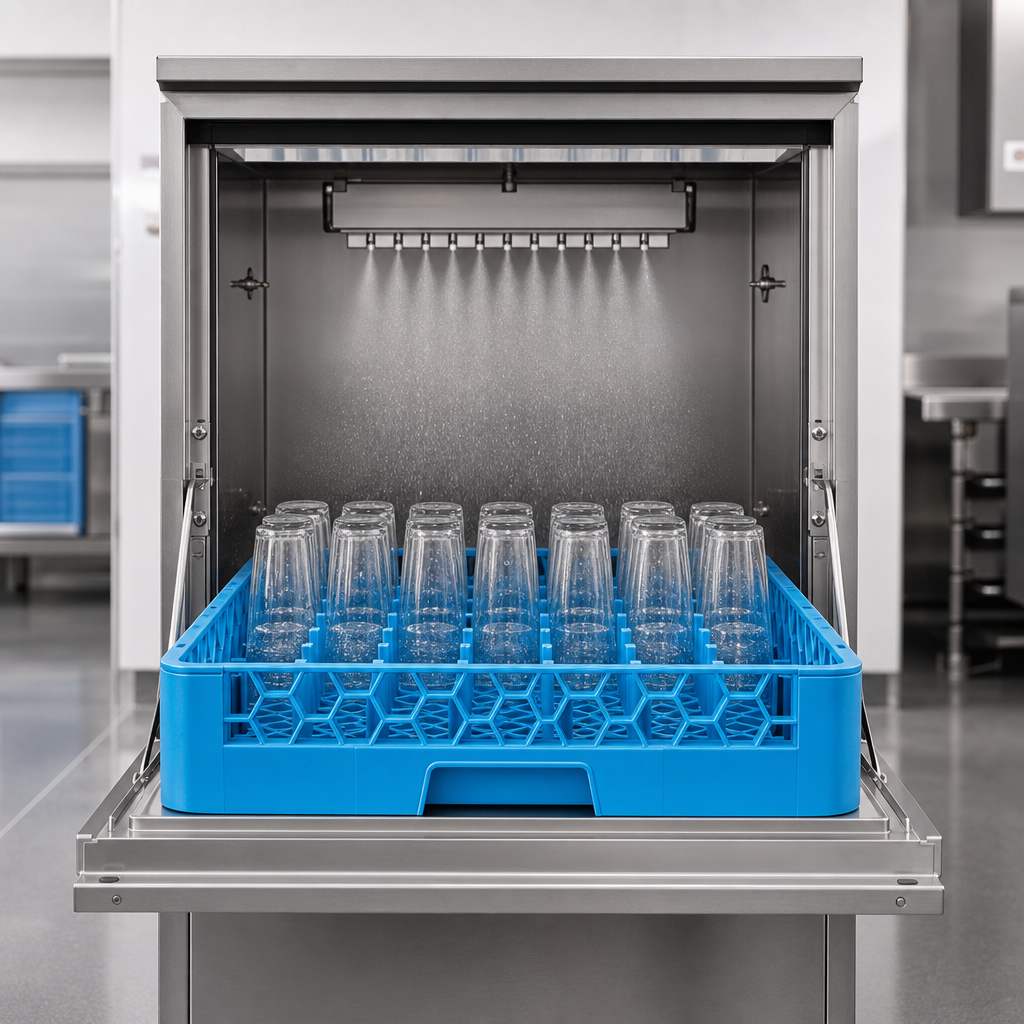

Low-Temperature Chemical Sanitizing • 30 Racks/Hour • NSF, UL, cUL ListedDesigned for busy bars, cafés, and satellite kitchens that are short on space but big on volume, the Energy Mizer™ L-1X16 delivers sparkling results while slashing utility costs. A 1 HP wash pump, smart chemical dosing, and water-saving cycles keep operating costs in check—so you can focus on service, not the sink.
Why You’ll Love It
- NSF-rated 30 racks / 120 covers per hour for steady, reliable output.
- Uses just 1.7 gal of water per cycle—cuts both water and chemical bills.
- 16 in. door clearance handles sheet pans, pitchers, and oversized plates with ease.

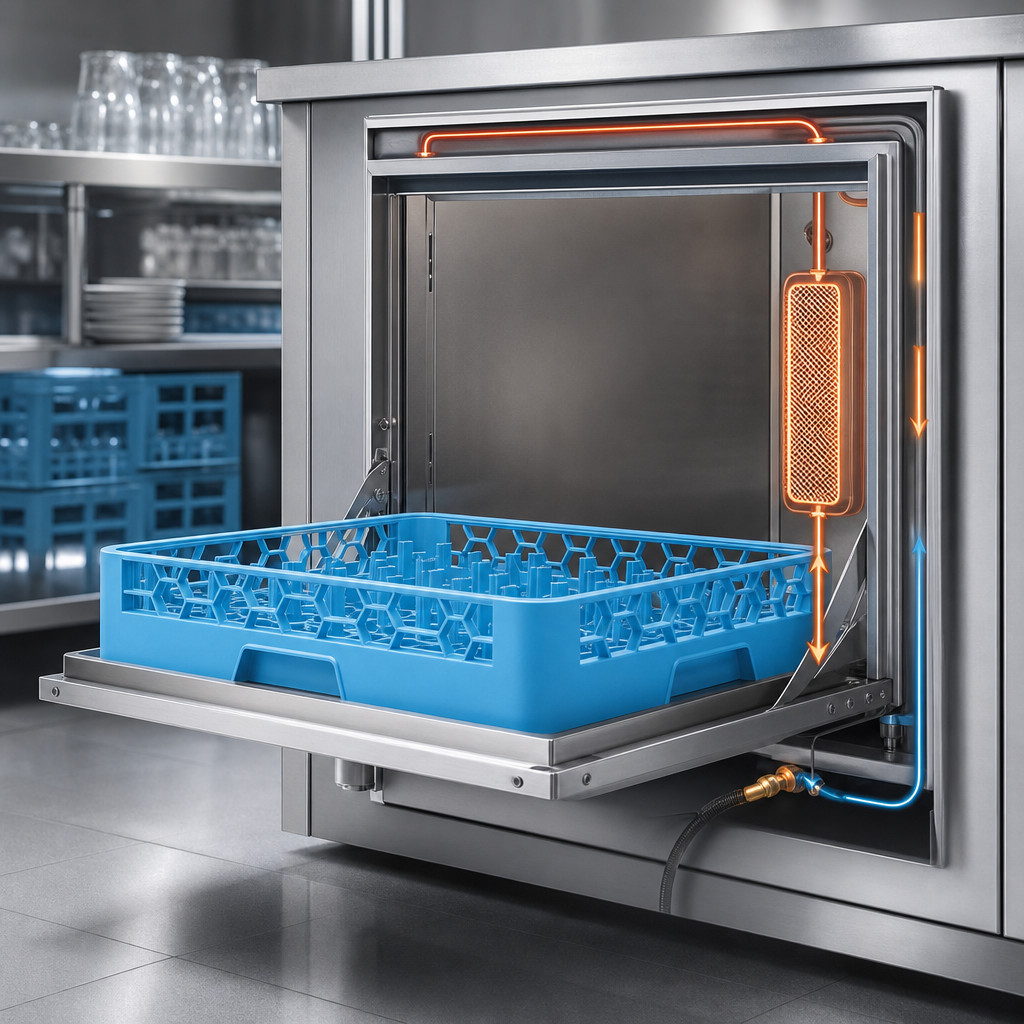

- Built-in sustainer heater maintains incoming water temperature for consistent sanitation.
- Upper & lower stainless steel wash arms with reinforced end caps ensure full-coverage cleaning.
- Integrated chemical pumps, deliming system, primer switches, and instant-start—no add-ons needed.
- Pumped drain and exclusive pump-purge cycle prevent soil & chemical carry-over to the rinse.
- “Work-in-a-Drawer” design: all electrical components slide out for fast, front-side service.
- All-stainless construction—tank, cabinet, pump impeller, and drawer—for long, corrosion-free life.
- Door safety switch protects staff by stopping the cycle if the door is opened.
- Ships with one open rack & one peg rack—ready to work right out of the box.
Technical Specifications
| Capacity | 30 racks/hr (120 covers) |
|---|---|
| Cycle Breakdown | Wash 58 s • Rinse 32 s • Purge 30 s • Total 120 s |
| Water Usage | 1.7 gal per rack • 51 gal per hour |
| Required Water Temp | 120 °F minimum (140 °F recommended) |
| Wash Tank Capacity | 1.7 gal |
| Wash Pump | 1 HP • 35 GPM |
| Dish Clearance | 16 in. |
| Rack Size | 20 in. × 20 in. |
| Unit Dimensions (W × D × H) | 24 in. × 23.5 in. × 34.25 in. |
| Electrical | 115 V • 16 A • Single phase |
| Water Inlet | ½ in. NPT |
| Drain | 1 in. pumped (uphill stand-pipe capable) |
| Shipping Weight | 175 lb |
| Certifications | NSF • UL • cUL |
Popular Options (Sold Separately)
- Universal storage pedestal (stores two spare racks beneath the machine).
- 4 in. or 6 in. stainless steel legs for custom working height.
- 48 in. undercounter dishtable with pre-rinse.
- Low-chemical alarm kit.
Peace-of-Mind Warranty
Includes CMA’s 1-year parts & labor limited warranty (U.S. installations; see warranty card for details).
