CMA Dishmachines L-1X W/HEATER Energy Mizer Undercounter Dishwashers

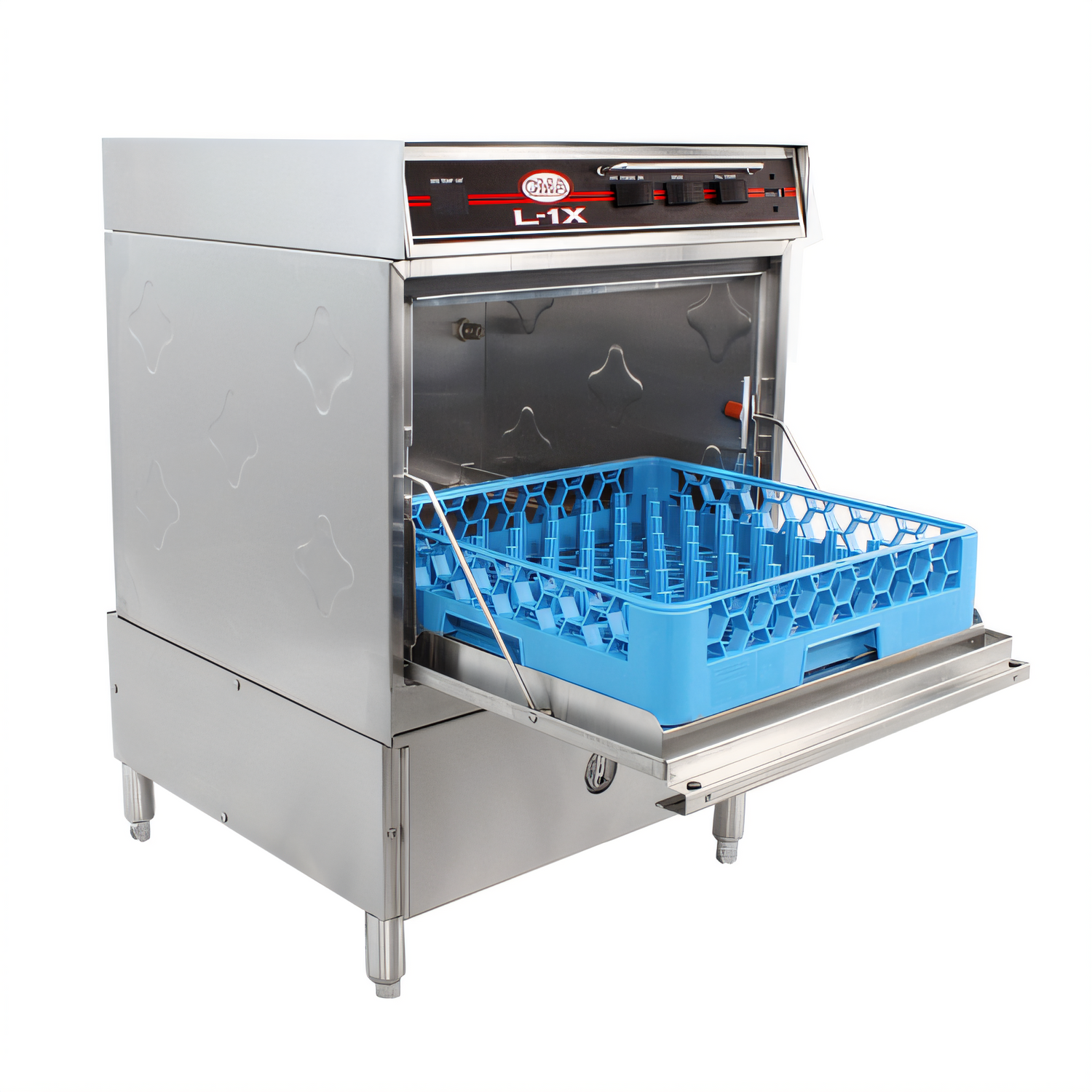

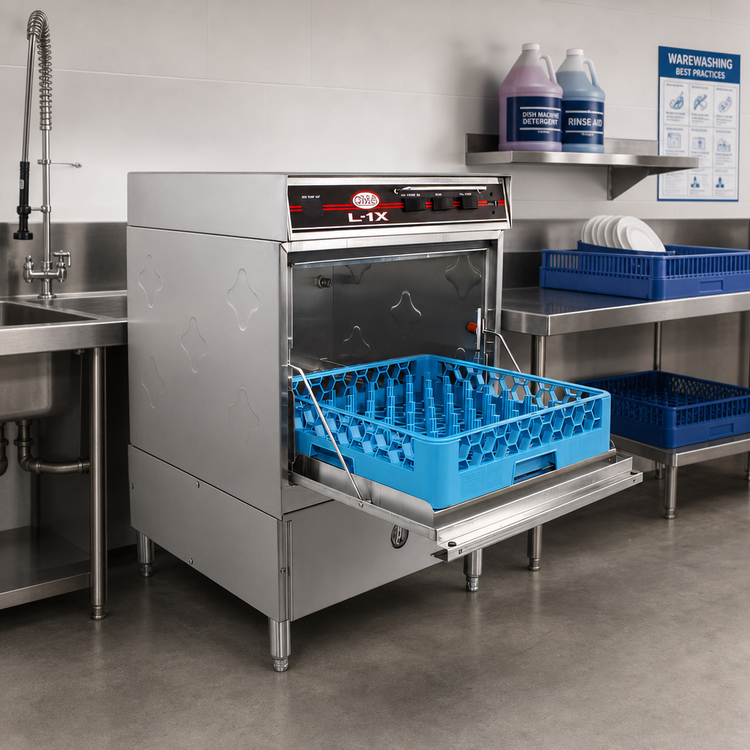

Energy Mizer™ L-1X Undercounter Dishwasher
30 racks / hour • Low-temperature chemical sanitizing • 24" wide footprintBring CMA’s legendary Energy Mizer efficiency to your bar, café or restaurant. The L-1X fits under a 34" counter, processes a full rack every two minutes and uses just 1.7 gallons of water per cycle—slashing utility and chemical costs while delivering spotless dishes, glassware and utensils.
Performance & Savings

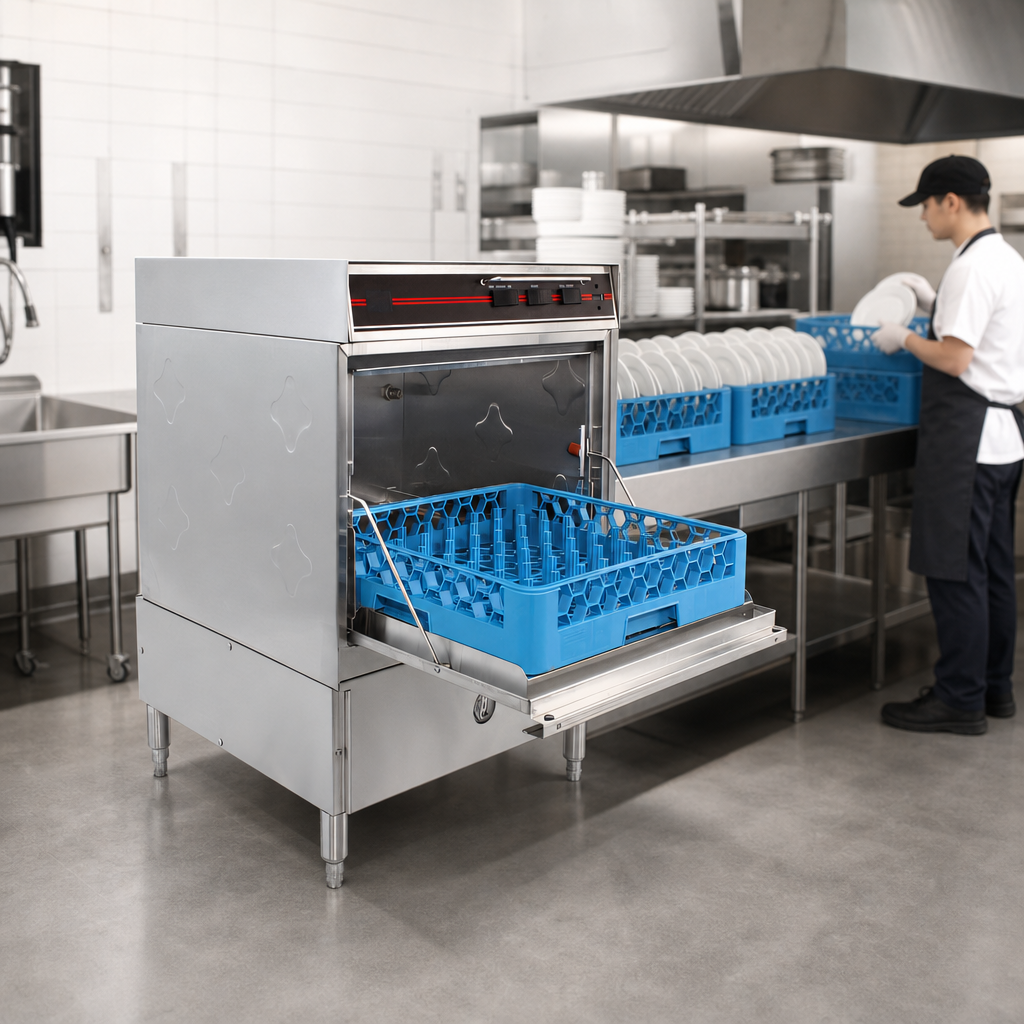

- 30 racks / 120 covers per hour keeps pace with peak service
- Low-temp chemical sanitizing – no booster heater required
- Only 1.7 gal of fresh water per cycle for maximum utility savings

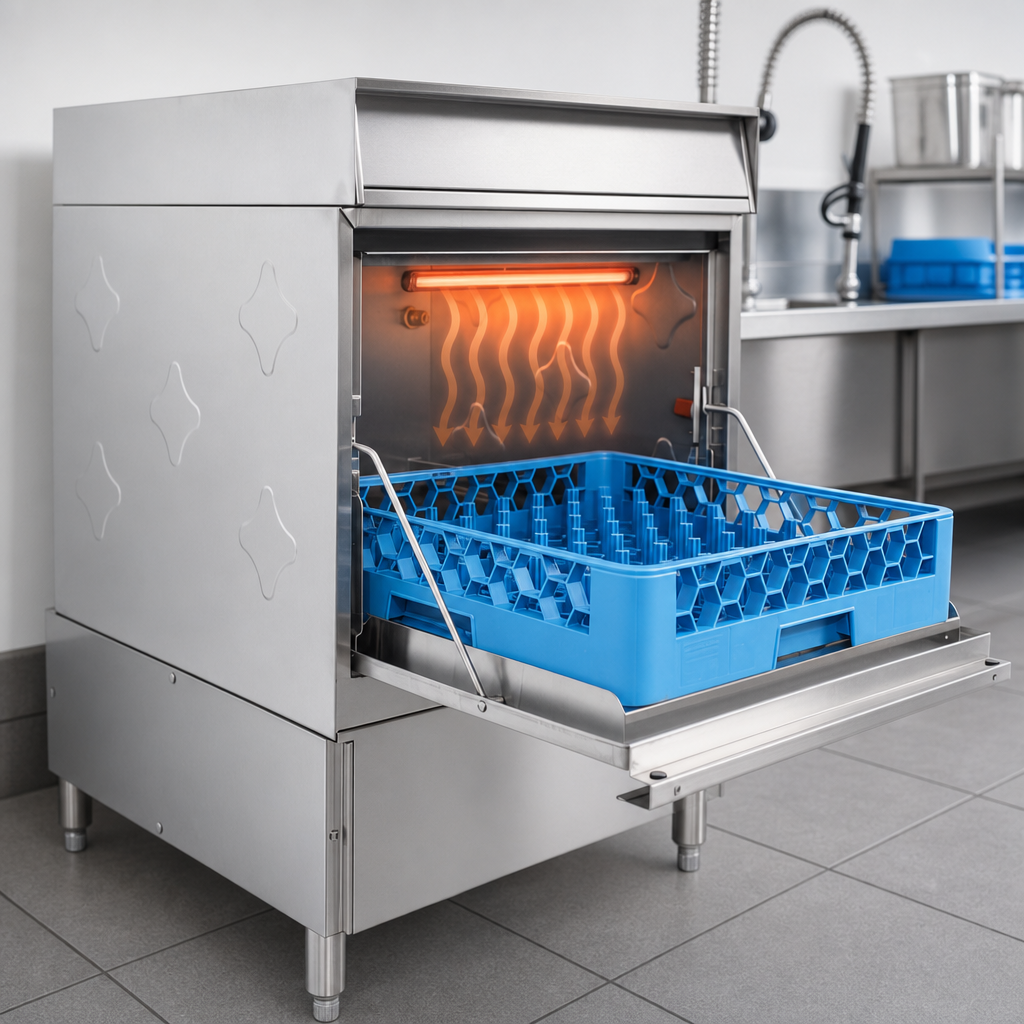

- Built-in sustainer heater maintains incoming water temperature
- Pump purging system eliminates soil & chemical carry-over for crystal-clear results
Operator-Friendly Design
- Upper & lower stainless steel wash arms with reinforced end caps
- Integrated chemical pumps, primer switches & deliming system
- Instant-start door actuation plus safety cut-off switch
- “Work-in-a-drawer” – all electrical components slide out for fast service
- Pumped drain handles floor sinks or 4' stand-pipe applications
Durability Built-In
- All-stainless cabinet, wash pump impeller and adjustable 4" legs
- 1 HP wash pump delivers 35 GPM cleaning power
- Internal inlet strainer protects water valve from debris
- NSF, UL & cUL listed for commercial kitchens
What’s Included
- (1) 20" x 20" open rack
- (1) 20" x 20" peg rack
- One-year parts & labor warranty
Technical Specifications
| Exterior dimensions | 24"W x 23 ½"D x 30"–31"H (with 4" legs) |
|---|---|
| Door / dish clearance | 12 ⅛" |
| Rack capacity | 30 racks / hour |
| Water usage | 1.7 gal per rack · 51 gal per hour |
| Cycle time | 120 sec (58 wash / 32 rinse / 30 purge) |
| Incoming water | 120 °F minimum (140 °F recommended) |
| Sanitizing method | Low-temperature with chemical sanitizer |
| Wash pump | 1 HP • 35 GPM |
| Water connections | ½" NPT inlet • 1" pumped drain |
| Electrical | 115 V / 60 Hz / 1-ph • 16 A |
| Construction | Stainless steel cabinet, wash arms & pump impeller |
| Shipping weight | ≈ 172 lb |
| Certifications | NSF • UL • cUL |
Popular Accessories (sold separately)
- Universal storage pedestal to raise machine & store spare racks
- 48" undercounter dishtable with pre-rinse
- 6" stainless steel leg kit
- Low-chemical alarm kit
