CMA Dishmachines GL-X Energy Mizer Undercounter Dishwashers
CMA Dishmachines GL-X Energy Mizer Undercounter Dishwashers is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Description

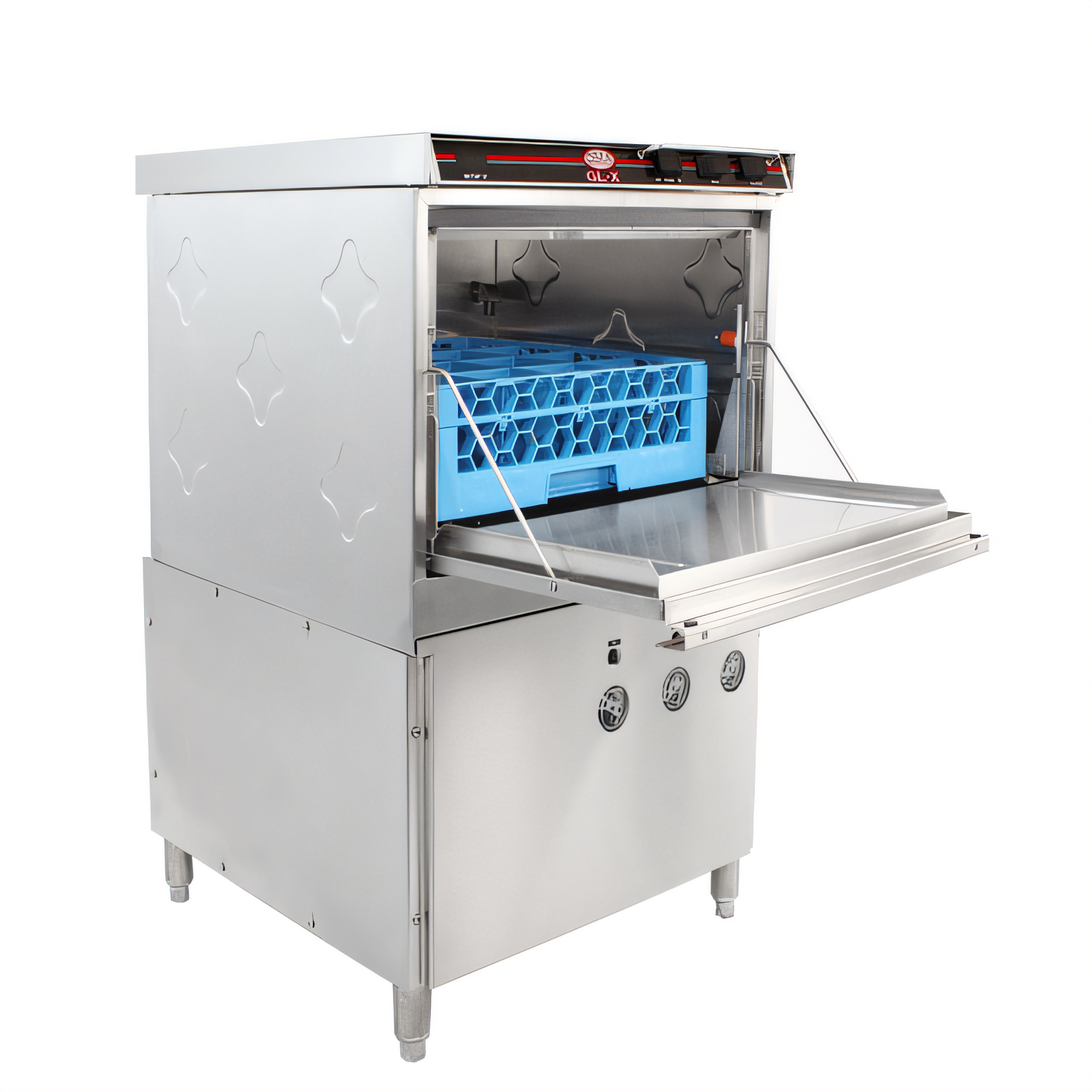

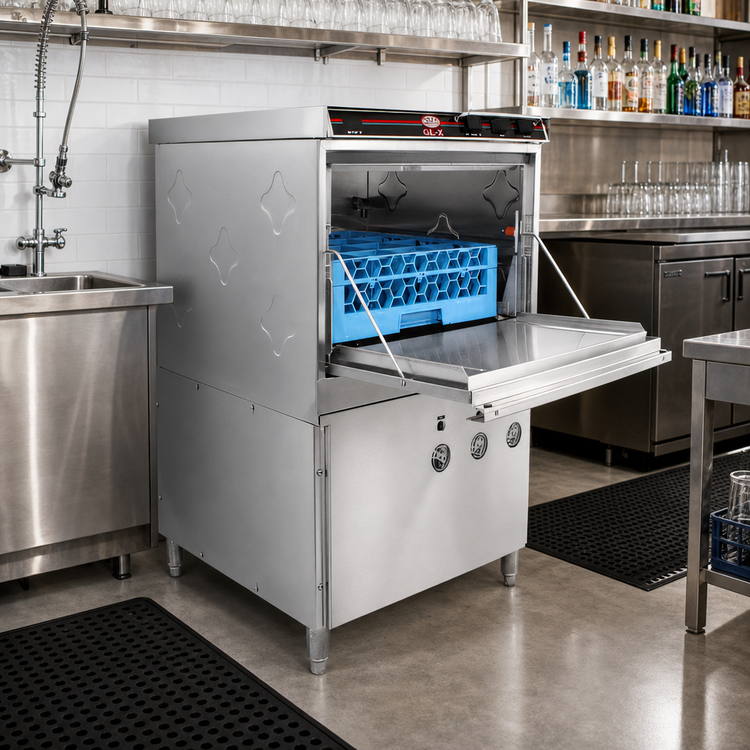

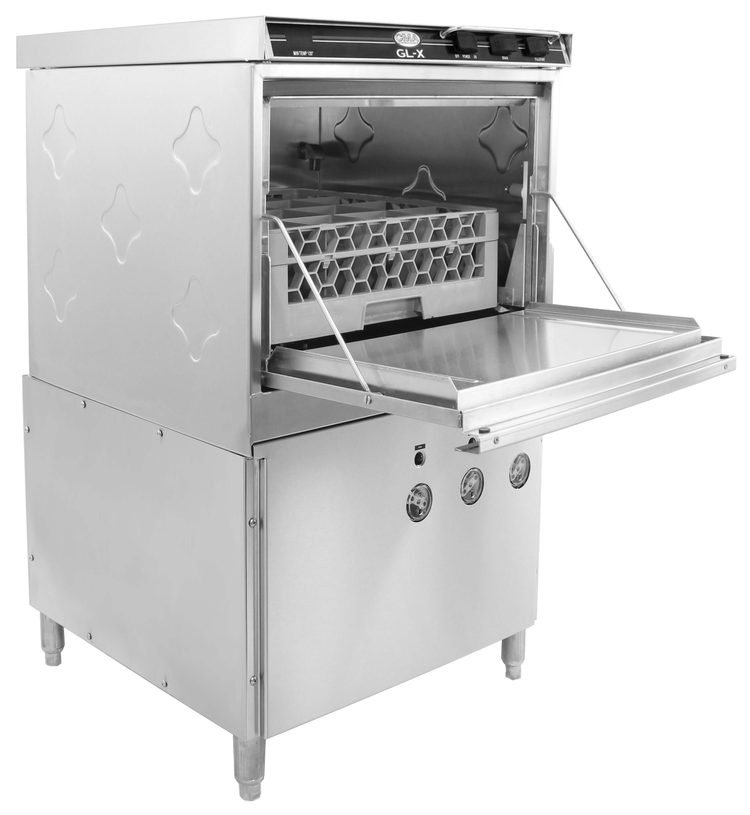

CMA Energy Mizer® GL-X Underbar Glass Washer
30 racks/hr • Low-temperature chemical sanitizing • 24" wide cabinetDesigned for busy bars, cafés, and coffee houses, the Energy Mizer® GL-X delivers sparkling glassware while slashing utility costs. Its efficient low-temp sanitizing system, rugged stainless-steel construction, and “Works-in-a-Drawer” serviceability make it the go-to undercounter washer for operations that can’t afford downtime.
Key Features
- High output: processes up to 30 racks per hour.
- Uses just 1.7 gal / cycle to conserve water, energy, and chemicals.

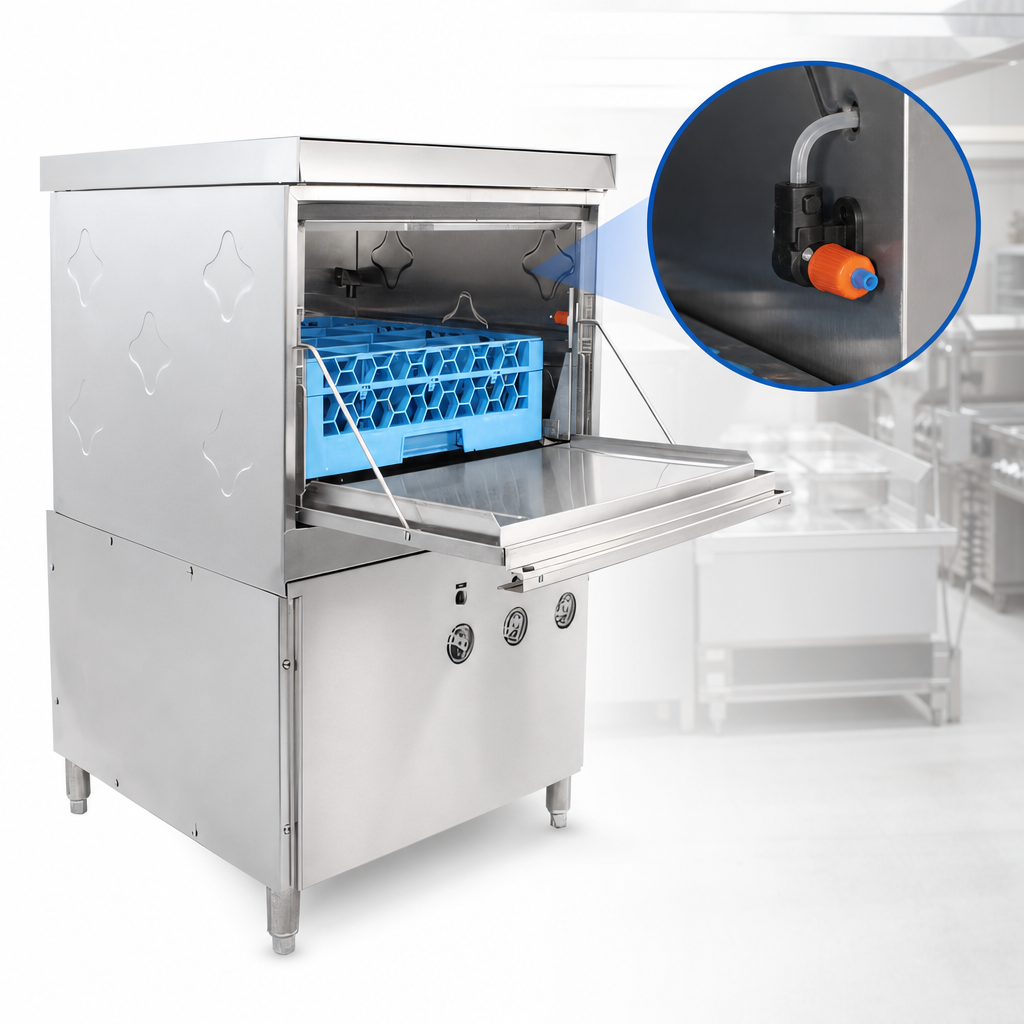

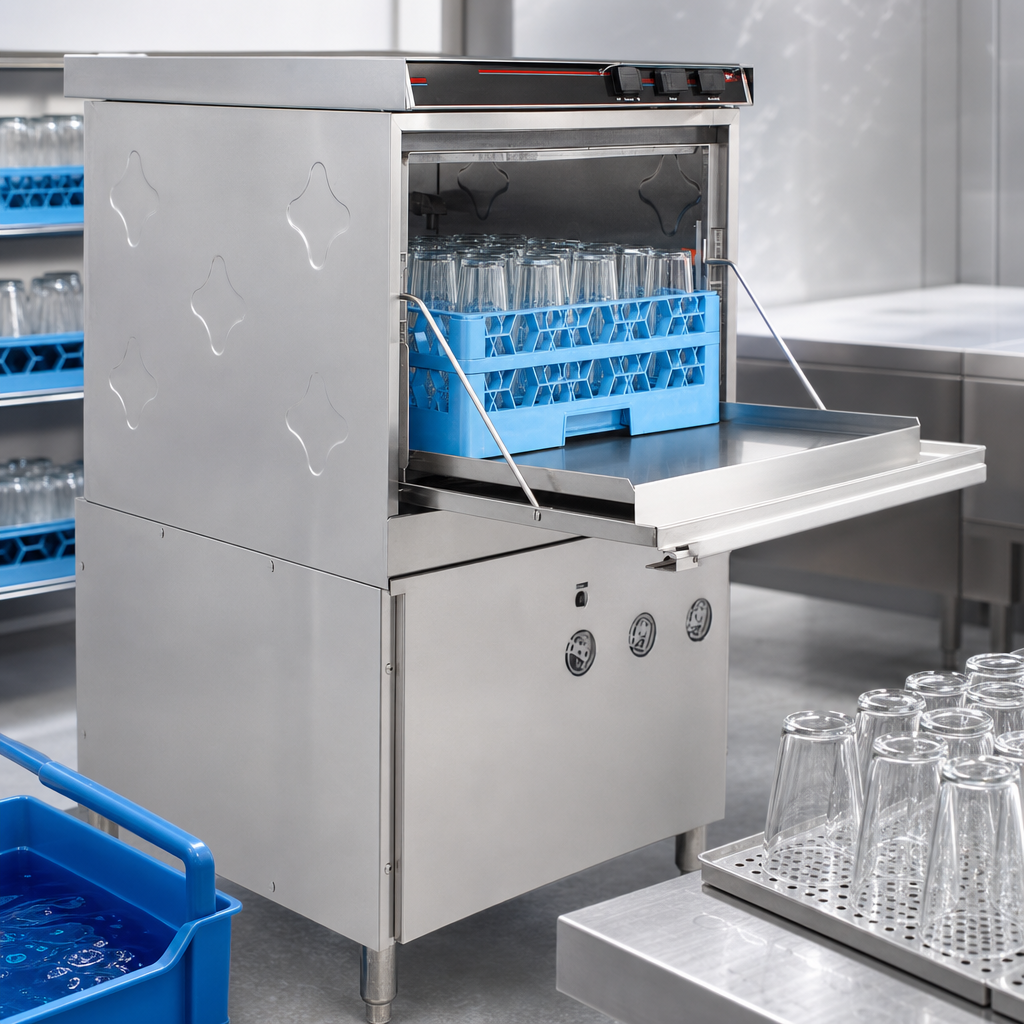

- Low-temperature chemical sanitizing with built-in detergent, rinse, and sanitizer pumps.
- Integrated deliming system reduces scale and extends component life.
- Upper & lower stainless-steel wash arms with reinforced end caps for consistent spray coverage.
- Sustainer heater maintains 130 °F wash water between loads for fast recovery.
- Slide-out “Works-in-a-Drawer” electronics drawer speeds troubleshooting and maintenance.
- Pumped drain allows flexible installation—no floor drain needed.
- Spacious 11-1/4" door opening accommodates tall pint and stemmed glasses.
- Includes one 16-compartment glass rack; accepts standard 20" × 20" racks.
- NSF & cULus listed; backed by a 1-year parts & labor warranty.
Performance Cycle
- Wash: 58 s | Rinse: 32 s | Dwell: 30 s
- Total cycle time: 120 s (2 minutes)
Specifications
Rack capacity | 30 racks/hr (20" × 20") |
---|---|
Water usage | 1.7 gal per rack | 51 gal/hr |
Door/Glass clearance | 11-1/4" H |
Wash tank capacity | 1.7 gal |
Wash pump | 1 HP, 35 GPM |
Incoming water temp | Minimum 120 °F (50 °C) |
Electrical | 115 V / 1-phase / 16 A |
Dimensions (W × D × H) | 24" × 24-3/4" × 39–40-1/8" |
Drain / Water inlet | 1" pumped drain | 1/2" NPT inlet |
Shipping weight | ≈ 202 lb |
Optional Accessories
- Low chemical alarm kit
- 24" drain board
- CMA Temp-Sure™ hot-water assurance system
Specifications are subject to change without notice. Glassware, chemicals, and additional racks sold separately.
