CMA Dishmachines EST-VL Energy Mizer Undercounter Dishwashers
Description

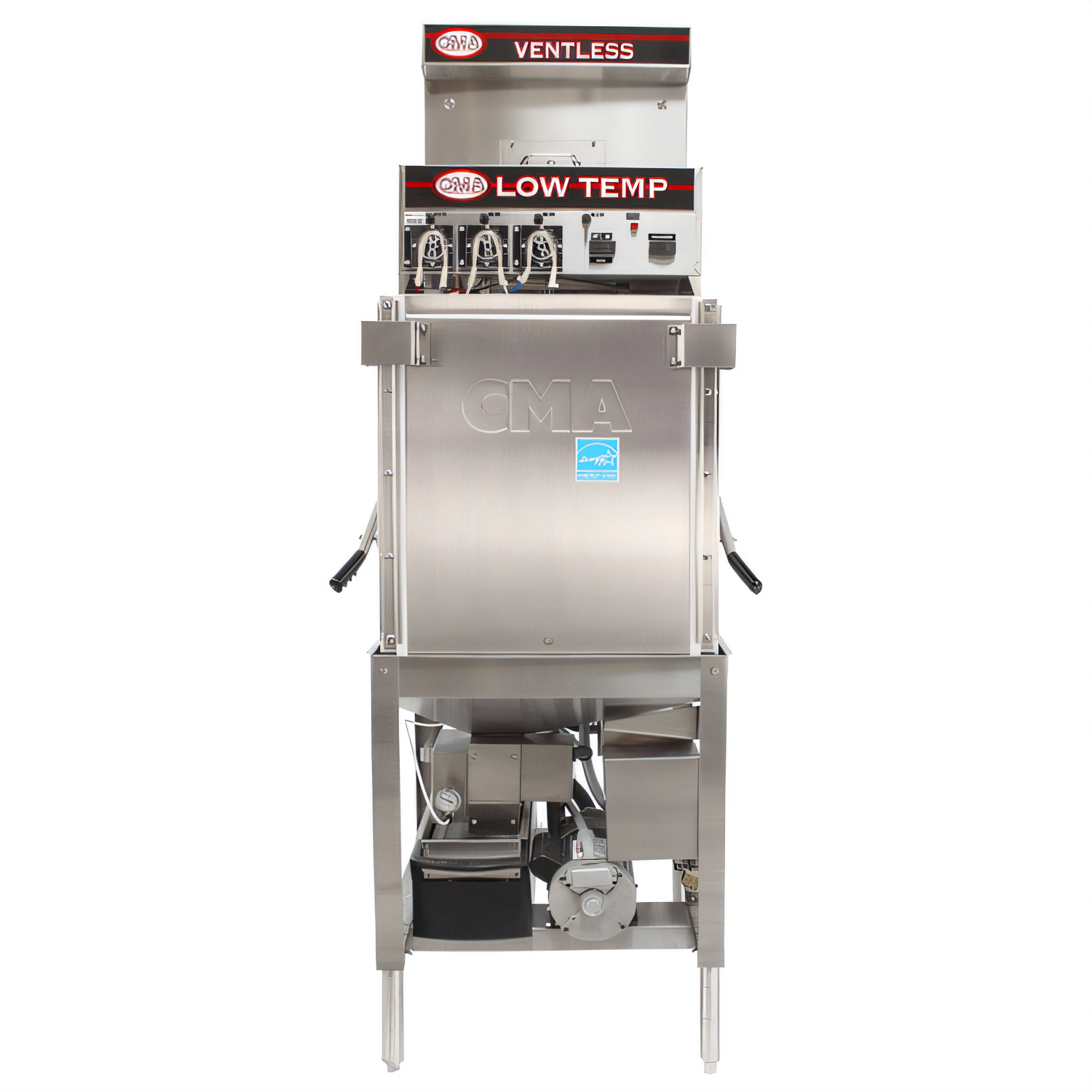

CMA Energy Mizer EST-VL Ventless Low-Temp Door-Type Dishwasher
30 racks/hr • 1.09 gal water per rack • Hood-free installationCut energy costs, free up hood space, and keep your dish room cooler with the CMA Energy Mizer EST-VL. This ventless, low-temperature door-type machine captures steam heat to pre-warm incoming water, so every 90-second cycle delivers spotless, chemically sanitized dishes without taxing your hot-water supply.
- Ventless Waste-Air Heat Recovery system eliminates the need for a Type II hood or fan.
- Built-in 12 kW booster heater pre-heats rinse water to 120 °F for consistent sanitizing.
- Low-temp chemical sanitizing cycle uses only 1.09 gal of water per rack—up to 30 racks per hour.
- Three-door configuration installs straight-through or corner without extra kits.
- Auto-Start and programmable 3-product chemical dispensing streamline operation.
- Door Safety Interlock keeps doors locked until vapor is evacuated, protecting staff.
- Top-mounted, splash-safe controls for intuitive access and easy cleaning.
- Rugged 1 HP wash pump and all-stainless construction built for heavy commercial use.
- cULus & ETL-Sanitation listed; meets NSF/ANSI 3 requirements.
- One-year parts & labor warranty backed by CMA Dishmachines.
Technical Specifications
| Capacity | 30 racks/hr (90-sec wash & 30-sec purge) |
|---|---|
| Water use | 1.09 gal per rack | 33 gal per hour |
| Rack size / Clearance | 20 × 20 in rack | 20-1/2 in max dish height |
| Dimensions (W×D×H) | 25 in × 29-1/2 in × 86-5/16 in |
| Ventilation | Ventless HR system – no external hood required* |
| Heater / Pump | 12 kW booster heater | 1 HP wash pump (52 GPM) |
| Electrical (dishmachine) | 115 V / 1-phase / 16 A |
| Electrical (booster) |
208-240 V / 3-phase / 25-29 A 208-240 V / 1-phase / 43-50 A |
| Water connections | ½ in CWT 40-65 °F & ½ in HWT 140 °F (recommended 120 °F) |
| Drain connection | 2 in gravity (10-1/2 – 11-1/2 in above floor) |
| Shipping weight | Approx. 400 lb |
| Certifications | cULus, ETL-Sanitation (NSF/ANSI 3) |
*Ventless operation removes the need for a hood under most codes; confirm with your local authority. For optimal results CMA recommends incoming water hardness ≤ 3.5 gpg and routine coil cleaning via the built-in automatic condenser wash-down.
