Description

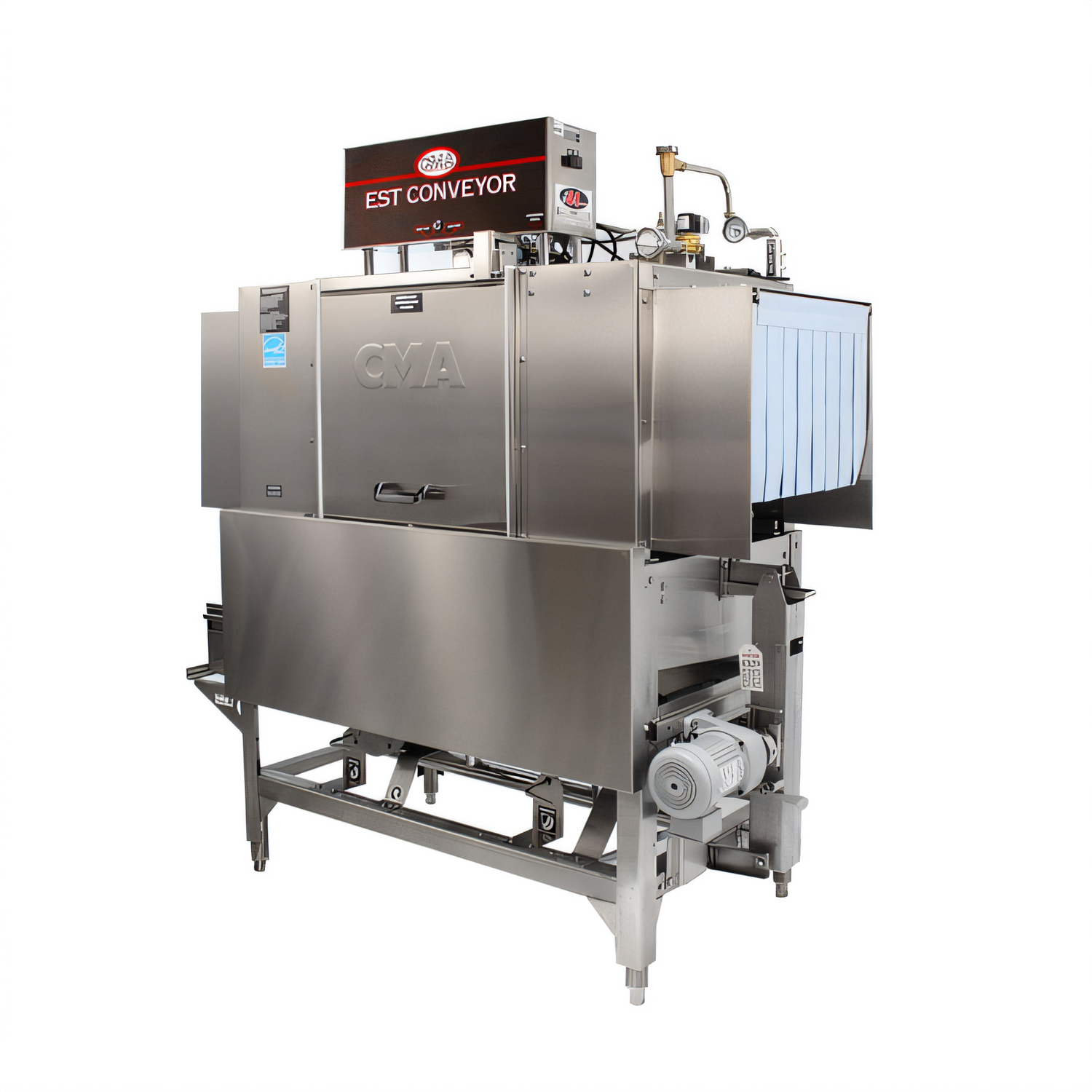

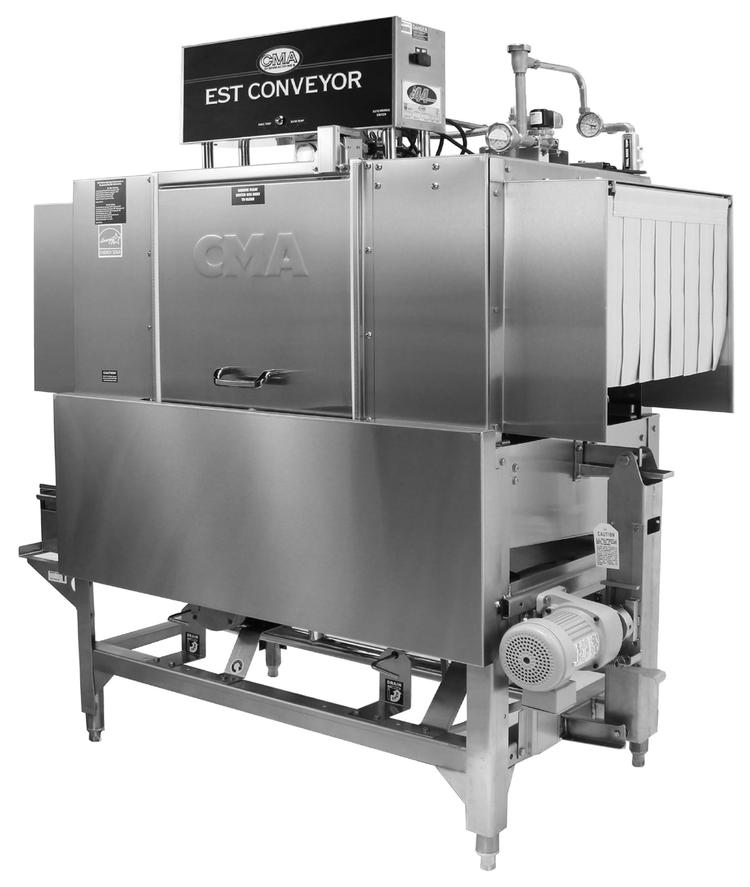

Energy Mizer® EST-44 Conveyor Dishwasher
249 racks/hr • 0.46 gal water/rack • High- or Low-Temp SanitizingDesigned for busy cafeterias, hotels, and institutions, the CMA Energy Mizer® EST-44 powers through up to 996 covers per hour while dramatically reducing water, energy, and chemical use. Its rugged stainless-steel build and three-stage wash sequence (wash / power rinse / final rinse) guarantee sparkling results—every time.
Key benefits

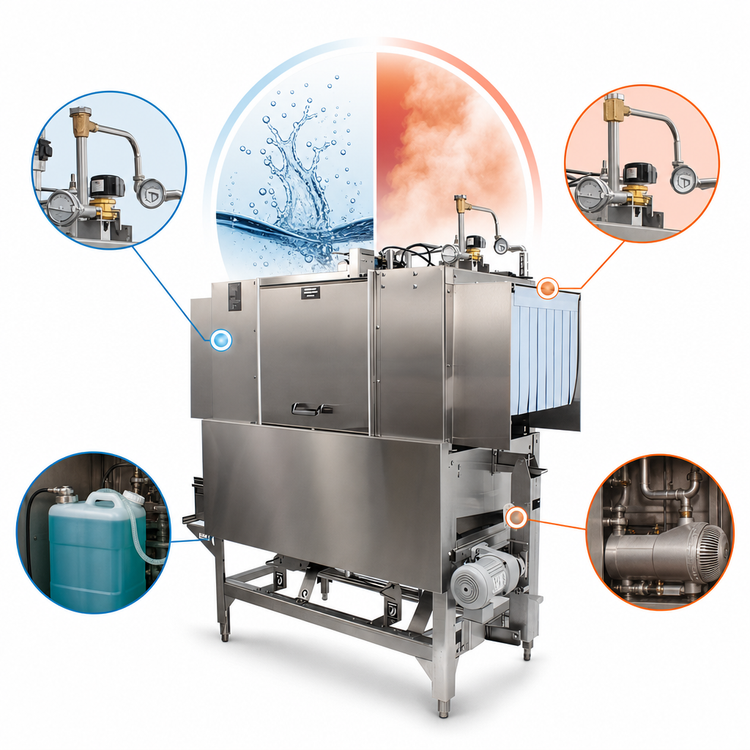

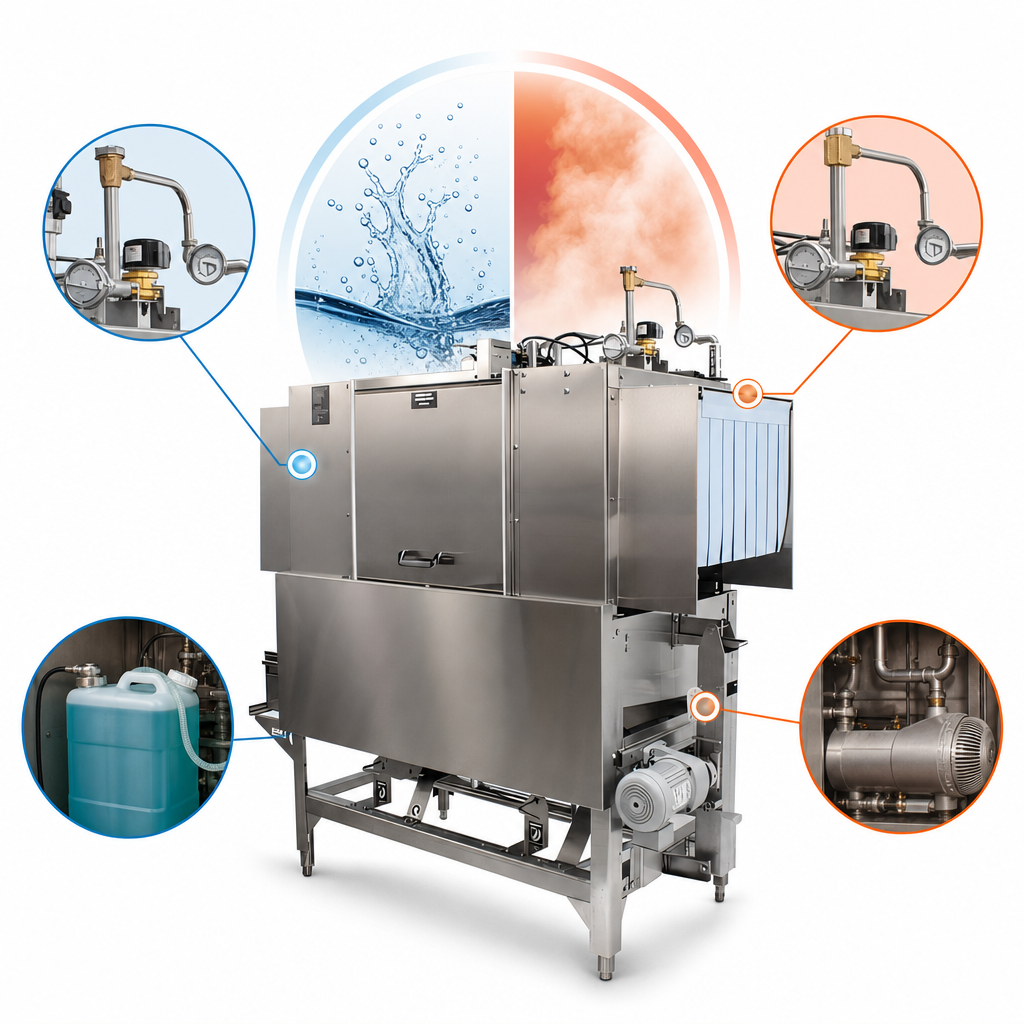

- High or low temperature sanitizing – choose chemical or 180 °F final rinse without changing machines.
- Ultra-efficient – uses just 0.46 gal of fresh water per rack; auto start/stop further saves utilities.
- High throughput – processes up to 249 racks (19" clearance) every hour.

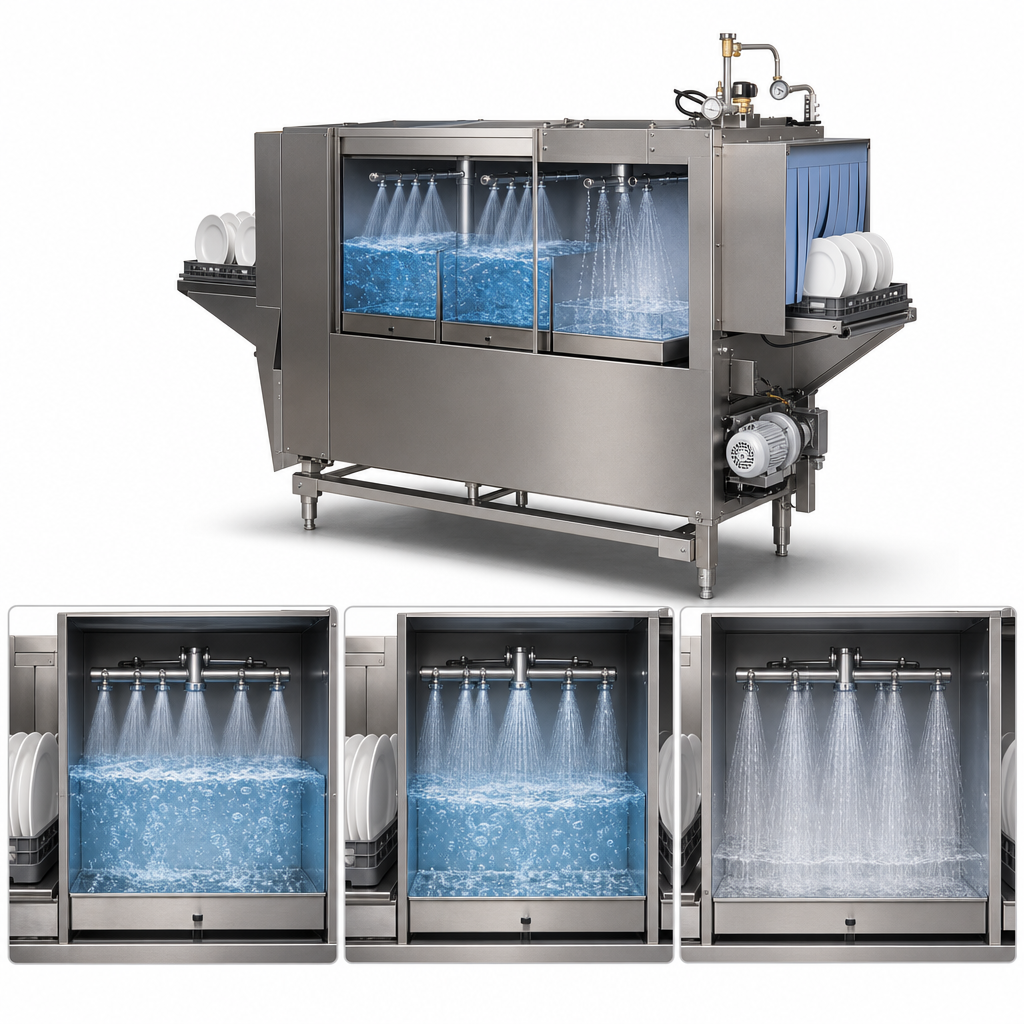

- Dual-tank, 3-stage system – dedicated wash, power-rinse, and final-rinse zones in only 44".
- Automatic soil-purging – filters food debris into a removable external tray for fast clean-up.
- Automatic water control & auto-fill – maintains proper tank levels and temperature with no guesswork.
- Power-rinse heater system – speeds recovery for consistent sanitizing even during peak periods.
- Chemical-resistant industrial heaters outlast commercial-grade elements.
- Table-limit switch & rack-save clutch protect racks, tables, and drive components.
- Quick-release curtains and built-in stainless scrap accumulator simplify daily maintenance.
- Includes one open rack and one peg rack—ready to install right- or left-feed (specify at order).
At-a-glance specs
Production rate | 249 racks / 996 covers per hour |
---|---|
Water use | 0.46 gal per rack (114.5 gal/hr) |
Sanitizing modes | High-temp (180 °F) or low-temp chemical |
Wash sequence | 3 stages – wash, power rinse, final rinse |
Rack clearance | 19 in. (sheet-pan friendly) |
Dimensions (W × D × H) | 44" × 25-1/8" × 56-1/2" |
Wash tank capacity | 11.75 gal |
Power rinse tank | 4.25 gal |
Motors | 1 HP wash • 1/3 HP rinse • 1/8 HP conveyor |
Heating | 13 kW wash tank • 3 kW rinse tank (electric) |
Conveyor speed | 6.75 ft/min |
Electrical | 208/240 V 1- or 3-phase (480 V 3-phase available) |
Water inlet | ½" NPT (fill & final rinse) |
Drain connection | 2" NPT |
Certifications | UL, cULus, ETL-Sanitation |
Shipping weight | ≈ 662 lb |
Included in the box
- (1) Open rack & (1) peg rack (20" × 20")
- Stainless steel scrap accumulator tray
- Installation & operation manual
- 1-year parts & labor warranty registration form
