Description

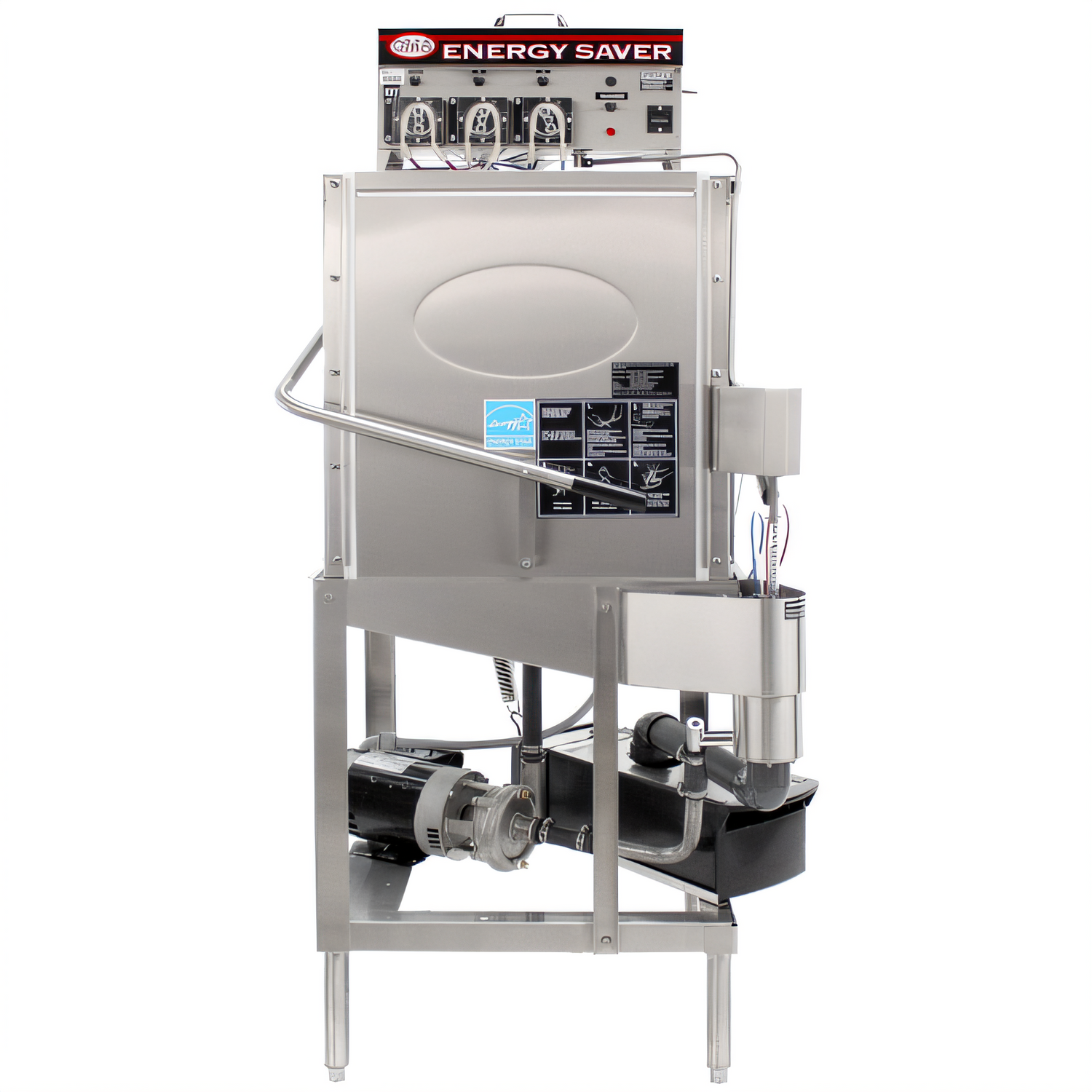

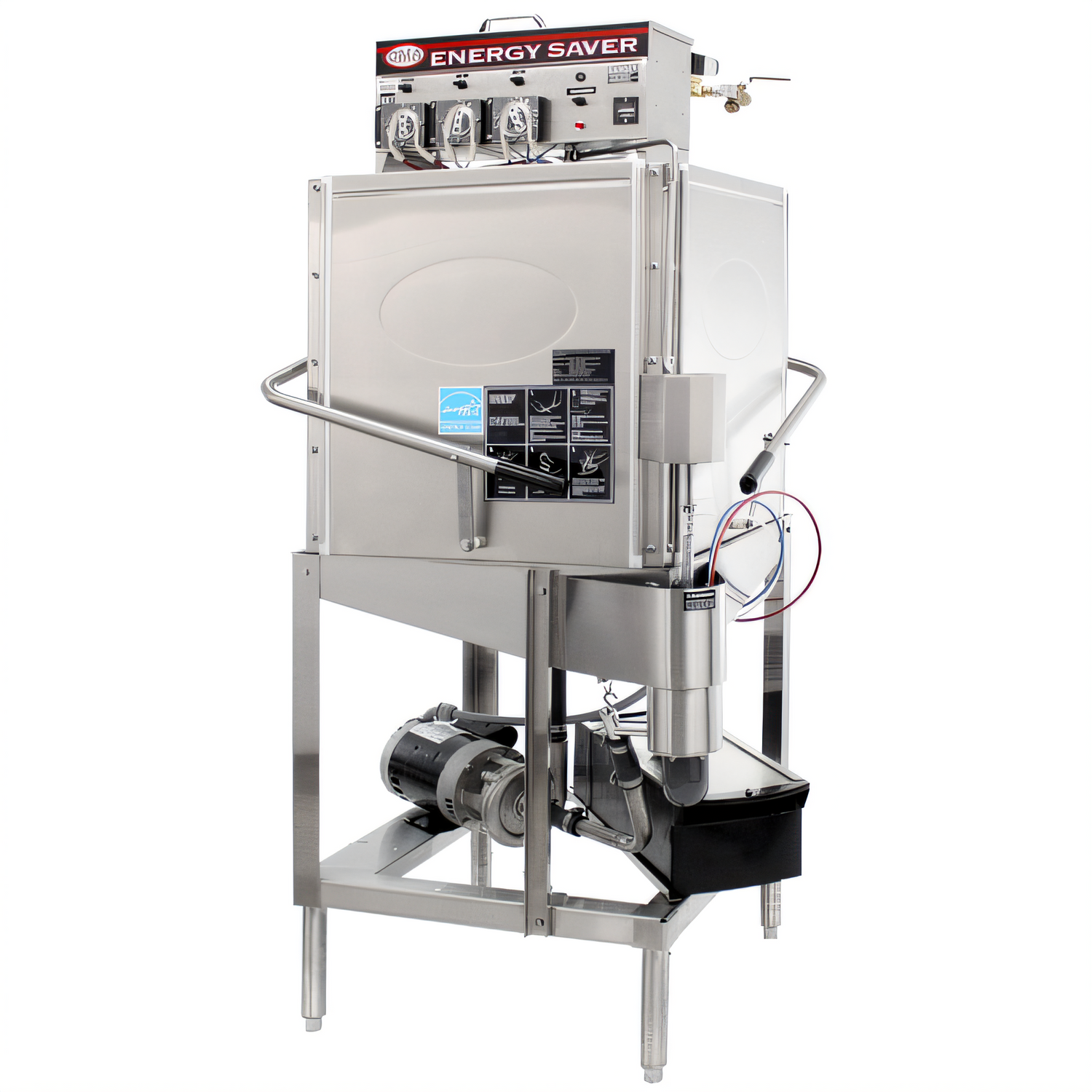

CMA Dishmachines Energy Mizer™ E-EXT Low-Temp Door-Type Dishwasher
Corner configuration | 25-3/4" W | 40 racks/hrServe more guests and spend less on utilities with the Energy Mizer™ E-EXT from CMA Dishmachines. This chemical-sanitizing, low-temperature washer delivers high-volume performance without the steam, noise, or operating costs of a booster-heated machine.
Why You’ll Love It
- NSF-rated 90-second cycle processes up to 40 racks / 160 covers per hour.
- Low-temp chemical sanitizing—connects to 120 °F water; no booster heater required.
- Uses only 1.01 gal of water per rack (40.4 GPH) for big savings on water & sewer.
- Spacious 20-1/2" door clearance fits sheet pans, mixing bowls, and large wares.
- Top-mounted control panel with built-in detergent, sanitizer, and rinse pumps.
- Auto start/stop activates the cycle the moment the door closes.
- Poly Pro™ external scrap accumulator keeps food soil out of the tank for cleaner results.
- 1 HP wash pump with stainless upper & lower spray arms (reinforced end caps).
- Air-gap fill and external sump design help prevent backflow and speed soil removal.
- All-stainless construction; ETL-Sanitation & cULus listed for peace of mind.
- Convertible design – ships for corner installation, can be field-converted to straight-through.
Performance & Utilities
| Racks per hour | 40 (NSF certified) |
|---|---|
| Cycle time | 90 sec (≈45 sec wash / 30 sec dwell / 15 sec rinse) |
| Water use | 1.01 gal per rack | 40.4 gal per hour |
| Pump motor | 1 HP | 52 GPM |
| Incoming water temp | 120 °F required | 140–160 °F recommended |
| Electrical | 115 V / 1-ph / 16 A |
| Certifications | ETL-Sanitation, cULus, ENERGY STAR V2.0 (previous) |
Dimensions & Connections
| Width | 25-3/4" |
|---|---|
| Depth | 25-3/4" |
| Height (door closed) | ≈64" * |
| Height (door open) | 80-1/2" |
| Door clearance | 20-1/2" |
| Table height | 34" |
| Water inlet | ½" NPT (25 psi min.) |
| Drain connection | 2" IPS gravity |
| Shipping weight | ≈262 lb |
What’s in the Box
- (1) 20" × 20" standard dishrack
- Built-in detergent, sanitizer & rinse chemical pumps
- Poly Pro™ scrap accumulator with basket & tray
- Factory-mounted pressure regulator & air-gap fill
- 1-year parts & labor warranty (continental U.S.)
Popular Factory Options (sold separately)
- Alternate cycle times
- Solid / powder dual-bowl chemical dispenser
- 3-door passthrough configuration
- Stainless steel soiled & clean tables
- Alternate electrical (208–240 V, 3-phase Temp-Sure system)
Installation note:
CMA recommends incoming water hardness ≤ 3.5 gpg and a traditional tank-style water heater.
Some U.S. states require ENERGY STAR certification for commercial dishwashers—verify local codes before installation.
Tankless on-demand heaters are not endorsed for this model.
*Door-closed height varies with adjustable bullet feet. Specifications and availability are subject to change without notice.
Features & Specs
Features & Specs
Manufacturer
CMA Dishmachines
Brand_name
Energy Mizer
Certifications
cULus, ETL-Sanitation
Height
60.0in
Width
25.75in
Depth
25.75in
Shipping Weight
262.0lbs
Rack Capacity
approximately (40) racks/hour
Design
corner
Racks
single
Construction
stainless steel
Temperature
low temp chemical
Specifications
Energy Mizer® Dishwasher, door type, 25-3/4" W, low temperature chemical sanitizing, top mounted controls, corner design, (40) racks/hour, external sump, Poly Pro™ scrap accumulator, auto start/stop, stainless steel construction, 20-1/2" door clearance, 1 HP wash pump, ETL-Sanitation, cULus
