CMA Dishmachines E-3D-EXT Energy Mizer Dishwashers
$5,531.00
Unit price
/
Unavailable
FREE SHIPPING AVAILABLE!
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
CMA Dishmachines E-3D-EXT Energy Mizer Dishwashers is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
CMA Dishmachines E-3D-EXT Energy Mizer Dishwashers
$5,531.00
Unit price
/
Unavailable
Description
CMA Energy Mizer® Model E-EXT Extended-Door Dishwasher
Low-Temperature • Chemical Sanitizing • 40 Racks/HourGive your dishroom maximum throughput with minimum utility costs. The Energy Mizer® E-EXT handles up to 160 covers per hour while using just 1.01 gal / rack—all without the need for a booster heater or steam.
Key Performance Benefits
- NSF-rated 90-second cycle (45 s wash / 15 s rinse / 30 s dwell).
- Extended 20-1/2" door opening fits full-size sheet pans and trays.
- Top-mounted controls with built-in chemical pumps & deliming system—no extra dispensers to mount.
- Poly Pro™ scrap accumulator keeps food soil out of the drain and wash pump.
- Auto start/stop and power drain streamline workflow and reduce labor.
- All-stainless steel construction and reinforced stainless wash arms for long service life.
Save on Utilities
- Uses 40.4 gal/hr—up to 50 % less water than conventional door machines.

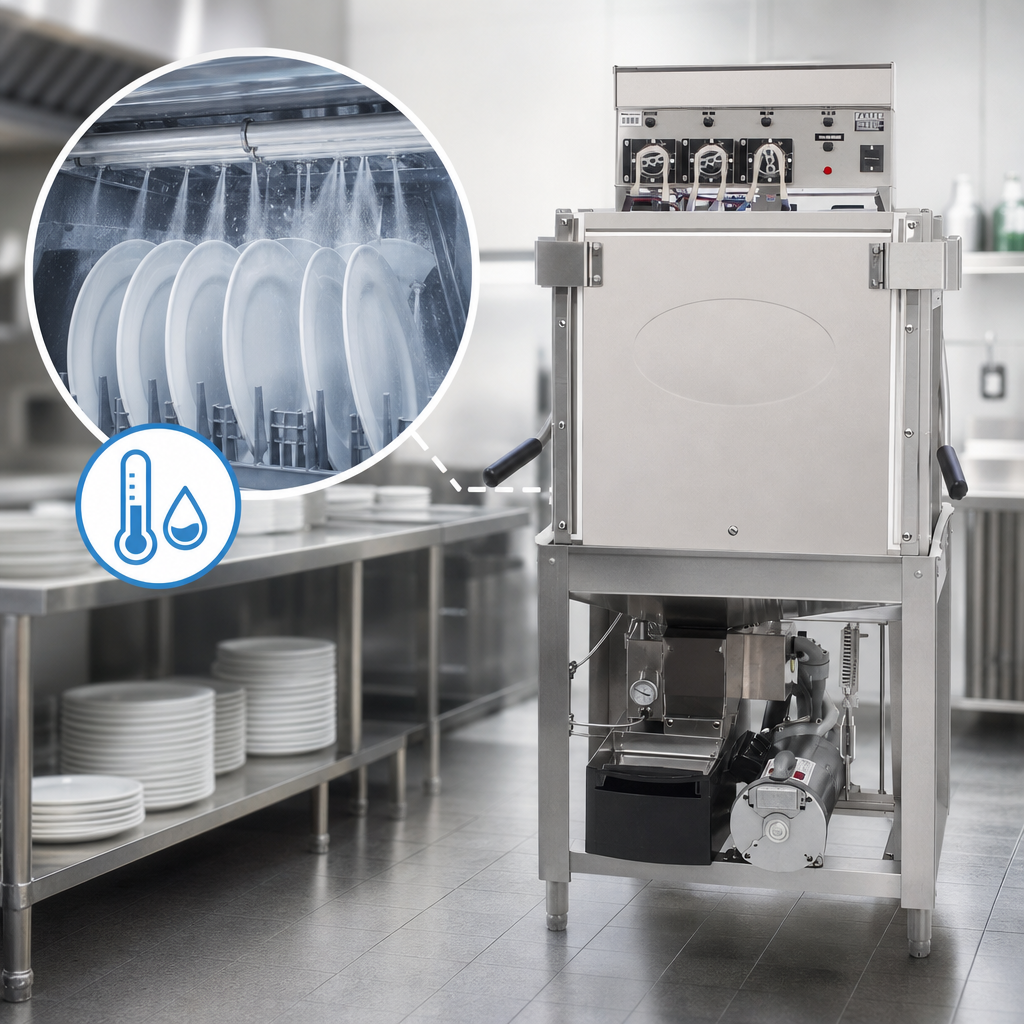

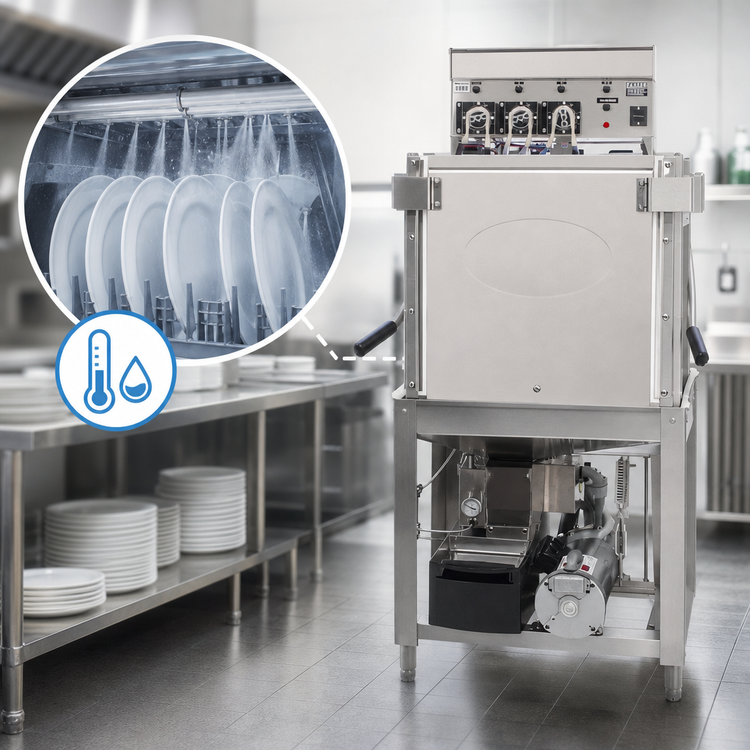

- Low-temperature (120 °F supply) chemical sanitizing eliminates costly booster heaters.
- Air-gap fill system prevents back-flow to protect your potable water line.
Smart Design Details
- 1 HP / 52 GPM wash pump powers through heavy soil loads.
- Convertible straight-thru or corner configuration (field kit required) for easier kitchen layout changes.

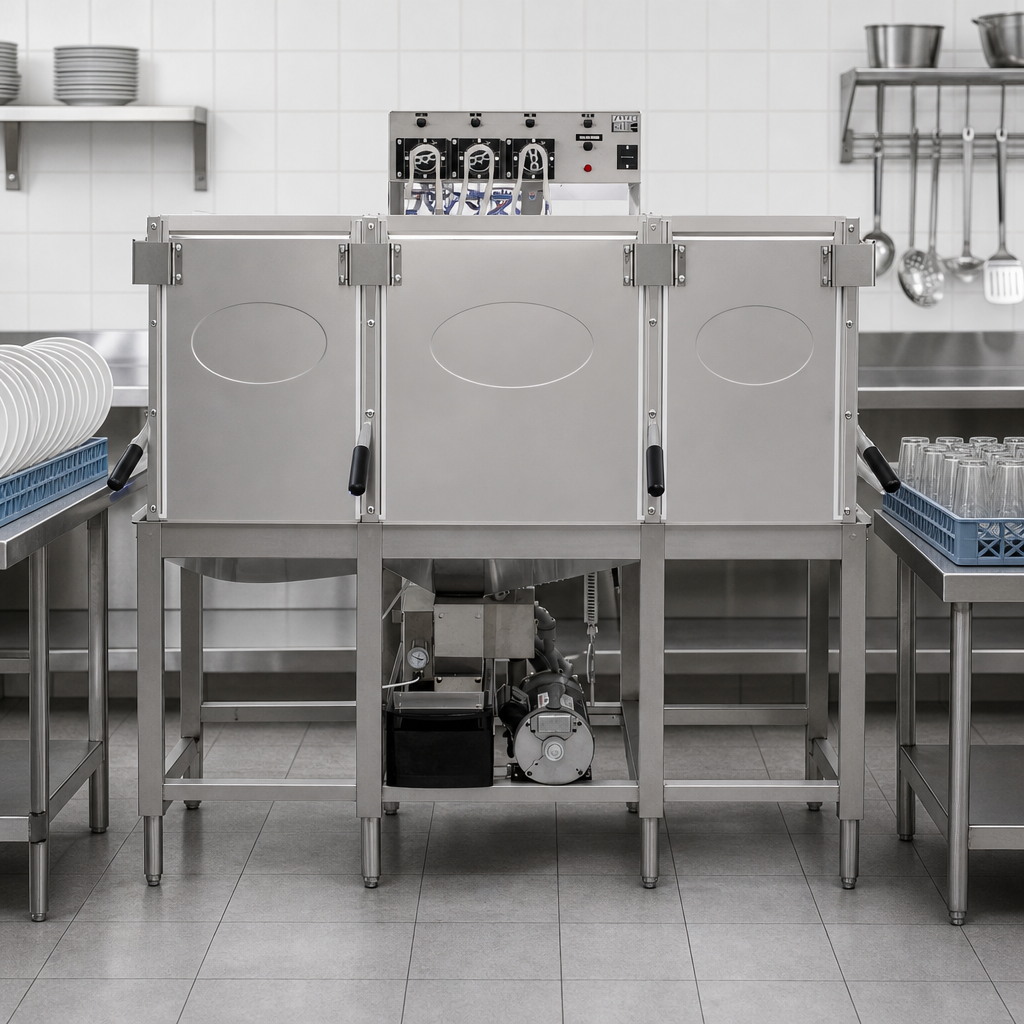

- Three-door, straight-thru design speeds loading/unloading and reduces bottlenecks.
- Compatible with optional accessories: solid/powder dual-bowl dispenser, stainless tables, slant shelf, and more.
Technical Specifications
| Capacity | 40 racks/hr • 160 covers/hr |
|---|---|
| Cycle Time | 90 s (45 s wash / 15 s rinse / 30 s dwell) |
| Water Usage | 1.01 gal per rack • 40.4 gal/hr |
| Door Clearance | 20-1/2" (52 cm) |
| Overall Dimensions | 25-3/4" W × 25-3/4" D × 60" H 80-1/2" H with doors open |
| Wash Pump | 1 HP, 52 GPM |
| Water Supply | 120 °F required (140-160 °F recommended) ½" NPT inlet • 2" gravity drain |
| Electrical | 115 V, 16 A, single-phase |
| Construction | All stainless steel, Poly Pro™ scrap accumulator |
| Certifications | UL, cULus, ETL (sanitation & construction) |
| Shipping Weight | Approx. 262 lb (119 kg) |
| Warranty | One-year parts & labor, factory authorized service |
Important: Some U.S. states require ENERGY STAR® certification for commercial
dishwashers. The E-EXT met the requirements of ENERGY STAR Version 2.0 when last tested, but
always check current local codes before installation. CMA recommends a water hardness
of ≤ 3.5 gpg and does not endorse tankless on-demand water heaters for this unit.
Need help planning your installation or adding optional accessories? Contact our foodservice specialists anytime.
Features & Specs
Features & Specs
Manufacturer
CMA Dishmachines
Brand_name
Energy Mizer
Certifications
cULus, UL, ETL
Height
60.0in
Width
25.75in
Depth
25.75in
Design
straight-thru
Rack Capacity
approximately (40) racks/hour
Construction
stainless steel
Racks
single
Temperature
low temp chemical
Specifications
Energy Mizer® Dishwasher, extended door type, 25-3/4"W x 25-3/4"D x 60"H, 3-door straight-thru design, low temperature chemical sanitizing, (40) racks/hour, 20-1/2" door opening, top mounted controls, built-in chemical pumps, deliming system & Poly Pro™ scrap accumulator, auto start/stop, power drain, stainless steel construction, 1 HP wash pump, UL, cULus, ETL
