CMA Dishmachines B Energy Mizer Dishwashers
Description

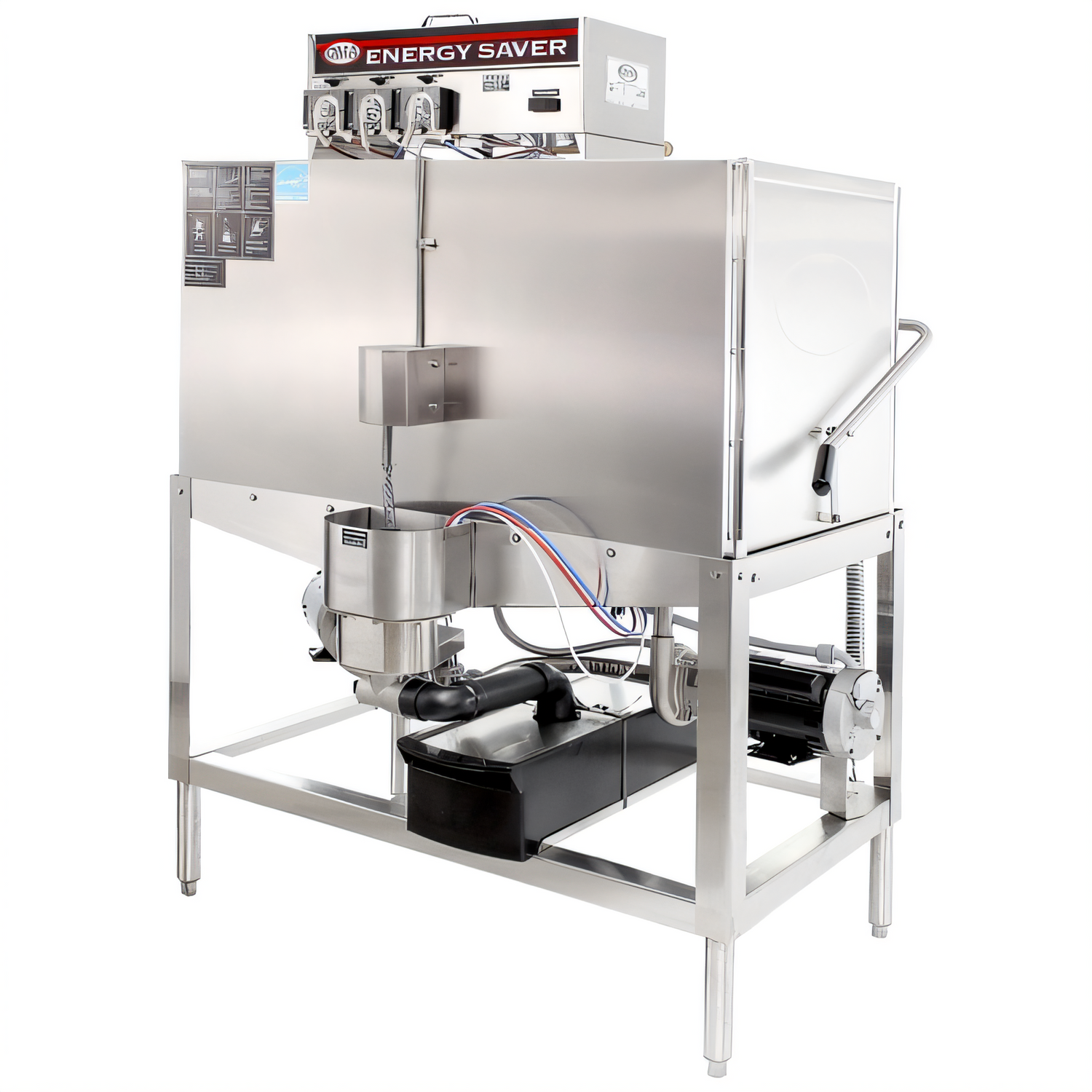

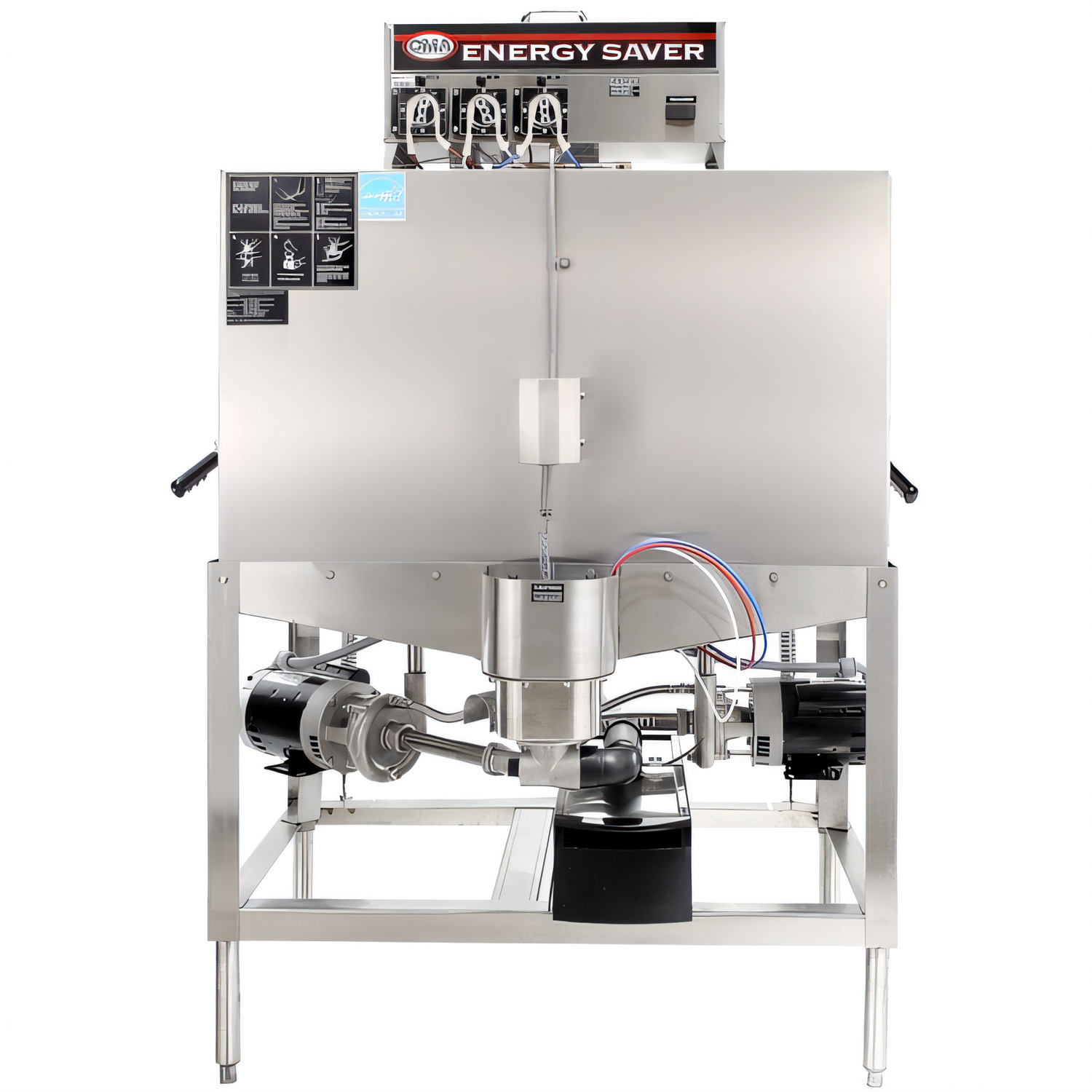

CMA “Energy Mizer” Model B Double-Rack Dishwasher
Low-Temperature • Chemical Sanitizing • ENERGY STAR® CertifiedPower through peak service with the CMA Energy Mizer Model B. Designed for high-volume kitchens that refuse to compromise on results or running costs, this door-type washer hustles through up to 80 racks (320 covers) per hour while sipping less than 1 gallon of water per rack. Add rock-solid stainless-steel construction, built-in chemical pumps, and an easy straight-thru workflow and you have a money-saving workhorse your team will love.
Why You’ll Love It
- Double-Rack Design – Wash two 20" × 20" racks per cycle to double your throughput without extra floor space.
- Ultra-Efficient – Uses only 0.97 gal of water per rack and meets ENERGY STAR® criteria for ongoing savings.
- Big Interior, Small Footprint – 20 ½" vertical clearance handles trays, sheet pans, and tall glasses.
- Low-Temp Chemical Sanitizing – No booster or tank heaters means lower electrical demand and zero steam in the kitchen.
- Top-Mounted Controls with built-in detergent, rinse & sanitizer pumps plus delimer & priming switches.
- Auto Start/Stop – Close the door and the cycle begins; open it and the machine pauses for safer, easier loading.
- Poly Pro™ Scrap Accumulator & stainless drawer keep food soil out of the drain system.
- Pump-Purging Rinse – Eliminates soil & chemical carry-over for spot-free results.
- Durable All-Stainless Construction, including impeller, wash arms & scrap tray.
- Comes Ready to Work – Includes 1 open rack & 1 peg rack.
Performance at a Glance
| Racks per hour (NSF) | 80 |
|---|---|
| Water used per rack | 0.97 gal / 3.67 L |
| Cycle time | 90 sec (45 wash • 30 rinse • 15 dwell) |
| Wash pump | 1 HP, 104 GPM (dual pumps) |
| Clearance for ware | 20 ½" / 52 cm |
| Rack size | 20" × 20" (included) |
| Water temperature | 120 °F required • 140 °F recommended |
Technical Specifications
| Dimensions (W × D × H) | 44 ¼" × 25 ¼" × 59 ½"–60 ½" |
|---|---|
| Electrical | 115 V / 1-phase / 30 A |
| Water inlet | ¾" NPT, 20–120 psi, 120 °F minimum |
| Drain connection | 2" IPS gravity drain |
| Wash tank capacity | 1.94 gal (7.34 L) |
| Shipping weight | 359 lb (162.8 kg) • Crated 56" × 41" × 70" |
| Certifications | ENERGY STAR®, cULus, ETL-Sanitation |
Installation & Care Notes
- Factory-installed priming & delimer switches make chemical setup fast and fool-proof.
- CMA recommends incoming water hardness ≤ 3.5 gpg for optimal results; a commercial softener may be required.
- Unit produces no steam but still requires proper ventilation in accordance with local codes.
- Optional accessories (sold separately): Temp-Sure 140 °F inline heater, dual-bowl solid/powder chemical dispenser, stainless tables & scrap trap.
1-Year Parts & Labor Warranty
CMA Dishmachines backs every Energy Mizer with a 1-year limited parts & labor warranty when installed and registered by an authorized service agent.
