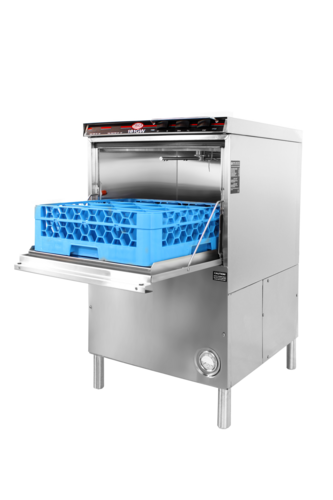

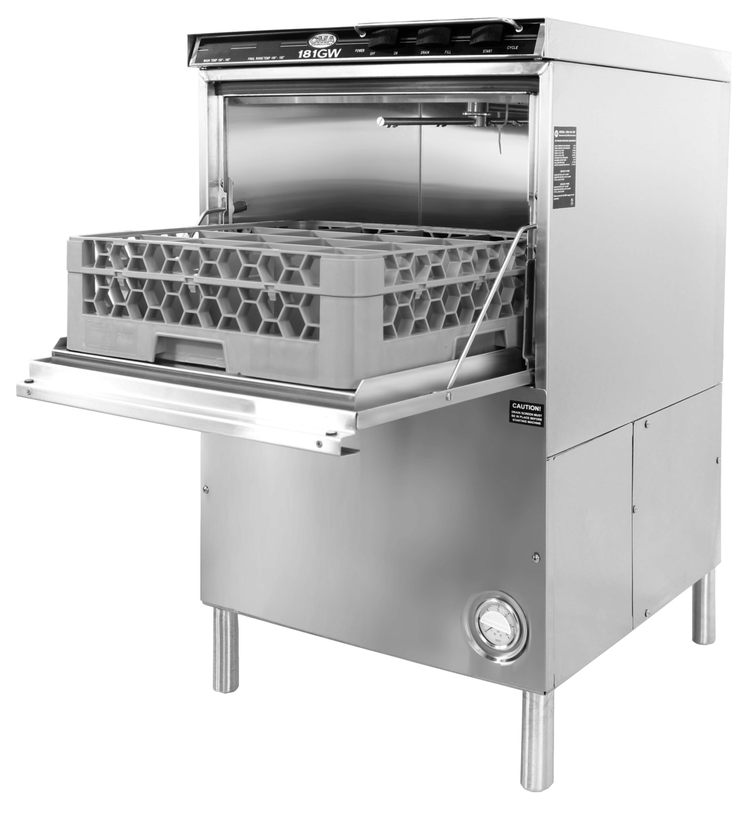

CMA Dishmachines 181GW High Temperature Undercounter Door-Type Glasswasher

Hot Water Sanitizing, 30 Racks/Hour, 11-1/4-Inch Clearance

Built for high-volume beverage service, this undercounter glasswasher combines hot-water sanitizing, fast cycles, and stainless steel durability in a compact footprint.

  • Hot water sanitizing with a built-in Safe-T-Temp booster heater and 180°F final rinse safety system.
  • High-output performance washes up to 30 racks per hour or 600 glasses per hour.
  • Stainless steel construction with a 16-gauge 304 stainless steel wash tank.
  • Top-mounted controls, digital LED temperature gauges, auto fill, and chemical pumps simplify operation.
  • 11-1/4-inch clearance accommodates larger glassware.
  • Gravity drain system and built-in delime switch help support easy maintenance.

Overall Dimensions:

24.0"W x 25.0"D x 40.0"H

Product Weight:

207.0 lb

Hot Water Sanitizing System

Built-in Safe-T-Temp booster heater provides a 70°F rise and supports a 180°F final rinse for proper sanitizing.

High Throughput

Delivers up to 30 racks per hour or 600 glasses per hour on a 2-minute cycle.

Stainless Steel Construction

Constructed with a 16-gauge 304 stainless steel wash tank and all-stainless-steel body components for durability.

Easy-To-Read Controls

Top-mounted controls and digital LED temperature gauges make operation simple and fast.

Automatic Chemical Dispensing

Detergent and rinse chemical pumps plus auto fill help maintain consistent wash performance.

Service-Friendly Design

Upper and lower stainless steel wash and rinse arms, a removable pump protection screen, gravity drain system, and built-in delime switch support easier upkeep.

Large Clearance

11-1/4-inch maximum clearance accommodates larger glassware.

Type Glasswasher
Style Door Type
Installation Type Undercounter
Capacity 30 Racks Per Hour
Controls Top Mounted Digital
Material Stainless Steel
Interior Finish 304 Stainless Steel
Voltage 208/240 Volts
Amps 33.0-36.0 Amps
Hertz 60 Hz
Phase 1-Phase
Water Inlet Size 1/2 Inch
Drain Connection Size 1 Inch
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It uses hot water sanitizing with a built-in Safe-T-Temp booster heater and an 180°F final rinse safety system.
It uses standard 19-3/4" x 19-3/4" glass racks.
It is rated for 30 racks per hour or 600 glasses per hour.
The unit is available in 208/240 Volts, 1-Phase, 60 Hz, with 33.0-36.0 Amps.
It requires a 1/2-inch water inlet and a 1-inch drain connection.
Water consumption is .75 gallons per rack or 22.5 gallons per hour.
