CMA Dishmachines 180UC 3 W/DISPENSERS Undercounter Dishwashers
Description
CMA 180UC-3 High-Temperature Undercounter Dishwasher
Compact 24" footprint • 28 racks/hour • NSF & ENERGY STAR® certifiedDeliver spotless, NSF-sanitized ware in just two minutes. The CMA 180UC-3 pairs a 180 °F booster with a stainless-steel wash system that devours grease, lipstick and protein soils while using only 0.68 gal of water per cycle—40 % less than many competing machines. Perfect for bars, cafés, coffee shops and satellite kitchens that need full-size results without a full-size footprint.
Why you’ll love it

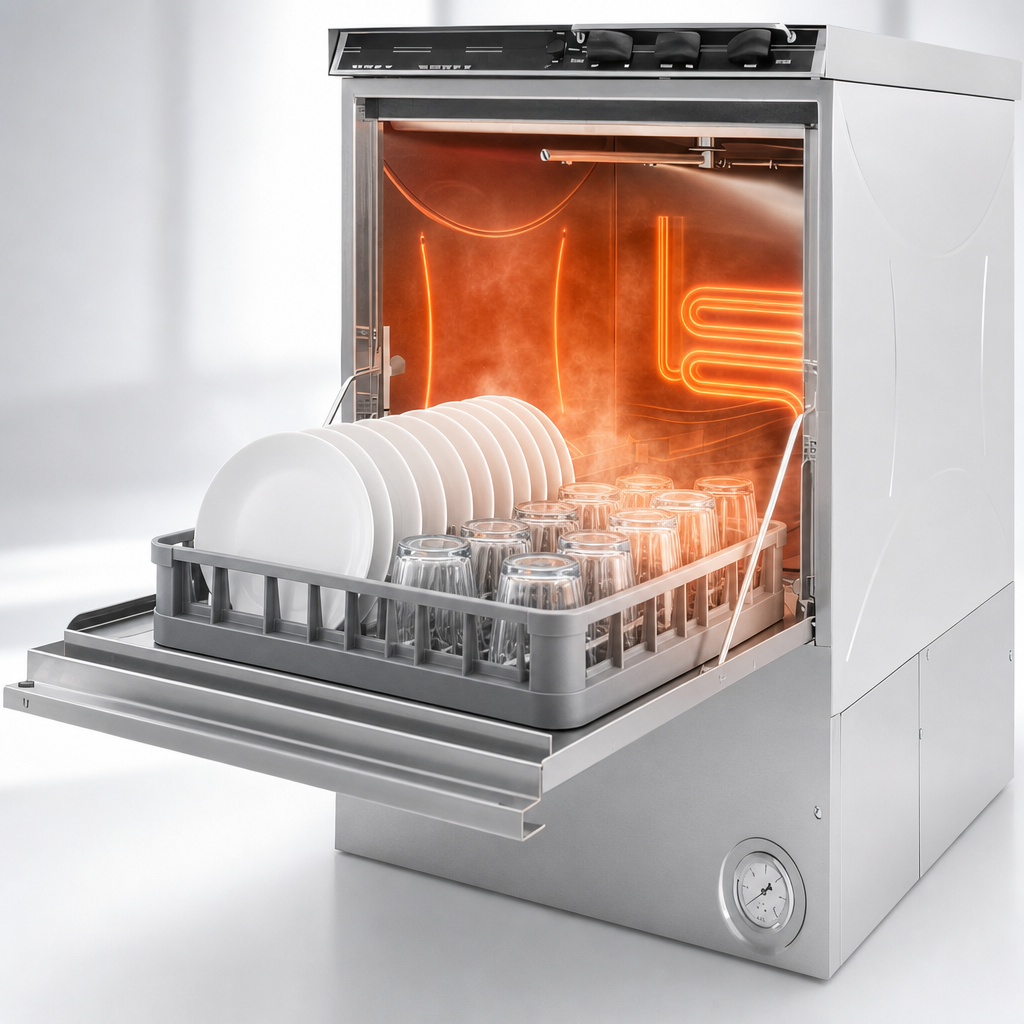

- High-temp sanitizing – built-in 5.3 / 6.5 kW booster guarantees a 180 °F Safe-T-Temp™ final rinse every cycle.
- Lightning-fast throughput – 28 racks (≈140 covers) per hour with a simple 2-minute timer.

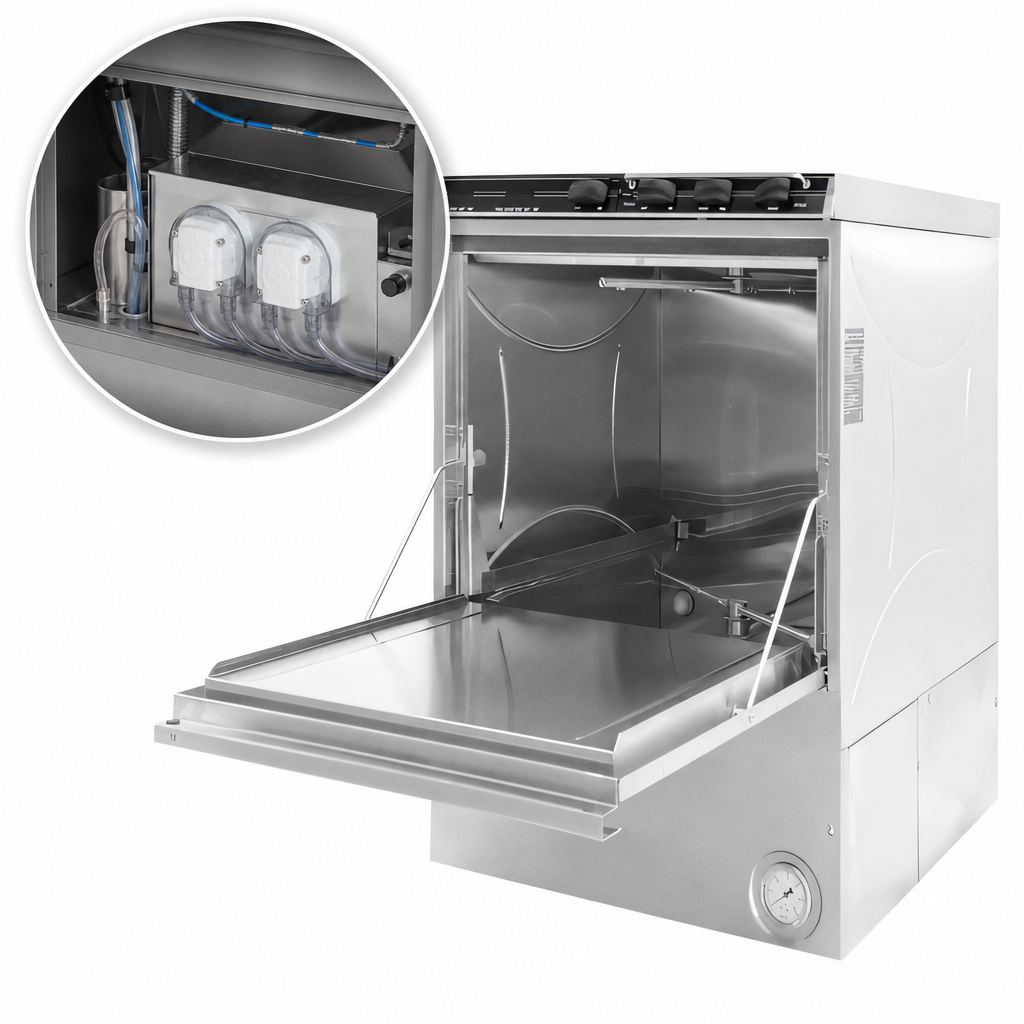

- Built-in chemical pumps & deliming switch – factory-installed detergent and rinse pumps keep dosing consistent; one-touch delime simplifies scale removal.
- Water-saving design – uses just 0.68 gal / cycle and a pumped drain for flexible installation.
- 14½" door clearance – handles tall stemware, ½-size sheet pans and oversized plates.
- All-stainless construction – cabinet, wash pump, rotating wash & rinse arms and filters for maximum durability.
- Easy to use & monitor – top-mounted controls with LED temperature display are visible at a glance.
- ENERGY STAR® 3.0 – cuts utility costs and may qualify for local rebates.
At-a-Glance Specifications
| Exterior dimensions | 24" W × 25" D × 33-1/4" H (60.96 × 63.5 × 84.45 cm) |
|---|---|
| Rack size / racks included | 20" × 20" • (2) open dish racks included |
| Door clearance | 14-1/2" (36.8 cm) |
| Cycle time / capacity | 2 min • 28 racks / hr |
| Water use | 0.68 gal per rack • 19 gal per hr |
| Wash / final-rinse temps | 160 °F wash • 180–195 °F rinse |
| Electrical | 208 V 1-ph 30 A or 240 V 1-ph 32 A (hardwired, 2 hot + ground) |
| Booster heater | 5.3 kW @ 208 V • 6.5 kW @ 240 V |
| Wash tank heater | 2.2 kW @ 208 V • 2.9 kW @ 240 V |
| Wash pump | ¾ HP stainless pump • 38 GPM flow |
| Water connection | ½" NPT @ 120 °F min (140 °F recommended) • 20 ± 5 psi |
| Drain connection | 1" pumped drain – no floor sink required |
| Construction | All stainless steel, removable side & front panels, adjustable feet |
| Certifications | NSF, UL, cULus, ENERGY STAR® |
| Warranty | 1-year parts & labor (factory authorized service) |
What’s included
- (1) CMA 180UC-3 high-temperature undercounter dishwasher
- (2) 20" × 20" standard dish racks
- Factory-installed detergent & rinse aid pumps
- Owner’s/installation manual & warranty registration card
Need a pedestal, drain board or water-tempering kit? See the “Accessories” section or contact us for guidance.
