CMA Dishmachines 180-VL TALL Undercounter Dishwashers
Description

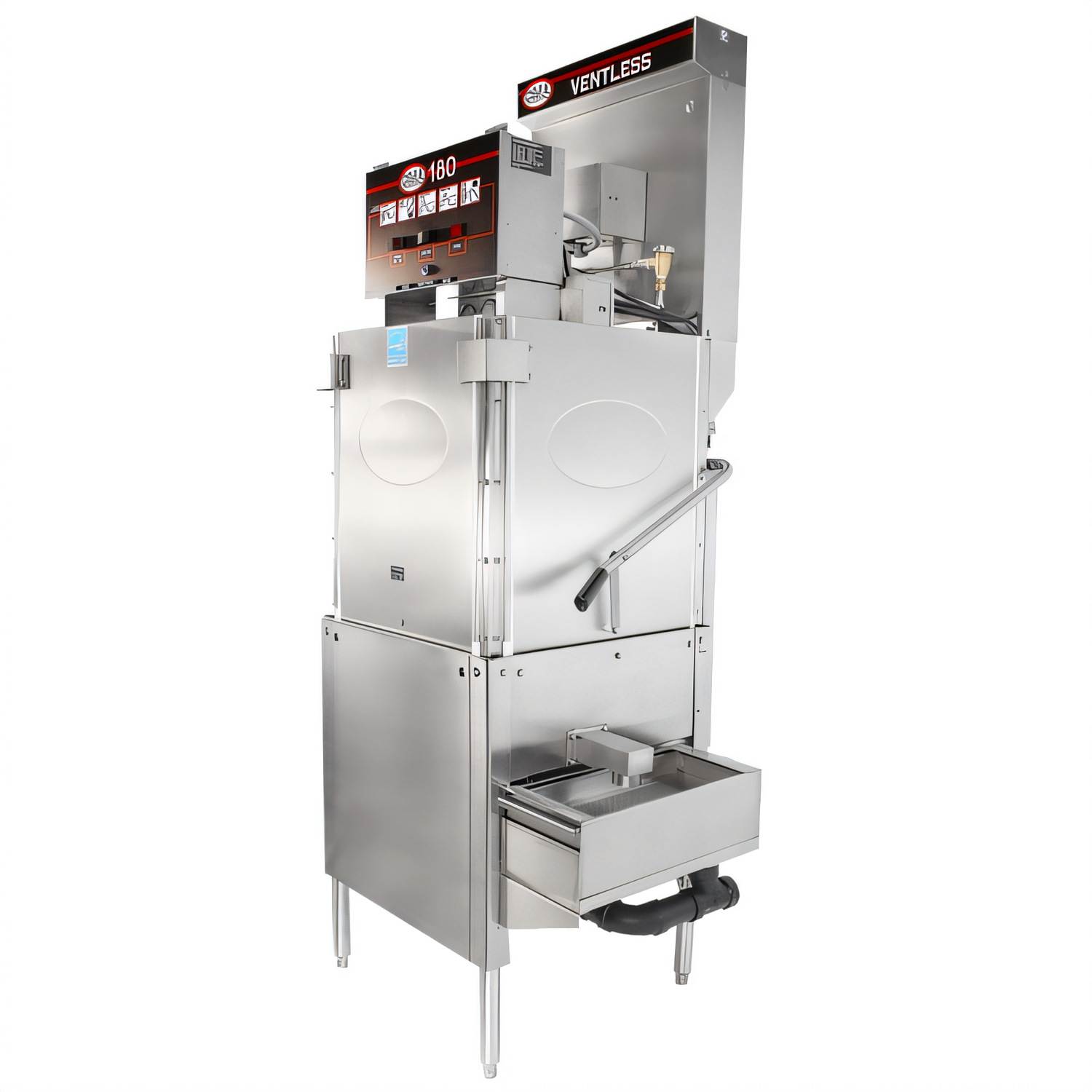

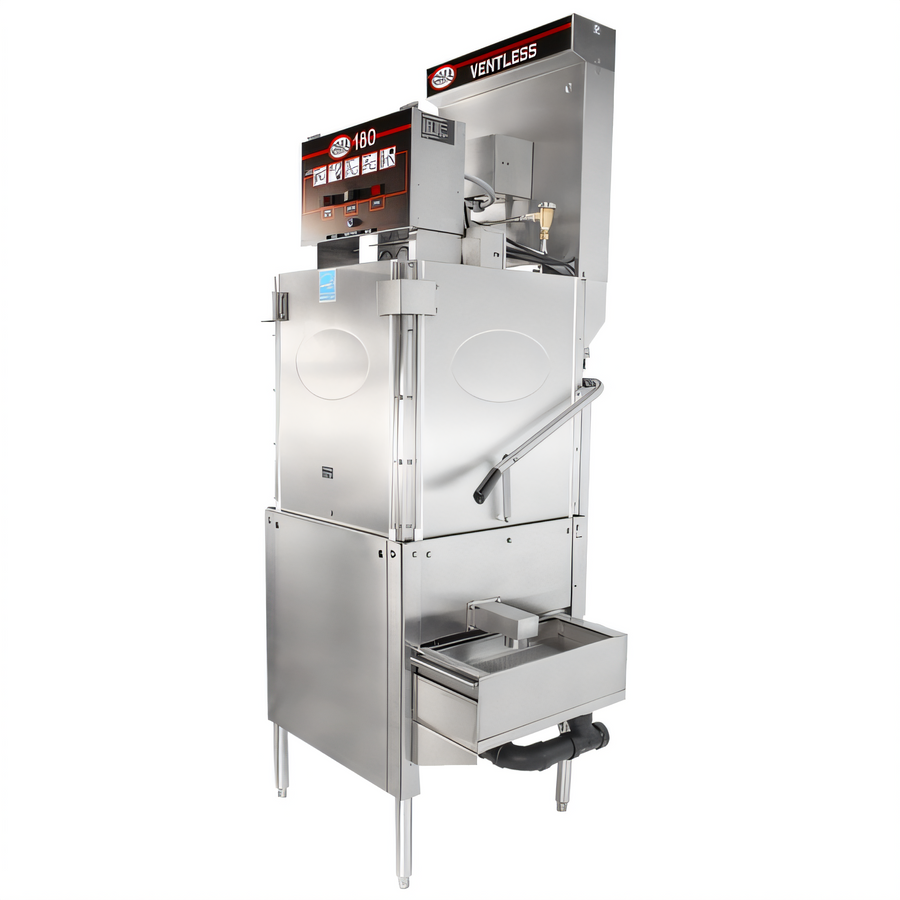

CMA 180-VL TALL Energy Mizer® Ventless High-Temp Dishwasher
3-door, single-rack, heat-recovery hood – built to run without a vent hoodReplace your costly overhead hood and slash utility bills with CMA Dishmachines’ flagship tall-hood dishwasher. The 180-VL TALL captures otherwise-wasted steam to pre-heat incoming water, delivering a consistent 180 °F sanitizing rinse while using less than one gallon per rack—perfect for kitchens that demand full-size pan clearance and rapid turnaround.
Key advantages

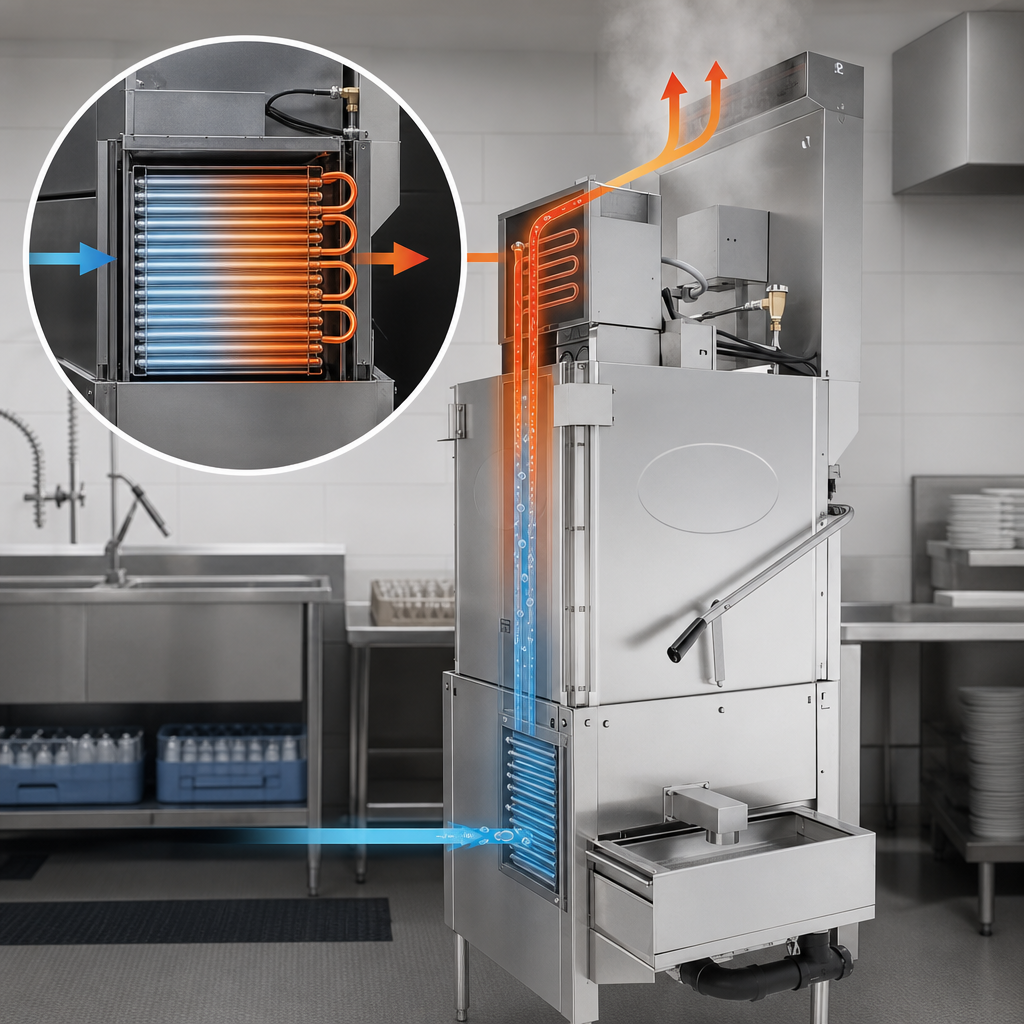

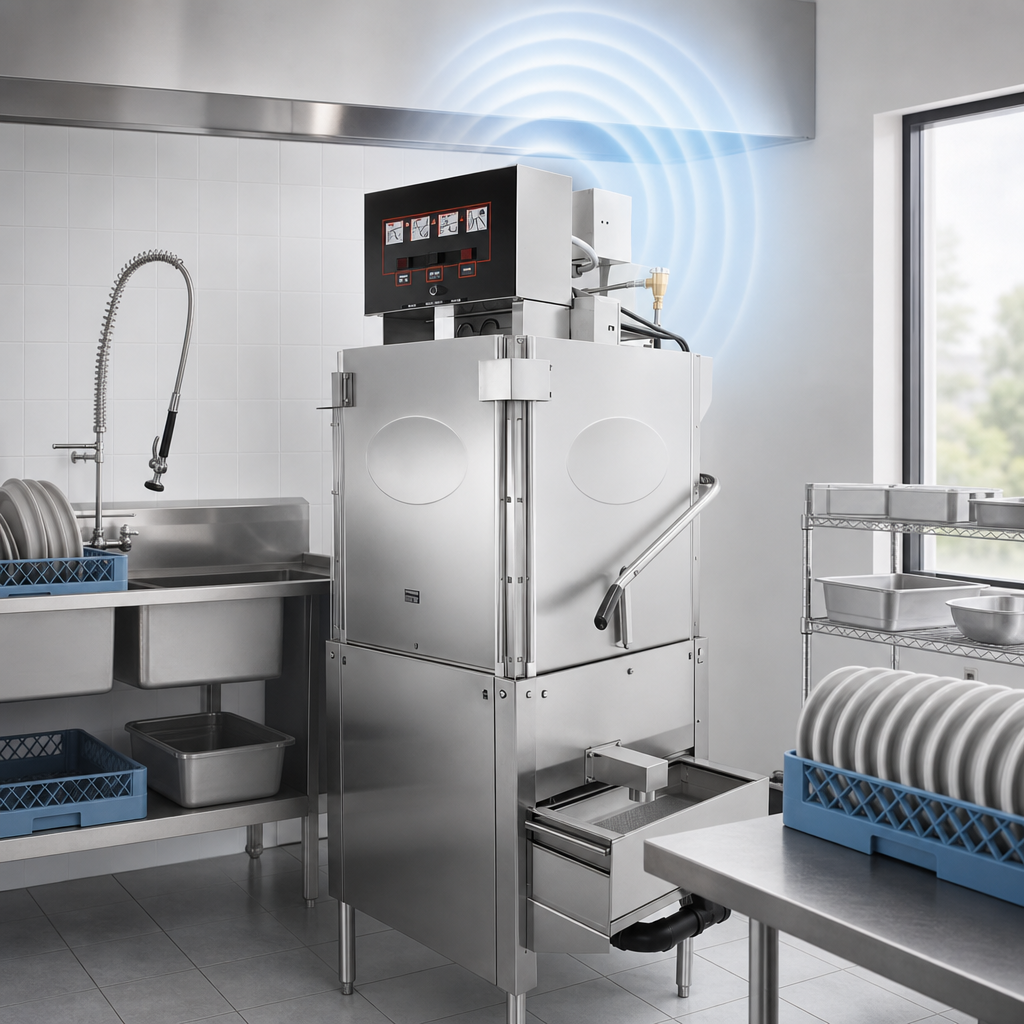

- Ventless heat-recovery & condensation removal – no dedicated exhaust hood required.
- Safe-T-Temp system guarantees a 180 °F final rinse every cycle for NSF-approved sanitization.
- Handles up to 40 racks per hour on a quick 90-second automatic cycle.
- Tall 28 inch interior clearance accommodates sheet pans, stock pots, mixing bowls and more.
- Energy-saving 12 kW booster heater & 6 kW wash-tank heater are pre-fed by captured steam for faster recovery.
- 1 HP wash pump and 52 GPM recirculation for sparkling results.
- Three-door hood works in straight-through or corner configurations—ideal for retrofit installations.
- Door Safety Interlock System (DSI) keeps doors locked until steam is evacuated.
- Rinse pressure regulating valve, dual wash-tank screens and automatic heat-exchanger wash-down keep performance consistent.
- All-stainless construction with adjustable bullet feet for years of corrosion-free service.
Performance snapshot
- Cycle: 60 s wash/rinse + 30 s steam evacuation (90 s total)
- Water use: only 0.89 gal (3.37 L) per rack
- Operating temps: 155–160 °F wash | 180–195 °F rinse
- Wash-tank capacity: 8 gal (30.3 L)
Technical specifications
| Model | CMA-180-VL TALL (Energy Mizer® series) |
|---|---|
| Rack capacity | 40 racks/hr |
| Clearance | 28 in (71.1 cm) |
| Exterior (W × D × H) | 25-1/2 in × 29 in × 95-5/16 – 96-5/16 in (65 cm × 76.7 cm × 242 – 244.6 cm) |
| Water consumption | 0.89 gal/rack • 36 gal/hr (3.37 L / 136 L) |
| Heat sources | 12 kW booster heater · 6 kW wash-tank heater |
| Wash pump | 1 HP motor · 52 GPM (197 LPM) |
| Electrical options* | 208 V 1Ø 78 A · 240 V 1Ø 88 A · 208 V 3Ø 49 A · 240 V 3Ø 55 A · 480 V 3Ø 25 A (*factory wired 3-phase, field convertible to single-phase) |
| Water inlets | ½ in hot (120–140 °F) & ½ in cold (41–65 °F) |
| Drain connection | 2 in gravity, 11-1/2 – 12-1/2 in above floor |
| Shipping weight | Approx. 625 lb (283 kg) |
Certifications & compliance
- NSF/ANSI 3 – Commercial warewashing
- cULus listed
- Meets ASTM & previous ENERGY STAR® 2.0 dishwasher criteria
Need help configuring tables, corner setups or utility connections? Chat with our team and we’ll size the 180-VL TALL precisely for your kitchen.
