CMA Dishmachines 180-VL-FL Energy Mizer Ventless High Temperature Front Loading Single Rack Door-Type Dishwasher

SKU: 180-VL FL
$16,282.20
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Bar Equipment Best Sellers CMA Dishmachines Commercial Dishwashers Dishwashers Door-type Dishwashers New Arrivals Restaurant Equipment Undercounter Dishwashers Undercounter Dishwashers

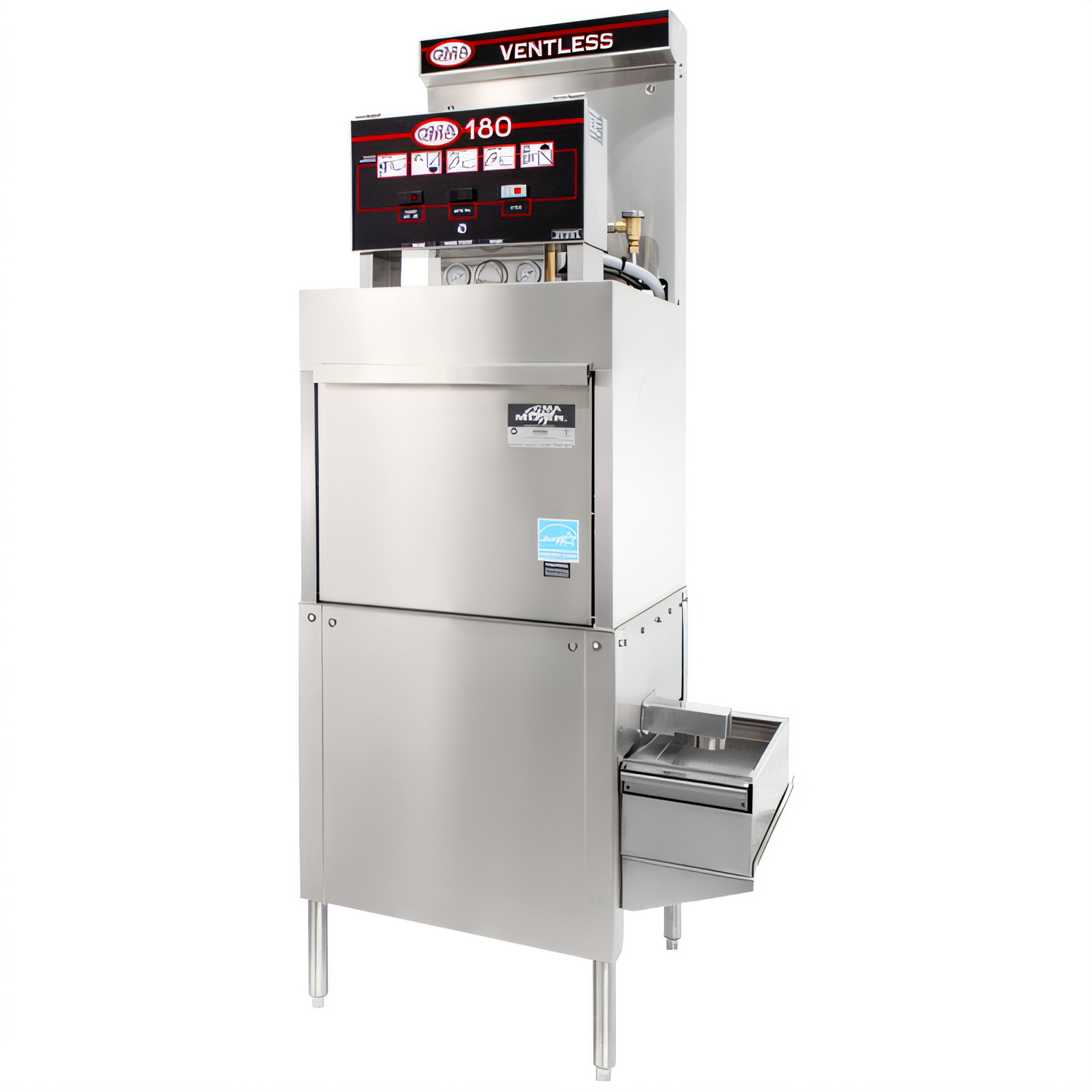

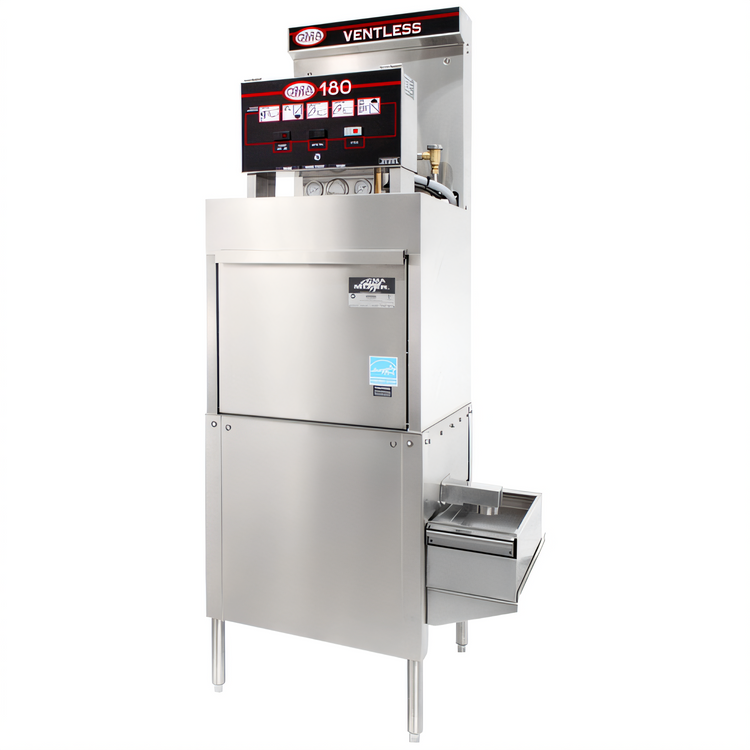

CMA Dishmachines 180-VL-FL Energy Mizer Ventless High Temperature Front Loading Single Rack Door-Type Dishwasher

Heat Recovery System, No Hood Required, Stainless Steel

This ventless front-loading dishwasher saves space and eliminates the need for a hood while delivering high-temperature sanitizing and up to 21 racks per hour.

  • Ventless heat recovery and condensation removal help preheat incoming water and remove steam without an independent vent hood.
  • High-temperature sanitizing with a built-in 12 kW booster heater supports reliable 180°F rinse performance.
  • Cleans up to 21 standard 20" x 20" racks per hour with a 170-second cycle.
  • Compact front-loading design provides ergonomic loading height and only 7.1 square feet of floor space with the door closed.
  • Stainless steel construction, adjustable feet, and a door safety interlock support durability and safe operation.
  • Includes one peg rack and one flat rack for immediate setup.

Overall Dimensions:

25.5"W x 29.0"D x 86.31"H

Product Weight:

520.0 lb

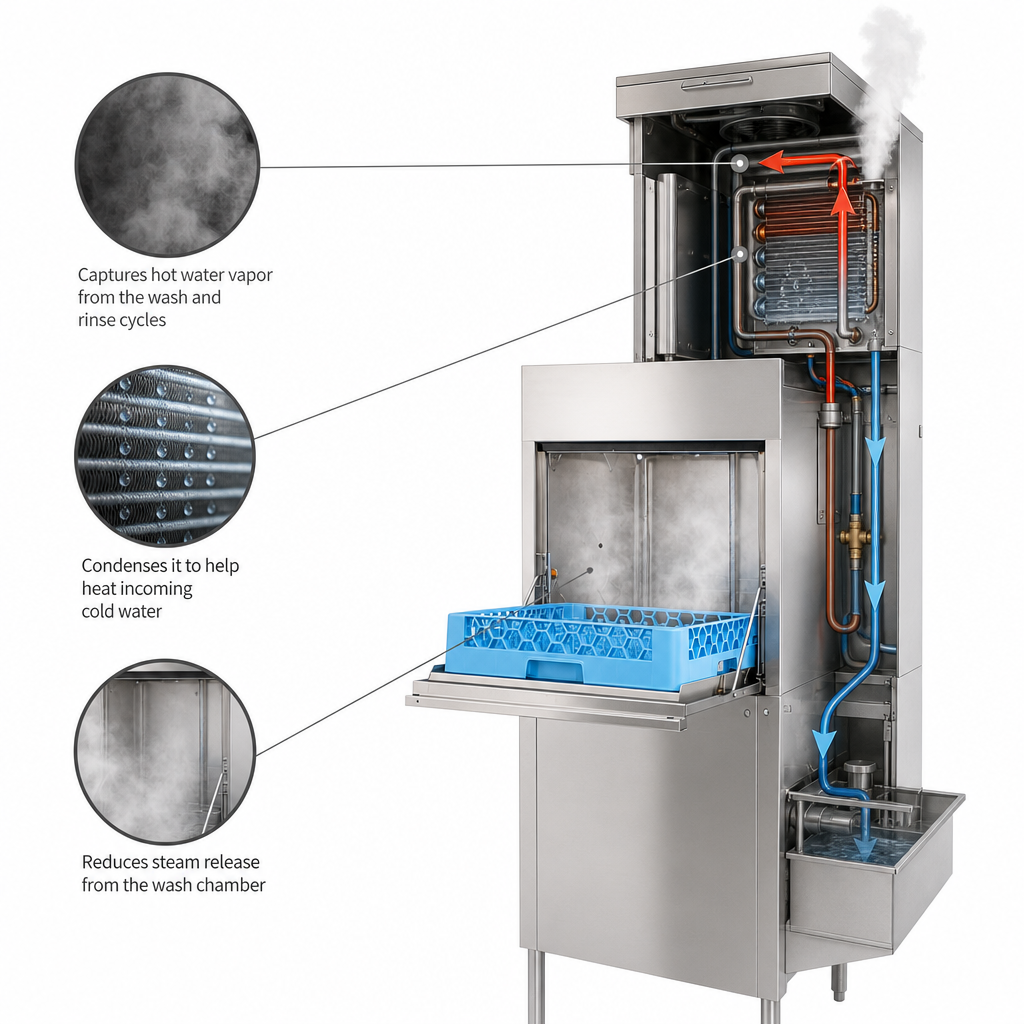

Ventless Heat Recovery System

Captures hot water vapor from the wash and rinse cycles, condenses it to help heat incoming cold water, and reduces steam release from the wash chamber.

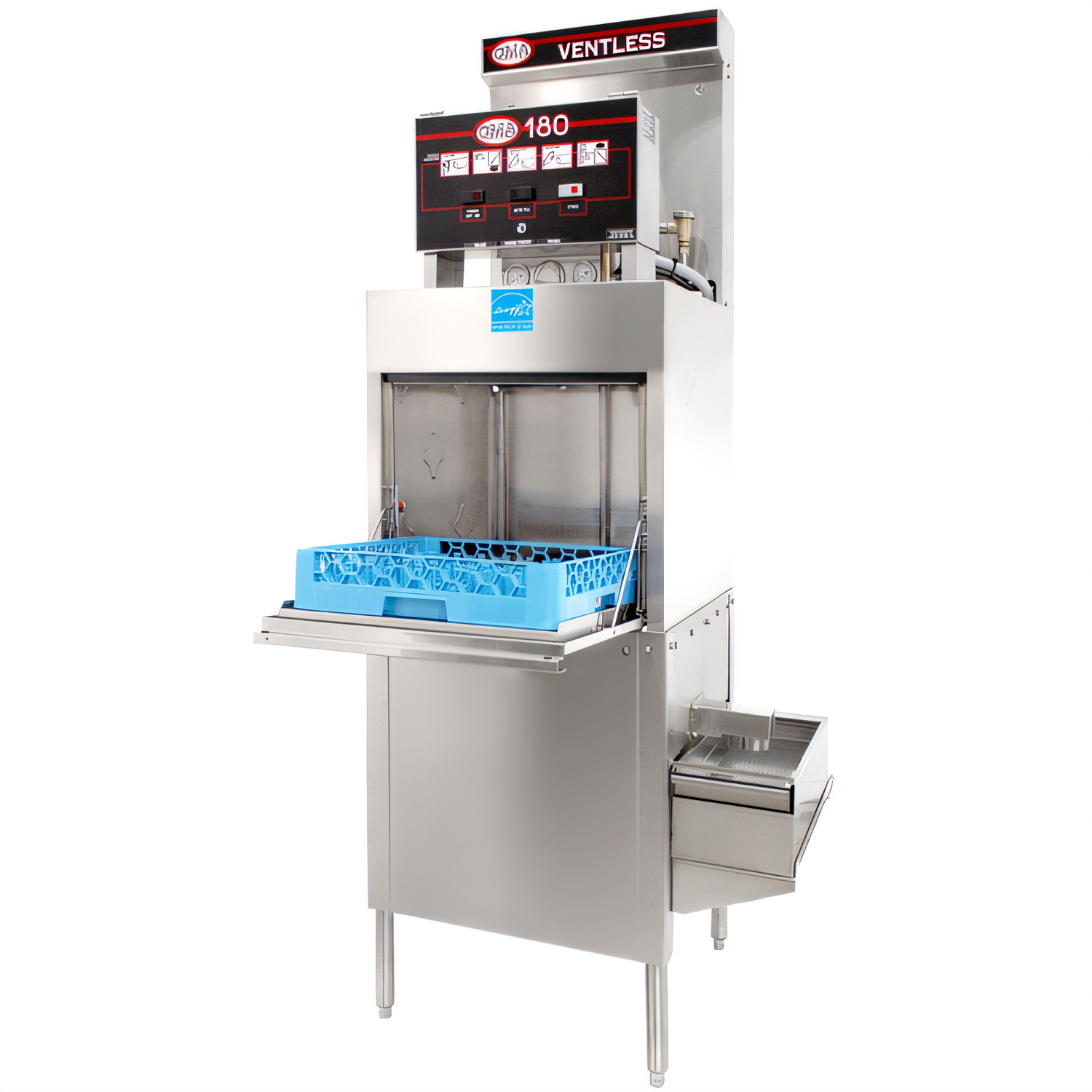

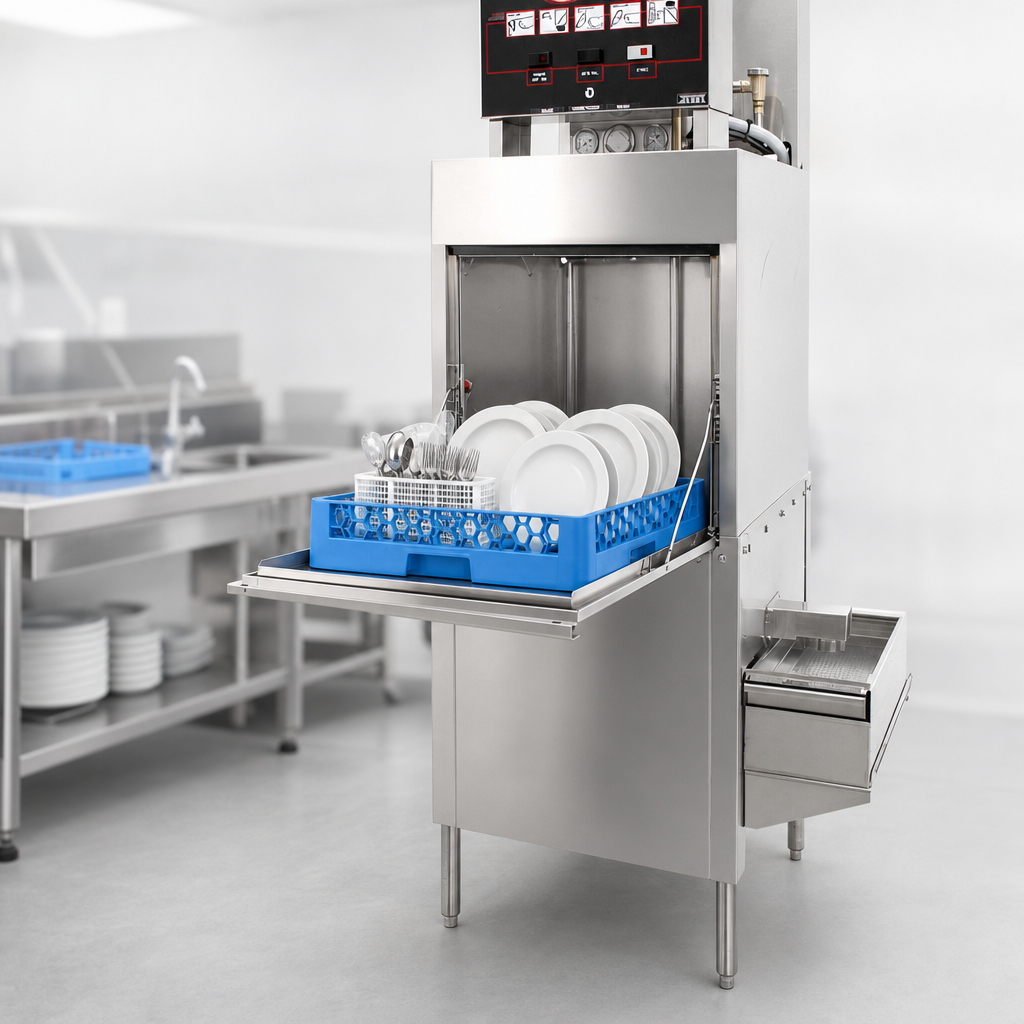

Front Loading Door Design

Provides an ergonomic working height for easier loading and unloading while keeping the footprint compact.

High-Temperature Sanitizing

Safe-T-Temp feature helps ensure a 180°F sanitizing rinse every cycle.

Fast, Water-Saving Operation

Produces up to 21 racks per hour using standard 20" x 20" racks and uses as little as 0.89 gallons of water per cycle.

Built-In Heating

Includes a 6 kW wash tank heater and a 12 kW booster heater to support high-temperature washing and rinsing.

Wash System Protection

Wash tank screens help filter recirculating water, and the rinse pressure regulating valve supports consistent rinse performance.

Durable Stainless Steel Construction

Constructed entirely of stainless steel and equipped with adjustable feet, a door safety interlock, automatic heat exchanger condenser, and a 1 HP wash pump motor.

Type Door-Type Dishwasher
Style Front Loading
Installation Type Floor Model
Capacity 21 Racks Per Hour
Material Stainless Steel
Water Connection Required
Drain Connection Required
Water Inlet Size 1/2 Inch
Drain Connection Size 2 Inches
Temperature Range 155°F-160°F Wash / 180°F-195°F Rinse
Selling Unit Each
Units Per Case 1
Shipping Width 26 Inches
Shipping Depth 29 Inches
Shipping Height 87 Inches
Shipping Weight 520 Pounds

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

No. The ventless heat recovery and condensation removal system is designed to eliminate the need for an independent vent hood.
It is rated for up to 21 standard 20" x 20" racks per hour.
It uses 1/2" hot and cold water inlet connections and a 2" drain connection.
The documentation lists 208V or 240V, 1-phase options, and 208V, 240V, or 480V, 3-phase options.
It includes one peg rack and one flat rack.
The machine provides 16 inches of dish clearance.
