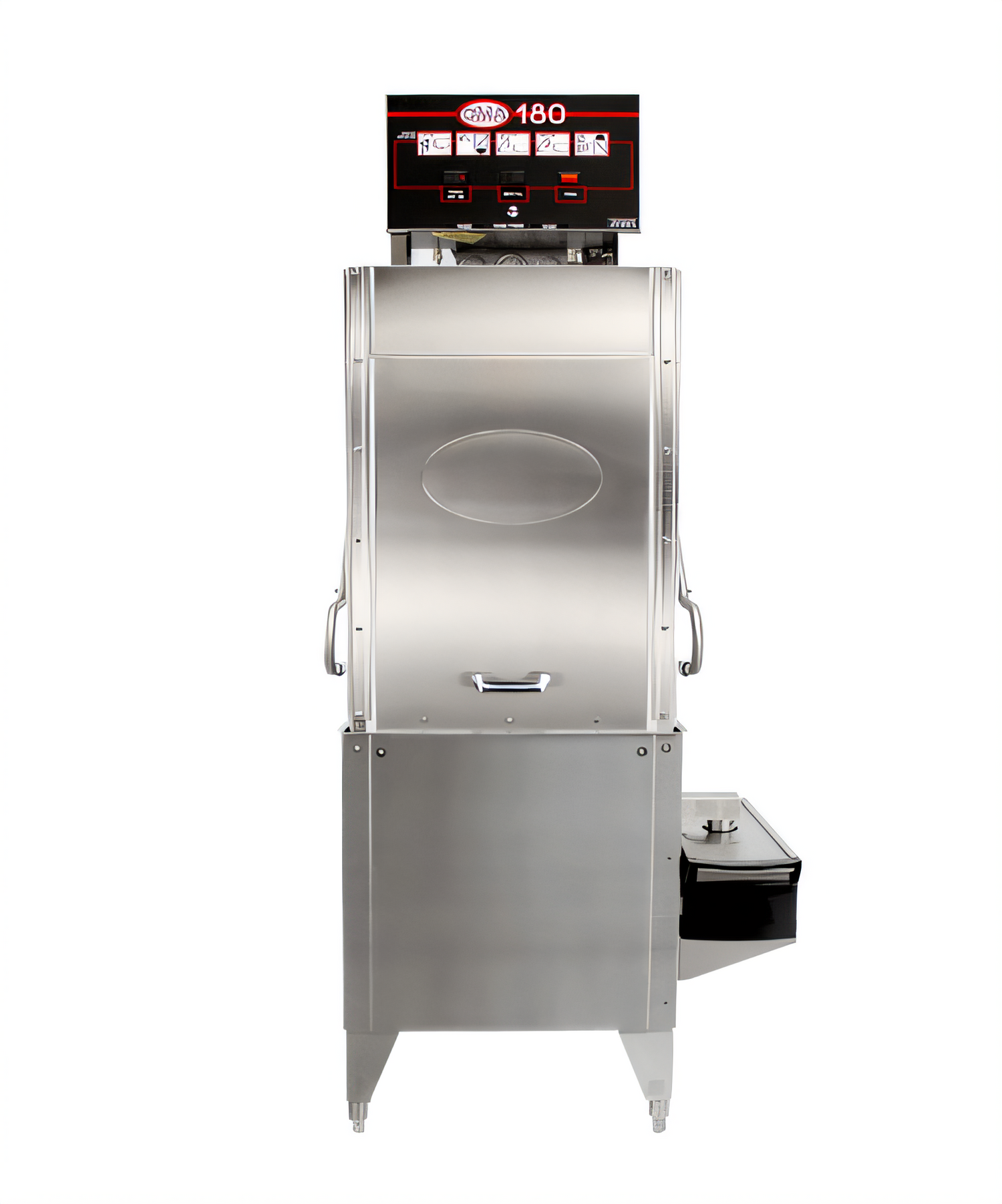

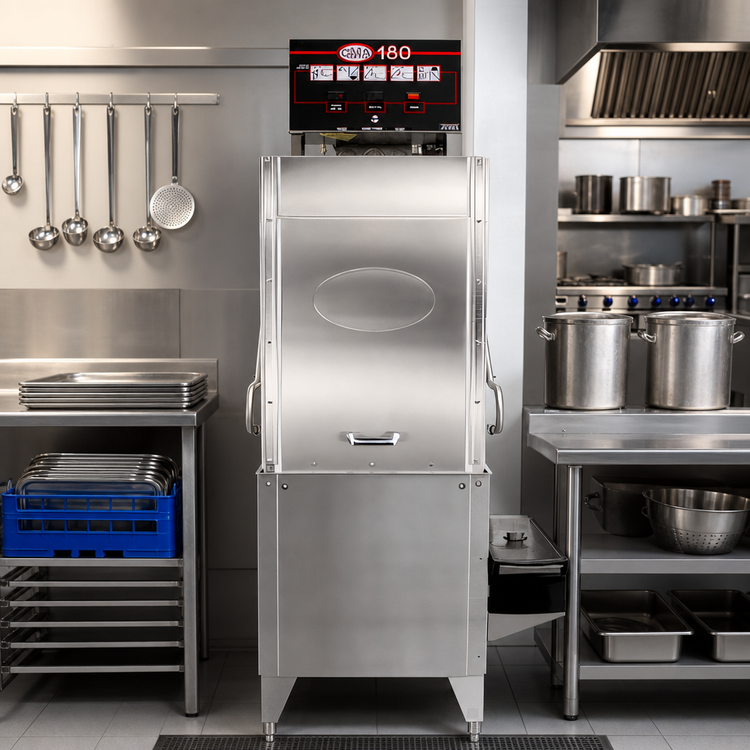

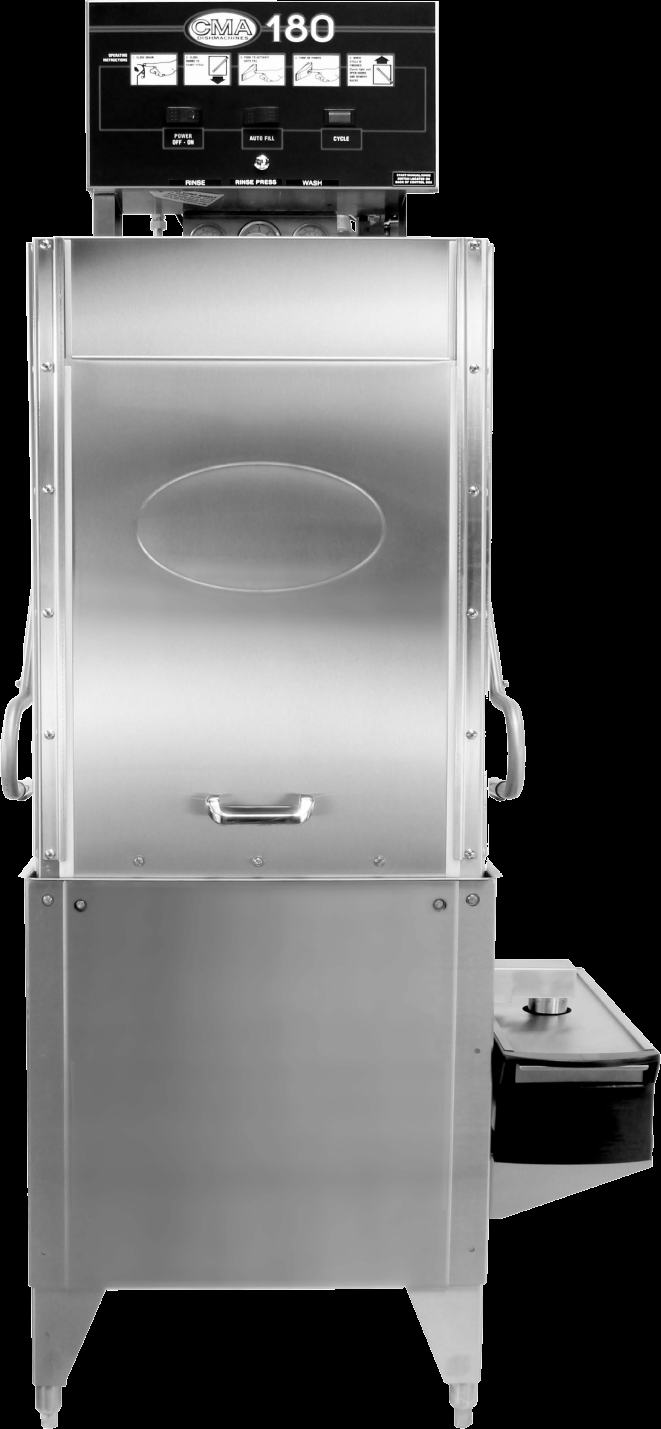

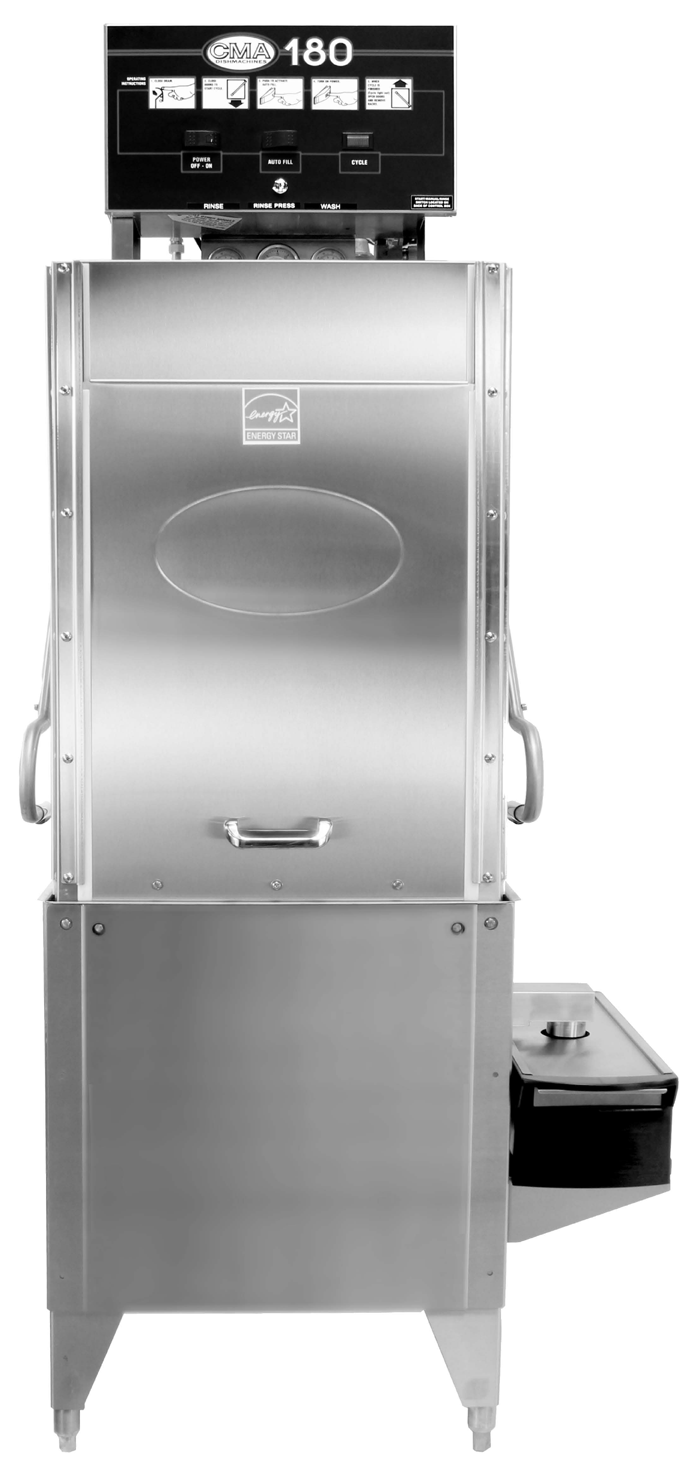

CMA 180-TS High-Temperature Pot & Pan Dishwasher
Single-rack • Straight-thru • Split-doorEngineered for heavy-duty pot, pan and sheet-tray washing, the CMA 180-TS delivers high-temperature sanitation, lightning-fast throughput and legendary CMA reliability—all in a compact 25 ½" × 25" footprint that slides seamlessly between straight dishtables.
Why You’ll Love It
- 60 racks / 240 covers per hour with only 0.82 gal of water per cycle—outstanding water & energy savings.

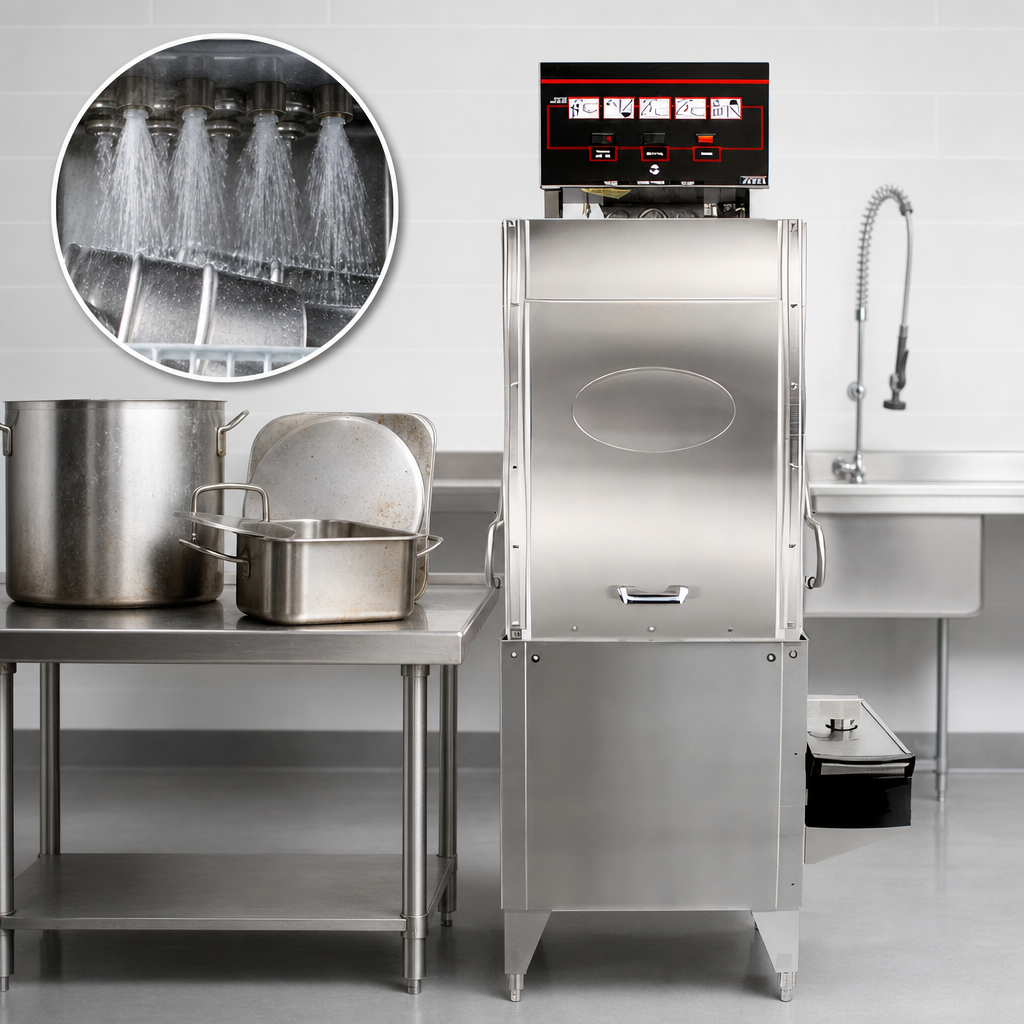

- High-temperature sanitizing rinse (180 °F) – no chemical sanitizer required.

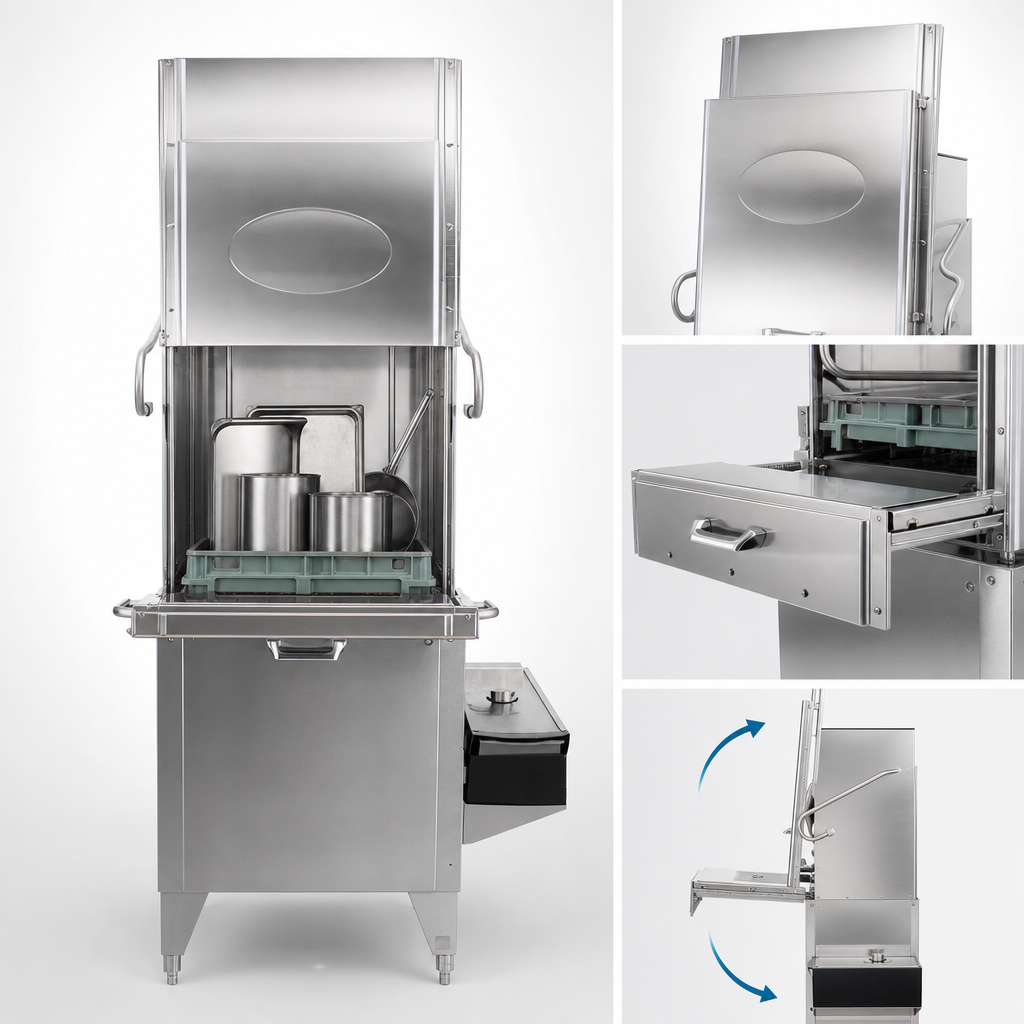

- Split-door design provides 27 in clearance for full-size sheet pans yet keeps overall open height below 93 ½".
- Built-in 7 kW chemical-resistant wash-tank heater maintains proper temperature without external boosters.
- Automatic soil-purging system with external Poly Pro™ scrap accumulator keeps wash water cleaner, longer.
- Interchangeable upper & lower stainless wash arms with pull-pin design for tool-free removal and cleaning.
- Top-mounted, water-tight control box with rack counter, delime switch and easy-read temperature gauges.
- Auto start/stop, automatic tank fill and single-point electrical connection simplify operation & installation.
- Field-convertible straight-thru ↔ corner (conversion kit sold separately).
- Durable all-stainless-steel construction with a powerful 1 HP wash pump (68 GPM).
Performance at a Glance
| Racks per hour | 60 |
|---|---|
| Water use per rack | 0.82 gal / 3.1 L |
| Wash cycle time | 42 s wash | 12 s rinse | 4 s dwell |
| Total cycle time | 58 s |
| Maximum dish height | 27 in / 68.6 cm |
| Wash-tank capacity | 8 gal / 30.3 L |
| Wash pump | 1 HP • 68 GPM (257 LPM) |
| Incoming water temp. (no booster) |
180 °F / 82 °C |
| Water inlet | ¾" NPT |
| Gravity drain | 2" NPT (11 ½"–12 ½" from floor) |
| Electrical (wash-tank heater only) | 208 V 1 Ø 36 A | 208 V 3 Ø 24 A 240 V 1 Ø 38 A | 240 V 3 Ø 26 A |
| Overall dimensions (W×D×H) | 25 ½" × 25" × 69"–70" |
| Shipping weight | Approx. 353 lb / 160 kg |
Included with Your Dishwasher
- (2) 20" × 20" standard dishracks
- External Poly Pro™ scrap accumulator tray
- Built-in delime switch
- User & installation manual
Certifications & Compliance
- NSF/ANSI 3 listed
- cULus certified
- Meets previous ENERGY STAR 2.0 requirements
Warranty
Backed by CMA’s 1-year parts & labor limited warranty (U.S. only). Factory-authorized service network ensures fast, professional support.
