CMA Dishmachines 180-TC Dishwashers
Description

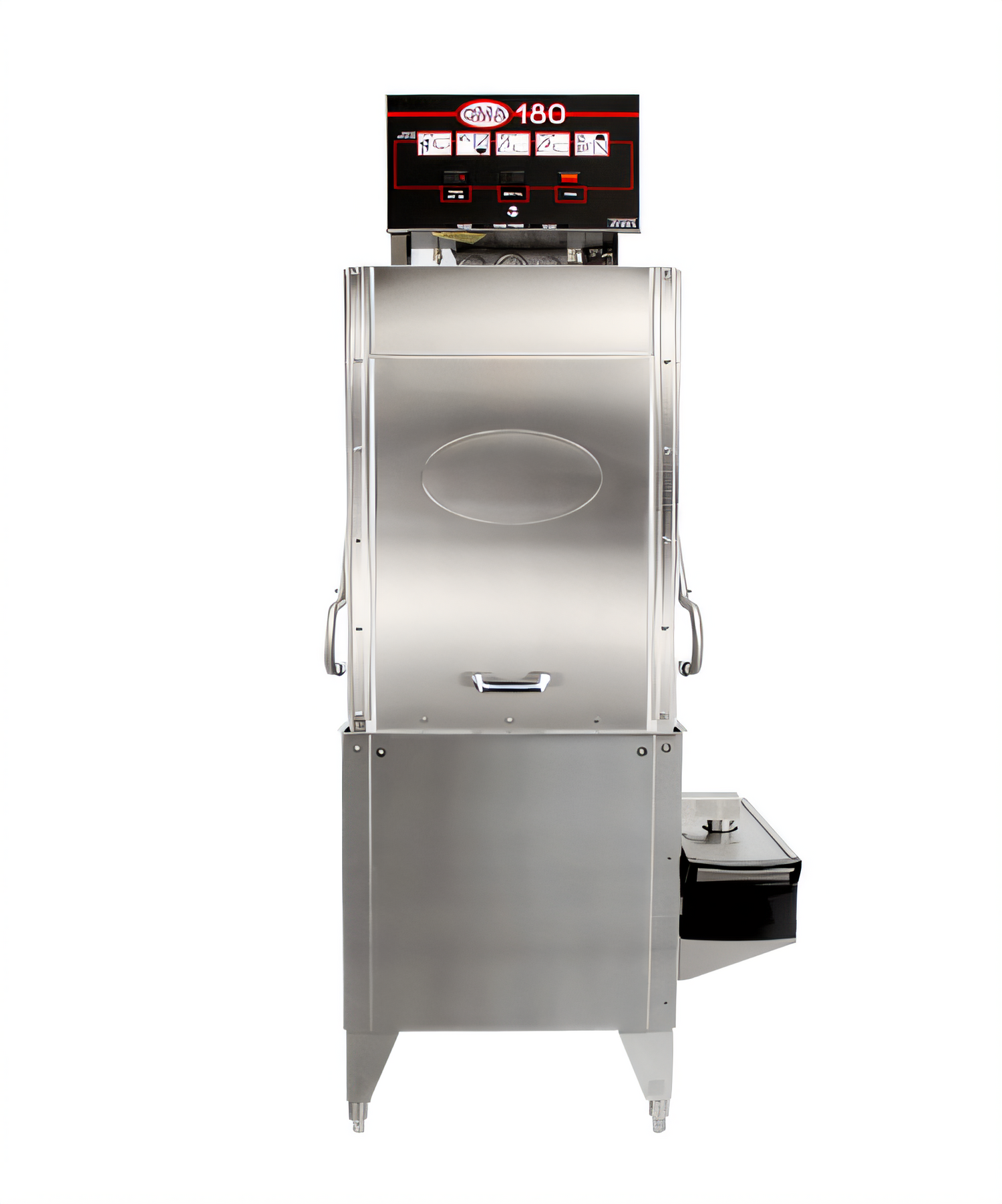

CMA 180-TC High-Temperature Corner Pot & Pan Dishwasher
Compact split-door machine • 60 racks per hour • 27" pan clearanceTackle oversized cookware and dinnerware without sacrificing floor space. The CMA 180-TC combines powerful high-temp sanitizing, ultra-low water usage, and a space-saving corner footprint—giving busy kitchens sparkling results shift after shift.
Key features & advantages
- Processes up to 60 racks / 240 covers per hour while using only 0.82 gal / cycle.
- Split-door design offers a generous 27" vertical clearance for sheet pans and stock pots, yet limits open-door height to 93½"—ideal for low-ceiling kitchens.
- Integrated 7 kW chemical-resistant tank heater and Safety Temp logic deliver a consistent 180 °F sanitizing rinse every cycle—no chemical sanitizer required.
- Automatic soil purging system routes food debris into an external Poly Pro™ scrap accumulator for quick, mess-free disposal.
- Top-mounted, watertight control box with rack counter, delime switch, and easy-read temperature gauges keeps vital info at eye level and safe from splashes.
- Auto start/stop, automatic tank fill, and interchangeable pull-pin spray arms simplify operation and maintenance.
- Field-convertible: corner configuration ships standard and can be switched to straight-through with an optional kit.
- Rugged stainless-steel construction, 1 HP wash pump (68 GPM), and upper & lower stainless spray arms with reinforced caps for years of worry-free service.
- Certified NSF & cULus for sanitation and safety compliance.
Specifications
| Rack capacity | 60 racks / hr |
|---|---|
| Water usage | 0.82 gal per cycle |
| Cycle time | 58 s (42 s wash • 12 s rinse • 4 s dwell) |
| Rack size (included) | 20" × 20" • 2 racks |
| Maximum dish height | 27" |
| Wash tank capacity | 8 gal |
| Wash pump | 1 HP • 68 GPM |
| Operating temperatures | Wash 155–160 °F • Rinse 180–195 °F |
| Built-in tank heater | 7 kW (240 V) |
| Exterior dimensions | 25½" W × 25" D × 69–70" H |
| Open-door height | 93½" |
| Drain connection | 2" • 11½"–12½" above floor |
| Electrical (no booster) | 208 V 1 ph 36 A • 208 V 3 ph 24 A • 240 V 1 ph 38 A • 240 V 3 ph 26 A • 480 V 3 ph 10 A |
| Shipping weight | ≈ 353 lb |
What’s included
- (2) 20" × 20" stainless dishracks
- External Poly Pro™ scrap accumulator tray
- Installation & operation manual
- One-year parts & labor warranty from CMA Dishmachines
For best results, CMA recommends incoming water hardness ≤ 3.5 gpg and rinse pressure of 20 ± 5 psi. A properly sized tank-style water heater is required; tankless on-demand heaters are not endorsed.
