CMA Dishmachines 180-S Dishwashers
Description

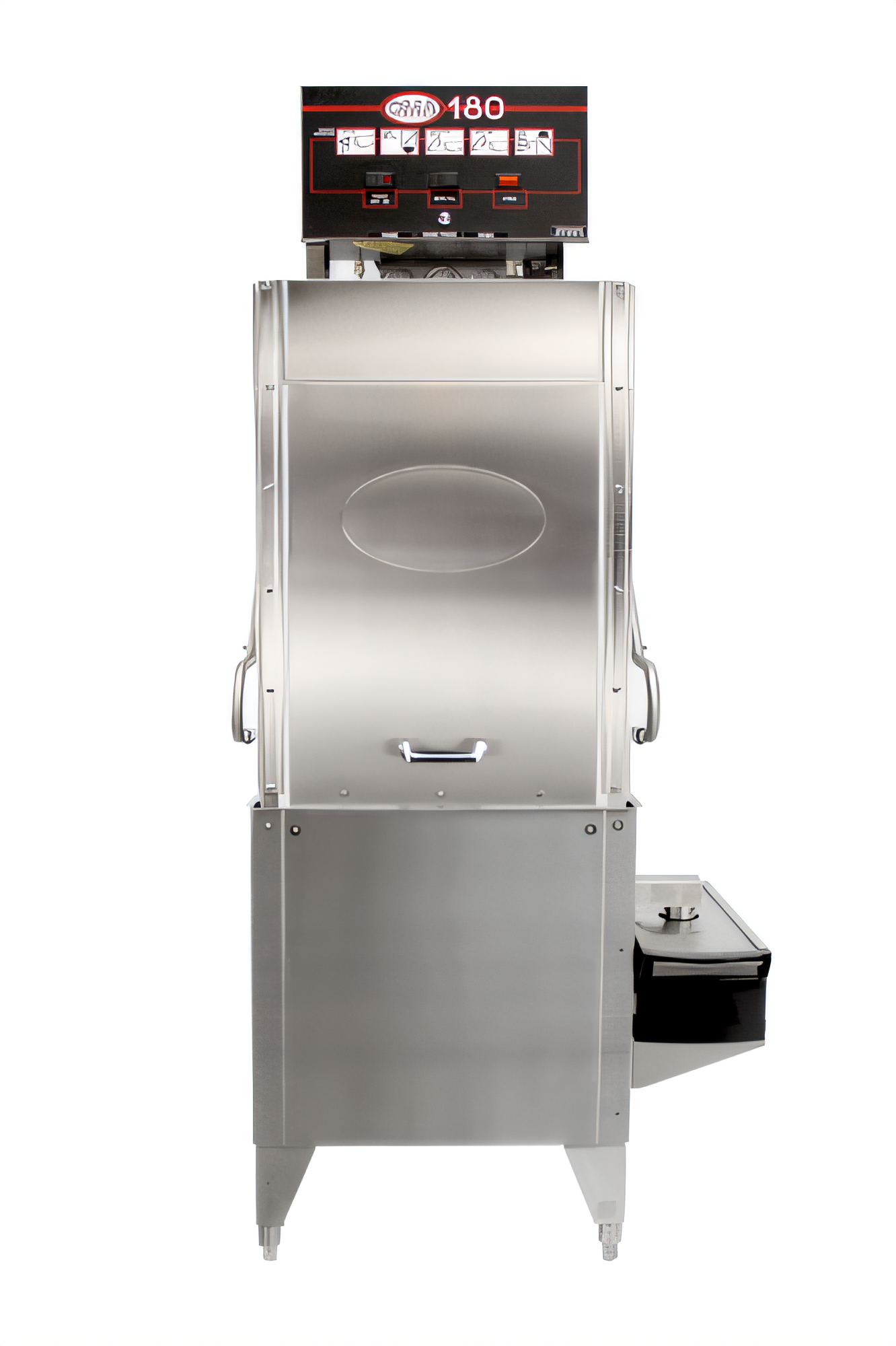

CMA Dishmachines 180-S High-Temperature Straight-Thru Dishwasher

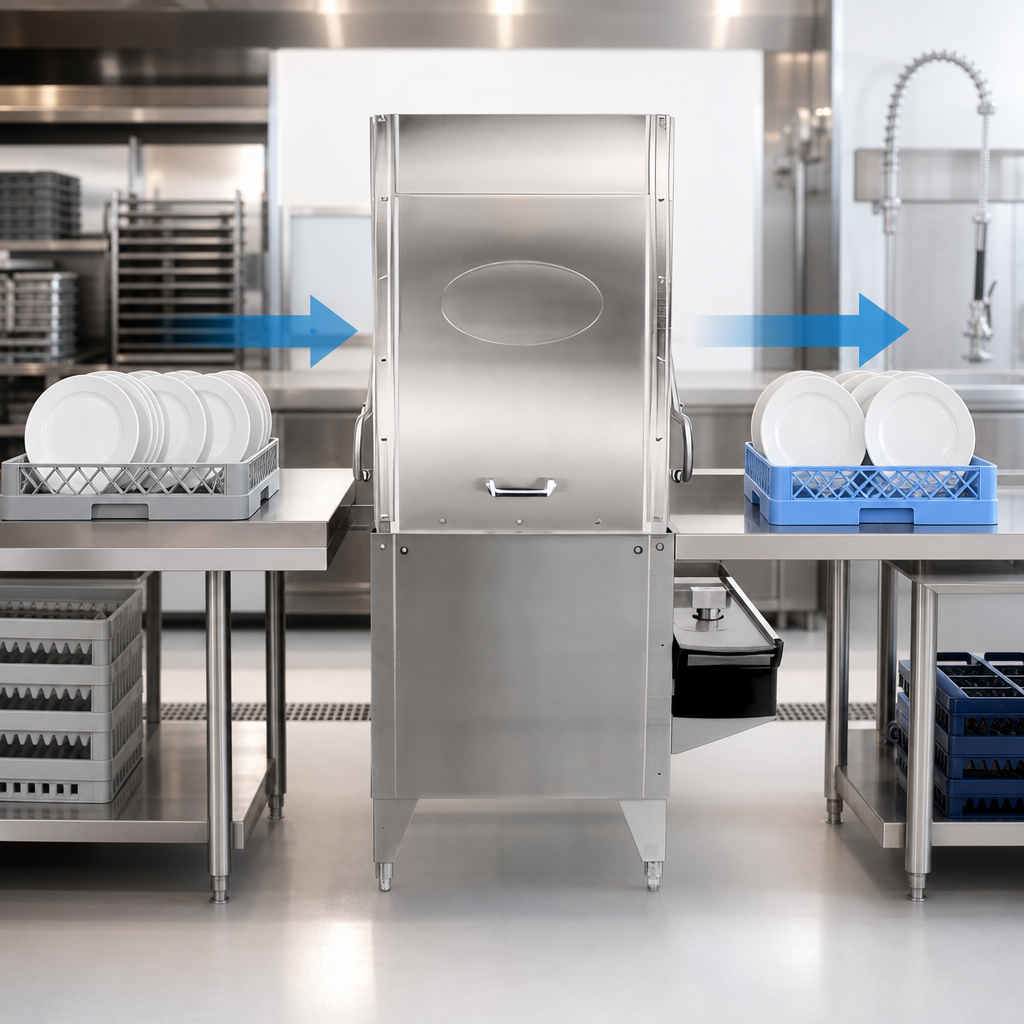

25-1/2″ W x 25″ D x 60″ H • 60 racks/hour • ENERGY STAR®Boost productivity and slash utility costs with the CMA-180S—an ENERGY STAR® qualified, single-rack dishwasher that delivers a 180 °F sanitizing rinse every cycle. Its straight-thru pass design keeps your warewashing line moving, while the external Poly Pro™ scrap accumulator and ultra-low 0.82 gal/rack water use cut down on clogs, chemicals, and clean-up time.
Key advantages

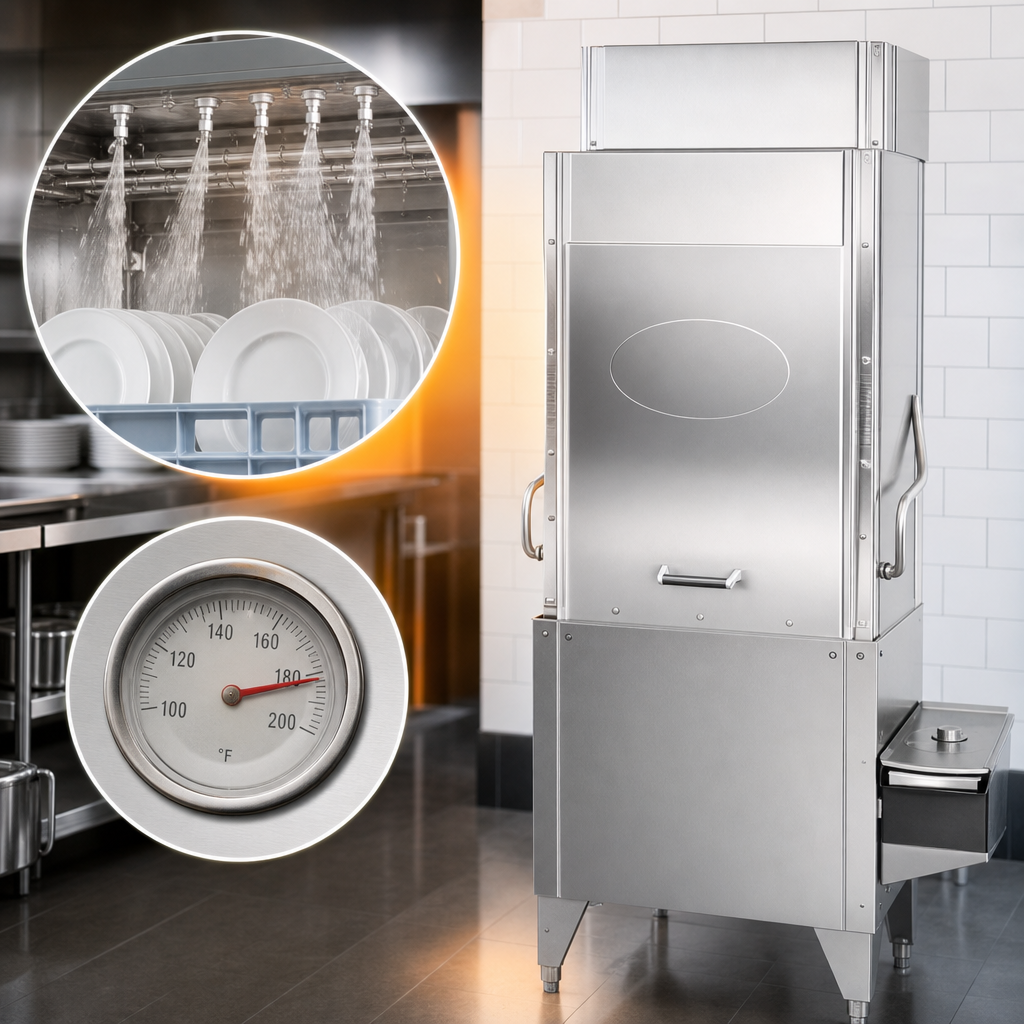

- High-temp performance—no chemical sanitizer required.
- 60 racks / 240 covers per hour with a fast 58-second cycle.
- Uses only 0.82 gal of fresh water per rack for big savings.
- External Poly Pro™ scrap tray filters debris without blocking the drain.
- Rugged stainless steel cabinet, frame, and wash arms.
- 1 HP wash pump moves 52 GPM through upper & lower stainless spray arms.
- 7 kW electric tank heater with automatic fill and built-in delime switch.
- Door-activated auto start/stop for safer, simpler operation.
- Field convertible to corner configuration (kit available).
- Ships with one open rack and one peg rack—ready for dishes, glassware, and trays.
Performance data
| Rack capacity | 60 racks/hr |
|---|---|
| Water use | 0.82 gal per rack (49.2 gal/hr) |
| Total cycle time | 58 sec (42 sec wash, 12 sec rinse, 4 sec dwell) |
| Wash temperature | 155 – 160 °F |
| Sanitizing rinse temperature | 180 – 195 °F |
| Wash pump | 1 HP / 52 GPM |
| Wash tank capacity | 8 gal |
Electrical specifications (tank heat only)
| 208 V / 1-phase | 36 A |
|---|---|
| 240 V / 1-phase | 38 A |
| 208 V / 3-phase | 24 A |
| 240 V / 3-phase | 26 A |
| 480 V / 3-phase | 10 A |
Dimensions & weight
| Width | 25-1/2″ |
|---|---|
| Depth | 25″ |
| Height (door closed) | 60″ |
| Height (door open) | 78-79″ |
| Maximum dish clearance | 17-1/2″ |
| Shipping weight | Approx. 338 lb |
Certifications
- NSF listed
- cULus listed
- ENERGY STAR® certified
• Plumbing and electrical connections must be completed by qualified professionals.
• Incoming water hardness should not exceed 3.5 gpg; a water softener is recommended.
• 20 ± 5 psi rinse pressure and 180 °F incoming water (or optional booster heater) are required for proper operation.
Covered by CMA Dishmachines’ 1-year parts & labor warranty (registration required within 30 days of installation).
