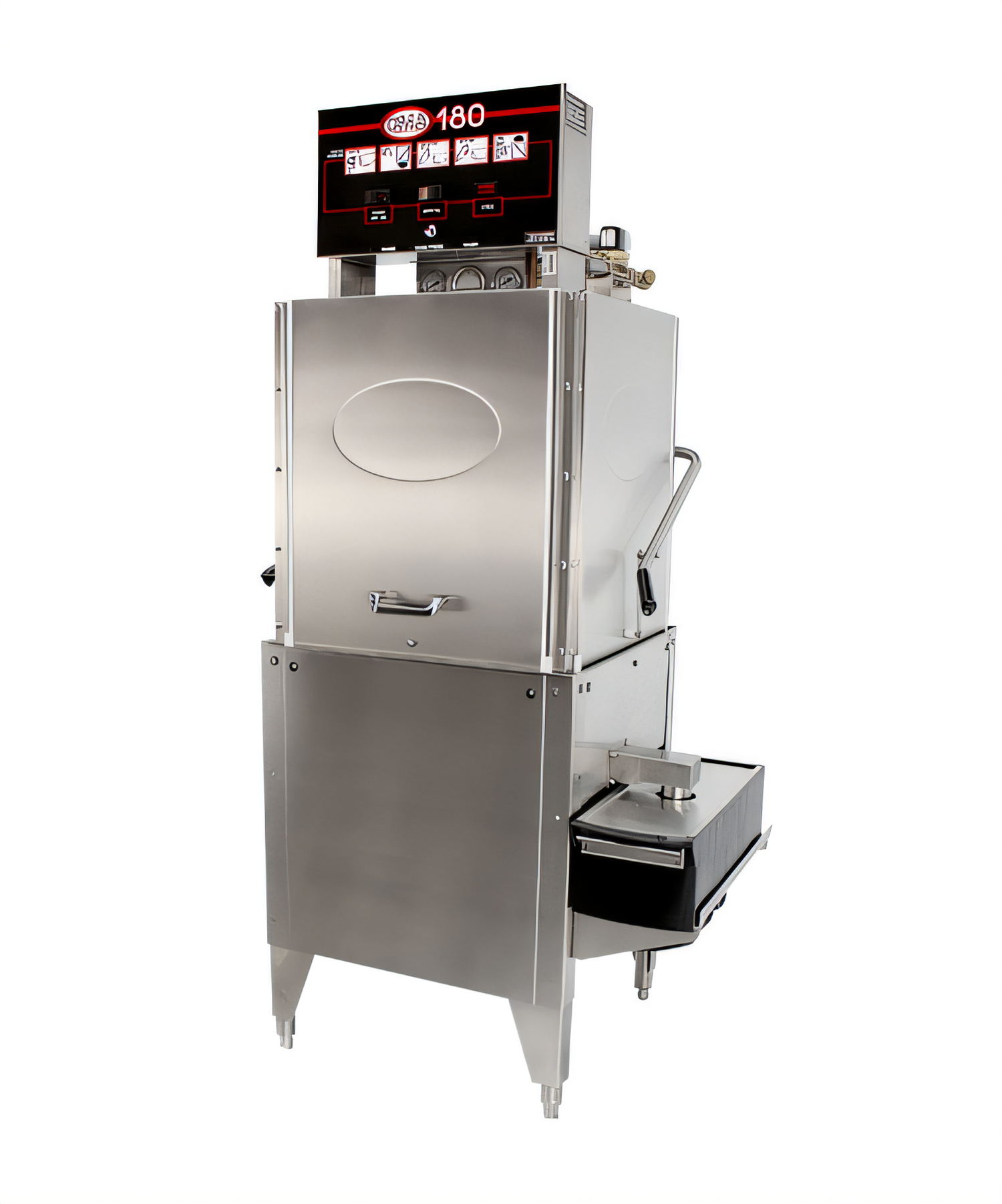

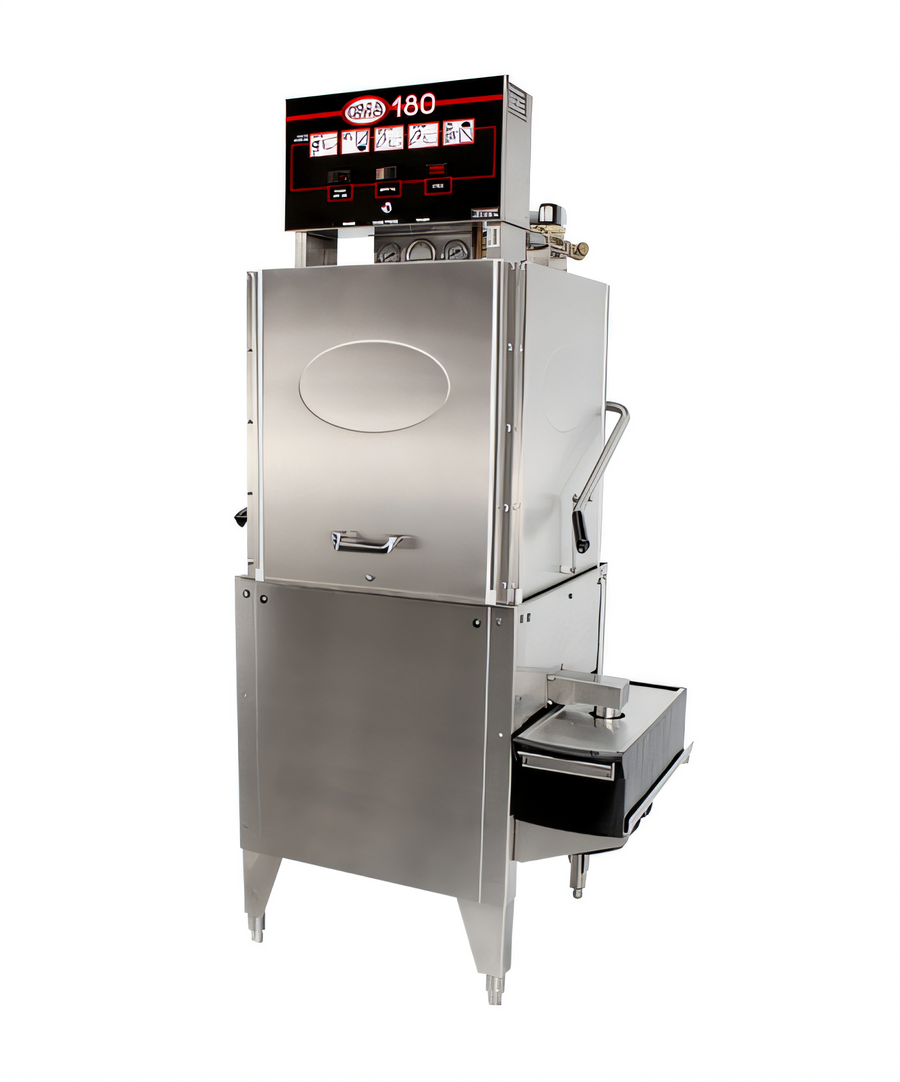

CMA 180-C High-Temperature Corner Dishwasher

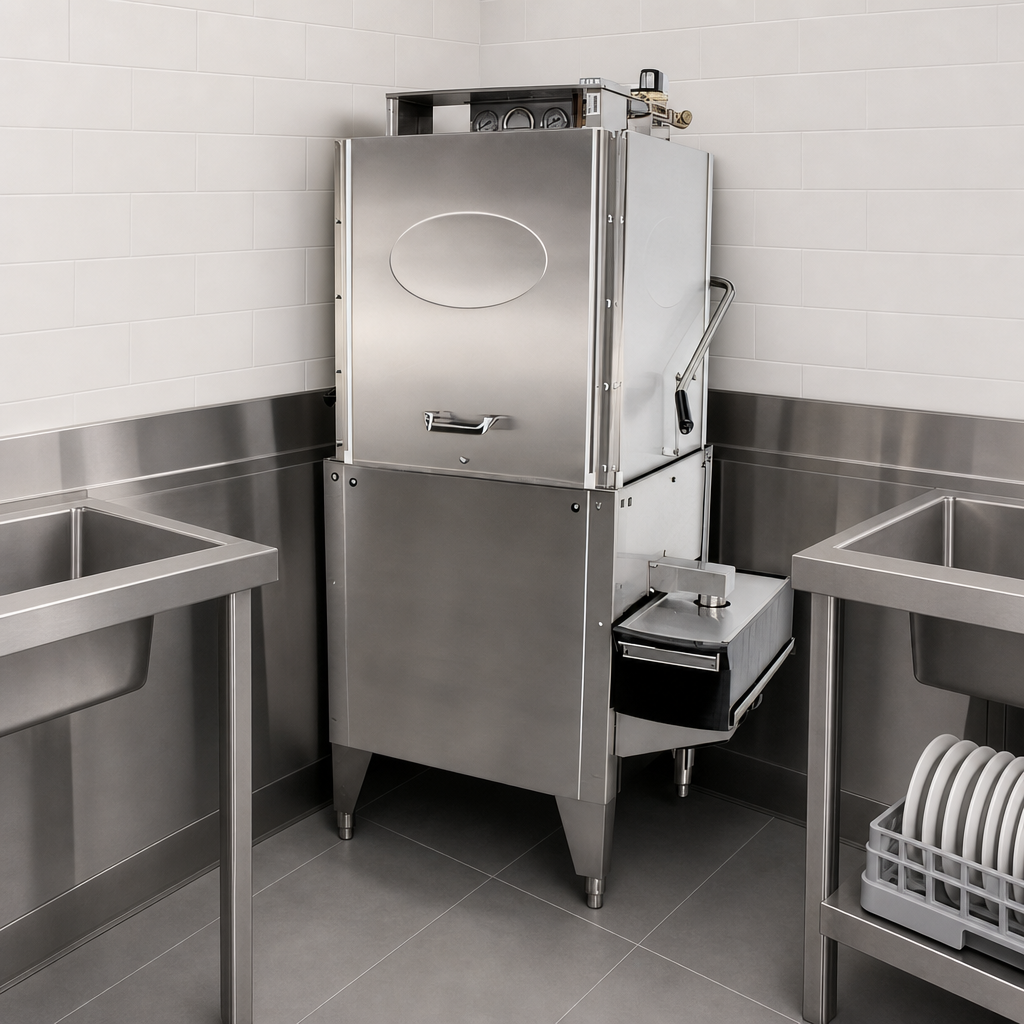

Fast • Efficient • Built for demanding commercial kitchensPower through peak service with the CMA 180-C. This high-temperature, door-type dishwasher delivers a spotless, 180 °F sanitizing rinse on up to 60 racks every hour while using less than one gallon of water per cycle. A space-saving corner footprint, rugged stainless-steel construction, and worry-free automatic features make it the go-to solution for restaurants, cafeterias, ghost kitchens, and more.
Key Features & Benefits

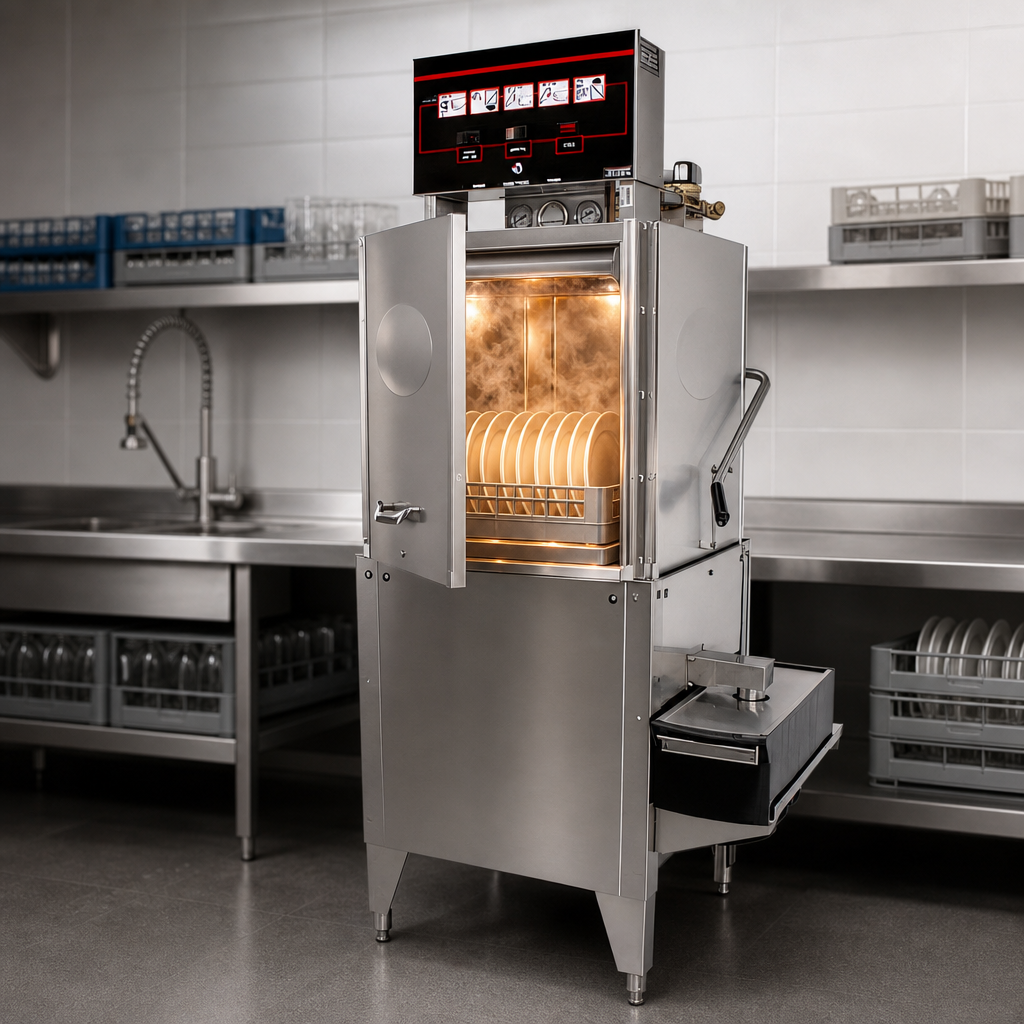

- High-temperature sanitizing—no chemical sanitizer needed; Safety Temp ensures 180 °F every cycle.
- Blazing throughput—washes up to 60 racks / 240 covers per hour.
- Ultra-low water use—just 0.82 gal per rack saves thousands of gallons annually.
- External Poly Pro™ scrap accumulator keeps wash water clean and clears in seconds.
- 7 kW electric tank heater and automatic tank fill for set-and-forget operation.
- Top-mounted, water-tight controls with digital temperature gauges and built-in delime switch.
- Tool-free, pull-pin spray arms (upper & lower) for lightning-fast cleaning.
- Single-point electrical connection; field-convertible for a variety of installations.
- ENERGY STAR®, NSF & cULus certified—qualifies for many utility rebates.
- Includes (1) open rack and (1) peg rack to get you washing right away.
Specifications
| Design | Corner, door-type, single-rack |
|---|---|
| Hourly Capacity | 60 racks / 240 covers |
| Water Usage | 0.82 gal (3.1 L) per cycle • 49.2 gal (186 L) per hour |
| Wash Pump | 1 HP • 52 GPM |
| Tank Heater | 7 kW electric (built-in) |
| Wash / Rinse Temps | 155–160 °F wash • 180–195 °F rinse |
| Dish Clearance | 17.5" max plate height |
| Overall Dimensions | 25-1/2" W × 25" D × 60" H (78–79" H with door open) |
| Standard Racks | (1) open & (1) peg rack • 20" × 20" |
| Electrical | 208 V / 240 V, 1- or 3-phase (480 V 3-phase optional) |
| Water Connection | 3/4" hot water inlet • 20 ± 5 psi |
| Drain | 2" gravity |
| Certifications | NSF • cULus • ENERGY STAR® |
| Warranty | 1-year parts & labor (factory authorized service) |
For optimum performance and minimal scale build-up, supply softened water at ≤ 3.5 gpg.
