Cleveland Range ST55 Equipment Stands & Utility Carts
Description

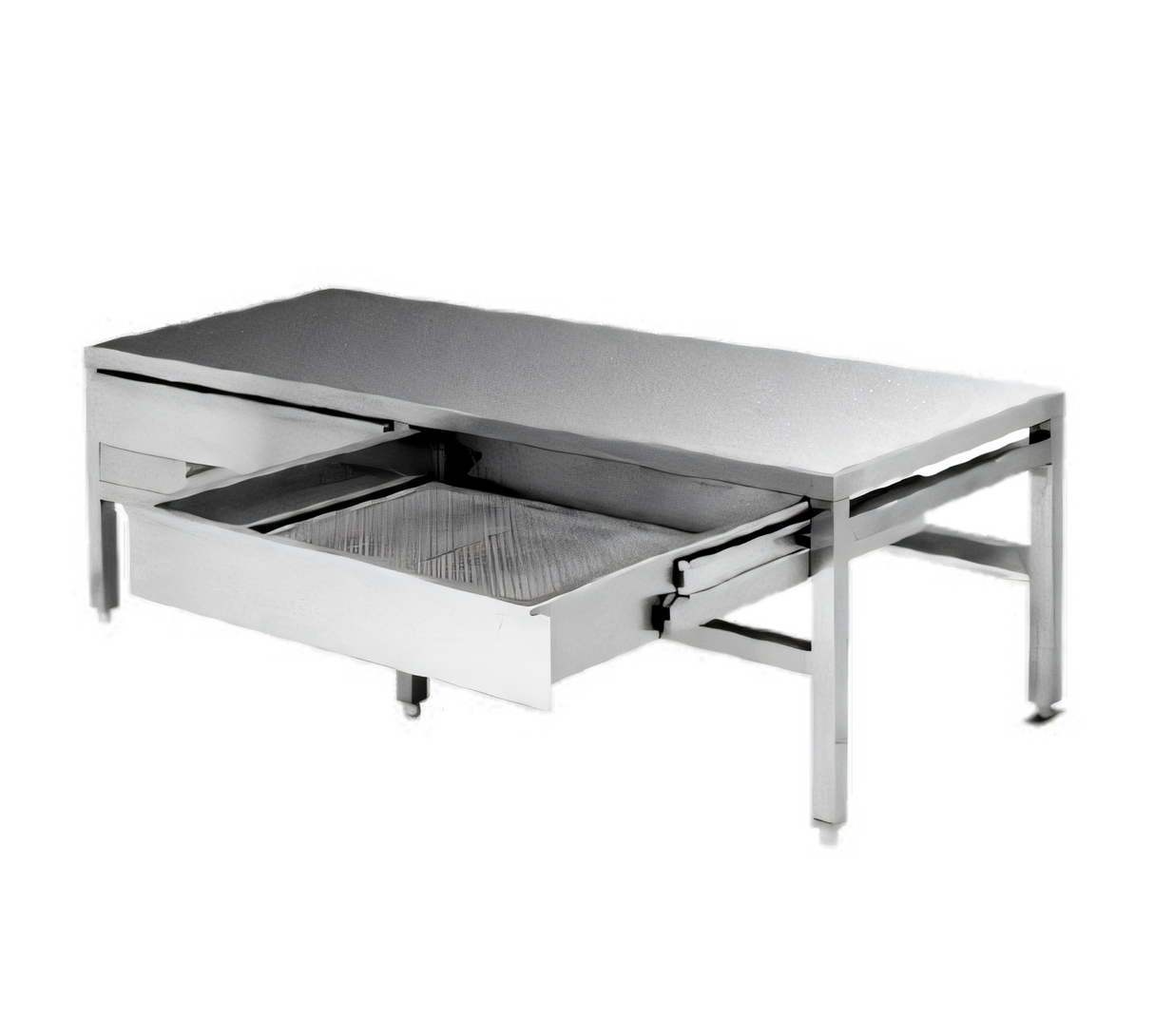

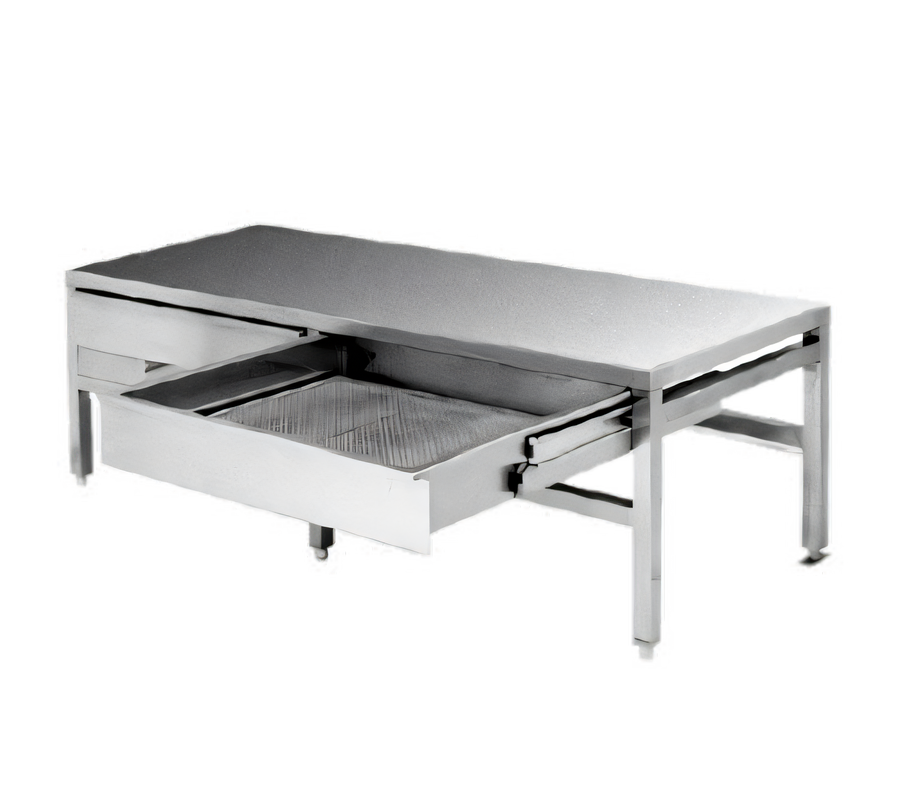

Cleveland Range ST-55 Equipment Stand
Open-base stand with sliding drain drawer & splash screen – sized for two SET10 or two SET15 unitsGive your Cleveland SET10 or SET15 countertop steamers the rock-solid foundation—and mess-free drainage—they deserve. The ST-55 stand combines heavy-gauge, all-stainless construction with a built-in, removable drain drawer that can be hard-piped directly to a floor drain. The result is a cleaner, safer and more productive cooking line.
Why you’ll love it
- Purpose-built footprint – 55 in. wide top accommodates two SET10 or two SET15 units side-by-side.
- All-stainless frame & top – 1 ¼ in. square tubing resists corrosion and daily wear in high-humidity kitchens.
- Integrated drain solution – Sliding drawer with splash shield captures condensate; 1 ¼ in. NPT nipple lets you hard-pipe to a floor drain for continuous operation.
- Easy to level & secure – Four adjustable feet; rear feet are pre-flanged for permanent floor bolting.
- Open base design – No undershelf to trap food debris, making cleanup fast and NSF-friendly.
At-a-glance specifications
| Manufacturer | Cleveland Range |
|---|---|
| Model / Part # | ST-55 |
| Compatible equipment | Two SET10 (single units) or Two SET15 (single units) |
| Overall dimensions | 55 in. W × 20 in. D × 18 in. H |
| Construction | All stainless steel, 1 ¼ in. square tubing frame & top |
| Drain connection | 1 ¼ in. NPT nipple on drain drawer (hard-piping ready) |
| Feet | 4 adjustable feet (rear feet flanged for bolting) |
| Included | Sliding drain drawer with splash screen & pan support |
| Optional accessory | Direct Steam Adaptor Top (Part #AK) – Not required for SET models |
| Warranty | 1-year limited parts & labor (standard Cleveland Range warranty) |
Installation pointers
- Requires 2 ½ in. minimum rear clearance when equipped with SET10 or SET15.
- Provide a floor drain directly beneath or behind stand for hard-piping the 1 ¼ in. NPT connection.
- Secure rear flanged feet to the floor for maximum stability.
- Follow all local plumbing & health codes; a factory-authorized start-up is available through Cleveland.
Need help with sizing, installation or accessories? Our team is ready to assist—just reach out via chat or call your Cleveland Range representative.
