Cleveland Range SGL40TR DuraPan Braising Pans & Tilt Skillets
$27,653.00
Unit price
/
Unavailable
FREE SHIPPING AVAILABLE!
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Cleveland Range SGL40TR DuraPan Braising Pans & Tilt Skillets is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Cleveland Range SGL40TR DuraPan Braising Pans & Tilt Skillets
$27,653.00
Unit price
/
Unavailable
Description

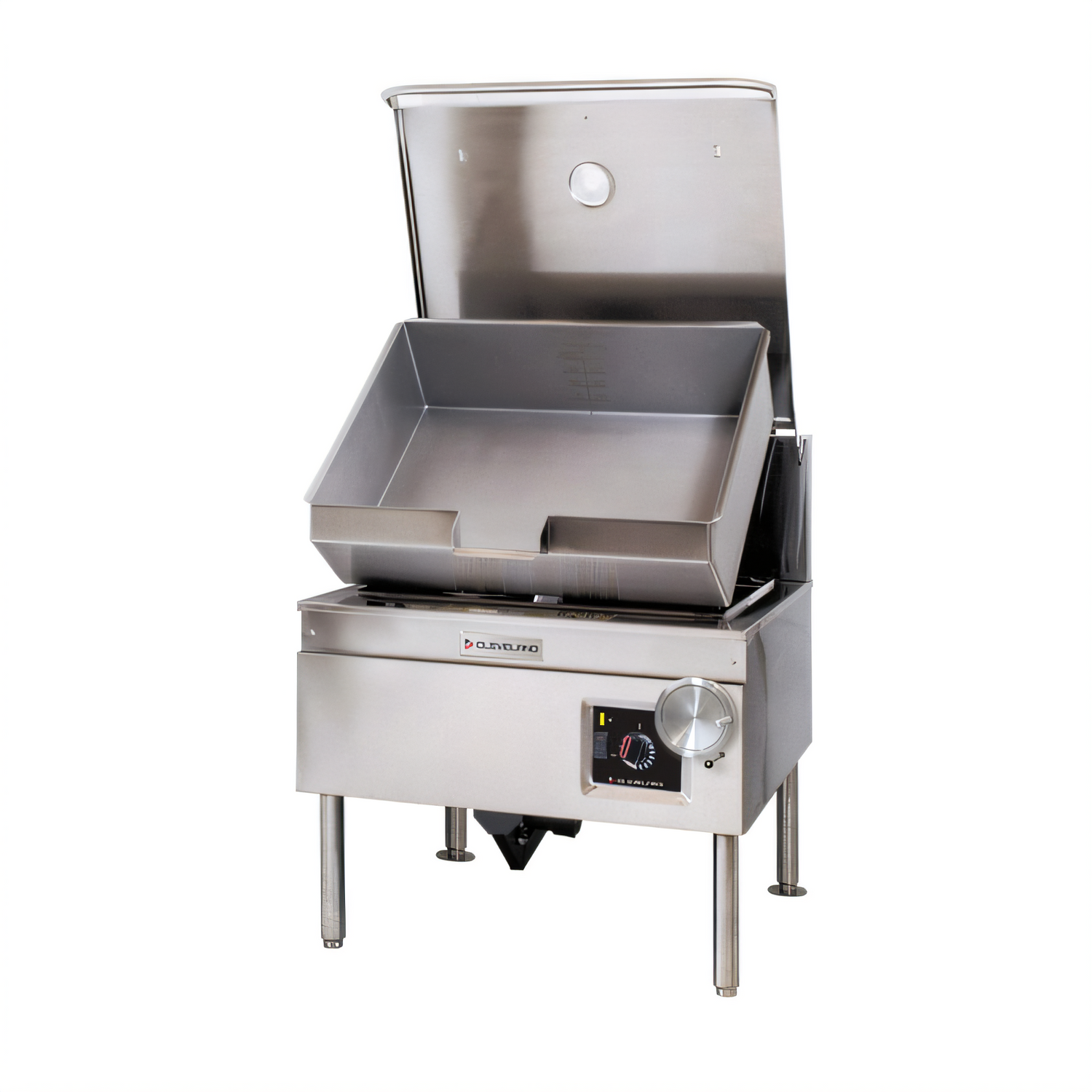

Cleveland DuraPan™ 40-Gallon Gas Tilting Skillet – Model SGL-40-TR
Heavy-duty braising & bulk production with fast, precise tilt controlReplace multiple pieces of equipment with one powerhouse. The DuraPan™ SGL-40-TR delivers 150 litres (40 gal.) of braising, sautéing, steaming, pan-frying, or simmering capacity in a single, easy-to-clean stainless steel vessel— backed by Cleveland Range’s reputation for Timeless Quality, Trusted for Life®.
Key performance benefits

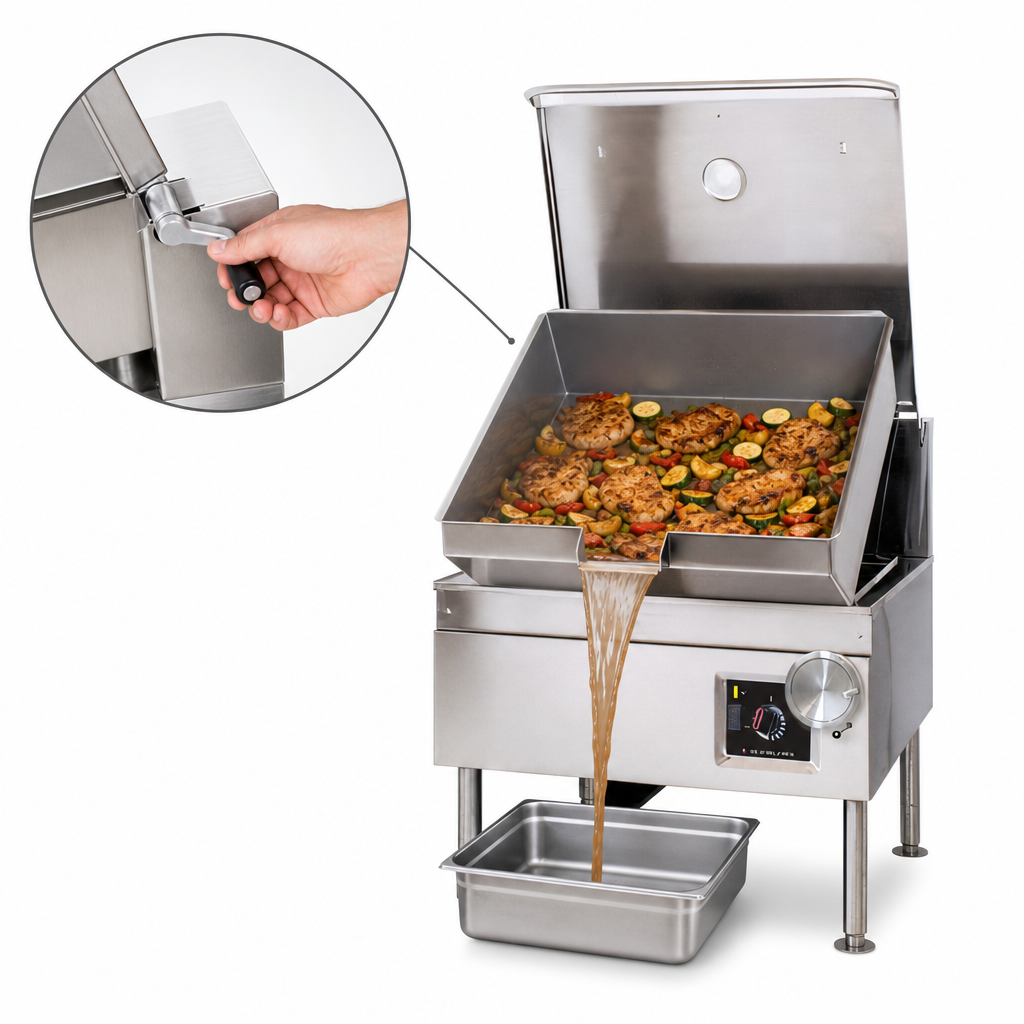

- Hydraulic Hand Tilt (HTS) with quick-lowering feature for smooth, controlled pouring.
- Powerful 130,000 BTU high-efficiency burners with even heat distribution.

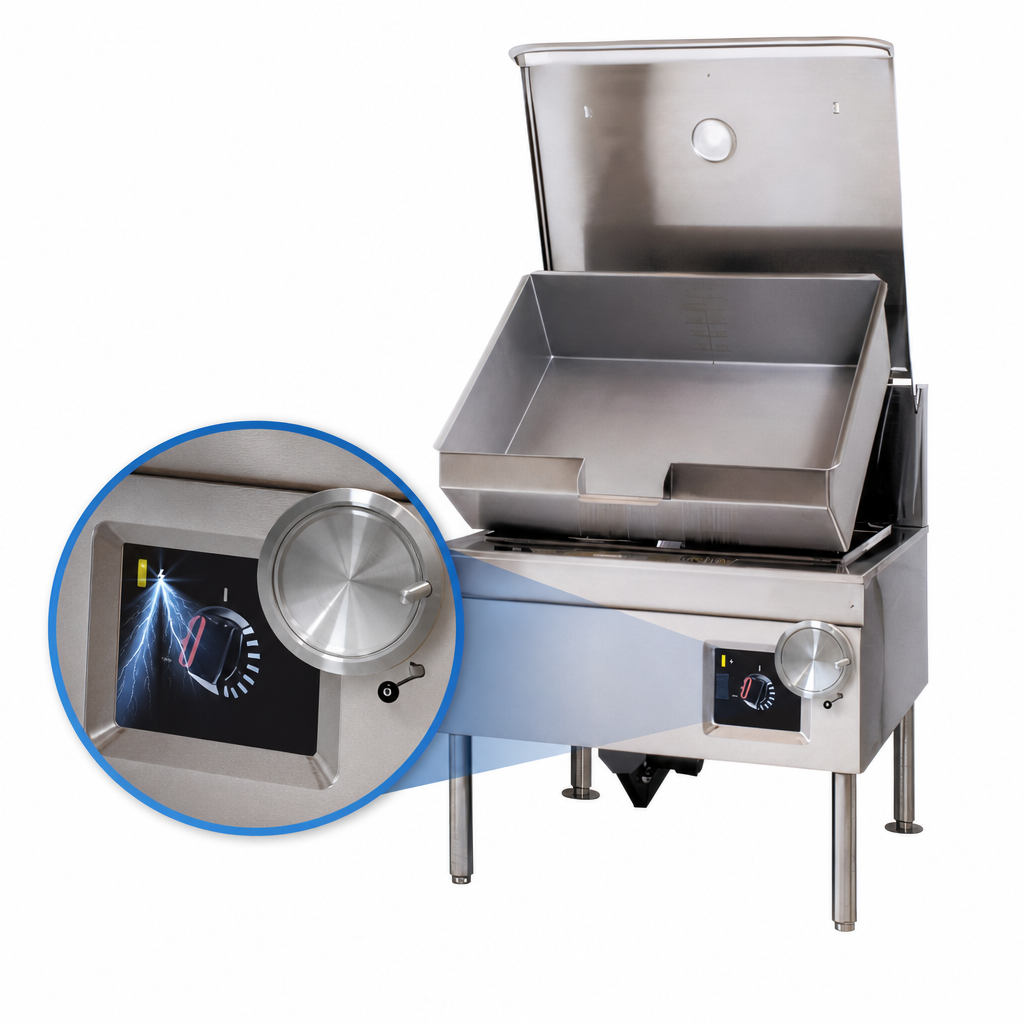

- Electronic spark ignition (ESS) — no standing pilot to waste gas.
- Adjustable electronic thermostat 100 °F – 425 °F (38 °C – 218 °C) plus high-limit safety at 475 °F.
- Fast heat-up: preheats in 11 minutes; takes a full 40-gal. batch from cold to boil in 60 minutes.
- Spring-assisted stainless steel cover with adjustable vent and full-width handle.
- Warp-resistant 5/8" (15.9 mm) stainless steel clad cooking surface.
- Coved-corner pan with stamped gallon & litre markings for quick, accurate yields.
- Anti-splash pouring lip keeps operators and floors safer.
- Two pilot lights (green = power, amber = heat cycle) for at-a-glance status.
- IPX6 water-jet protection for confident wash-down cleaning.
- Full stainless steel construction with four level-adjustable, flanged rear feet for bolting.
- All controls are front-serviceable to minimise downtime.
- Supplied with 6 ft. cord & plug for the 115 V control circuit.
- Certified CE & NSF for worldwide compliance.
Specifications
| Capacity | 40 gal / 150 L | 1,280 x 4 oz servings |
|---|---|
| Tilt mechanism | Manual hydraulic hand tilt with quick-lowering |
| Heat source | Natural or LP gas, 130,000 BTU/hr |
| Thermostat range | 100 °F – 425 °F (38 °C – 218 °C) |
| Ignition | Electronic spark ignition (ESS) |
| Electrical (controls) | 115 V, 1-ph, 60 Hz, 1.8 A (220-240 V 50 Hz option available) |
| Gas connection | 3/4" NPT, 5" W.C. Nat / 11" W.C. LP minimum supply pressure |
| Overall dimensions (WxDxH) | 48" × 44" × 44 7/8" (1,220 mm × 1,118 mm × 1,140 mm) |
| Pan depth | 12 1/8" (308 mm) |
| Shipping weight | Approx. 624 lb (283 kg) |
| Water rating | IPX6 – withstands powerful water jets |
| Certifications | CE, NSF, AGA/CSA, IPX6 |
| Warranty | 1-year parts & labour (18 months from shipment, whichever comes first) Optional extended & K-12 warranties available. |
Popular options & accessories (sold separately)
- Power tilt with hand-tilt override (PT1)
- Sliding drain drawer with splash screen (SLD)
- Single or double pantry faucets & skillet fillers with 60" hose (SPS14, DPS14, SKF-S, DKF-S)
- 2" tangent draw-off valve (left side)
- Food strainers, poaching pans, vegetable steamers & pan carriers
- Export voltage kit 220/240 V, 50 Hz
- Extended labour warranty & preventative-maintenance programmes
Installation requirements:
• Must be installed under a suitable ventilation hood with adequate make-up air.
• Clearance to combustibles: 0" sides, 6" (153 mm) rear.
• Gas & electrical connections must be performed by a qualified technician in accordance with local codes.
• Must be installed under a suitable ventilation hood with adequate make-up air.
• Clearance to combustibles: 0" sides, 6" (153 mm) rear.
• Gas & electrical connections must be performed by a qualified technician in accordance with local codes.
Need help sizing or configuring your skillet? Contact our specialists for expert assistance.
Features & Specs
Features & Specs
Manufacturer
Cleveland Range
Brand_name
DuraPan
Certifications
NSF, CE, IPX6
Height
42.0in
Width
48.0in
Depth
40.0in
Shipping Weight
624.0lbs
Capacity
40 - 49 gal
Tilt
manual tilt
Base
modular open
Specifications
DuraPan™ Tilting Skillet, gas, 40-gallon capacity, modular open base, standard with hydraulic hand tilt with quick lowering feature, stainless steel construction, includes spring-assisted cover, gallon markings and electronic spark ignition, stainless steel level adjustable feet, 130,000 BTU, CE, NSF, IPX6
