Cleveland Range SGL40T1NATHTPQS Quick Ship Braising Pans & Tilt Skillets
Cleveland Range SGL40T1NATHTPQS Quick Ship Braising Pans & Tilt Skillets is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Cleveland Range SGL40T1NATHTPQS Quick Ship Braising Pans & Tilt...
Description

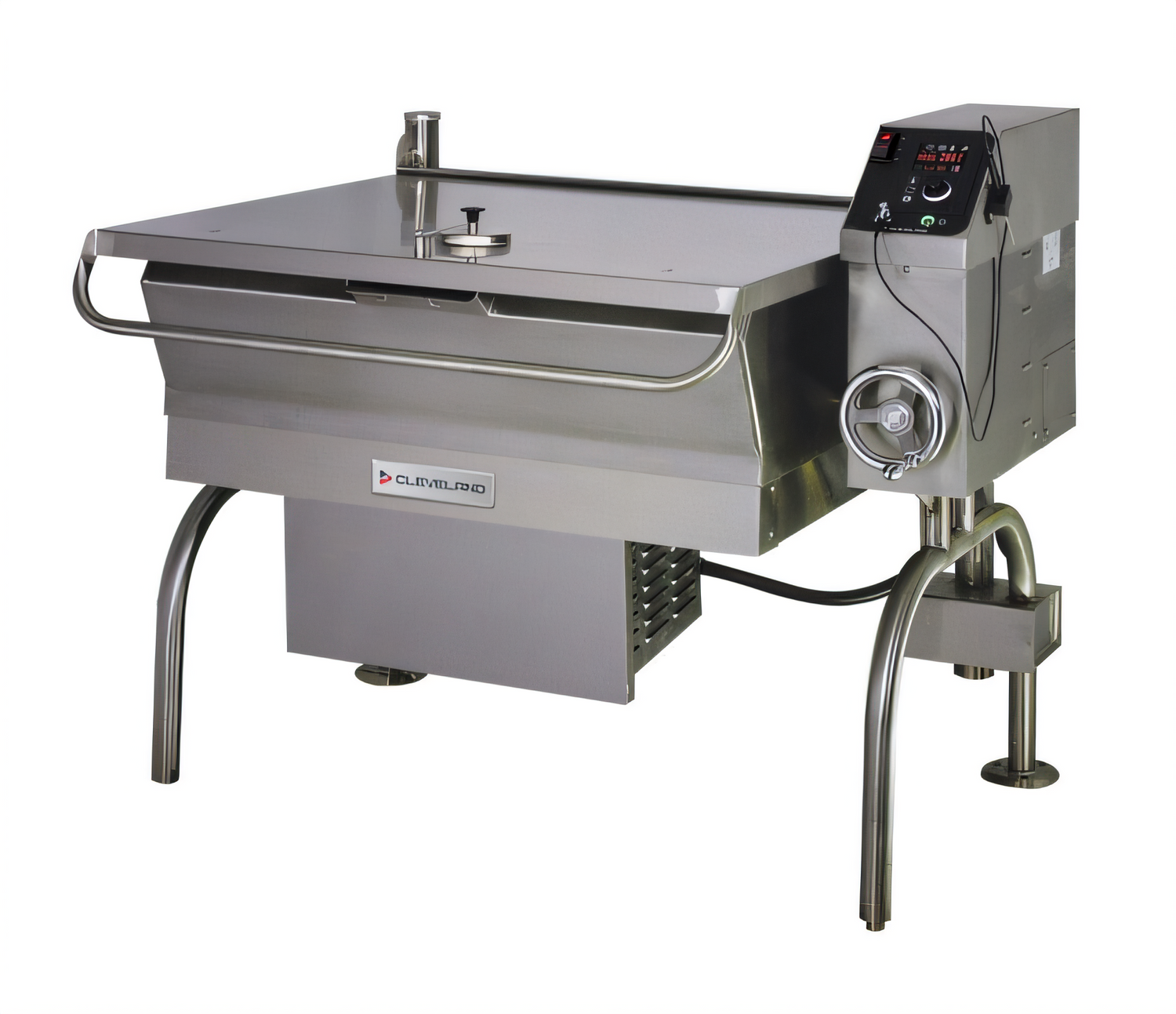

Cleveland PowerPan™ 40-Gallon Gas Tilting Skillet – Quick Ship
Model SGL-40-T1 | Natural Gas | 200,000 BTUWhen speed to the line matters, count on Cleveland’s Quick Ship PowerPan™. This 40-gallon (150 L) gas tilting skillet combines massive production capacity with effortless manual tilting, ultra-even heat distribution and the rugged reliability chefs have trusted since 1922.
Why You’ll Love It
- Quick Ship program – stocked in the USA for accelerated delivery to keep projects on schedule.

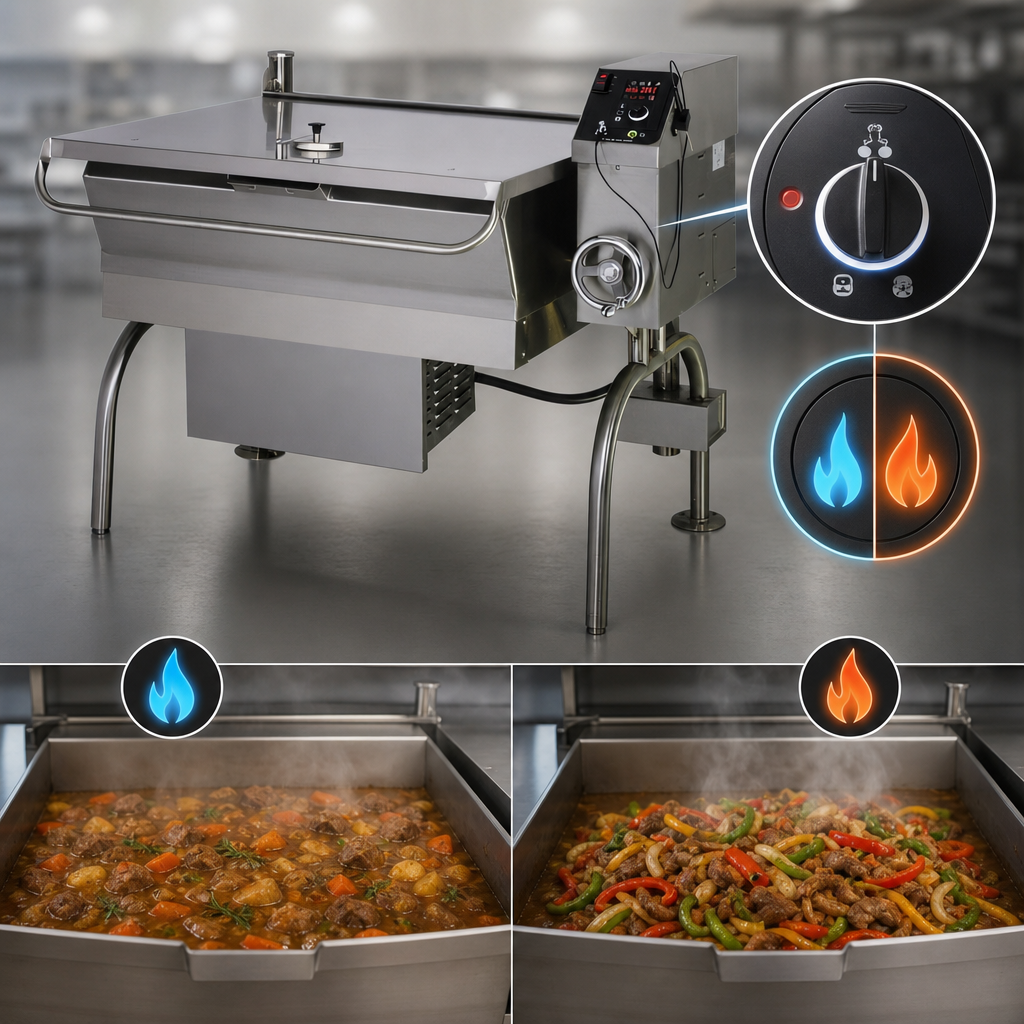

- Dual Power Burner delivers 160,000 BTU for standard cooking or a blazing 200,000 BTU for rapid recovery.
- Bead-blasted 5⁄8 in. stainless-clad surface prevents sticking and resists warping, ideal for searing, braising, sautéing or holding.
- Low 35 in. rim height allows safe, ergonomic access—even with 40 gallons on board.
- 10° cook-in-tilt feature lets you tilt the pan slightly to baste or drain without shutting off the heat.
- Spring-assisted stainless cover with built-in vent keeps operators safe and hands free.
- Embossed gallon & liter markings for fast, accurate batch sizing—no measuring tools required.
- Splash-proof manual hand tilt uses an enclosed, permanently lubricated gear box for smooth, precise pouring.
- Electronic spark ignition & solid-state thermostat (140 – 425 °F) guarantee quick starts and tight temperature control.

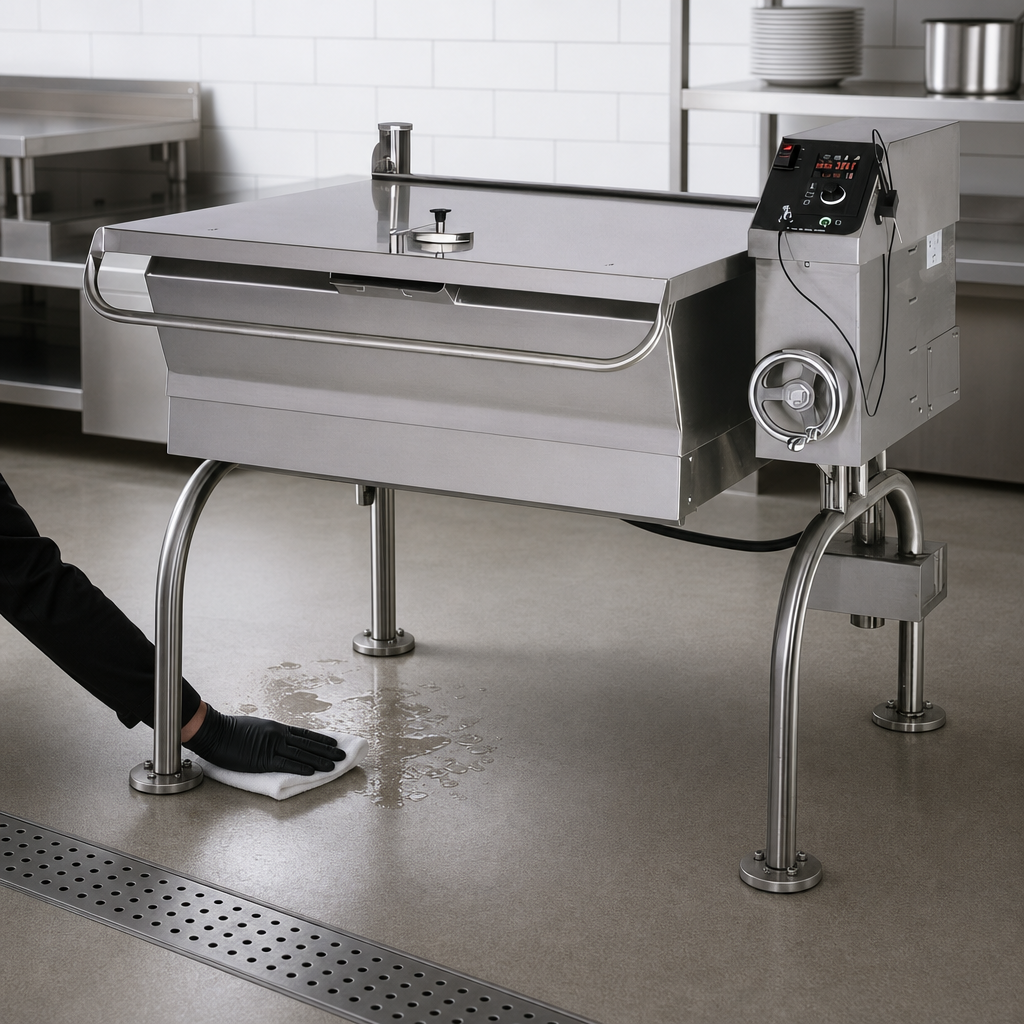

- Open stainless steel leg frame with adjustable feet (rear flanged, front bullet) simplifies floor cleaning and installation.
Built for Busy Kitchens
- 5⁄16 in. thick clad bottom (16 mm mild steel + 1.6 mm stainless) delivers even heat across the entire cooking surface.
- 120 V cord & plug included—no onsite transformer or hard-wiring required.
- CE & NSF listed for global code compliance.
- Compatible with a full suite of Cleveland accessories: 2 in. tangent draw-off valve, power-tilt upgrade, easyDial digital controls, casters, steamer baskets and more (sold separately).
Technical Specifications
| Capacity | 40 gal / 150 L (≈1,280 four-oz. servings) |
|---|---|
| Gas Input | Dual settings – 160,000 BTU or 200,000 BTU/hr (natural gas) |
| Gas Connection | 3⁄4 in. NPT, 5 in. W.C. min. supply pressure |
| Electrical | 120 V, 60 Hz, 1-phase, 1.4 A (cord & plug furnished) |
| Thermostat Range | 140 °F – 425 °F (60 °C – 218 °C) |
| Tilt Mechanism | Manual hand wheel, enclosed & permanently lubricated |
| Pan Construction | 12-ga 304 stainless; 5⁄8 in. clad bottom, bead-blasted finish |
| Rim Height | 35 in. (889 mm) |
| Approvals | NSF, CE, AGA/CSA, California AHJ compliant |
| Warranty | 1-year parts & labor (extendable) |
One-year limited parts & labor warranty included. Performance start-up by a Factory Authorized Service agent is available at no charge upon request.
