Cleveland Range

Cleveland PowerPan 40-Gallon Gas Braising Pan and Tilting Skillet with Manual Tilt and Open Base

SKU: SGL40T1
$29,266.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Braising Pan & Tilt Skillet Braising Pans & Tilt Skillets Cleveland Range Cooking Equipment Cooking Equipment New Arrivals Restaurant Equipment Specialty Cooking Equipment Steam Cooking Equipment

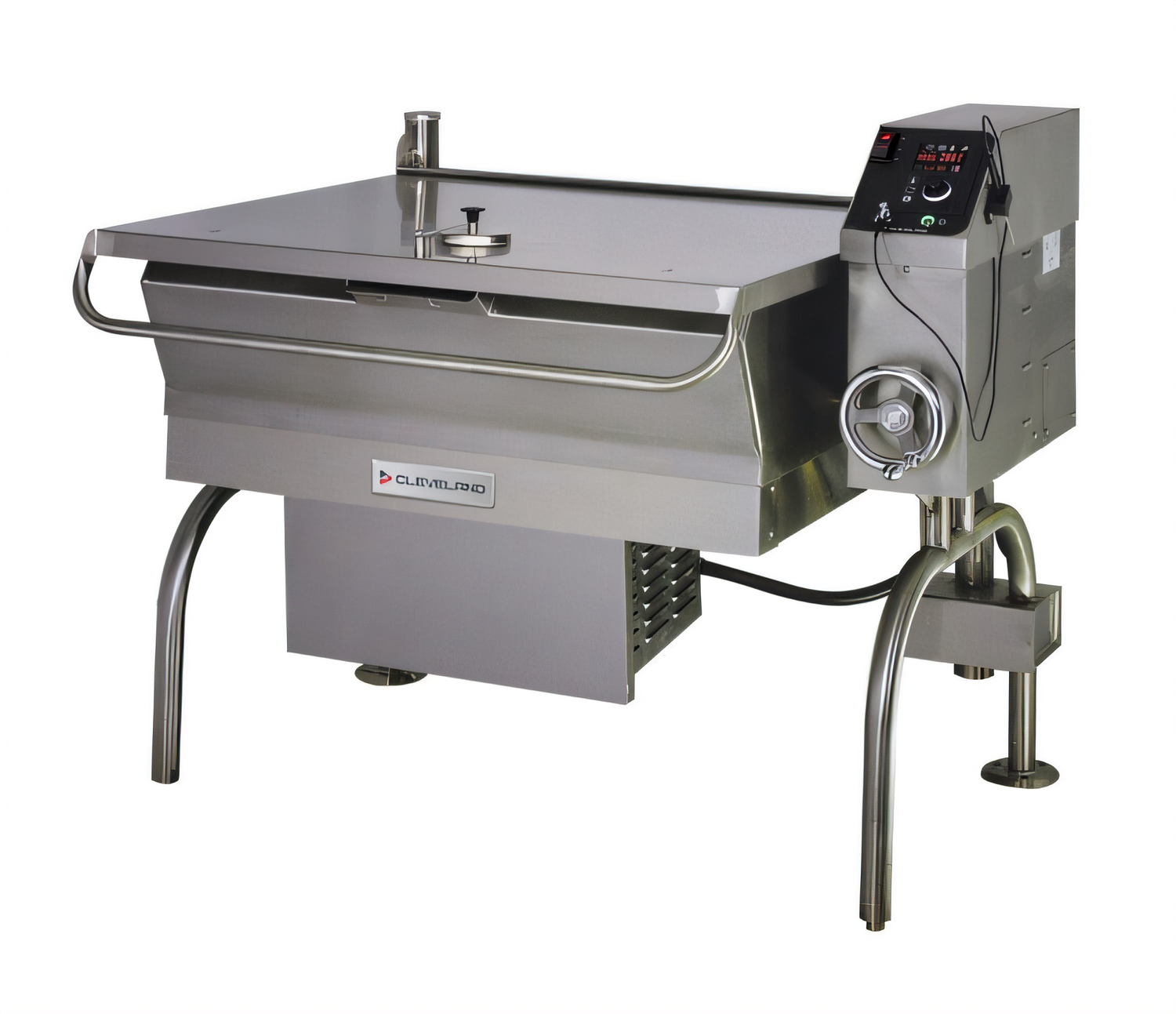

Cleveland PowerPan 40-Gallon Gas Braising Pan and Tilting Skillet with Manual Tilt and Open Base

Bead-Blasted 304 Stainless Steel Surface, 200,000 BTU

Built for high-volume kitchens, this gas skillet delivers rapid heat recovery, precise temperature control, and easy manual tilting in a rugged open-base design.

  • 40-gallon capacity handles large-batch braising, simmering, sauteing, and more.
  • 200,000 BTU gas heating with dual power settings helps speed heat-up and recovery.
  • Manual hand tilt and 10° cooking feature support cooking, draining, and serving.
  • Bead-blasted stainless steel cooking surface helps reduce sticking and warping.
  • Spring-assist vented cover, gallon/liter markings, and splash-proof controls streamline daily use.
  • Open base frame simplifies cleaning and maintenance.

Overall Dimensions:

49.88"W x 41.0"D x 39.0"H

Product Weight:

610.0 lb

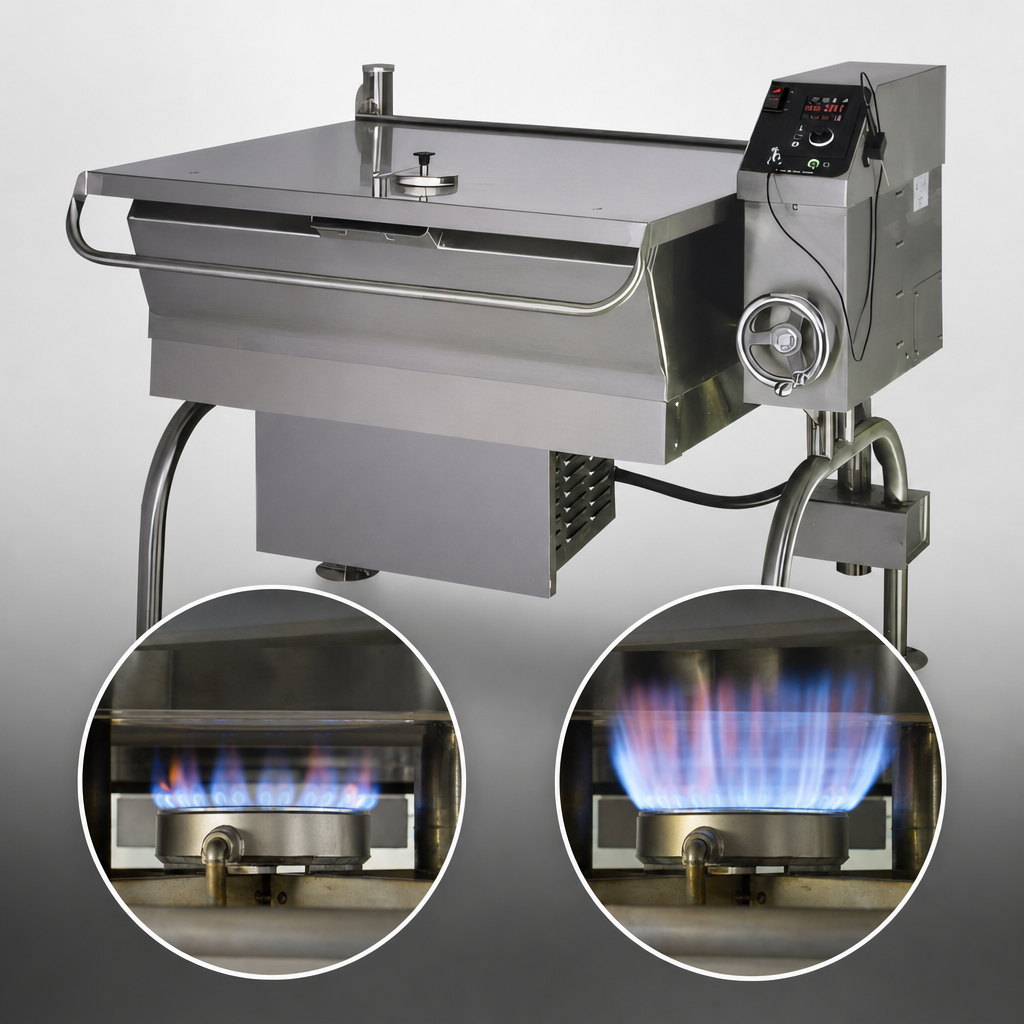

Dual Power Burner Settings

The 40-gallon model uses 160,000 and 200,000 BTU settings to improve heat-up and recovery.

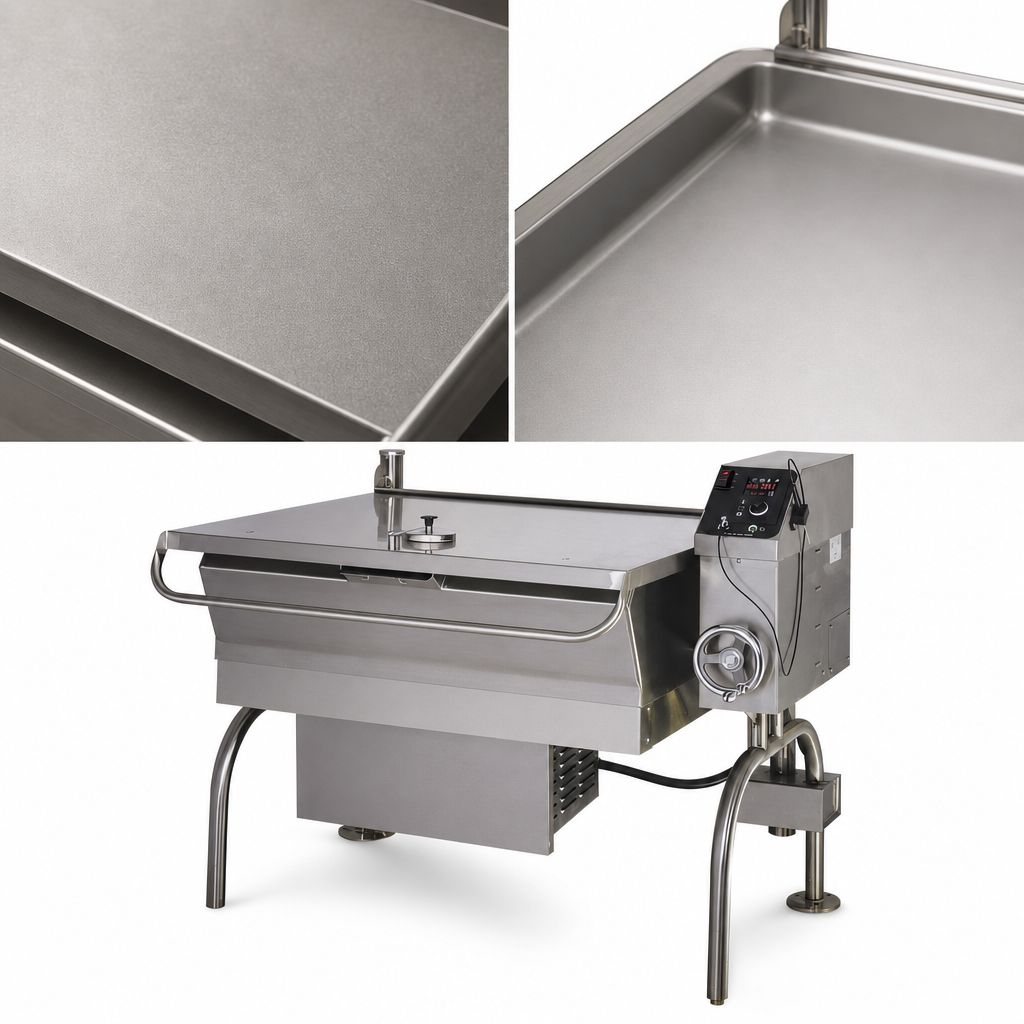

Bead-Blasted Cooking Surface

A 5/8-inch stainless steel bead-blasted surface helps prevent sticking and resists warping.

Heavy-Duty Pan Construction

The pan is built from 12-gauge 304 stainless steel with a clad bottom for even heat distribution.

Manual Hand Tilt with Enclosed Gearbox

Easy-to-turn manual tilt operation uses a permanently lubricated gearbox for dependable use.

10° Cooking Feature

The skillet can be tilted up to 10 degrees without turning the power off.

Adjustable Solid State Thermostat

Temperature control ranges from 140°F to 425°F for a wide variety of menu applications.

Spring-Assist Vented Cover

A spring-assisted cover with a full-width handle and vent supports easier operation.

Open Base Design

The modular open leg frame makes the unit easier to clean and service.

Splash-Proof Controls

Splash-proof construction helps protect the control area in demanding kitchen conditions.

Gallon/Liter Markings

Built-in markings help with batching, measuring, and portion control.

Electronic Spark Ignition

Standard spark ignition provides reliable startup for gas operation.

Capacity 40 Gallons
Type Tilting Skillet
Style Open Base
Installation Type Floor Model
Controls Solid State
Material 304 Stainless Steel
Finish Bead Blasted
BTU 200,000 BTU
Gas Connection Size 3/4 Inch NPT
Voltage 115 Volts
Amps 1.4 Amps
Hertz 60 Hz
Phase 1-Phase
Temperature Range 140°F to 425°F
Shipping Width 50 Inches
Shipping Depth 41 Inches
Shipping Height 39 Inches
Shipping Weight 610 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Manual PDF Download PDF Easydial brochure PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It has a 40-gallon (150-liter) capacity.
The standard unit has an easy manual hand tilt, and power tilt with manual override is available as an option.
The adjustable solid state thermostat controls heat from 140°F to 425°F.
Yes. The 10° cooking feature lets you tilt the skillet up to 10 degrees without turning the power off.
Options include a core temperature probe, draw-off valve, pantry faucets, faucet bracket, pan carriers, vegetable steamer baskets, pre-rinse spray head, poaching pans, protective control cover, and casters.
The cutsheet references both natural gas and propane versions.
