Cleveland Range SEL40TR DuraPan Braising Pans & Tilt Skillets
Description

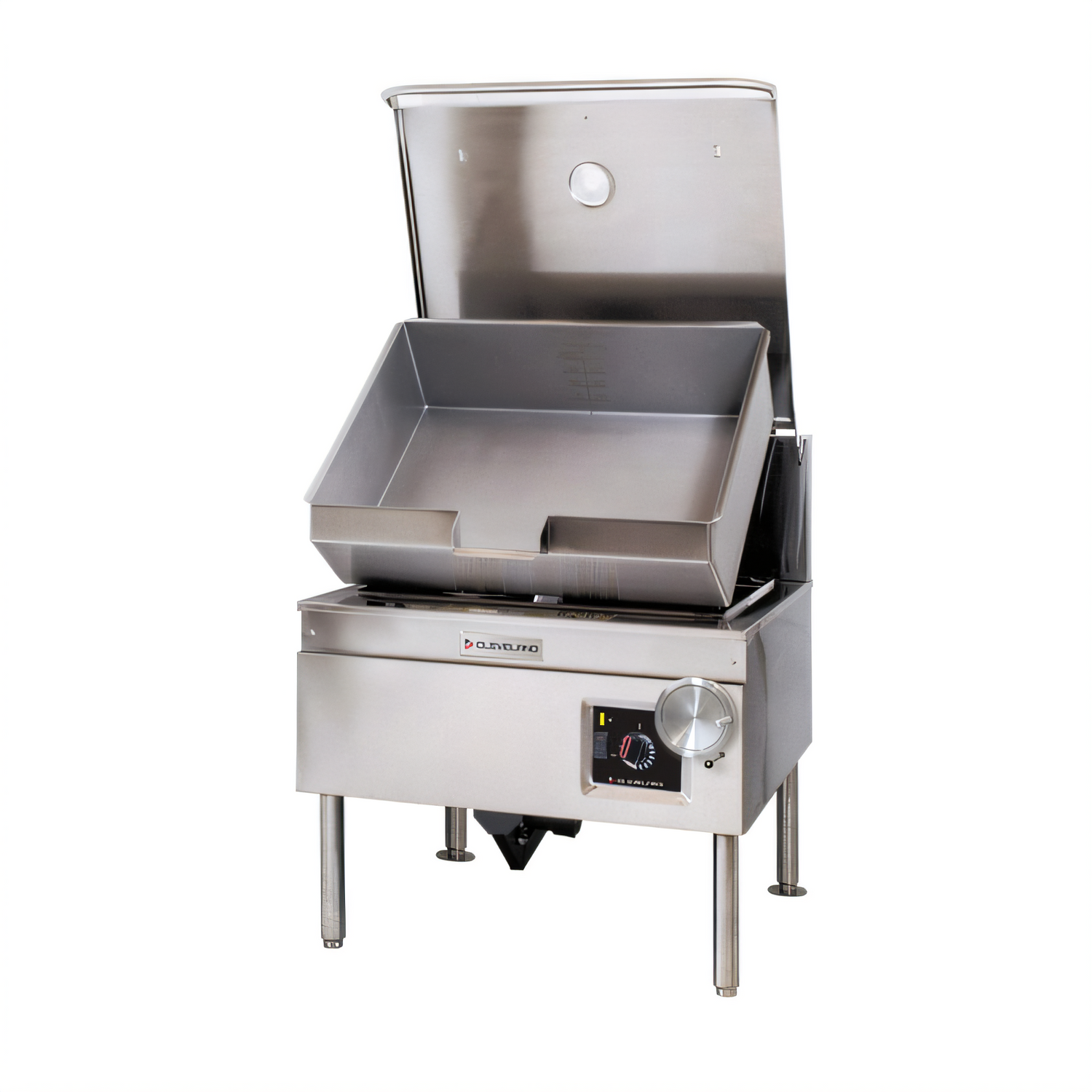

DuraPan™ 40 Gallon Electric Tilting Skillet
Cleveland Range | Model SEL-40-TR | Modular Open-BaseBuilt for high-volume, high-precision kitchens, the Cleveland DuraPan™ SEL-40-TR delivers uncompromising durability, lightning-fast heat up, and effortless hydraulic tilting in a space-saving footprint that needs zero side or rear clearance.
Key advantages

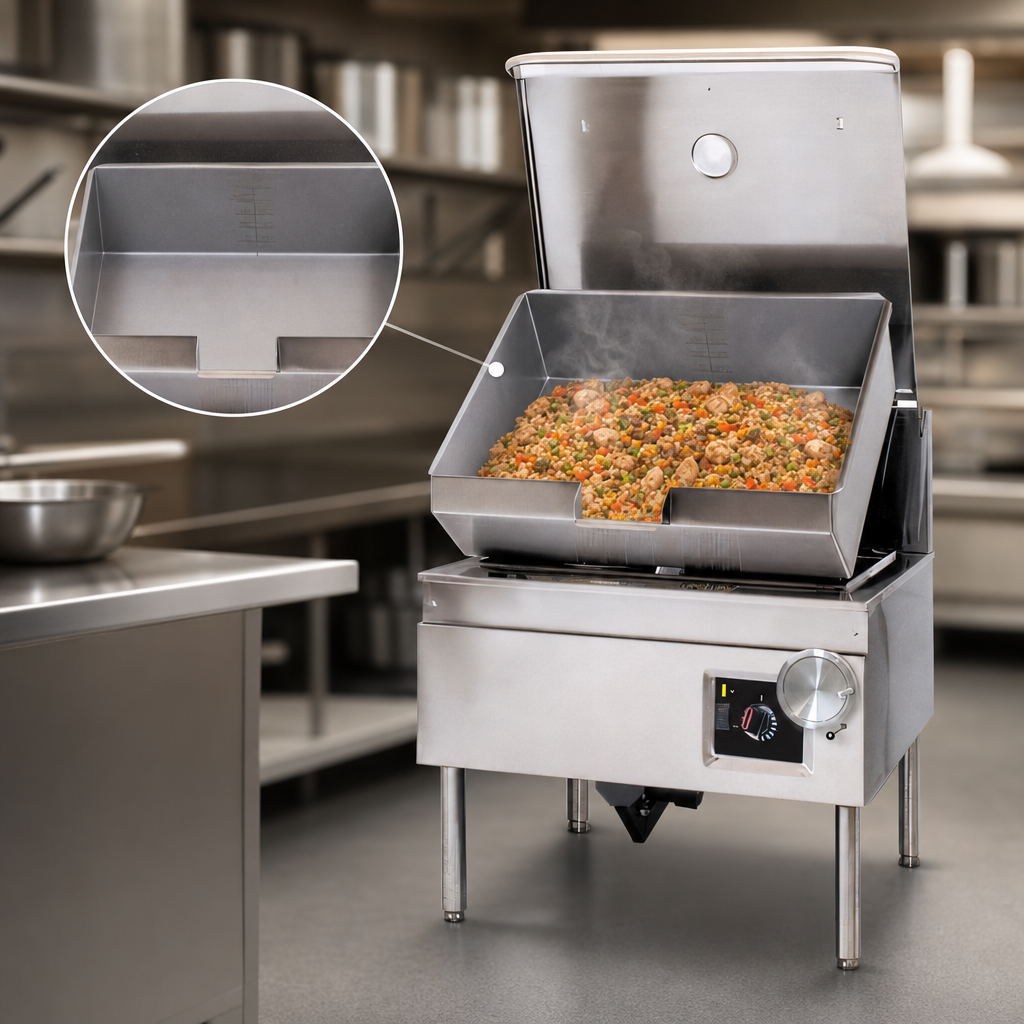

- 40 gal (150 L) capacity – up to 1,280 four-ounce servings per batch
- 18 kW high-efficiency heating system; preheats in just 15 min & reaches boil from cold in 60 min
- 5/8 in stainless-steel clad cooking surface – guaranteed against warpage
- Adjustable electronic thermostat: 100 °F – 425 °F (38 °C – 218 °C) with dual pilot lights

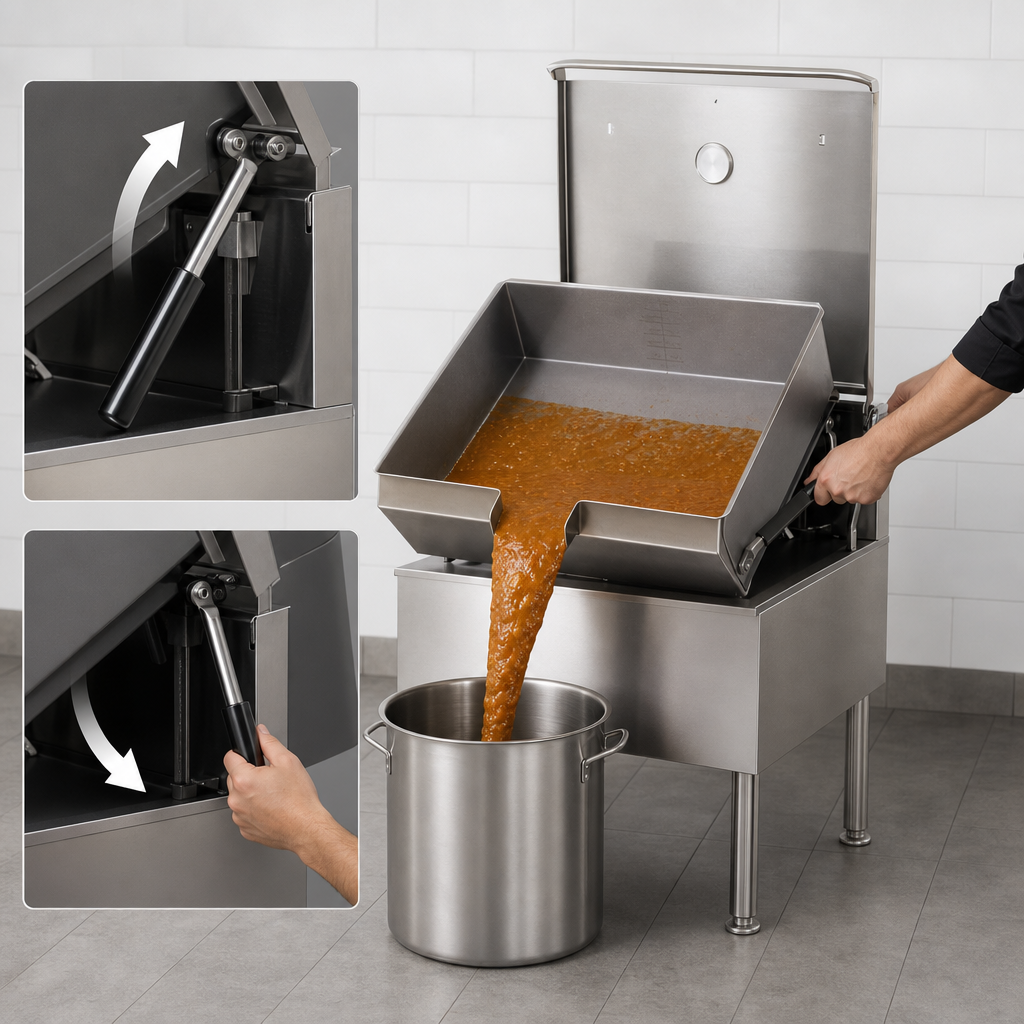

- Hydraulic hand tilt with quick-lowering feature for smooth, controlled pouring
- Spring-assisted hinged cover with adjustable vent and full-width handle
- Embossed gallon & liter markings and anti-splash pouring lip for precise portioning
- All-stainless exterior, coved-corner pan & level-adjustable feet (rear flanged for bolting)
- Front-serviceable components; IPX6 water-resistant construction
- Safety high-limit cut-off set at 450 °F (232 °C)
- Certifications: UL, CE, NSF, IPX6
Performance specifications
| Capacity (Pan Rim) | 40 gal / 150 L |
|---|---|
| Usable Pan Area | 48 in W × 44 in D |
| Cooking Surface | 5/8 in stainless-steel clad |
| Heating Power | 18 kW |
| Thermostat Range | 100 °F – 425 °F |
| Tilt Mechanism | Hydraulic hand tilt (quick-lower) |
| Overall Dimensions* | 48 in W × 44 in D × 54 in H |
| Shipping Weight* | ≈ 610 lb (277 kg) |
| Electrical (Std.) |
208/3 Ø 60 Hz 50 A |
240/3 Ø 60 Hz 43.4 A |
480/3 Ø 60 Hz 21.7 A (Other voltages available – see Options) |
| Clearance Required | None (rear or sides) |
*Dimensions and weight include skid/crating and may vary slightly.
Popular factory options
- Sliding drain drawer with splash screen (SLD)
- Power tilt with hand-tilt override (PT1)
- Single or double pantry faucet & filler hose (SPS14 / DPS14, SKF-S / DKF-S)
- 2 in tangent draw-off valve, left side (TD2)
- Food strainers, vegetable steamers, poaching pans & pan carriers
- Alternate voltages: 240 V 1-ph, 380/415 V 3-ph, 480 V 1-ph
Standard warranty
1-year parts & labor, with performance start-up by a Factory Authorized Service agency included at your request. Extended coverage available at time of purchase.
