Cleveland Range SEL40T1 PowerPan Braising Pans & Tilt Skillets
Description

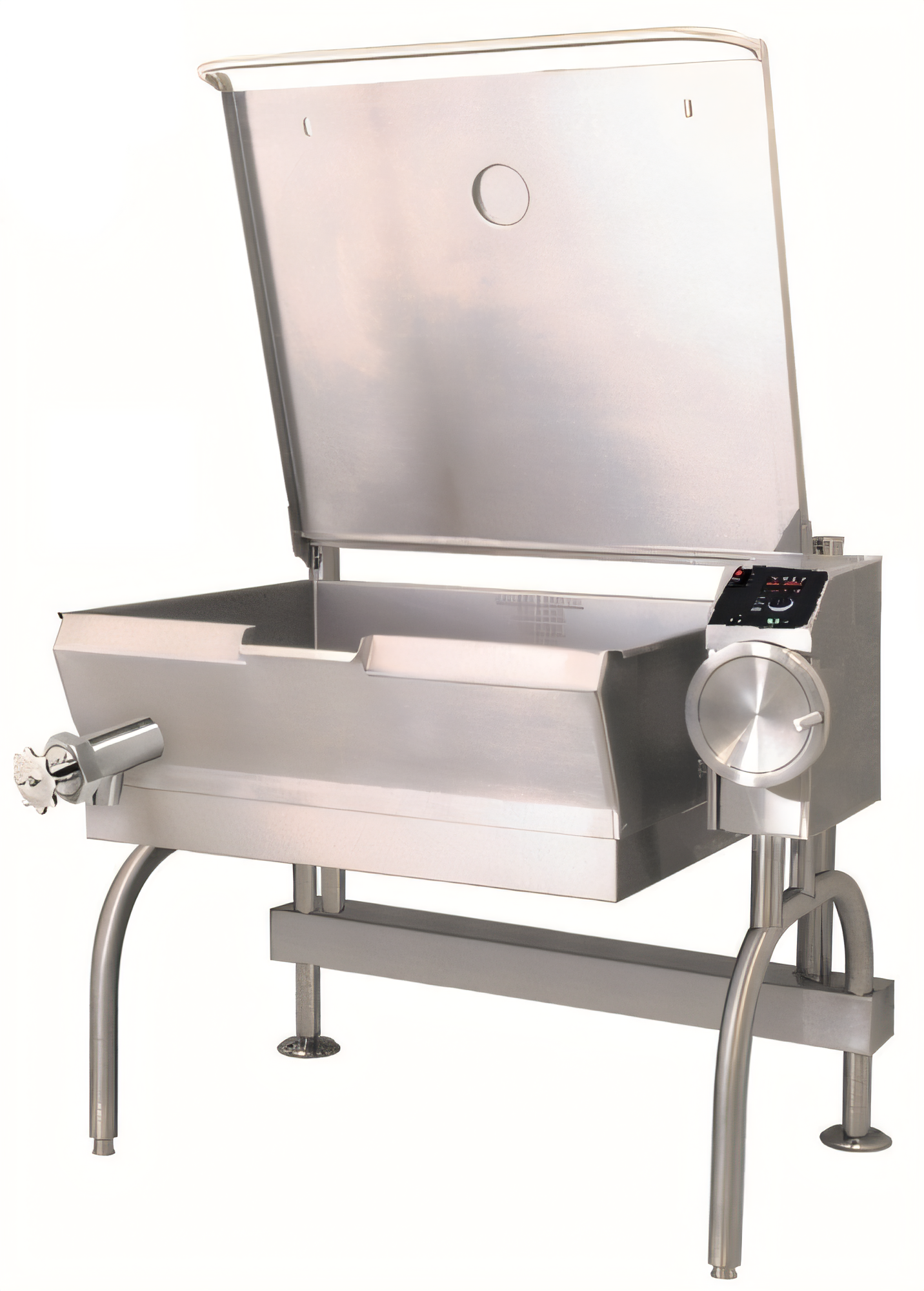

Cleveland PowerPan™ 40-Gallon Electric Tilting Skillet
Model SEL-40-T1 | Manual Hand Tilt | 35 in Rim HeightThe PowerPan™ gives high-volume kitchens the productivity of a braising pan, the speed of a griddle, and the capacity of a kettle—delivering up to 1,280 four-ounce servings in a single batch while fitting under a standard hood.
Key advantages

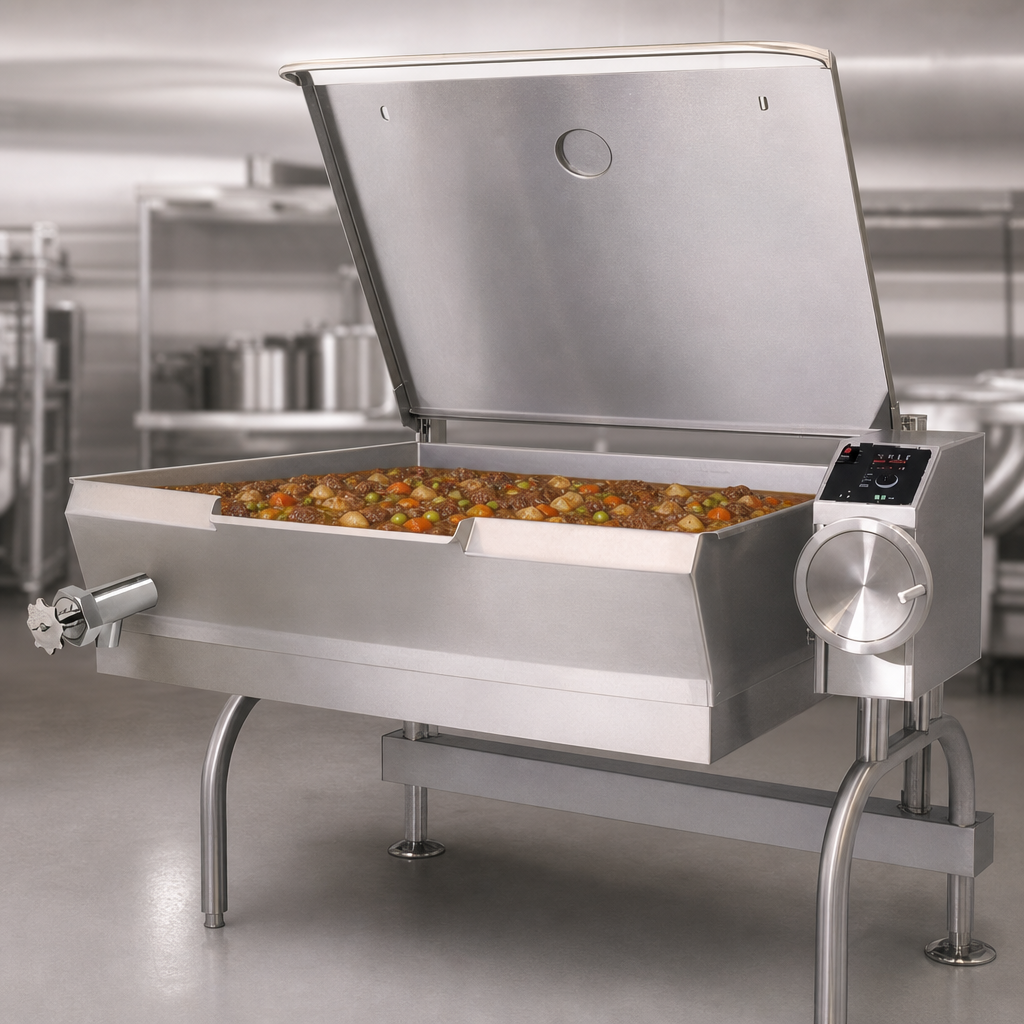

- 40 gal / 150 L capacity pan with bead-blasted 5⁄8 in stainless surface—no sticking or warping.
- 10° cooking-tilt lets you sauté, skim or reduce without shutting off the heat.

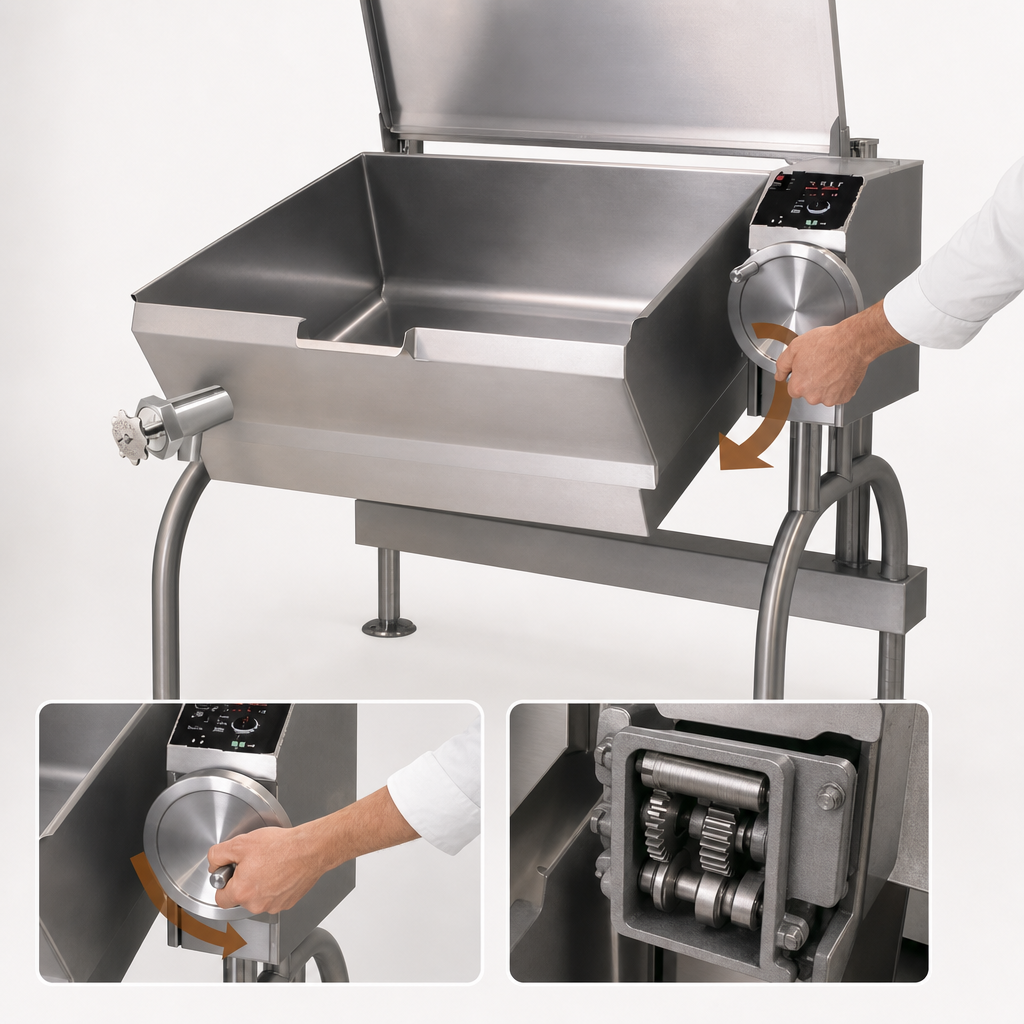

- Easy-turn manual hand tilt with permanently lubricated gearbox (power-tilt upgrade available).
- Spring-assisted cover with full-width handle and adjustable vent for moisture control.
- Clearly stamped gallon & liter graduations speed batch prep.
- Low 35 in rim height and open-leg frame for ergonomic access and fast floor cleanup.
- Splash-proof front controls; electronic thermostat maintains 100 – 450 °F (±1 °C).
- Durable 12-gauge 304 SS pan, 5⁄8 in clad bottom, and solid-state components built to last.
- UL, CE & NSF listed for global compliance.
Performance & specifications
| Capacity | 40 gal / 150 L • ~1,280 servings (4 oz) |
|---|---|
| Temperature range | 100 °F – 450 °F (38 °C – 232 °C) |
| Standard power | 18 kW • 208–240 V, 1 or 3 ph, 60 Hz |
| High-watt option | 24 kW package (meets CE requirements) |
| Tilt mechanism | Manual crank, 200° pour arc, position-locking |
| Exterior dimensions (W × D × H) | 49 7⁄8 in × 36 1⁄2 in × 43 3⁄4 in (1 267 mm × 928 mm × 1 112 mm) |
| Rim height | 35 in / 889 mm |
| Construction | 304 SS pan & cover, open stainless leg frame, bead-blasted interior |
| Certifications | UL, CE, NSF |
| Warranty | 1-year parts & labor with free start-up service |
Factory options & accessories
- easyDial™ digital control with timer, three cooking modes & core-probe port
- Power Tilt with manual override (PT2)
- 2 in tangent draw-off valve (left side)
- Single or double pantry faucet sets with bracket
- Vegetable steamer baskets, poaching pans & pan carriers
- Locking caster kit (2 swivel, 2 brake)
Additional voltages (240 V 60 Hz 3 ph, 380/415 V 50 Hz 3 ph, 480 V 60 Hz 3 ph) and export configurations available. Contact us for lead-times and custom quoting.
