Cleveland Range SEL30TR DuraPan Braising Pans & Tilt Skillets
Description

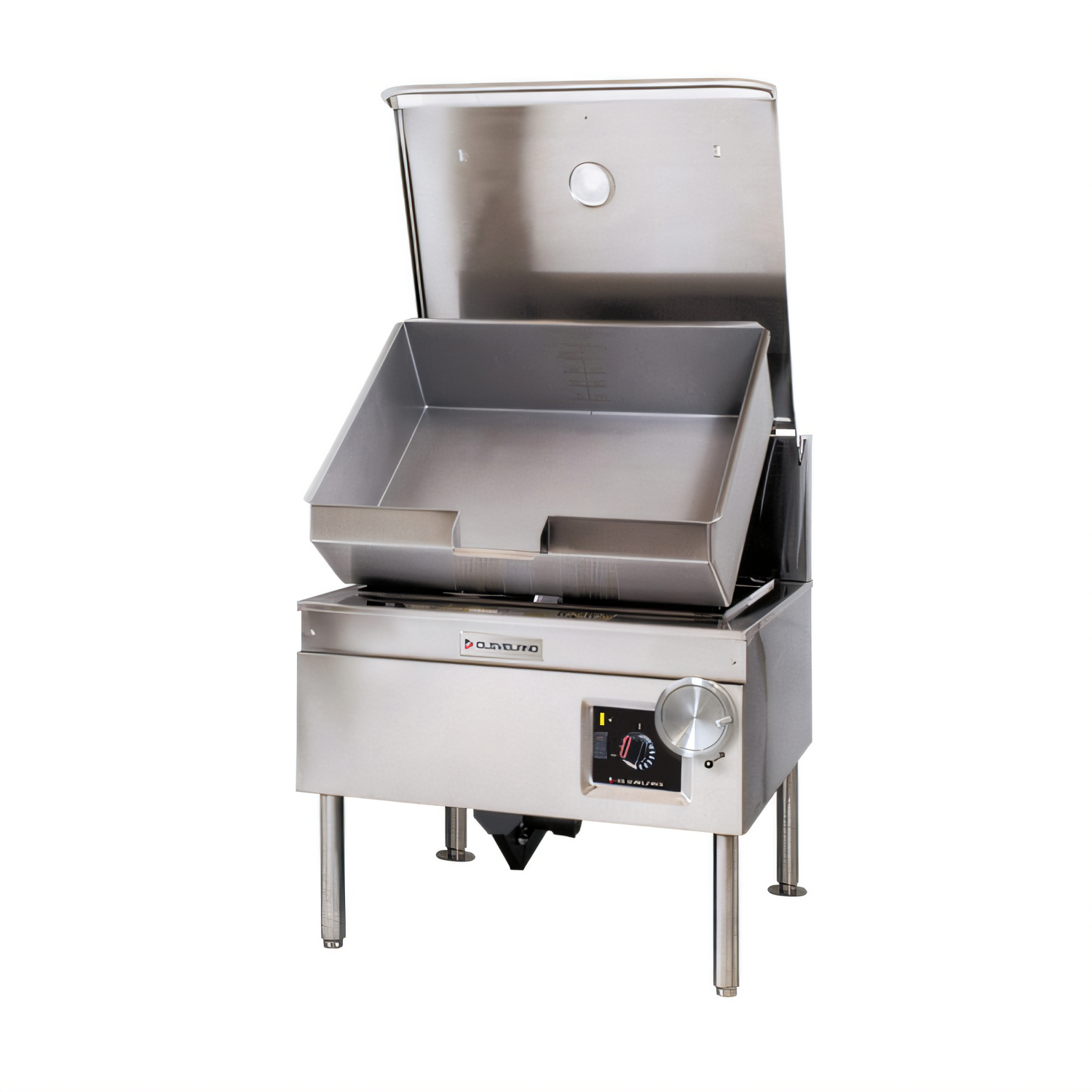

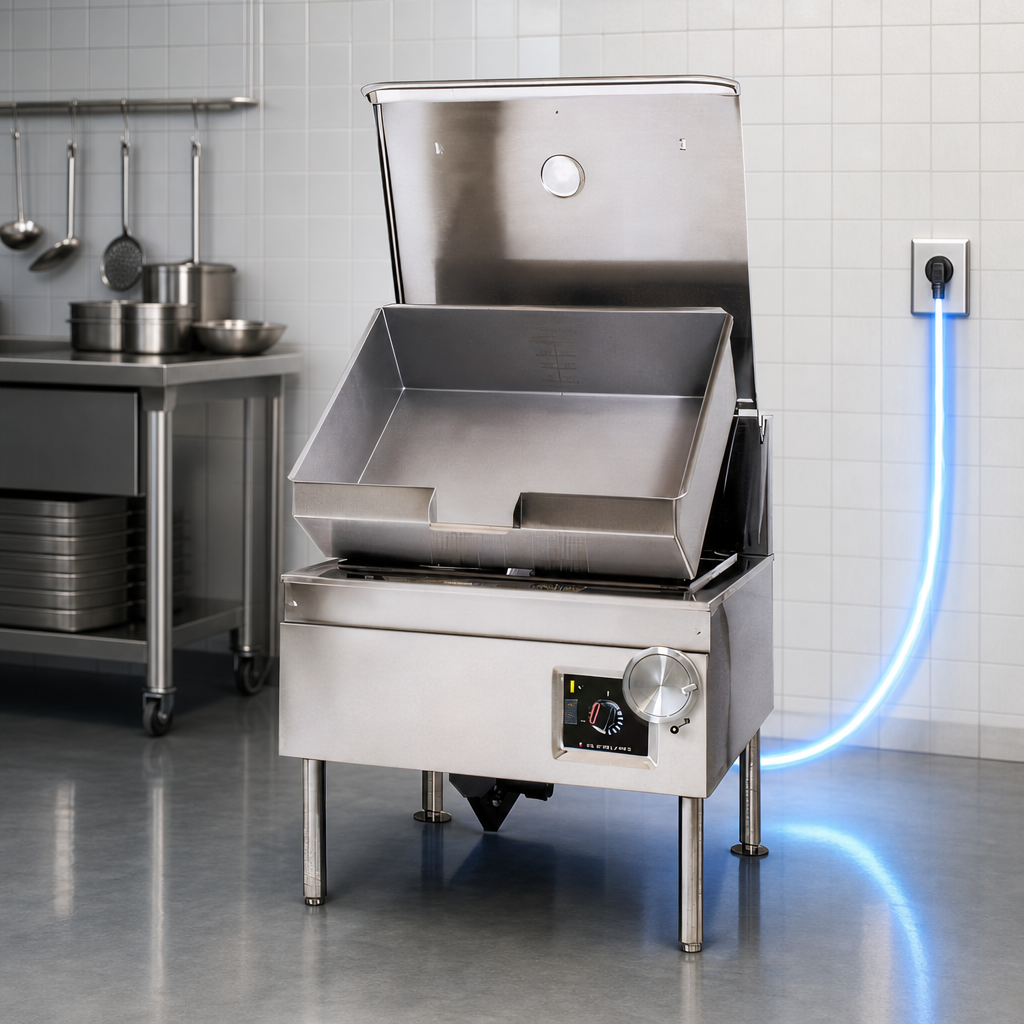

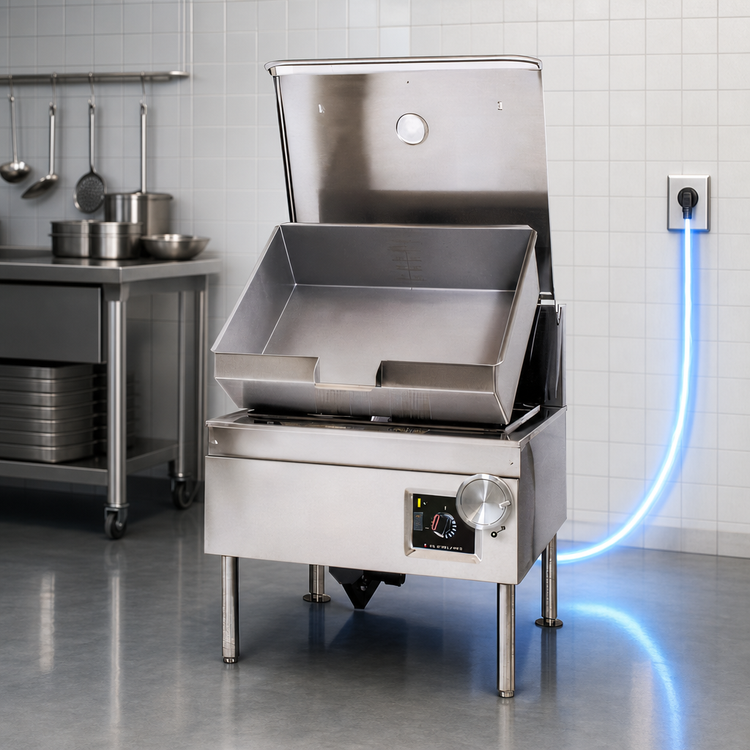

Cleveland DuraPan™ 30-Gallon Electric Tilting Skillet – SEL-30-TR
115 L hydraulic-hand-tilt braising pan with modular open baseBoost production, cut labor, and keep your line moving with the Cleveland DuraPan™ SEL-30-TR. This 30-gallon (960 four-ounce servings) electric tilting skillet combines lightning-fast heat-up, pinpoint temperature control, and rock-solid stainless-steel construction—perfect for browning, braising, sautéing, steaming, holding, or even shallow-frying in today’s high-volume kitchens.
Why chefs choose DuraPan™
- 30 gal / 115 L capacity – handle up to 960 4 oz servings in one batch.

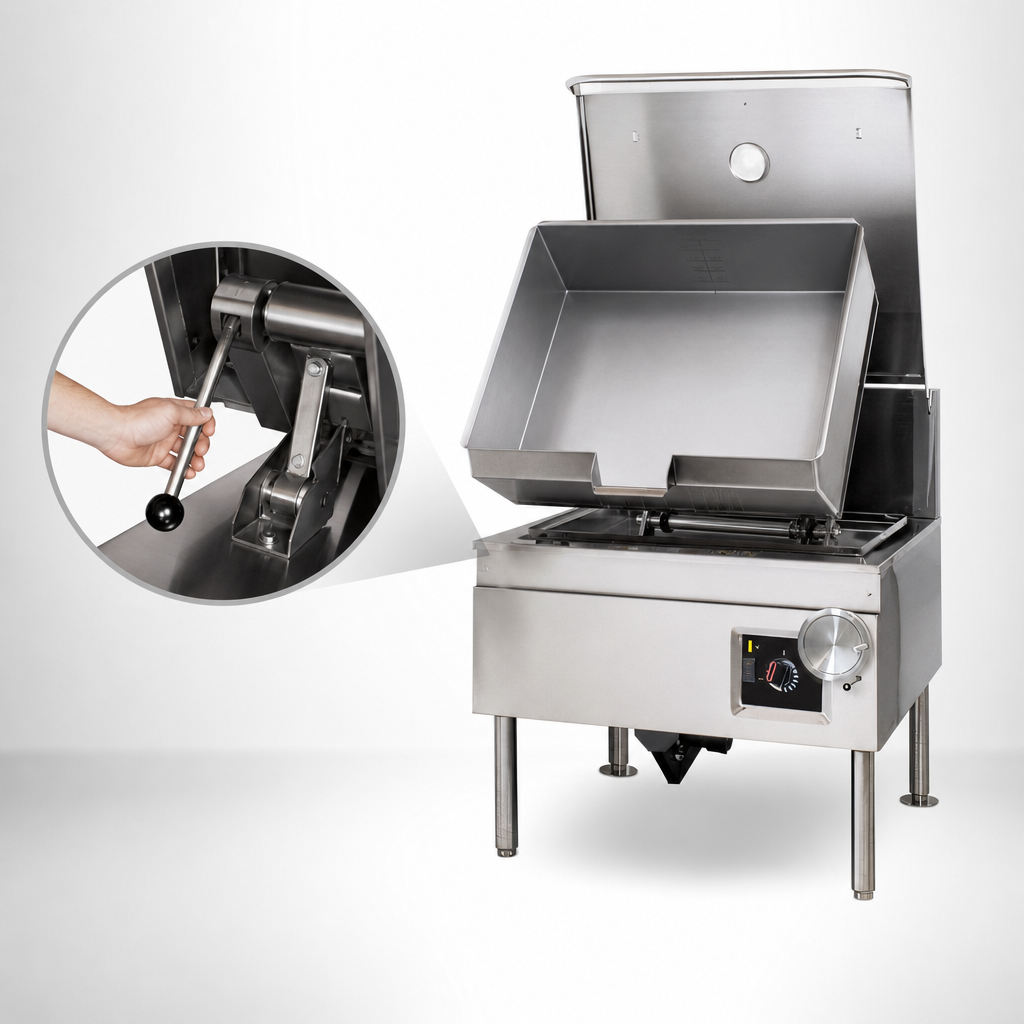

- Hydraulic hand tilt with quick-lowering feature for smooth, precise pouring.
- 5⁄8" stainless-steel clad cooking surface distributes 14 kW evenly and is guaranteed against warping.
- Electronic thermostat 100 – 425 °F (38 – 218 °C) holds set temps with ±1 °F accuracy; preheats in 15 min and moves cold water to a full boil in 60 min.
- Spring-assist lid with adjustable steam vent & full-width stay-cool handle.
- IPX6 water-proof rated controls with recessed On/Off & thermostat knobs plus dual indicator lights (Power & Heat Cycle).
- Space-saving install – no rear or side clearance required; modular open base includes four level-adjustable feet (rear flanged for bolting).
- Built-to-last – all-stainless exterior, coved-corner pan, embossed gallon & liter markings, anti-splash pouring lip, and high-limit safety at 450 °F.
- Third-party approvals – UL, CE & NSF listed for worldwide compliance.
At-a-Glance Specs
| Model | SEL-30-TR (DuraPan™ Series) |
|---|---|
| Capacity | 30 gal / 115 L (to pouring lip) |
| Thermostat Range | 100 °F – 425 °F (38 °C – 218 °C) |
| Heating Output | 14 kW electric |
| Electrical Options |
208, 240, 380, 416 or 480 V | 1- or 3-Phase
14,400 W – see amp draw chart in manual |
| Clearances | Zero side & rear (faucet/console add 4 ½" on one side) |
| Footprint (W × D) | 36" × 32" (914 mm × 813 mm) |
| Cooking Surface Height | 33 ½" (851 mm) to pan lip |
| Shipping Weight | Approx. 503 lb (228 kg) |
| Certifications | UL, CE, NSF, IPX6 |
| Standard Warranty | 1-Year Parts & Labor (extendable) |
Factory-Matched Accessories (sold separately)
- Sliding drain drawer with splash screen (SLD)
- Power tilt with hand-tilt override (PT1)
- Single or double pantry faucet kits (SPS14 / DPS14)
- 60" skillet filler hose (SKF-S or DKF-S)
- 2" tangent draw-off valve, left side (TD2)
- Food strainers, vegetable steamers & poaching pans
- Pan carriers for mobile transport (PCS)
Standard limited warranty: 1 year parts & labor (18 months from ship date). Ask about Cleveland’s extended labor and K-12 school coverage for extra peace of mind.
