Cleveland Range Stand-Mounted Direct Steam Kettle/Cabinet Assembly with 12-Gallon Kettle and 30-Inch Cabinet Base

Low Cabinet Height, Stainless Steel Construction, Lift-Off Cover

This factory-assembled direct-steam kettle station combines a 12-gallon kettle, stainless steel cabinet base, integrated faucet, and sliding drain pan for efficient prep and cleanup.

  • Factory-assembled kettle and cabinet base with one 12-gallon kettle
  • Low cabinet height and 30-inch wide cabinet base help save floor space
  • Direct-steam design includes a factory-installed steam control kit
  • 304 stainless steel construction with 316 stainless steel liner
  • Lift-off cover plus sliding drain pan and splash shield support easy cleanup
  • Hot and cold water faucet and full-width drain trough help streamline operation

Product Weight:

175.0 lb

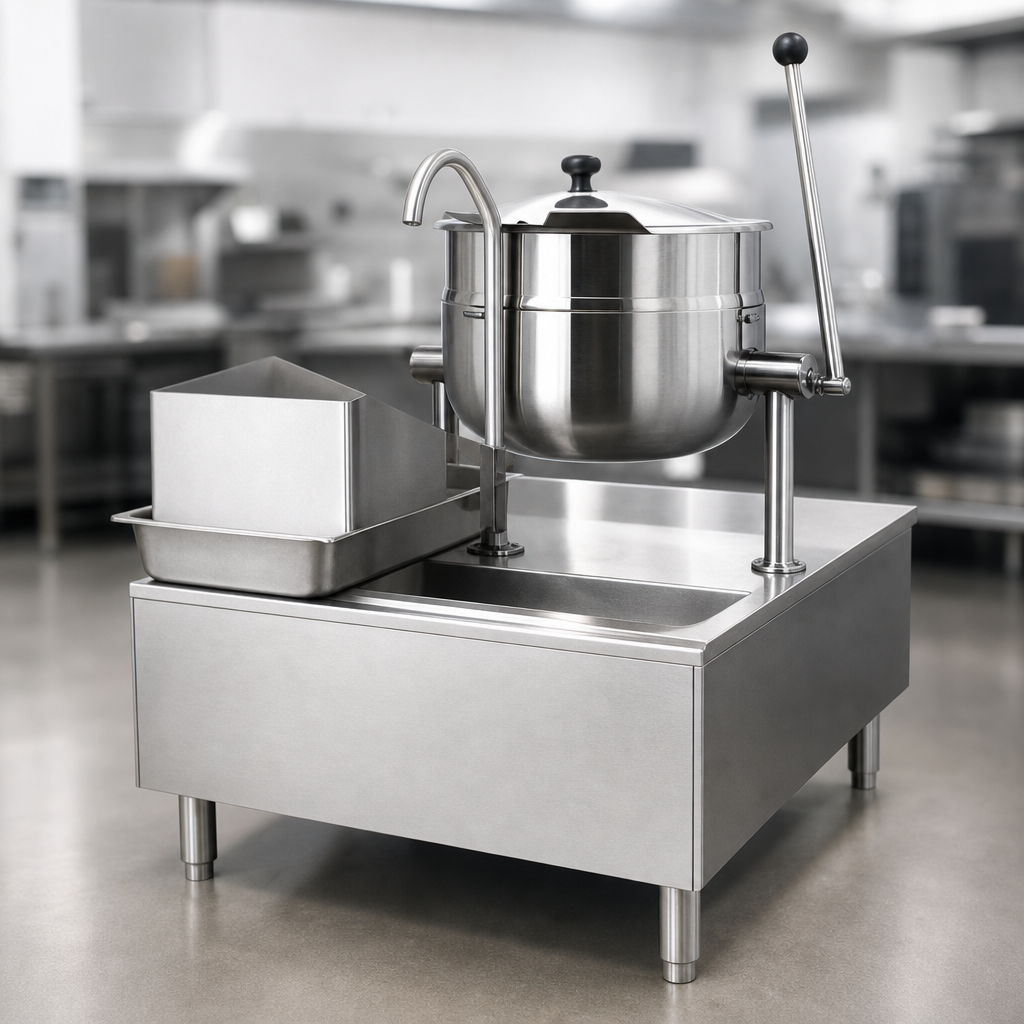

Factory-Assembled Kettle/Cabinet Base

Single 12-gallon kettle mounted on a low-height, 30-inch wide cabinet base.

Direct Steam System

Connects directly to a steam source supplying 5 to 45 psi, with a 50 psi safety valve and 50 psi kettle jacket rating.

Factory-Installed Steam Control Kit

Includes a needle-type steam control valve, steam trap, condensate strainer, check valve, nipples, and fittings.

Stainless Steel Construction

Type 304 stainless steel construction for the kettle, top, front, and sides.

316 Stainless Steel Interior

Corrosion-resistant 316 stainless steel liner/interior.

Lift-Off Cover

Removable cover is included for the kettle.

Drain and Faucet Package

Includes a full-width drain trough, 1-1/2-inch drain connection, sliding drain catch pan with splash shield, and a double pantry faucet with hot/cold water access.

Balanced Manual Tilting

Manual tilting design supports controlled pouring and emptying.

Type Kettle/Cabinet Assembly
Style Direct Steam
Installation Type Floor Model
Capacity 12 Gallons
Material 304 Stainless Steel
Interior Finish 316 Stainless Steel
Finish #4 Finish
Controls Manual
Water Connection Required
Drain Connection Required
Drain Connection Size 1 1/2 Inches
Selling Unit Each
Units Per Case 1

Documents

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

One 12-gallon kettle is included.
It is designed for direct steam supply from 5 to 45 psi, with a 1/2-inch IPS minimum steam inlet line for kettles up to 20 gallons.
The assembly uses Type 304 stainless steel construction with a 316 stainless steel interior and a #4 finish on the kettle.
The factory-installed steam control kit includes a needle-type steam control valve, steam trap, condensate strainer, check valve, nipples, and fittings.
It includes a full-width drain trough, a 1-1/2-inch drain connection, and a sliding drain catch pan with splash shield.
