Cleveland Range

Cleveland Range Direct Steam Kettle/Cabinet Assembly with (2) 20-Gallon Tilting Kettles

SKU: SD1800K2020
$42,308.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Cleveland Range Commercial Work Tables Equipment Stands Kitchen Equipment Tables New Arrivals Restaurant Equipment Steam Cooking Equipment Steam Kettles

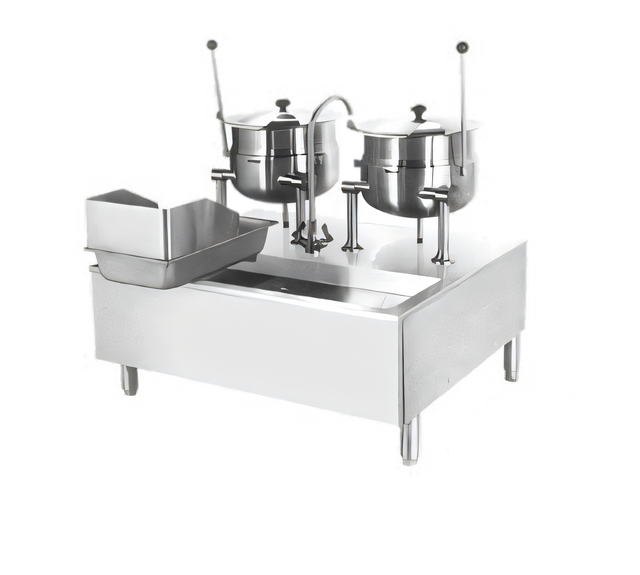

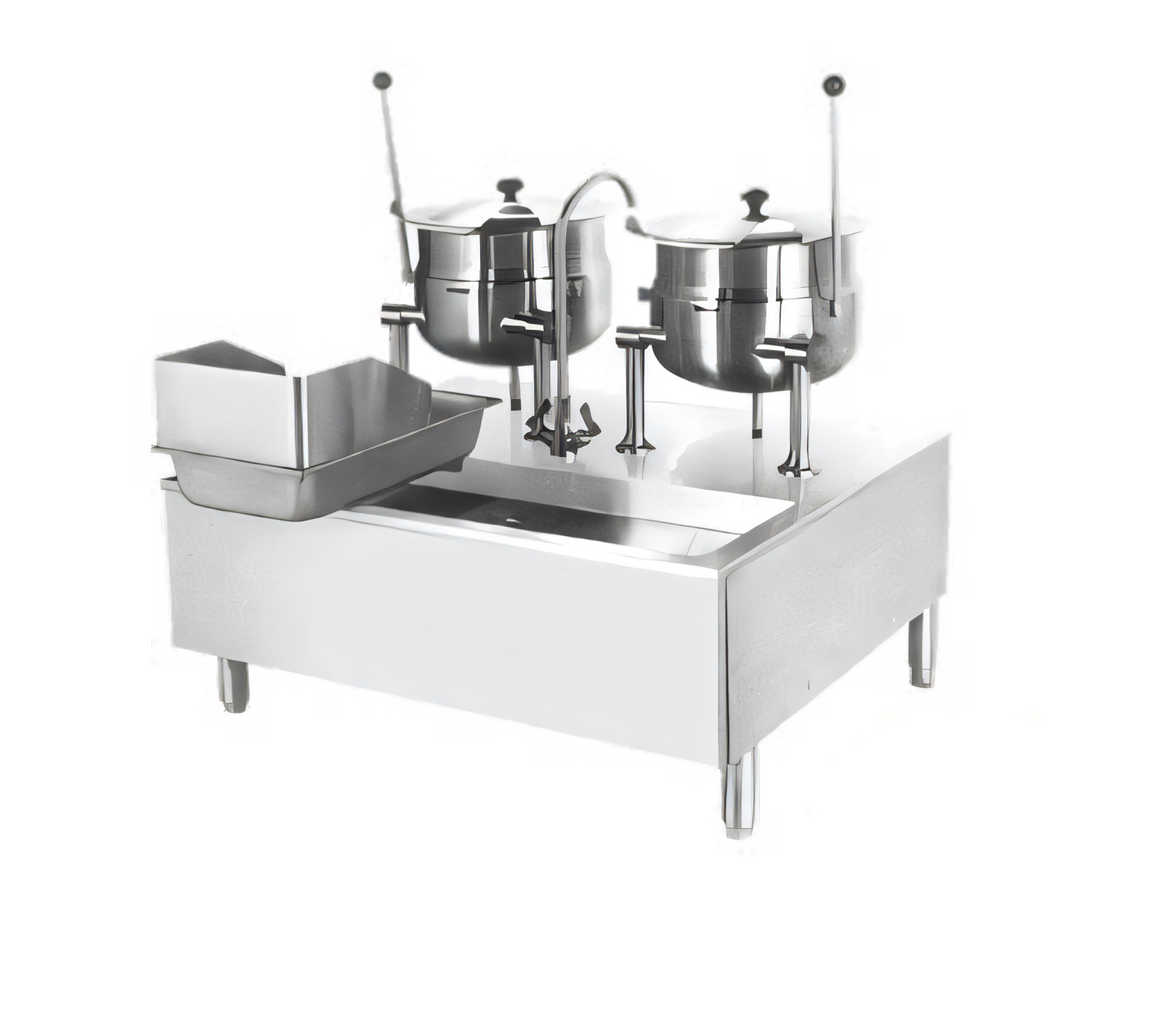

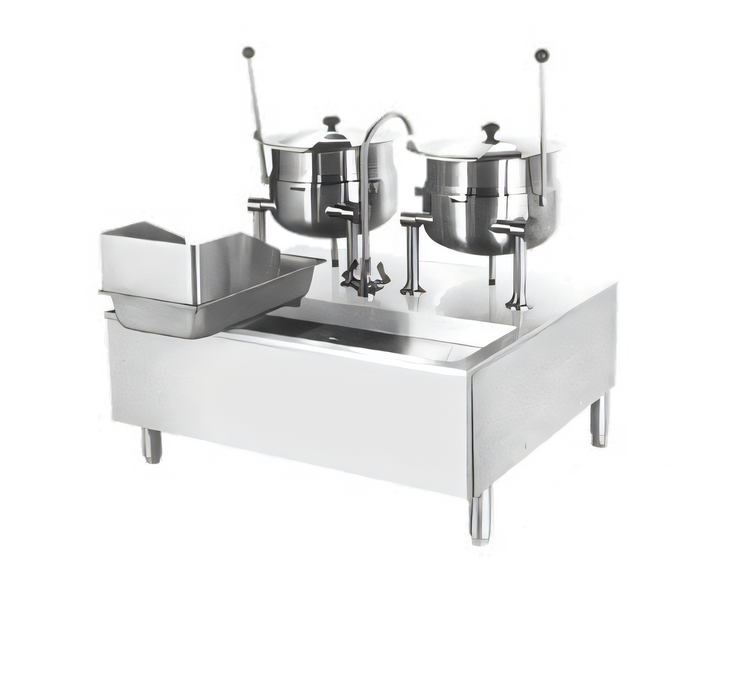

Cleveland Range Direct Steam Kettle/Cabinet Assembly with (2) 20-Gallon Tilting Kettles

Low Cabinet Height, Stainless Steel Construction, Lift-Off Covers

This factory-assembled direct steam unit combines two high-capacity kettles and a stainless steel cabinet base to streamline batch cooking in one compact footprint.

  • Factory-assembled direct steam kettle and stand combination simplifies installation.
  • Includes two 20-gallon, 2/3 steam-jacketed kettles for high-volume batch cooking.
  • 304 stainless steel construction with a 316 stainless steel interior liner for durability.
  • Standard lift-off covers, steam control kit, and hot/cold water faucet with swing spout.
  • Sliding drain catch pan with splash shield and full-width drain trough help manage cleanup.
  • Manual balanced tilting design and 50 psi steam jacket rating support efficient operation.

Overall Dimensions:

62.99"W x 33.5"D x 60.05"H

Product Weight:

340.0 lb

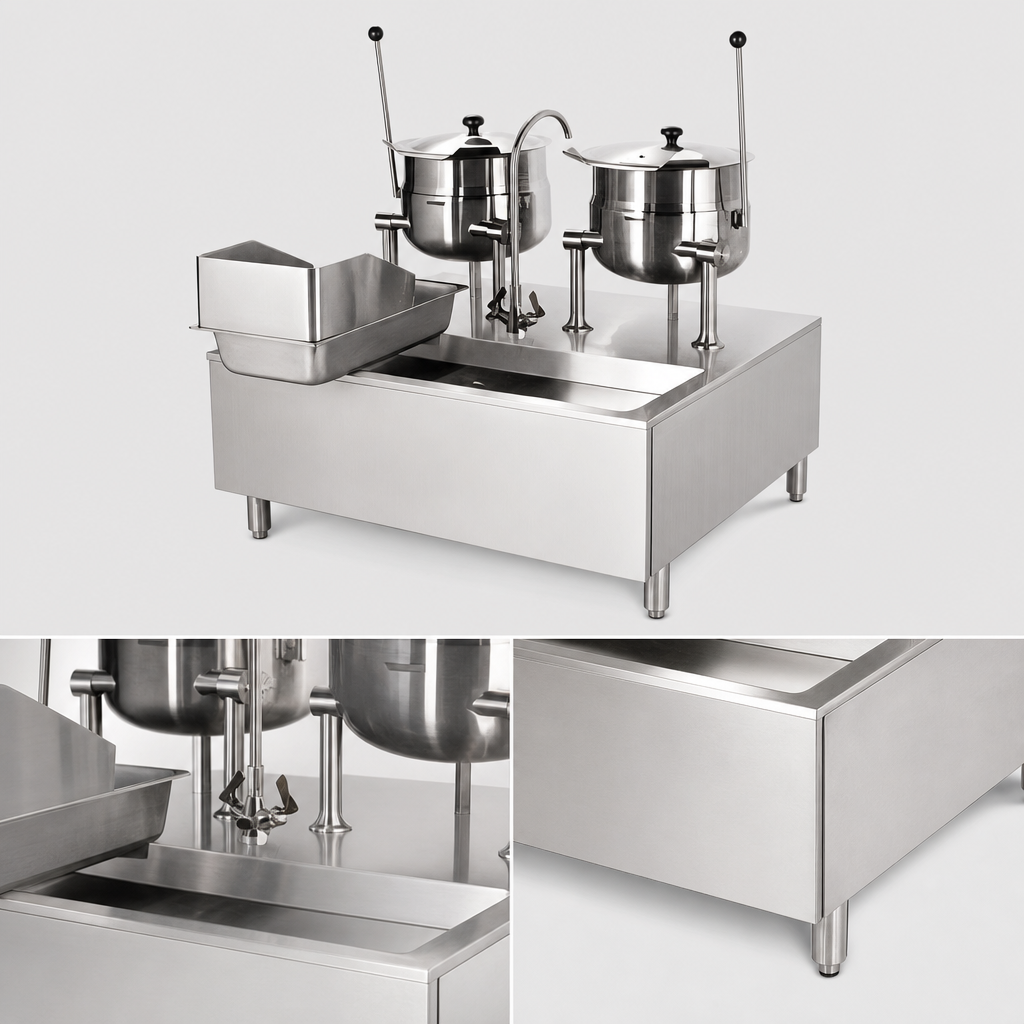

Factory Assembled Kettle/Stand Combination

Kettles are mounted on a modular stainless steel cabinet base at the factory for easier setup.

Two 20-Gallon Kettles

Provides dual 20-gallon kettle capacity for large-batch soups, sauces, and other menu items.

2/3 Steam Jacketed Construction

Helps distribute steam heat evenly around the kettle for reliable cooking performance.

304 Stainless Steel Construction

Durable stainless steel construction with a #4 finish on the kettle surfaces.

316 Stainless Steel Interior Liner

Corrosion-resistant interior liner designed for long service life.

Steam Control Kit

Includes a needle-type steam control valve, steam trap, condensate strainer, check valve, nipples, and fittings.

Lift-Off Covers

Removable covers are included for convenient access and cleaning.

Drain and Faucet Package

Features a full-width drain trough, sliding catch pan with splash shield, and a hot/cold water faucet with swing spout.

Manual Tilting Design

Balanced manual tilting helps control product transfer and draining.

Steam Jacket Rating

Kettles are rated for 50 psi steam jacket pressure with a 50 psi chrome-plated safety valve.

Type Kettle/Cabinet Assembly
Style Direct Steam
Installation Type Floor Model (With Stand)
Capacity 40 Gallons Total
Material 304 Stainless Steel
Interior Finish 316 Stainless Steel
Finish #4
Controls Manual
Selling Unit Each
Units Per Case 1
Shipping Width 63 Inches
Shipping Depth 34 Inches
Shipping Height 61 Inches
Shipping Weight 340 lb.

Documents

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The assembly includes two 20-gallon kettles.
It connects directly to a steam source supplying 5 to 45 psi, with a 50 psi safety valve included.
The unit features Type 304 stainless steel construction with a 316 stainless steel interior liner.
Standard items include lift-off kettle covers, a steam control kit, a hot and cold water faucet with swing spout, and a sliding drain catch pan with splash shield.
The water connection can be 3/4 inch O.D. copper tube or 1/2 inch NPT pipe, and the drain connection is 1 1/2 inch diameter.
The cutsheet lists zero clearance on the right, left, and rear.
