Cleveland Range SD1600K620 Steam Kettles
Description

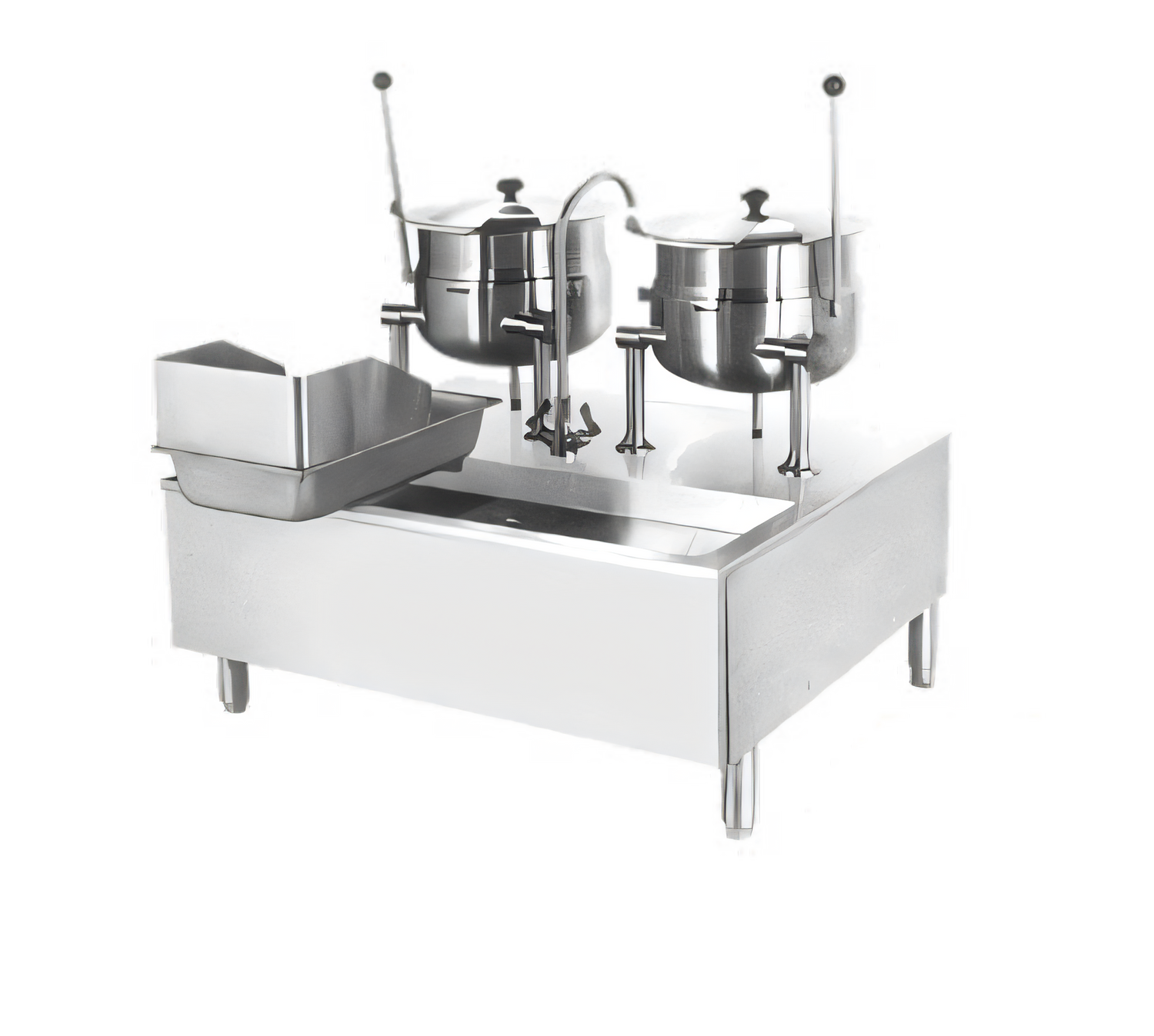

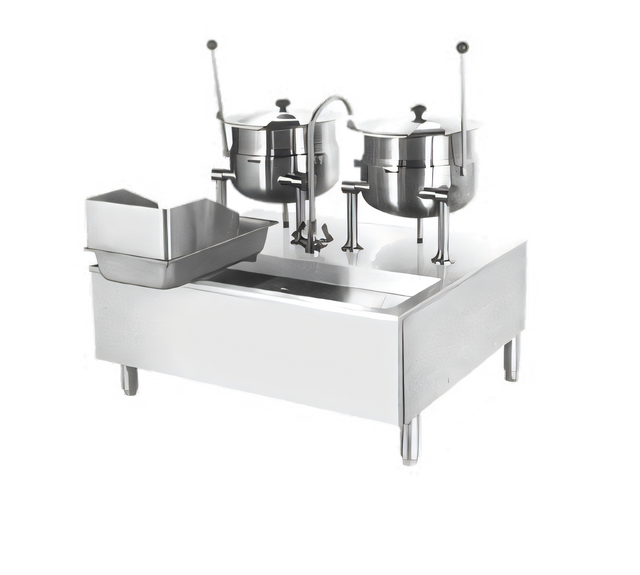

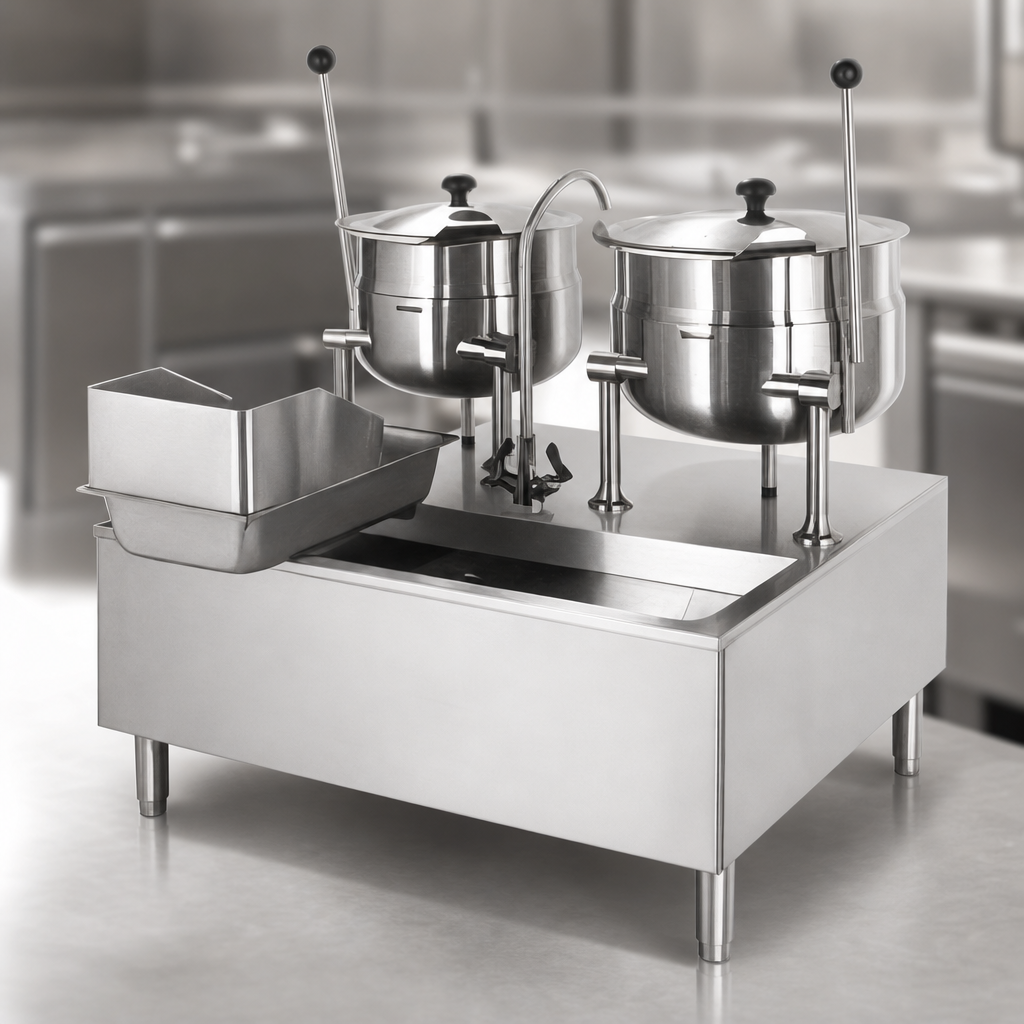

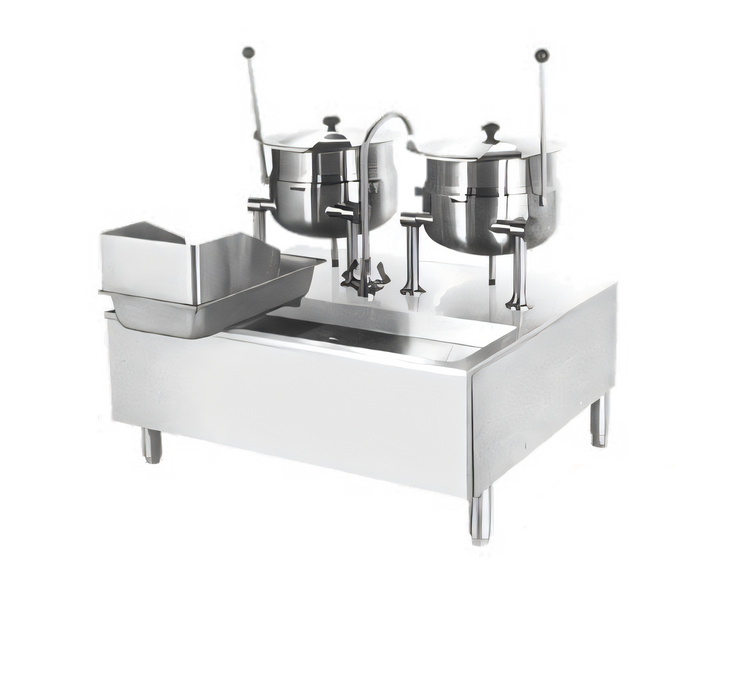

Cleveland Direct-Steam Kettle/Cabinet Assembly – 6 gal + 20 gal
63" Wide SD-1600 Series • Manual Tilting • 2/3 Steam JacketedHandle delicate sauces and high-volume soups on one compact workstation. This Cleveland 63" stand partners a 6-gallon and a 20-gallon direct-steam kettle, giving you unmatched flexibility, fast heat-up and effortless clean-up in the busiest production kitchens.
Key Features
- Two independent, manual-tilt kettles – 6 gal (23 L) & 20 gal (80 L)
- 316 stainless steel kettle liners for superior corrosion & acid resistance
- 304 stainless steel top, front & sides with sanitary #4 finish
- Factory-installed Steam Control Kits (needle valve, trap, strainer & check valve) – just connect 5–45 psi steam
- Low 18" cabinet height keeps the pour lip at an ergonomic level
- Full-width drain trough with 1 ½" NPT outlet plus sliding catch pan & splash shield
- Double pantry faucet (hot & cold) with swing spout for filling & rinse-down
- 50 psi jacket rating with chrome-plated safety valves
- Lift-off covers included to speed boiling and cut energy loss
- NSF & ASME certified; ships fully assembled and pressure-tested
Serving Capacities (4 oz / 118 ml portions)
| Kettle | Capacity | Portions / Batch |
|---|---|---|
| 6 gal | 23 L | ≈ 160 |
| 20 gal | 80 L | ≈ 704 |
| Total | 98 L (26 gal) | ≈ 864 |
Technical Specifications
| Stand width | 63" / 1600 mm |
|---|---|
| Stand height | 18" base (≈ 55" overall) |
| Depth | 44" / 1118 mm |
| Jacket rating | 50 psi (345 kPa) |
| Steam supply | 5–45 psi, ¾" NPT connection |
| Water inlets | ½" O.D. copper (hot & cold) |
| Drain outlet | 1 ½" American Standard straight pipe thread |
| Construction | 304 SS exterior, 316 SS kettle liner |
| Warranty | 1-year parts & labor (extended options available) |
Why Kitchens Love It
- Run R&D batches in the 6 gal kettle while the 20 gal unit feeds the line.
- Direct-steam design heats faster and costs less to operate than electric self-contained models.
- Low stand height minimizes lifting and improves operator safety during pouring.
- Front-mounted faucet, controls and drain keep everything within easy reach.
Need baskets, strainers or moisture separators? Most Cleveland accessories can be factory-fitted or shipped with your order—just ask!
