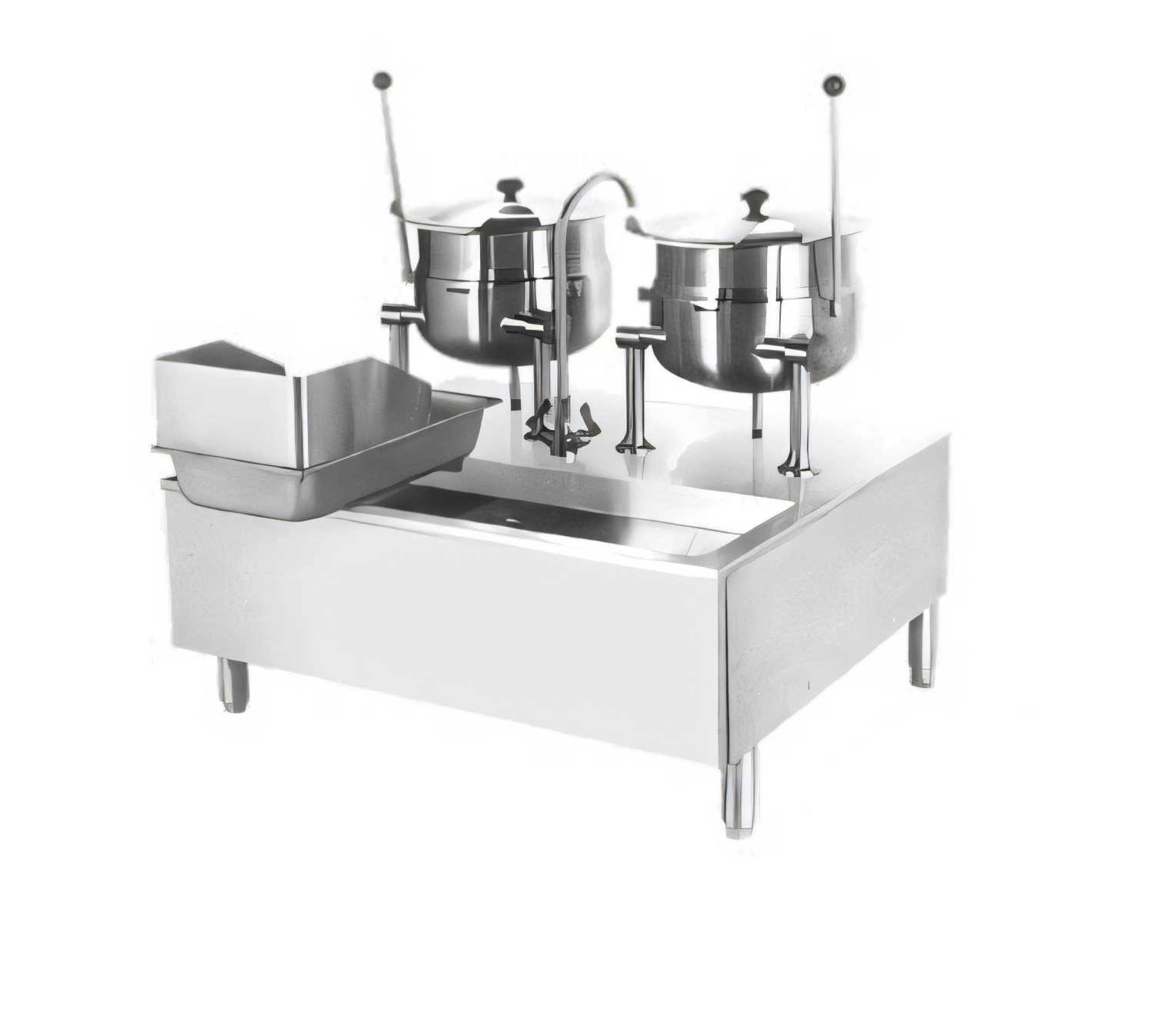

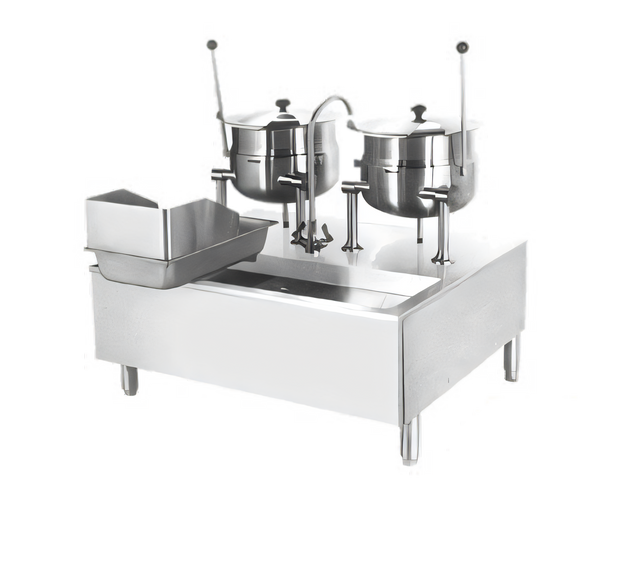

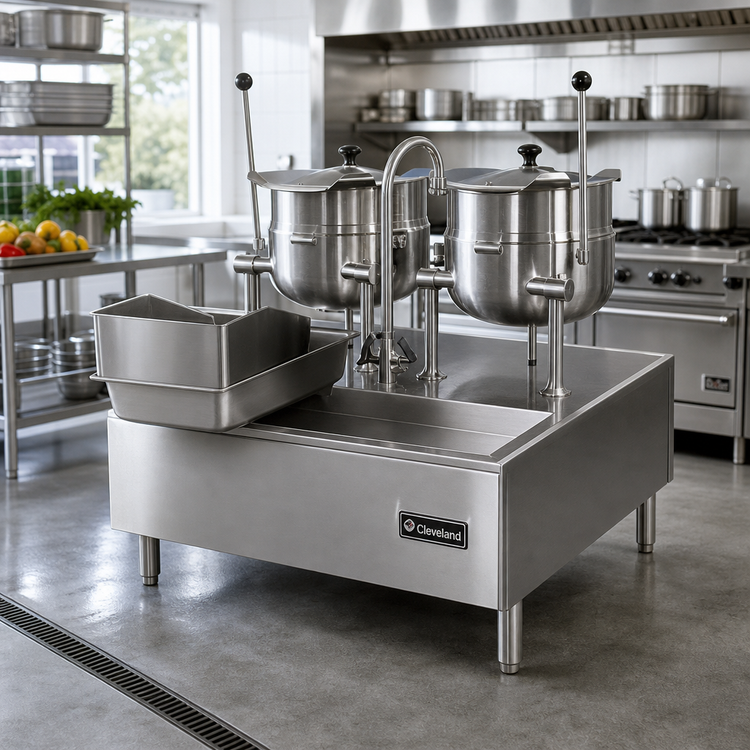

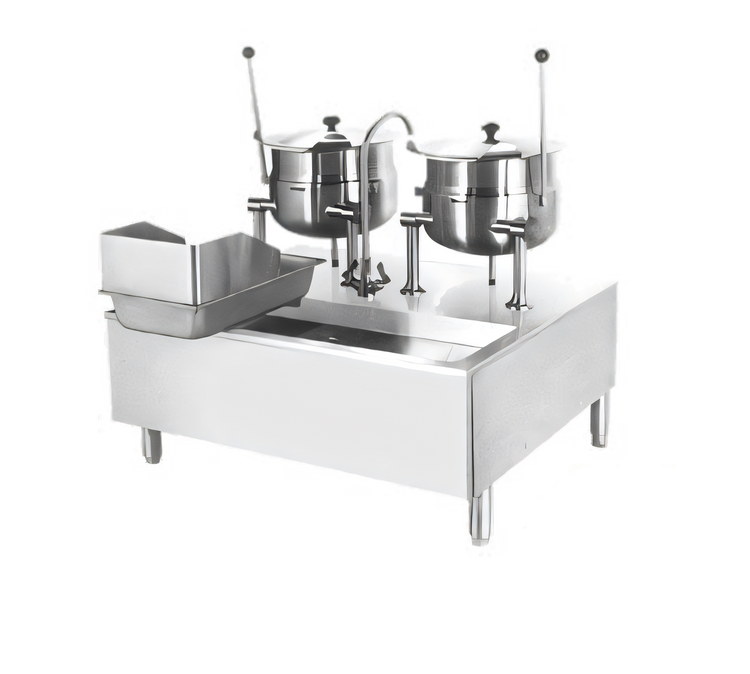

Cleveland Range Stand-Mounted Direct Steam Kettle/Cabinet Assembly with (2) 12-Gallon Kettles

63-Inch Wide Cabinet Base, Low Cabinet Height, 316 Stainless Steel Interior

This direct-steam kettle/cabinet assembly gives high-volume kitchens two 12-gallon kettles, a wide cabinet base, and integrated water, drain, and steam-control features in one compact station.

  • Two 12-gallon, 2/3 steam-jacketed tilting kettles provide 24 gallons total capacity.
  • Direct-steam design connects to a steam source supplying 5 to 45 psi.
  • Type 304 stainless steel construction with a 316 stainless steel interior for durability and easy cleaning.
  • Includes lift-off covers, factory-installed steam control kits, and a balanced manual tilt design.
  • Cabinet base includes a hot and cold water faucet with swing spout, full-width drain trough, and sliding catch pan with splash shield.

Overall Dimensions:

62.99"W x 33.5"D x 60.05"H

Product Weight:

250.0 lb

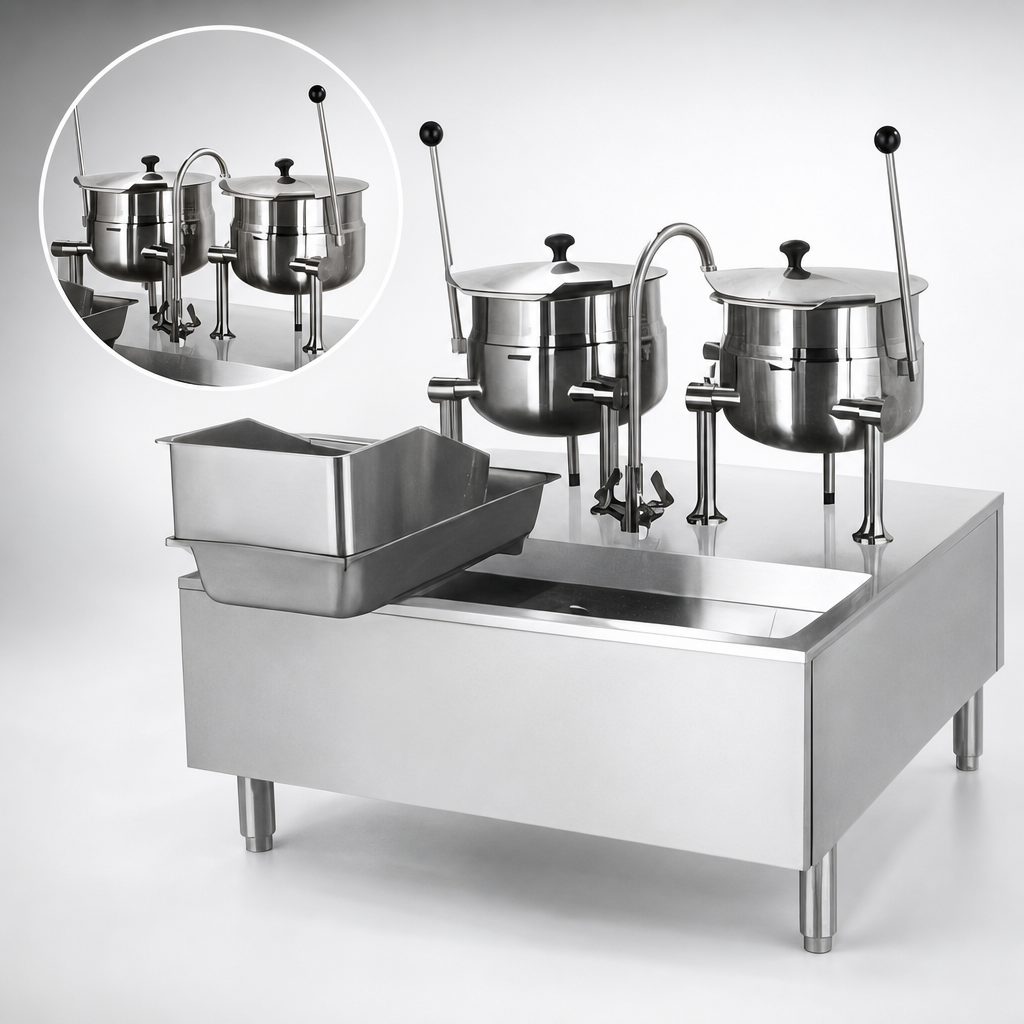

Two 12-Gallon Kettles

Factory-assembled unit includes two kettles for 24 gallons total capacity.

2/3 Steam-Jacketed Construction

Each kettle is 2/3 steam jacketed for efficient, even heating.

Direct Steam Connection

Designed to connect directly to a steam source; operating pressure is 5 to 45 psi.

304 Stainless Steel Construction

Type 304 stainless steel construction provides durable service in demanding kitchens.

316 Stainless Steel Interior

316 series stainless steel interior helps resist corrosion and simplifies cleaning.

Lift-Off Kettle Covers

Removable covers provide easy access for filling, stirring, and cleaning.

Factory-Installed Steam Control Kits

Includes a needle-type steam control valve, steam trap, condensate strainer, check valve, nipples, and fittings.

Double Pantry Faucet

Hot and cold water faucet with swing spout provides convenient water access at the stand.

Drain Trough and Sliding Catch Pan

Full-width drain trough with 1.5-inch male drain connection and a sliding catch pan with splash shield.

Manual Balanced Tilting Design

Balanced manual tilt helps control pouring and product transfer.

50 PSI Steam Jacket Rating

Kettle jacket is rated to 50 psi and protected by a chrome-plated safety valve.

Low Cabinet Height Base

Stand-mounted cabinet base is built at a low height for ergonomic access.

Type Kettle/Cabinet Assembly
Style Direct Steam
Installation Type Floor Model (With Cabinet Base)
Material 304 Stainless Steel
Interior Finish 316 Stainless Steel
Finish #4 Finish
Capacity 24 Gallons Total
Compartments 2
Water Connection Required
Drain Connection Required
Water Inlet Size 3/4 Inch O.D. Copper Tube or 1/2 Inch NPT Pipe
Drain Connection Size 1 1/2 Inch Diameter American Standard Straight Pipe Thread LF
Steam Inlet Size 1/2 Inch IPS Minimum Line
Condensate Return Size 1/2 Inch NPT
Steam Jacket Rating 50 PSI
Operating Pressure 5 to 45 PSI
Shipping Width 63 Inches
Shipping Depth 34 Inches
Shipping Height 61 Inches
Shipping Weight 250 lb.
Selling Unit Each
Units Per Case 1

Documents

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

This assembly includes two 12-gallon kettles for 24 gallons total capacity.
It connects directly to a steam source supplying 5 to 45 psi, and the kettle jacket rating is 50 psi.
The water inlet accepts 3/4-inch O.D. copper tube or 1/2-inch NPT pipe, the drain connection is 1 1/2-inch diameter straight pipe thread, and the condensate return is 1/2-inch NPT.
Standard features include lift-off covers, factory-installed steam control kits, a double pantry faucet, a full-width drain trough, and a sliding catch pan with splash shield.
The cutsheet lists 0-inch clearance on the right, left, and rear.
Yes. Optional accessories include a cooking basket, food strainer, steam pressure reducing valve, moisture separator/trap, single pantry faucet, wall meter, water cooling, back wall, back splash, and a self-locking hand tilt mechanism.
