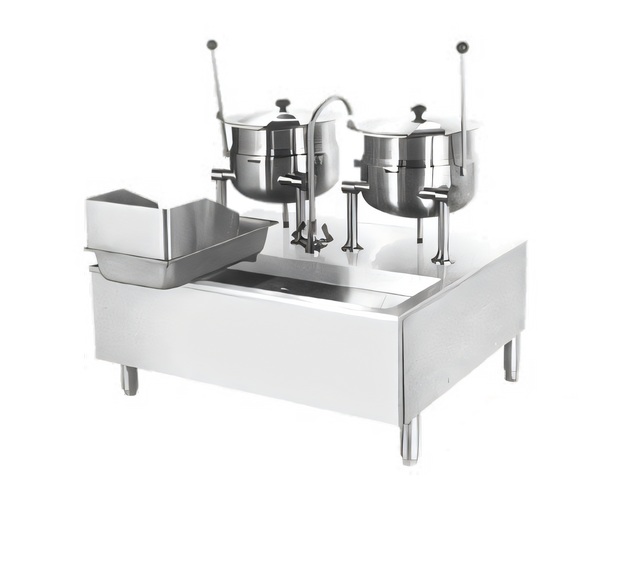

Cleveland Range SD1200K612 Stand-Mounted Direct Steam Kettle/Cabinet Assembly with 6-Gallon and 12-Gallon Kettles

SKU: SD1200K612
$27,880.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Cleveland Range Commercial Work Tables Equipment Stands Kitchen Equipment Tables New Arrivals Restaurant Equipment Steam Cooking Equipment Steam Kettles

Cleveland Range SD1200K612 Stand-Mounted Direct Steam Kettle/Cabinet Assembly with 6-Gallon and 12-Gallon Kettles

48-Inch Cabinet Base, Low Cabinet Height, Stainless Steel Construction

A factory-assembled direct steam kettle/cabinet combination that pairs 6- and 12-gallon kettles with stainless steel construction, built-in steam controls, and integrated drain and faucet features for efficient production.

  • Includes one 6-gallon kettle and one 12-gallon kettle on a 48-inch cabinet base.
  • Type 304 stainless steel construction with a #4 finish on the kettle and a 316 stainless steel interior liner.
  • 2/3 steam-jacketed kettles include lift-off covers and a manual balanced tilting design.
  • Factory-assembled steam control kits are mounted on the kettle(s) for easier installation.
  • Built-in hot and cold water faucet with swing spout plus a sliding drain catch pan with splash shield.
  • Full-width drain trough helps manage wash-down and cleanup in busy prep areas.

Overall Dimensions:

47.24"W x 33.5"D x 44.3"H

Product Weight:

230.0 lb

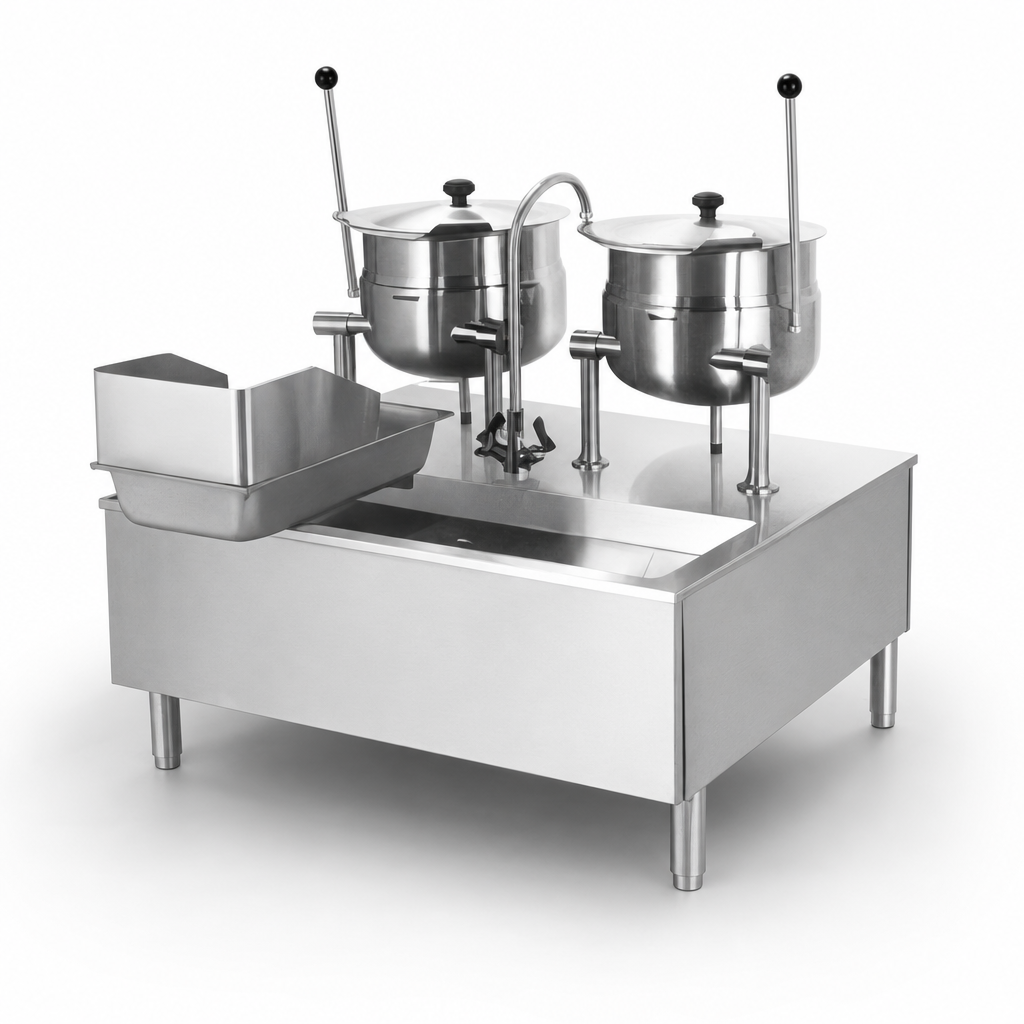

Factory-Assembled Kettle/Stand Combination

The kettle(s) are mounted on a modular stainless steel cabinet stand and assembled at the factory for streamlined installation.

Dual Kettle Configuration

Configured with one 6-gallon kettle and one 12-gallon kettle for flexible batch cooking.

304 Stainless Steel Construction

Type 304 stainless steel construction provides durability for commercial kitchen use.

316 Stainless Steel Interior Liner

The 316 stainless steel liner adds corrosion resistance in the kettle interior.

Lift-Off Kettle Covers

Lift-off covers are included on the kettles for convenient access during cooking and cleanup.

Integrated Steam Control Kits

Steam control kits are factory assembled and mounted on the kettle(s), including the valve, steam trap, condensate strainer, check valve, nipples, and fittings.

Faucet and Drain Features

Includes a hot and cold water faucet with swing spout, full-width drain trough, and sliding drain catch pan with splash shield.

Manual Tilting Design

Balanced manual tilting design supports controlled pouring and product transfer.

Type Kettle/Cabinet Assembly
Style Stand Mounted
Installation Type Floor Model
Capacity 18 Gallons Total
Material 304 Stainless Steel
Interior Finish 316 Stainless Steel
Finish #4 Finish
Steam Inlet 1/2 Inch IPS Minimum Line
Operating Pressure 5 to 45 PSI
Steam Jacket Rating 50 PSI
Water Inlet Size 3/4 Inch O.D. Copper Tube or 1/2 Inch NPT Pipe
Drain Connection Size 1 1/2 Inch Diameter American Standard Straight Pipe Thread LF
Shipping Width 48 Inches
Shipping Depth 34 Inches
Shipping Height 45 Inches
Shipping Weight 230 lb.
Selling Unit Each
Units Per Case 1

Documents

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

This assembly includes one 6-gallon kettle and one 12-gallon kettle.
The unit connects directly to a steam source supplying 5 to 45 psi, and the steam jacket rating is 50 psi.
Yes. It includes a hot and cold water faucet with a swing spout.
Yes. The steam control kit is factory assembled and mounted on the kettle(s).
Shipping dimensions are 48 inches wide, 34 inches deep, and 45 inches high, with a shipping weight of 230 lb.
