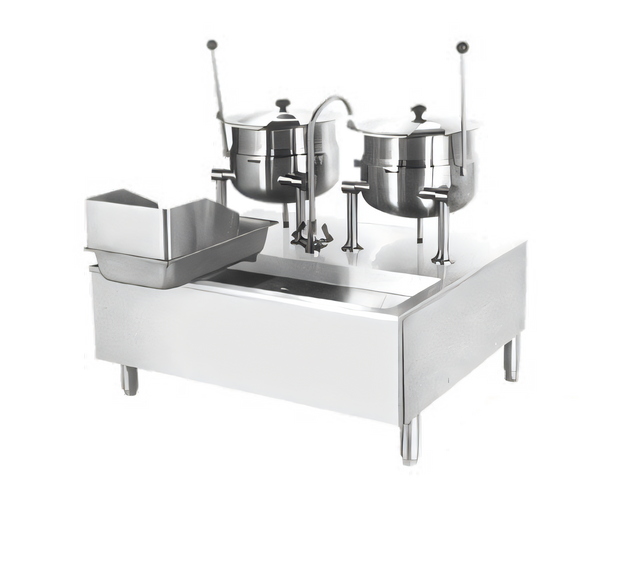

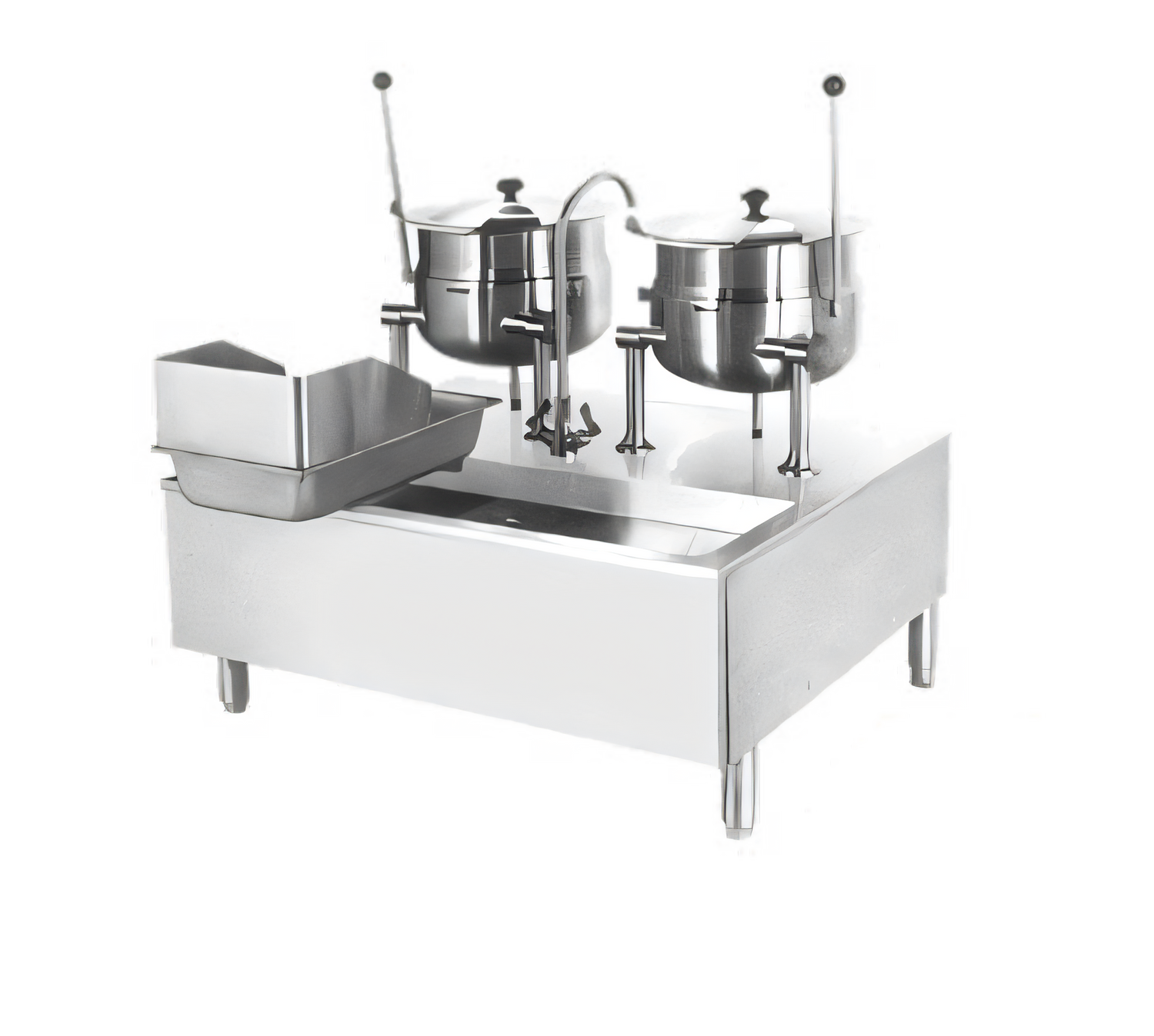

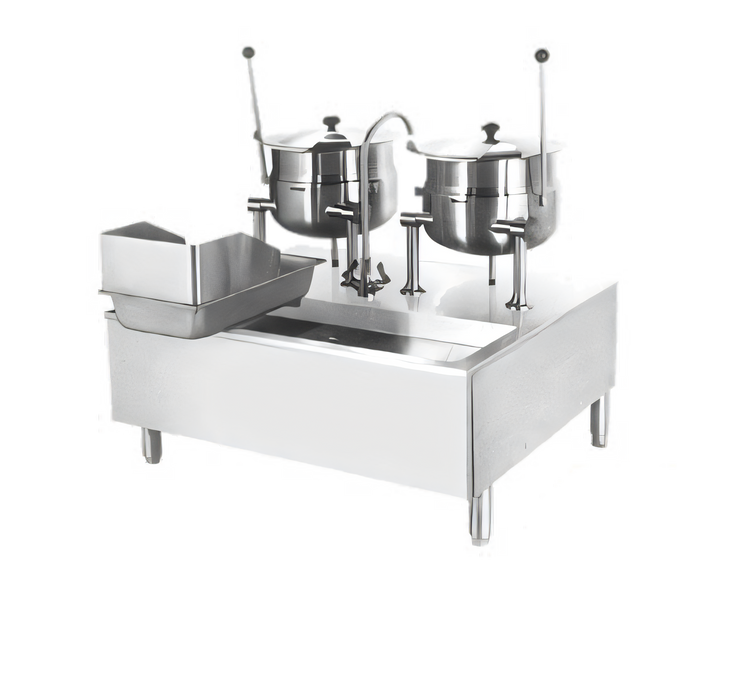

Cleveland Range Direct Steam Kettle Cabinet Assembly with Two 6-Gallon Kettles, 42-Inch Cabinet Base

Low Cabinet Height, Stand-Mounted Design

This factory-assembled direct-steam kettle base combines two 6-gallon stainless kettles, integrated controls, and a built-in drain/faucet setup in one compact unit.

  • Two 6-gallon kettles provide 12 gallons total capacity in a compact 42-inch cabinet base.
  • Factory-assembled stand-mounted design helps simplify installation and layout.
  • Type 304 stainless steel construction with a 316 stainless steel interior liner.
  • Includes lift-off covers, a double pantry faucet, and a sliding drain catch pan with splash shield.
  • Manual tilting, balanced kettle design with factory-installed steam control kits.
  • Connects directly to a steam source supplying 5 to 45 psi; 50 psi jacket rating and safety valve.

Overall Dimensions:

41.34"W x 33.5"D x 38.4"H

Product Weight:

210.0 lb

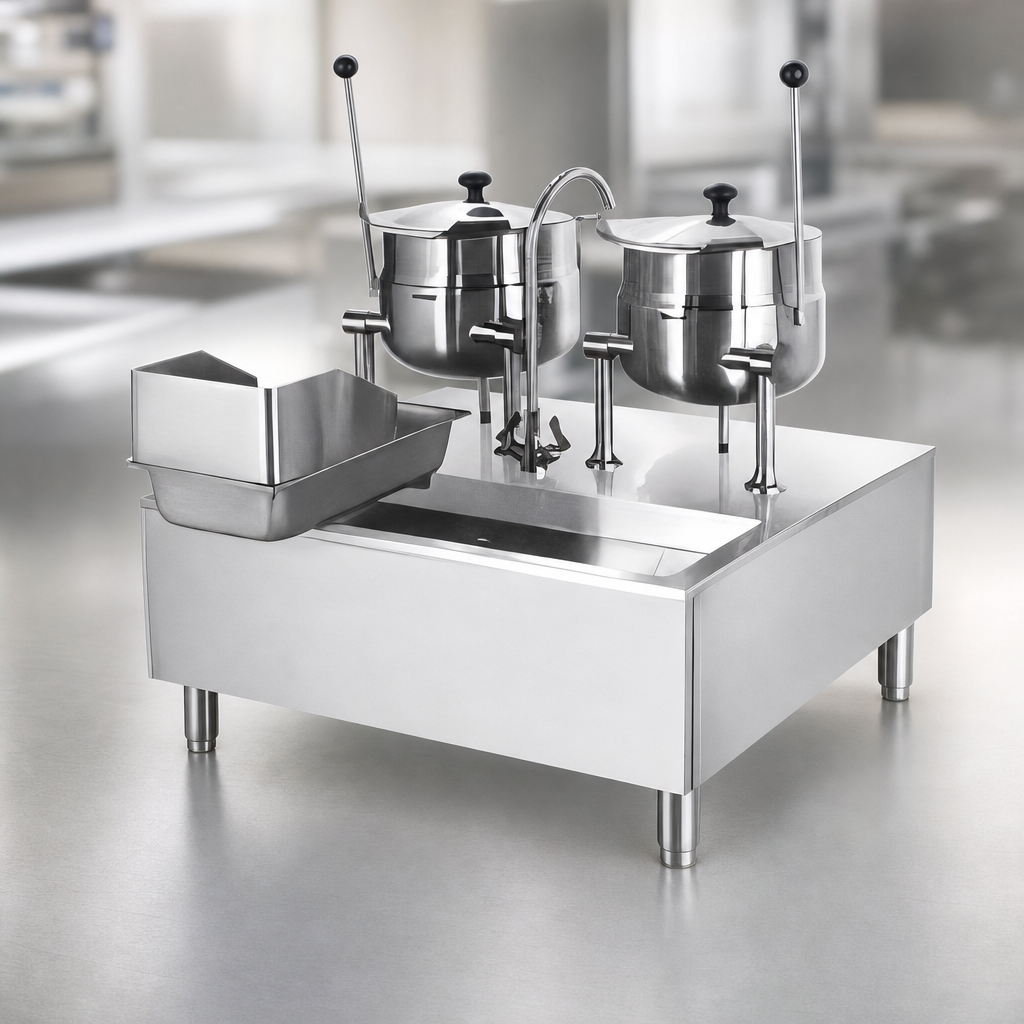

Factory-Assembled Kettle/Stand Combination

Matched kettle and cabinet assembly arrives prebuilt for easier setup and installation.

Two 6-Gallon Kettles

Provides a total of 12 gallons of kettle capacity in one compact unit.

304 Stainless Steel Construction

Durable stainless steel construction with a #4 finish on the kettles.

316 Stainless Steel Interior Liner

Corrosion-resistant interior liner for added durability in demanding kitchen environments.

Lift-Off Covers

Removable covers make access and cleaning easier.

Factory-Installed Steam Control Kit

Includes needle-type steam control valve, steam trap, condensate strainer, check valve, nipples, and fittings.

Double Pantry Faucet

Built-in hot and cold water faucet with swing spout for filling and cleanup.

Sliding Drain Catch Pan

Includes a splash shield and is easy to position for use.

Manual Tilting, Balanced Design

Balanced tilting design supports safe and controlled kettle handling.

Full-Width Drain Trough

Top includes a full-width drain trough with a 1.50-inch male drain connection.

Type Direct Steam Kettle Cabinet Assembly
Style Stand Mounted
Installation Type Floor Model (With Stand)
Capacity 2 x 6 Gallons
Material 304 Stainless Steel
Interior Finish 316 Stainless Steel
Finish #4 Finish
Steam Inlet Size 1/2 Inch IPS Minimum
Steam Pressure Range 5 to 45 PSI
Safety Valve Pressure 50 PSI
Water Inlet Size 3/4 Inch O.D. Copper Tube or 1/2 Inch NPT Pipe
Drain Connection Size 1 1/2 Inch Diameter Straight Pipe Thread
Condensate Return Size 1/2 Inch N.P.T.
Selling Unit Each
Units Per Case 1
Shipping Width 45 Inches
Shipping Depth 44 Inches
Shipping Height 55 Inches
Shipping Weight 302 lb.

Documents

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It includes two 6-gallon kettles for a total capacity of 12 gallons.
The unit connects directly to a steam source supplying 5 to 45 psi.
The assembly uses Type 304 stainless steel construction with a 316 stainless steel interior liner.
Standard features include lift-off covers, a double pantry faucet, a sliding drain catch pan with splash shield, and factory-installed steam control kits.
The document lists left, right, and rear clearances as 0.
The top has a full-width drain trough with a 1.50-inch male drain connection, and water connections are 3/4-inch O.D. copper tube or 1/2-inch NPT pipe.
